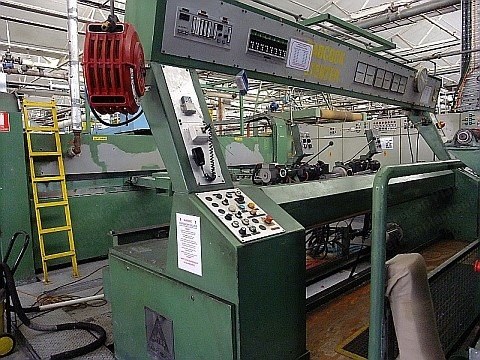

Babcock, 5000-5800, 1990, 8 Bays, 3.2m Frame Width, 3.0m Working Width, Gas Fired

Babcock, 5000-5800, 1990, 8 Bays, 3.2m Frame Width, 3.0m Working Width, Gas Fired

Description

  1. Overview
    1. Babcock stenter
    2. Type: 5000-5800
    3. Year: 1990
  2. Specifications
    1. Gas fired with 8 thermostatically controlled bays
    2. All bay fans are 2-speed
    3. All bays heat to a maximum working temperature of 220 °C
    4. Stenter frame width is 3.2 m with a maximum working width of 3.0 m
    5. Pin chain (originally pin/clip) is horizontal
    6. Maximum operating speed is 150 m/min
  3. Equipment and Features
    1. Erhard/Leimer uncurlers located at the entry
    2. 4 fan cooling zone at the exit
    3. Auto pilot
    4. 4 radiation pyrometers
    5. Full instrument bridge located above the entry
    6. Front and rear monitoring cameras and screens
    7. Pleva moisture monitor fitted to the exhaust duct to control the speed
    8. Heinz Herget Pol rotor at the entry
    9. Web slitting unit at the exit
    10. Mahlo straightening unit at the entry
