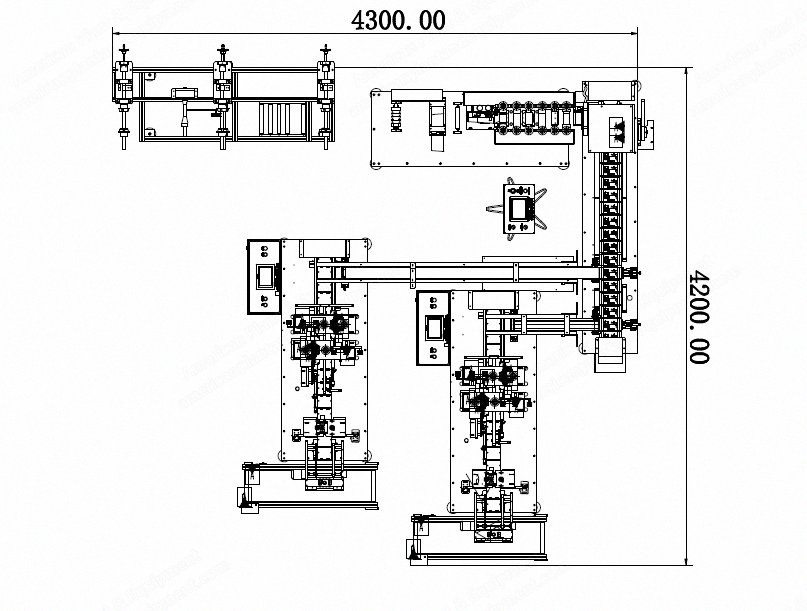

NovaStar, FM270, 2020, Fully Automatic Face Mask Production Line, 1+2 Configuration, 0-120 pcs/min (New)

NovaStar, FM270, 2020, Fully Automatic Face Mask Production Line, 1+2 Configuration, 0-120 pcs/min

Description

  1. Function
    1. Fully automatic ear-to-loop mask making machine.
    2. Includes one set face mask blank producing machine and two sets outer ear loop welding machines.
    3. Mask bodies produced on the mask machine can be allocated onto two sets of subsequent machines controlled by PLC at a speed of 0 to 120 pieces per minute.
    4. All operations of the machine are controlled through touch screen or PLCs.
  2. Process
    1. After the machine makes the mask body, the conveyor belt structure transports the mask body piece to the connecting conveyor.
    2. Through the connection conveyor, mask plate to the conveyor belt, again through the conveyor belt the mask is transported to the ear piece section to the front of the machine above the first mask plate.
    3. Finally, through the cylinder down the mask onto mask ear machine disc, followed up by ear masks for the ears of the belt welding machine and then it is complete.
  3. Features
    1. Machine frame is made of aluminum alloy, prevented from rust.
    2. The machine can make 1 to 3 types of mask blanks according to what the customer requires.
    3. The size of the mask blank and the folding location can be adjusted.
    4. The direction of the ear loop is outside.
    5. Computer program control and photoelectric detection achieves a high reliability and low failure rate.
  4. Configuration
    1. Mask machine: 1 set.
    2. Ear loop welding machine: 2 sets.
  5. Specifications
    1. Machine size: 7500 mm (L) x 3500 mm (W) x 1700 mm (H).
    2. Throughput: 0 to 120 pieces per minute.
    3. Electricity: 220 V, 50/60 Hz.
    4. Air pressure: 0.6 MPa.
    5. Power: 11 kW.
    6. Configuration: 1 set of CS-175 mother machine and 2 sets of CS-WD175 child machines (1+2)
  6. Instruction
    1. Mask machine frame: 1 set.
    2. AC motor: 1 set.
    3. Ultrasonic: 2 sets.
    4. PLC: 1 set.
    5. Optoelectronic switch: 2 sets.
    6. Ear loop welding machine: 2 sets.
    7. AC motor: 2 sets.
    8. Stepping motor: 4 sets.
    9. Cylinder: 12 to 16 sets.
    10. Ultrasonic: 4 sets.
    11. Optoelectronic switch: 10 sets.
    12. Conveying unit: 1 set.
    13. Speed motor: 2 sets.
