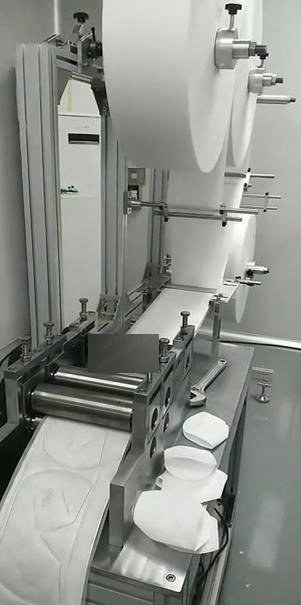

NovaStar, FM277, N95 Mask Making Machine, 30 to 45 pcs/min, 4 Layers, Rotary Ultrasonic Die Cutting (New)

NovaStar, FM277, N95 Mask Making Machine, 30 to 45 pcs/min, 4 Layers, Rotary Ultrasonic Die Cutting

Description

  1. Overview
    1. Four machines for N95 face mask production: semi-automatic N95 face mask machine, N95 earloop machine, N95 sealing machine, and N95 nose clip machine.
    2. Packed in one wooden case.
    3. Package size: 2000 mm x 1500 mm x 1900 mm (L x W x H).
    4. Gross weight: about 1000 kgs.
    5. Warranty of machine: 1.5 years.
    6. Lead time is 12 days after order is confirmed.

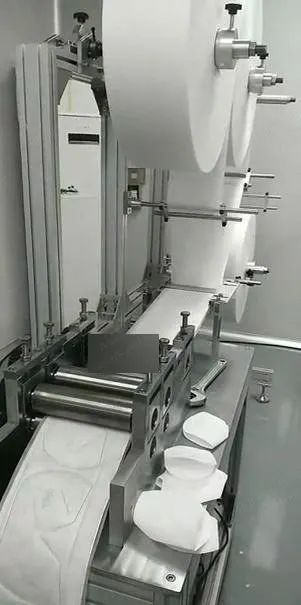

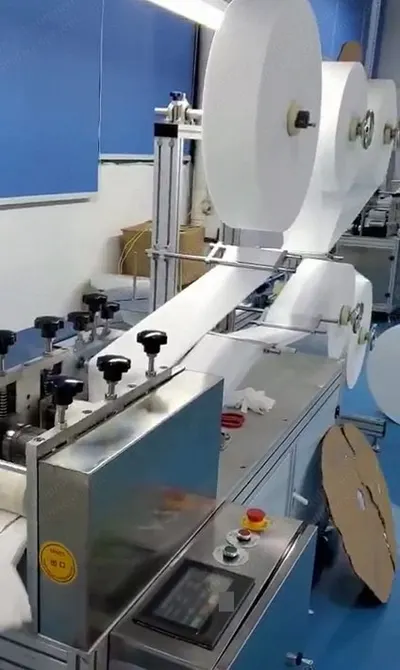

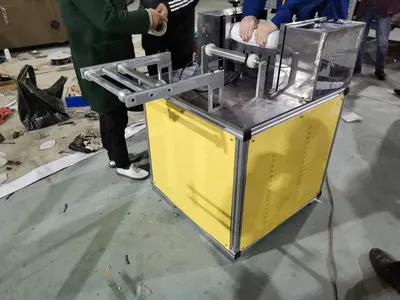

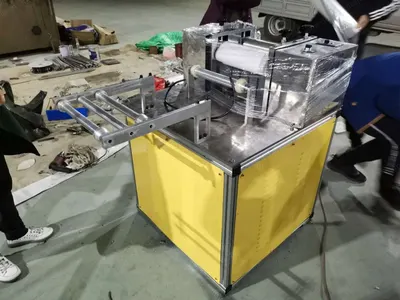

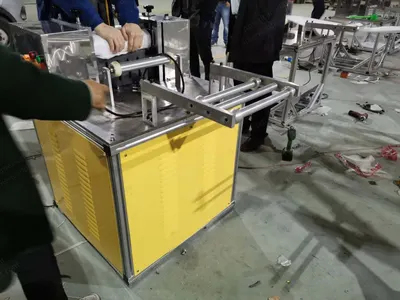

  2. Semi-Automatic N95 Face Mask Machine
    1. 30 to 45 pcs/min.
    2. With nose wire insertion.
    3. Maximum roll diameter: 600 mm.
    4. Number of rolls feeding the machine: 4 rolls or 4 layers.
    5. Width of the roll: 175 mm.
    6. Total kw of this machine: 4 kw.
    7. Frequency (khz) of the rotary ultrasonic die: 15 khz 2600 w.
    8. Diameter of the rotary die: 76 mm.
    9. Floor space dimensions of this machine: 3000 mm x 1500 mm.
    10. Machine weight: 400 kgs.
    11. Packing dimensions of the machine: 1690 mm x 1220 mm x 1650 mm (L x W x H).
    12. Height of the machine: 1960 mm.

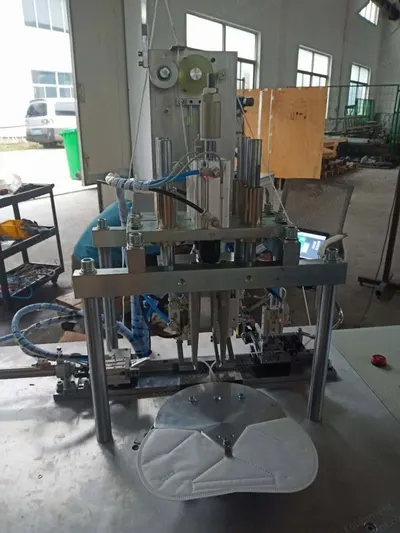

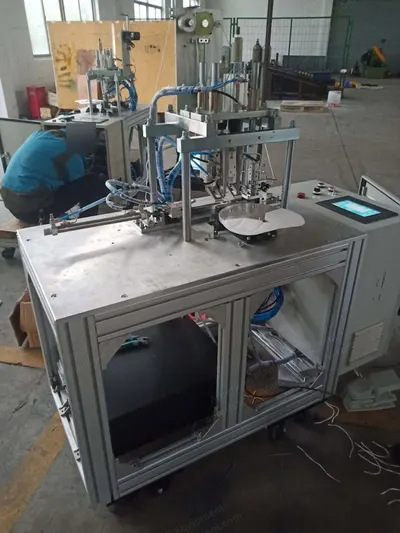

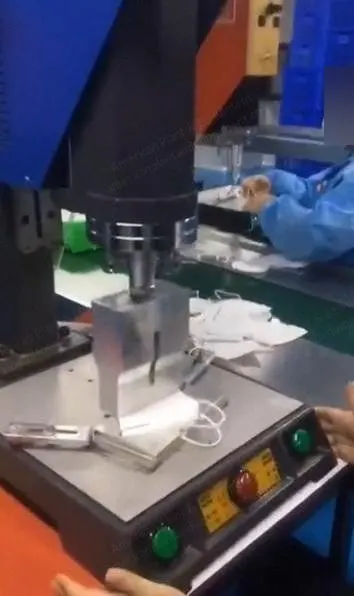

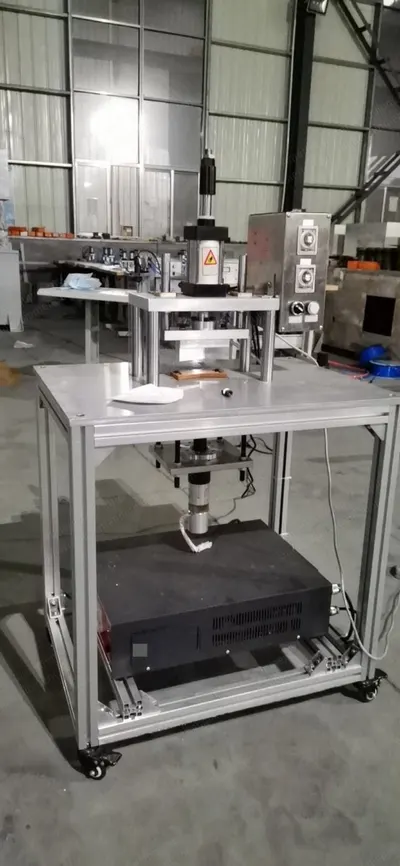

  3. N95 Earloop Machine
    1. 15 to 20 pcs/min.
    2. Number of pairs of ear loops done per minute: 15 to 20 pcs/min.
    3. Floor space dimensions of the machine: 1200 mm x 1000 mm.
    4. Machine weight: 350 kgs.
    5. Packing dimensions of the machine: 1200 mm x 1000 mm x 1500 mm (L x W x H).
    6. Height of the machine: 1300 mm.
    7. Spot welding is used to adhere the clip to the mask. No glue is used.

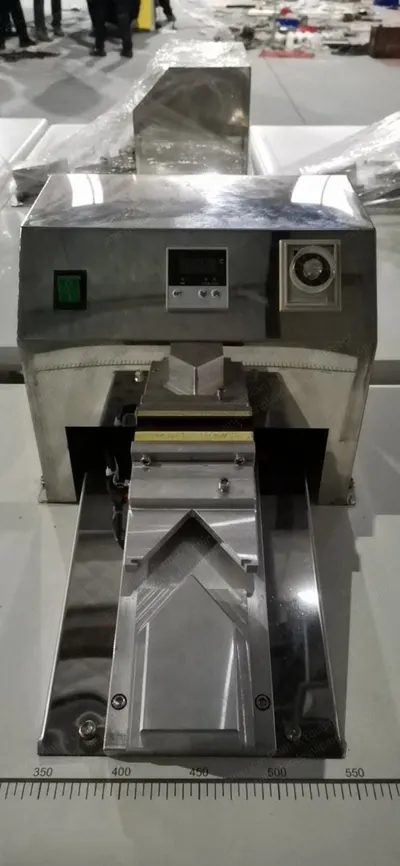

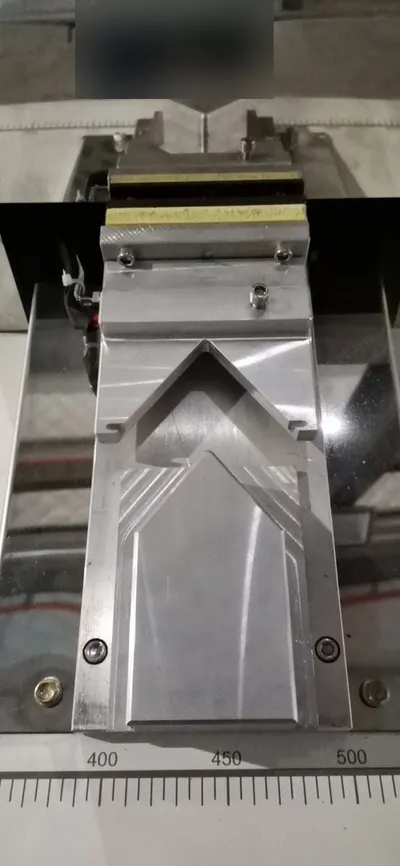

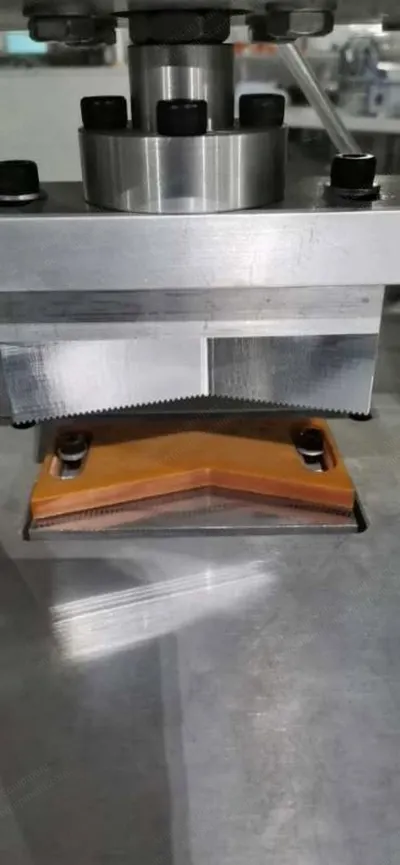

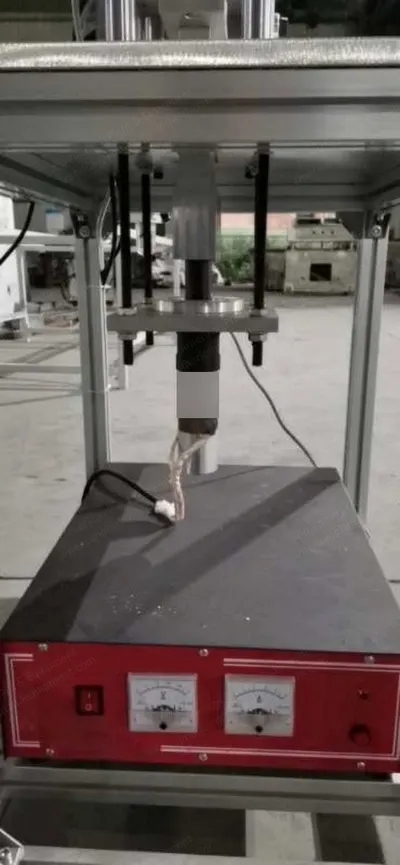

  4. N95 Sealing Machine
    1. 15 to 20 pcs/min.
    2. Total kw of the machine: 20k 2600 w.
    3. Frequency (khz) of the rotary ultrasonic die: 20k.
    4. Floor space dimensions of the machine: 600 mm x 600 mm.
    5. Machine weight: 100 kgs.
    6. Packing dimensions of the machine: 700 mm x 700 mm x 1300 mm (L x W x H).
    7. Height of the machine: 1200 mm.

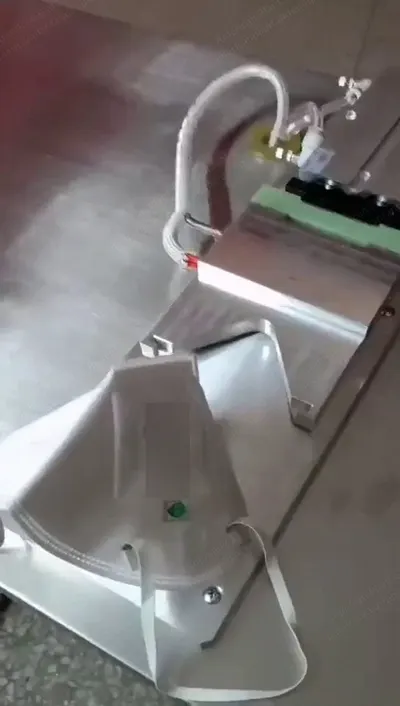

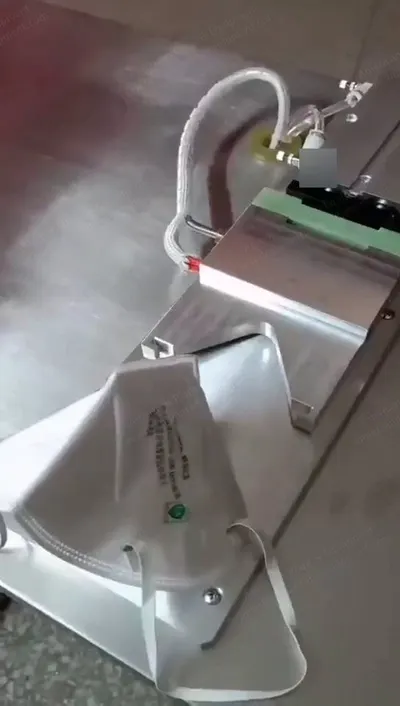

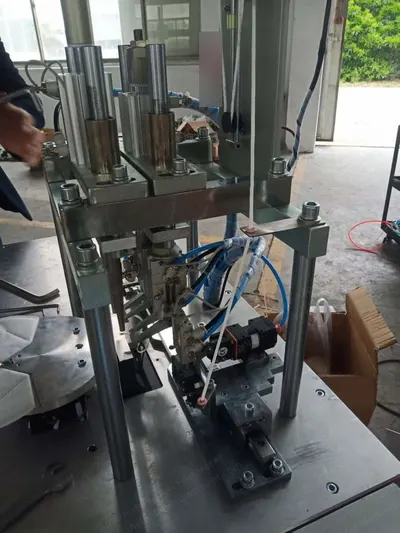

  5. N95 Nose Clip Machine
    1. 15 to 20 pcs/min.
    2. See video of how the clip is attached to the mask.
    3. Dimensions of the machine: 500 mm x 500 mm.
    4. Weight of the machine: 20 kgs.
