Maximum size of mattress: 2000 mm × 2000 mm × 400 mm
Test speed: 0 to 20 r/min
Control method: PLC
Test standard: ASTM F1566
One-year warranty
Specifications
Machine dimensions: 1320 mm x 2900 mm x 1754 mm (W x D x H)
Machine dimensions when packed for shipment: 1400 mm x 3020 mm x 1780 mm (W x D x H)
Required floor space: 1900 x 3520 x 2280 mm
Power: AC 480V ±10%, 50/60 Hz, three phase
Included Accessories
One hexagonal barrel and one cylinder barrel
Operation Details

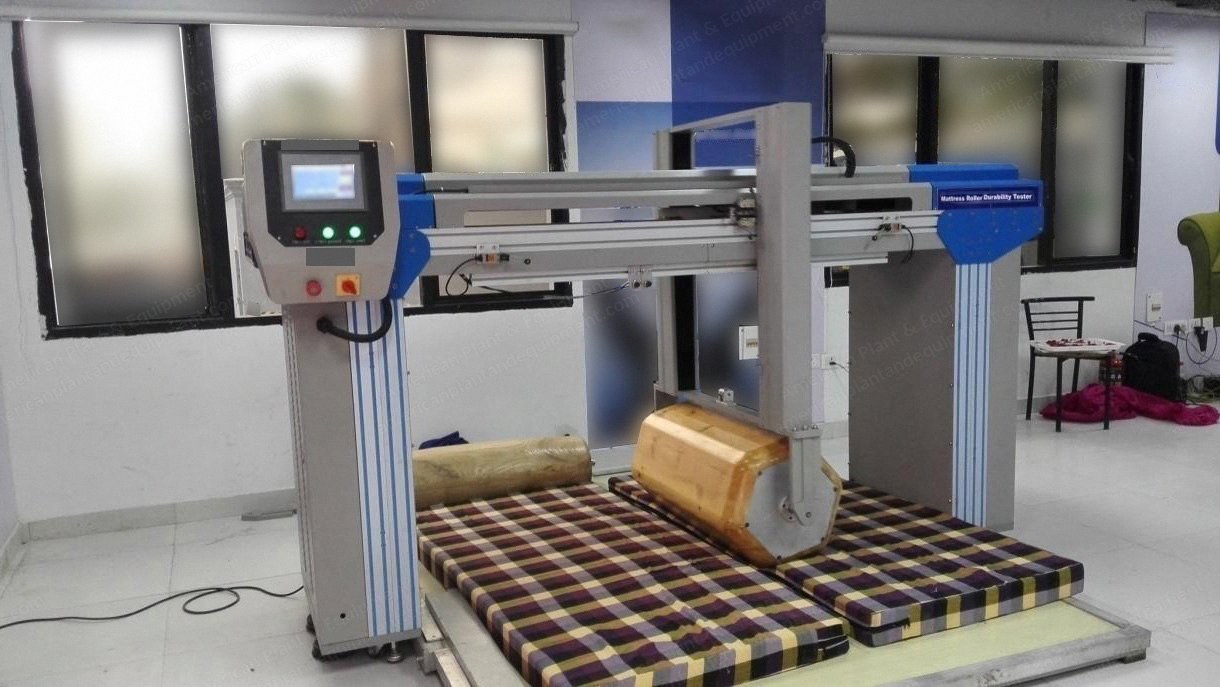

Using a horizontal hexagonal wooden drum roll or cylinder, simulate human motion to assess the durability of the mattress.
The mattress durability tester has been manufactured to determine the durability of any type of mattress and box spring unit, regardless of the materials of construction, by simulating long-term use conditions.
It consists of a weighted roller which moves width ways across a test mattress to simulate body movement.
The length of stroke to which the roller moves is very easily adjusted, by sliding the stroke adjusters to left or right, to suit the relevant mattress under test.
Unloading and loading of the roller onto the test mattress is done easily via a motor driven lifting assembly.
According to different mattress to adjust the rolling stroke (adjust the limit switch position).
Low coefficient of friction guide ensures full drum weight on the mattress.

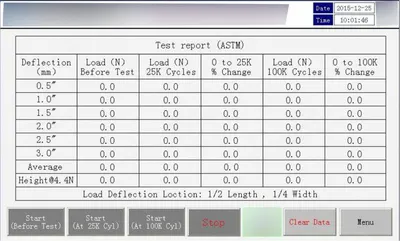

The LCD touch screen display provides easy control and setup.
