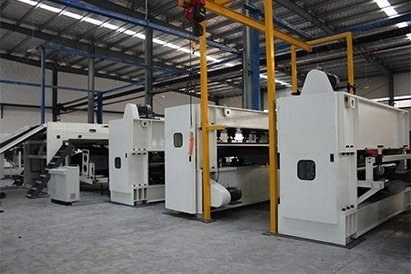

NovaStar, NN485, Thermobonding Oven, 2600mm Working Width, Gas Heated, 400-600 kg/h (New)

NovaStar, NN485, Thermobonding Oven, 2600mm Working Width, Gas Heated, 400-600 kg/h

Description

  1. Overview
    1. Gsm: 300 to 4000 g/m²
    2. Speed: 2 to 10 m/min
    3. Heating chambers: 2000 mm x 2
    4. Capacity: greater than 400 to 600 kg/h
    5. Machine weight: 30,000 kg
    6. Installed power: 149.25 kW
    7. Cooling: air cooling
    8. Conveyor material: Teflon/metal
    9. Gas heated
  2. Motor Information
    1. Brand: Siemens-Beide
    2. Cooling: 7.5 kW x 4
    3. Transmission for cooling: 1.5 kW x 2
    4. Lifting for cooling part: 0.75 kW x 2
    5. Transfer lattice: 7.5 kW
    6. Heating fans: 30 kW x 3
    7. Discharging: 7.5 kW x 2
    8. Chamber lifting: 0.75 kW x 3
    9. Voltage and power: per customer
  3. Safety
    1. Closed body, with secured heat circulation system
  4. Material
    1. The web is clamped into the heating chamber by the Teflon belt, and then dried and set with hot air which results in heat setting.
  5. Maintenance
    1. Filter trays in the heating chambers are to be periodically cleaned (with air spray on the lattice and the rollers) and lubrication and grease on the bearings.
  6. Specifications
    1. Working width: 2600mm
