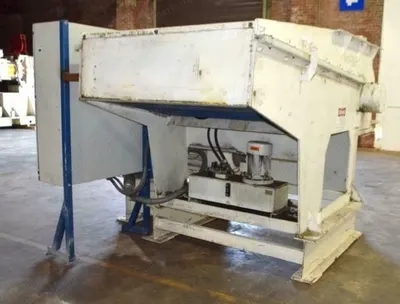

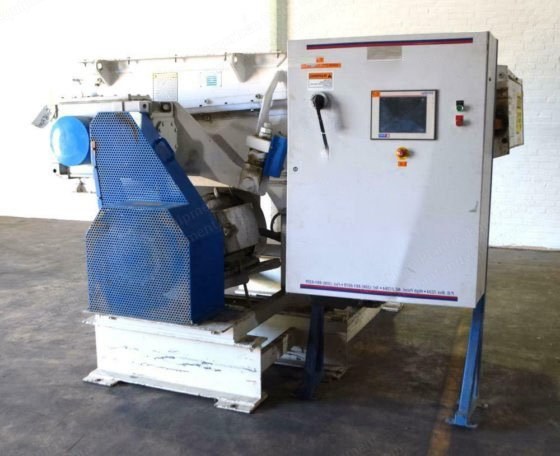

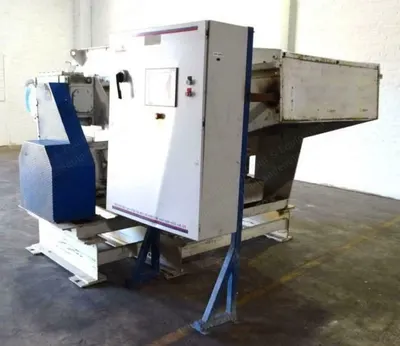

Vecoplan, RG 52/100SWU Short, 2005, 52x48 Inch Feed Opening, 89 HP, 18000 lbs/hr Capacity

Vecoplan, RG 52/100SWU Short, 2005, 52x48 Inch Feed Opening, 89 HP, 18000 lbs/hr Capacity

Description

  1. Overview
    1. Vecoplan RG52/100 single shaft shredder
    2. Model RG 52/100SWU short
    3. Year: 2005
    4. Carbon steel construction
  2. Rotor Specifications
    1. Approximately 15 inches diameter x 51-9/64 inches wide rotor with bolt-on cutting inserts
  3. Feed Opening
    1. Approximately 52 inches x 48 inches feed opening, no hopper
    2. Horizontal hydraulic feed ram with a 3.3 kW (4.4 hp) power pack
  4. Discharge
    1. End discharge with 3 inches diameter screen holes
  5. Drive System
    1. Shredder driven by a 67.11 kW (89 hp), 3/60/460 volt, 1784 rpm motor through a Flender reducer
  6. Controls
    1. Includes a control panel with a Vecoplan operator panel model XBTF034510
    2. Allen-Bradley Micrologix 1200
  7. Performance
    1. Approximate throughput: 18,000 pounds per hour
