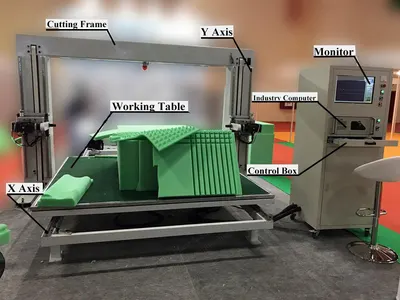

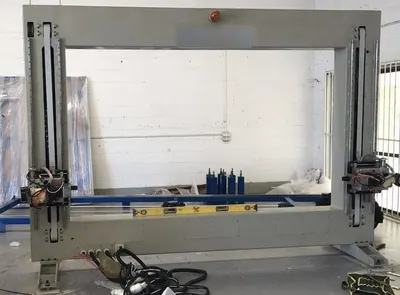

NovaStar, FN473, Oscillating Blade CNC Foam Cutter, Max. Block 2137x2137x1300mm, 6 kW (New)

NovaStar, FN473, Oscillating Blade CNC Foam Cutter, Max. Block 2137x2137x1300mm, 6 kW

Description

  1. Foam Cutting Capabilities
    1. Thickness – the machine can cut blocks up to 1300mm tall (51 inches).
    2. Density – 14.5 density (1.8lbs), 32 ild.
    3. Range in sizes of the foam plank are from 965mm x 1905mm to 1800mm x 2100mm (twin to california king and eastern king).
  2. Technical Data
    1. Max. foam block size: length 2137 x width 2137 x height 1300mm (84 inches long x 84 inches wide x 51 inches tall).
    2. Cutting blade: 3x0.6 x 2450mm.
    3. Control system: profiler software.
    4. Operate system: windows 10, 32 bit.
    5. Vibrating motor: servo motor.
    6. Automatic blade position: included.
    7. Working table: flat/with rotating table on top.
    8. Automatic blade tracking: included.
    9. Cutting speed: 0~6 m/min.
    10. Tolerance: ±1 (mm).
    11. Total power: 6 kw, 380 v, 50hz / 220v 60hz.
    12. Gross weight: 1800 kg.
    13. Table: with turning table, 2185mm x 2185mm (86” x 86”).
    14. Floorspace dimensions: 6500mm x 3330mm x 2750mm.
  3. Warranty
    1. 12 months limited warranty.
