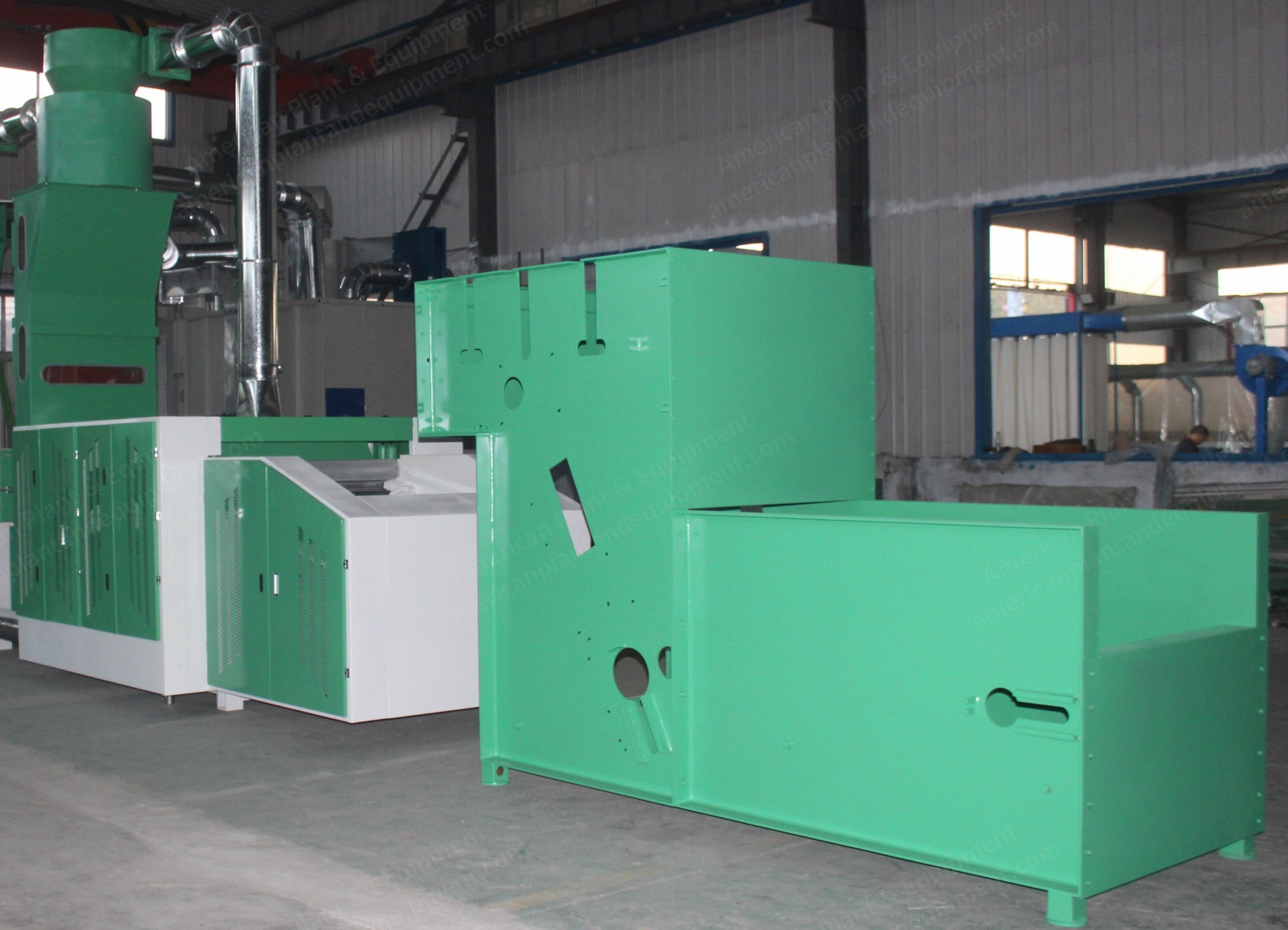

NovaStar, RS160, Single Drum Rag Picker, 1000mm Working Width, with Hopper Feed, 30kW (New)

NovaStar, RS160, Single Drum Rag Picker, 1000mm Working Width, with Hopper Feed, 30kW

Description

  1. Overview
    1. Working width: 1000mm

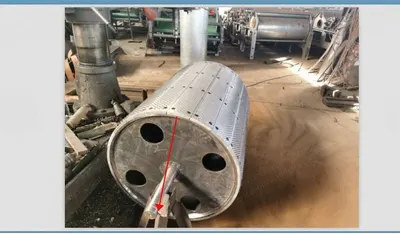

    2. Cylinder diameter: 800mm

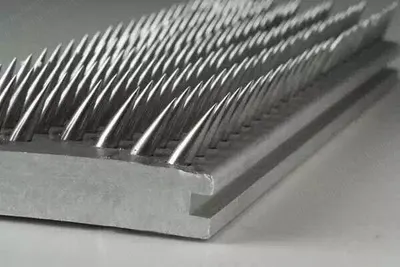

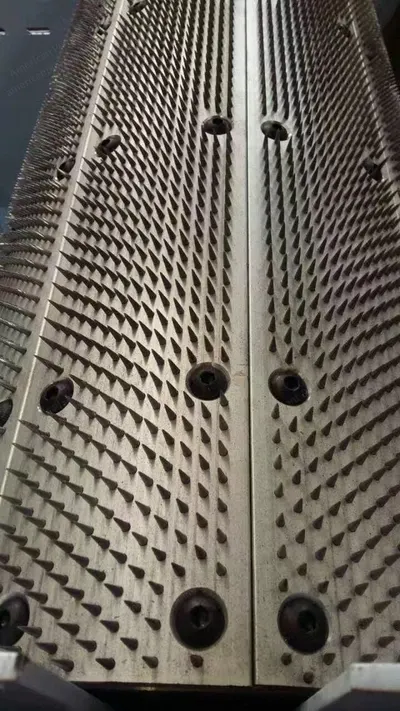

    3. Number of lags on the cylinder: 20
    4. Number of pins per lag: 1138
    5. Total number of pins per cylinder: 22,760
    6. Pin diameter: 3.44mm x 25mm tall
    7. Gauge spacing: 15.5mm
    8. Lag thickness: 15mm
    9. Total number of pins on the drum: 9800
  2. Specifications
    1. Main motor: 30kW, voltage 220V, 60Hz
    2. Driven revolutions per minute when working: 1178
    3. Motor for apron feed: standard configuration (or as per customer)
    4. Feeding hopper included
    5. Motor for the hopper: standard configuration
    6. Working width: 1000mm
    7. Main motor: 5.5kW
    8. Feeding motor: 2.2kW with inverter
    9. Vibration motor: 1.1kW
    10. Dimensions: 2000x4000mm
  3. Included
    1. Full machine in a 20 foot container
