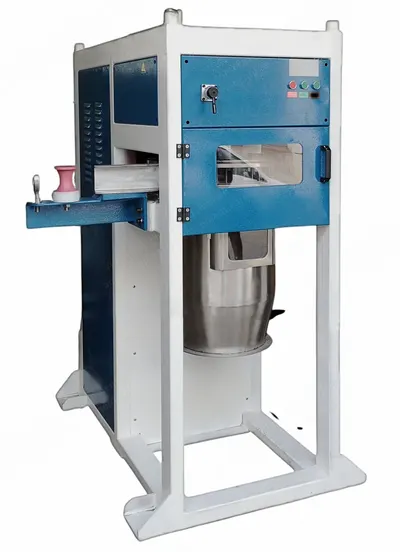

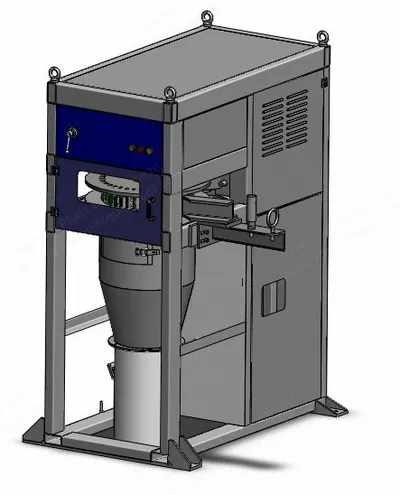

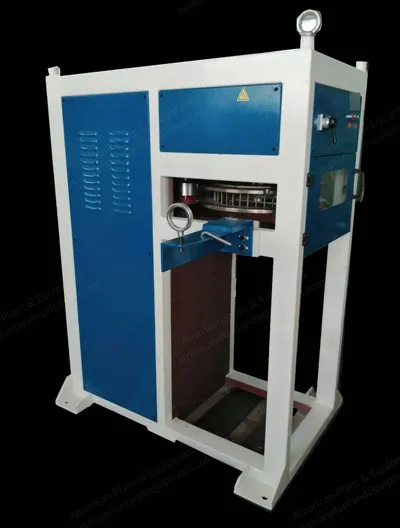

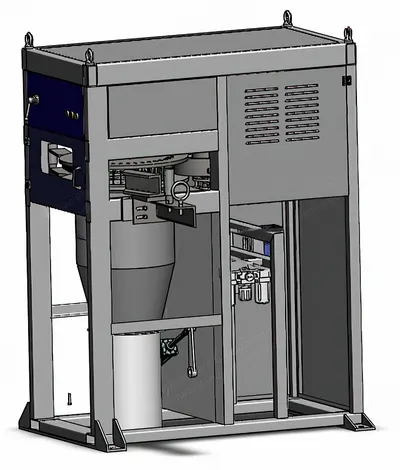

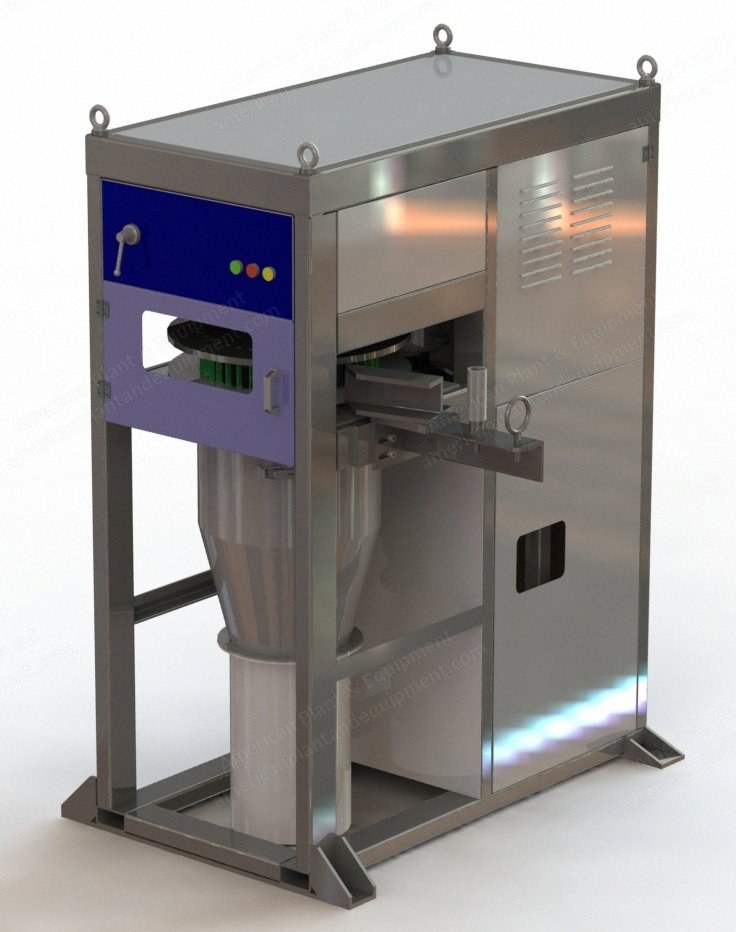

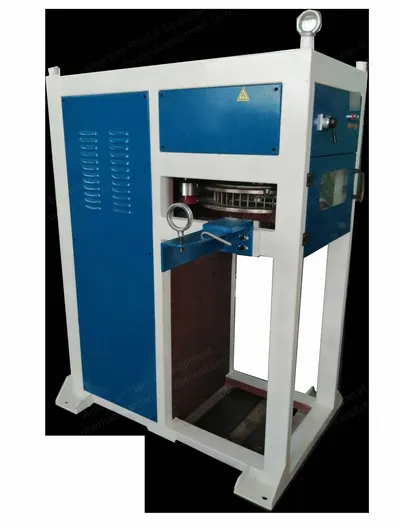

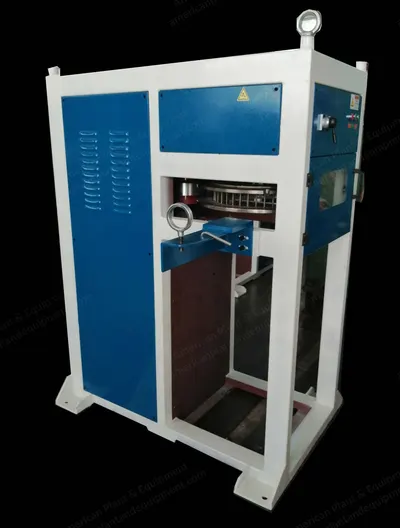

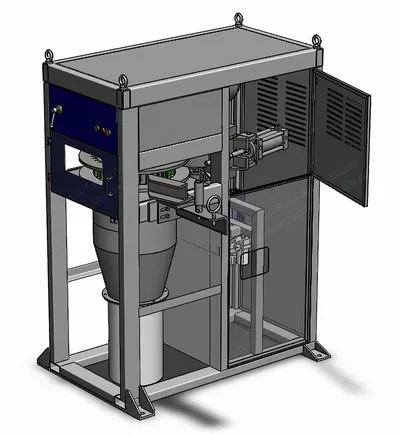

Description Overview Total tow denier: 168,000 denier Wheel diameter: 596mm (O.D.) Fiber tow guiding ceramic roller Stainless-steel hopper for staple fiber collection Number of blades on the cutting wheel for 19mm staple length: 80 blades Cutting cross section diameter: 44mm Blade dimensions: 85mm height, 1.5mm thickness and 15mm front to back Production capacity: approx. 300kg per hour for 168,000 denier fiber tow Motor power: 7.5kW x 1400rpm With gear box reducer helical type Maximum linear speed: 250 meters per minute producing approximately 300 kg per hour Cutter blades are 100% tungsten carbide and can be sharpened several times for reuse (quantity: 80 blades per wheel – not mounted) Ac inverter Inverter brand: Siemens Individual control cabinet with visual screen display Voltage: 220V, 60Hz Product will be used to add polypropylene fibrillated fibers to concrete cement Machine has cutter reel with razor blades mounted on the periphery against a presser wheel With control panel with visual speed display Specifications Total tow denier: 168,000 denier Wheel diameter: 596mm (O.D.) Cutting cross section diameter: 44mm Blade dimensions: 85mm height, 1.5mm thickness and 15mm front to back Production capacity: approx. 300kg per hour for 168,000 denier fiber tow Motor power: 7.5kW x 1400rpm Maximum linear speed: 250 meters per minute producing approximately 300 kg per hour Voltage: 220V, 60Hz Condition And Included Items One cutting wheel mounted and one extra cutting wheel included in the package Spare cutter wheel package dimensions 60 kg (shipping weight including the wooden box) – one included Quantity 320 tungsten carbide blades Not including draw rolls (tension rolls) at the feed entrance Location And Shipping Machine package dimensions and weight: 1600mm x 1380mm x 1100mm, 480 kg per box (shipping weight and dimensions including the wooden box) Spare cutter wheel package dimensions 60 kg (shipping weight including the wooden box) – one included
