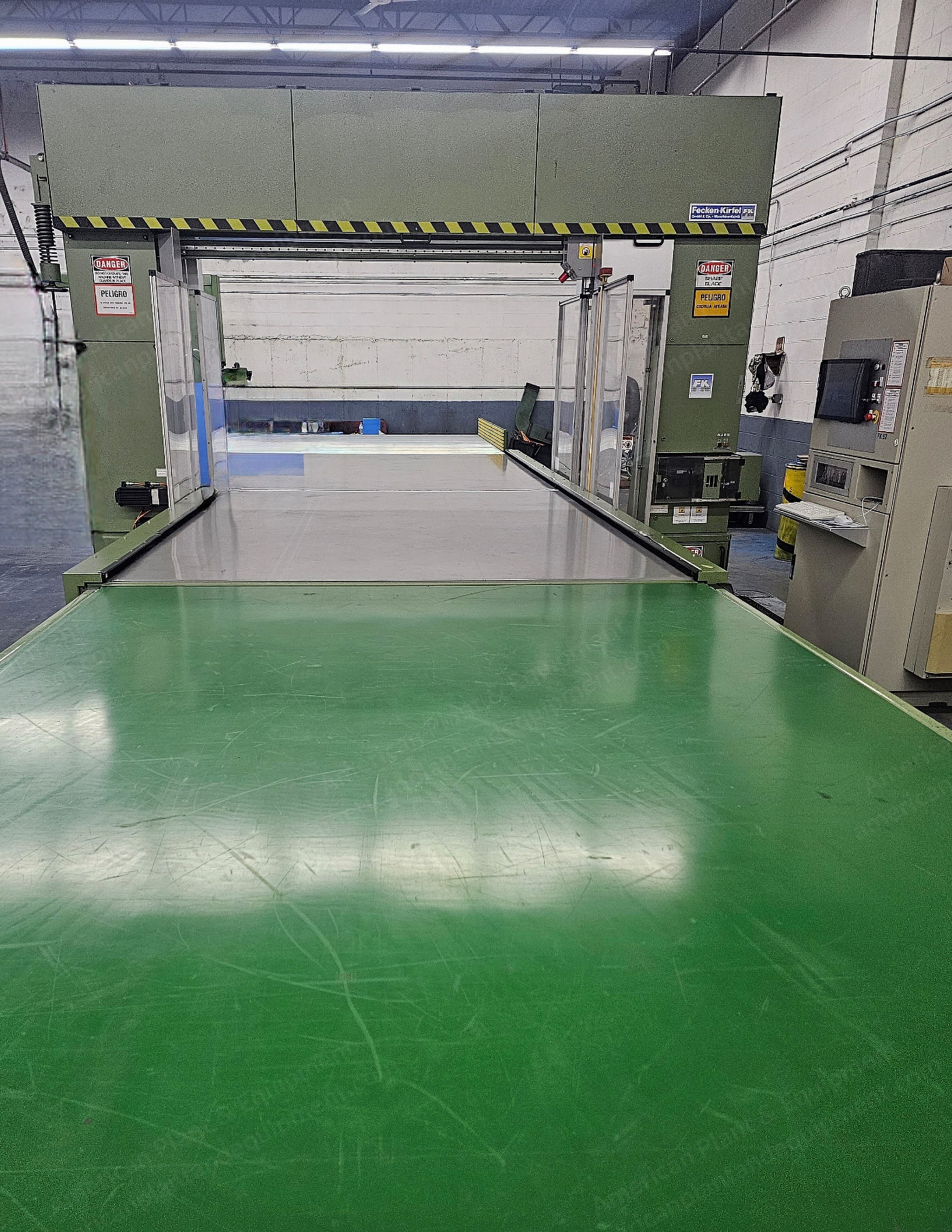

Fecken-Kirfel, F52, 2000, CNC Automatic Foam Shapes Cutting Machine, 2300mm Working Width, 1300mm Working Height, 2400mm Cutting Length

Fecken-Kirfel, F52, 2000, CNC Automatic Foam Shapes Cutting Machine, 2300mm Working Width, 1300mm Working Height, 2400mm Cutting Length

Description

  1. Overview
    1. Make: Fecken-Kirfel
    2. Model: F52
    3. Year: 2000 (upgraded in 2023 to digital nesting)
    4. Operating system: upgraded to Windows 10

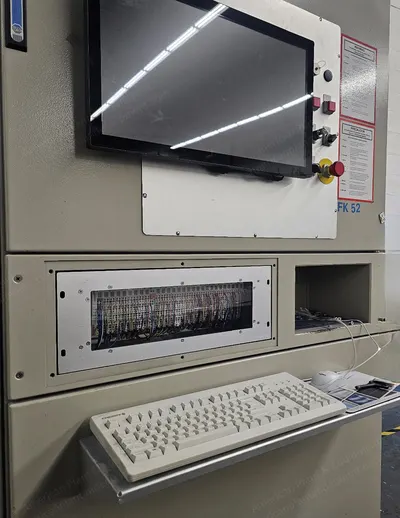

    5. Interface: touchscreen
    6. Software: equipped with nesting software for CNC operations
    7. All upgrades performed by Fecken-Kirfel
  2. Specifications
    1. Working height (maximum bun height): 1300 mm (51.18)
    2. Working width: 2300 mm (90.56)
    3. Working cutting length: 2400 mm (94.49)
    4. Blade dimensions: 3.6 mm x 0.6 mm (0.14 in x 0.02)
    5. Blade speed: 2 to 8 m/s (6.6 to 26.3 ft/s)
    6. Voltage: 220 V / 60 Hz / 3-phase
    7. Control voltage: 110 / 24 V
    8. Rated current: 61.5 amps
    9. Total kW: 14.9 kW
  3. Condition
    1. Condition: like new, perfect condition
    2. Availability: currently under power but ready to ship
  4. Included Equipment
    1. Grinding device: automatic (motor-driven grinding wheels)

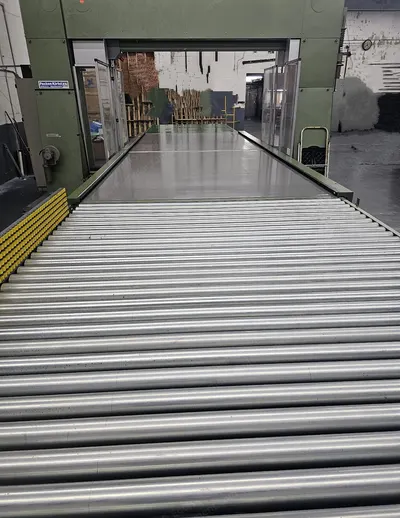

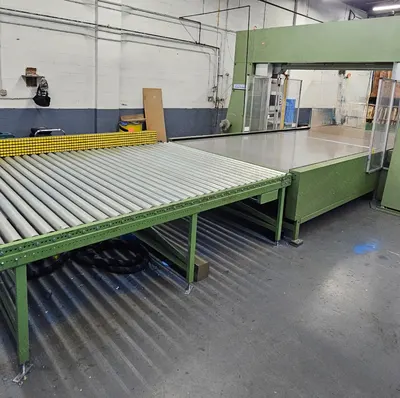

    2. Auto infeed loading conveyor
    3. Auto off-loading conveyor
    4. The infeed and outfeed tables are powered and automatic so you can preload and offload while the machine is cutting
  5. Dimensions
    1. Overall floorspace dimensions including entry and exit roller conveyors: machine total footprint 20 feet wide x 40 feet long
    2. For bun size 90 inches wide and 120 inches long
