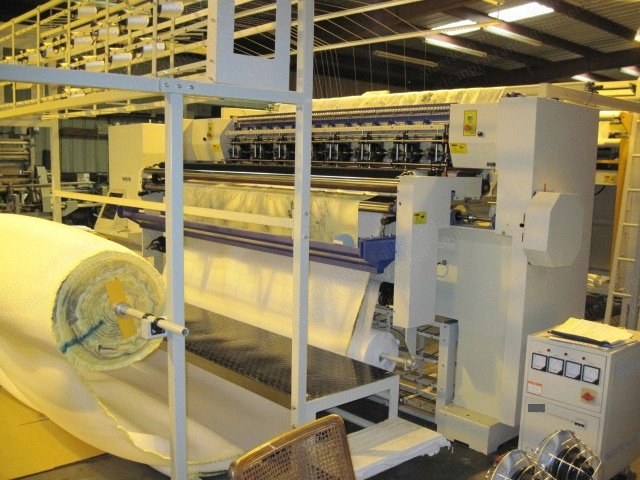

96 inch needle width (2388 mm) tack and jump quilting machine
95% new condition
Widely used for creating high-quality mattress covers and household ornaments with various patterns available
Built for high efficiency and adaptability
Intuitive computerized control system and CAD drawing method guarantee precision and ease of use
Durable construction and safety features provide reliable and secure operation
Capable of quilting various patterns with minimal maintenance needs and high production speed
Automatic adjustments and multiple needle configurations handle a wide range of materials and thicknesses
Features
Automatic stop motion for the upper and bottom threads
Automatic needle-lifting
Computerized speed adjustment
Certified with CE standards
High rigidity
High running speed
Low vibration
Low noise
Smooth operation
No need to adjust the press plate position when the thickness of quilting materials changes
New generation computerized control system to ensure quilting precision and reduce excessive parameter adjustments and pattern modifications
CAD drawing method to ensure precise patterns and ease of operation
Specially developed functions for pattern-combining and multi-span quilting to allow different patterns to be quilted in each row for mattresses of various sizes
Running state detection and indication system to monitor performance
Improved safety protection covers and emergency switches for enhanced safety
Applicable for quilting materials up to 50 mm (1.97 inches) in thickness
Technical Specifications
Dimensions (L x W x H): 4715 x 1200 x 1925 mm (185.6 x 47.2 x 75.8 inches)
Width of quilting material: 2450 mm (96.5 inches)
Space between needle rows: 1 x 3 x 6
Space between needles: 25.4 mm (1 inch)
X-axis movement distance: 430 mm (16.9 inches)
Thickness of quilting: ≤ 50 mm (1.97 inches)
Length of stitch: 3-6 mm
Speed of production: 45 to 180 meters/hour (147.6 to 590.6 feet/hour)
Model of needle: 24/180, 23/160, 22/140
Speed of main shaft: 1000 rpm
Power: 5 kW
Voltage: 220 V / 60 Hz
Gross weight: 4000 kg (8818.5 pounds)
