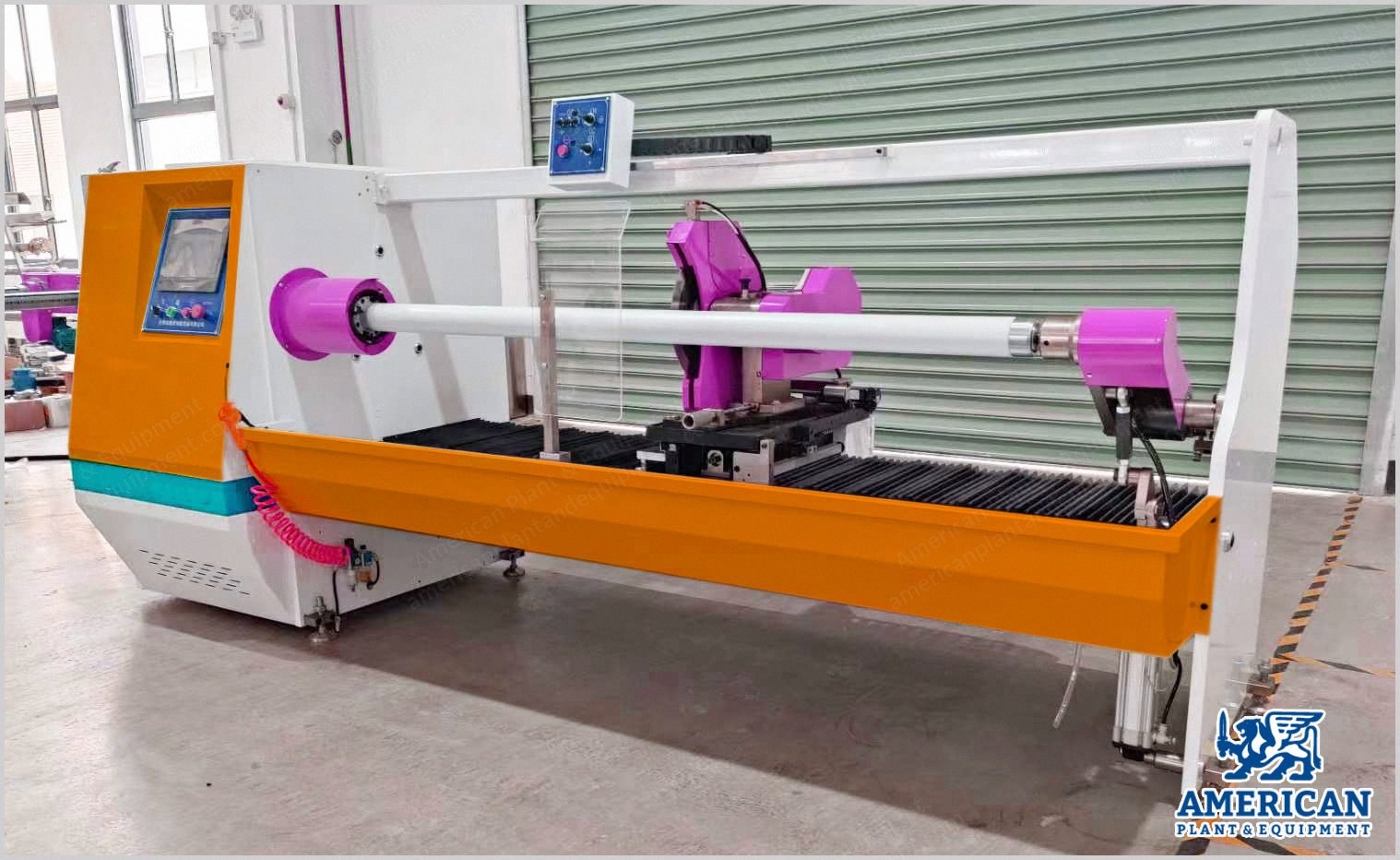

NovaStar, SR270, Fully Automatic Single Shaft Baloney Slitter, Working Width 2000mm, 3 HP (New)

NovaStar, SR270, Fully Automatic Single Shaft Baloney Slitter, Working Width 2000mm, 3 HP

Description

  1. Overview
    1. Fully automatic single shaft baloney slitter with a working width of 2000 mm.
    2. Single-shaft cutting machine engineered for precision and flexibility, ideal for processing PVC, masking, double-sided, OPP packaging, and foam tapes.
    3. Working width up to 2000 mm (78.7 inches) and cutting widths from 2 mm to 2000 mm (0.08 to 78.7 inches).
    4. Servo motor-driven width setting and knife angle adjustment for precise control over cutting dimensions and angles.
    5. PLC-controlled system with touch panel interface, storing up to 20 width settings.
    6. Equipped with inverter-controlled motors, automatic water cooling system, and error detection function.
  2. Standard Accessories
    1. Main motor: AC 3 HP x 6P inverter control (1 set).
    2. Width setting: servo motor driven (1 set).
    3. Cutter stand: ball spline (2 pieces) and ball screw (1 piece).
    4. Cooling system: automatic water supply (1 set).
    5. Cutting shaft: for paper core inner diameter 2 inches (1 piece).
    6. Shaft sleeve: PE tube 52 mm (2 inches) (1 piece).
    7. Circular blade: 4 mm x 1 inch inner diameter x 400 mm outer diameter, C-type (1 piece).
    8. Knife holding plate: 120 / 160 (1 set).
    9. Cutter guard: connected type movable small plate (1 set).
    10. Knife motor: AC 2 HP x 6P inverter control (1 set).
    11. Knife angle adjustment: angle change by servo motor driven +/- 8 degrees (1 set).
    12. Shaft ending rack: automatic control (1 set).
    13. Cutting system: servo motor driven (1 set).
    14. Maintenance kit: tools and instruction manual with electrical diagrams (1 set).
  3. Electrical Section
    1. Control system: PLC with 3 servo motor system (1 set), including 20 sets of width setting (1 set) and auto error detection system (1 set).
    2. Display mode: touch panel screen (1 set).
  4. Specifications
    1. Voltage: 220V 60Hz 3 Phase
    2. Capacity: Max. 350 mm cutting diameter
