Overview

1. Machine for cutting pipe insulation

2. A programmed-control cutting machine which runs on AutoCAD, controlled by computer.

3. Foam comes in many forms: flexible polyurethane for furniture, polystyrene foam for building and display products, and a wide range of rigid foams for insulation and packaging uses. Different foams present varied challenges, and so we have developed different cutting machines, including a fast wire contour cutting machine for rigid foams, an oscillating blade machine for flexible foams, and a multiple hot-wire machine for expanded polystyrene foam.

Main Features Of Contour Cutter

1. Integrated design and cutting program. Simply design and cut.

2. Big cost savings by automatically arranging the product.

3. Support numeric instrument.

4. Higher material utilization resulting from computer aided nesting of shapes.

5. Cut speed can be set to achieve the best-cut speed for different foam material.

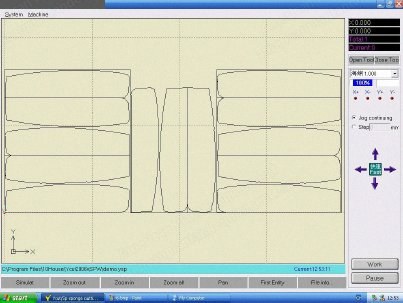

6. Can pre-cut on the computer to check cutting course.

7. With nesting system.

Fast Wire Contour Cutter

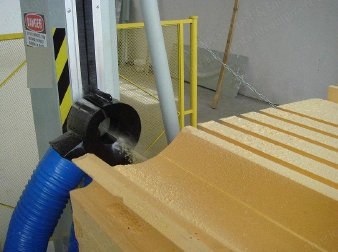

1. Fast wire contour cutter uses an abrasive, high-speed wire. Under the high-speed, the material will be ground to powder and the dust suctioned by a fan.

2. The computer controls the conveyor belt and cutting roller to run what you draw on the CAD software.

3. Main function of the high-speed abrasive wire machine.

4. The operator inputs your product drawing to company by CAD. Our powerful software will translate the DXF/DWG file to standard G code automatically.

5. Motion control card based on the development of CNC machining software is simple and intuitive.

6. Parameter settings window is HMI, can set its own processing speed, acceleration/deceleration and other operations processing conditions, so efficiency is improved greatly and adjustable movement control is achieved.

7. Reasonably compact mechanical structure, electronic inverter control of motors and precision straight linear guide.

8. Effective vacuum de-dust system.

9. Most of the dust will be sucked into the dust bag by fan vacuum system.

Specifications

1. Model: FN486

2. Max. block size: length 2450 mm (96.5), width 1220 mm (48), height 915 mm (36)

3. Material can be cut: EVA (ethylene vinyl acetate), rock wool, mineral wool, flexible polyurethane, rigid polyurethane, polystyrene, foam glass, polypropylene, honeycomb paperboard, carton

4. Control device: industrial computer

5. Computer operation system: Windows

6. Software: APE profile

7. Acceptable file formats: DXF (drawing exchange format)/DWG (drawing)

8. Type of cutting wire: vertical

9. Cutting wire length: 8340 mm (328.3) (to be confirmed by machine maker)

10. Cutting wire diameter: 0.8 to 2.0 mm (0.03 to 0.08)

11. Flying wheel diameter: 400 mm (15.7)

12. Wheel motor: Siemens 2.5 kW

13. Running speed of the wheel: 2860 rpm

14. Inverter: (Panasonic), for 3 kW motor

15. Cutting speed: 0 to 6 m/min (0 to 19.7 ft/min)

16. Precision: ±0.5 mm (±0.02)

17. Total power: 11 kW (14.8 hp), 220V, 60Hz

18. Gross weight: 1500 kg (3306.9 lbs)

19. Overall dimensions: 7000×6200×2600 mm (275.6×244.1×102.4)

20. Above cost includes: main machine, de-dust system, control cabin, APE profiler with running key, one-year guarantee

21. Spare parts: 5 cutting wires, 1 limit switch

Computer Specifications

1. Model: IPC-810B (description: IPC-810B/IPC-6113LP4/PS-7270B)

2. Processor: ATX/FSC-1814V2NA, E5300 2.6 GHz

3. Cabin: IPC-810B

4. Power supply: PS-7270B ATX

5. Baseplate: IPC-6113LP4

6. Main board: FSC-1814V2NA

7. Memory: 1 GB

8. Hard disk: 250 GB

9. CD-ROM drive: DDU1681S

10. CPU: E5300, 2.6 GHz

Floorspace Dimensions

1. 5400 mm × 2800 mm = 9 ft x 18 ft
