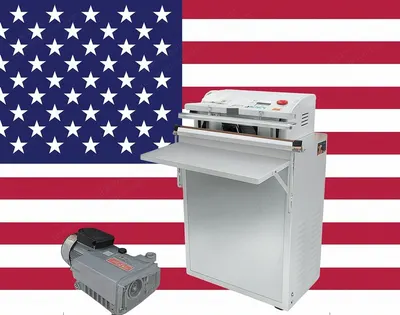

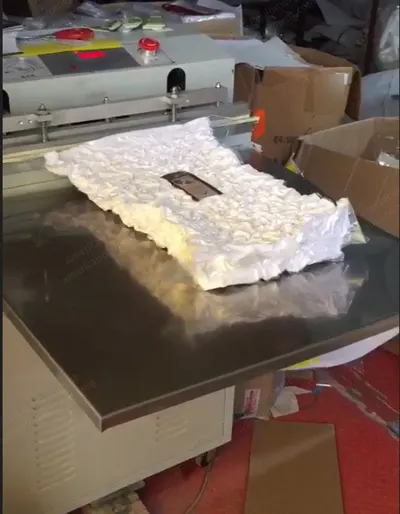

Compact external draw style vacuum sealer intended for bulky soft goods such as pillows, cushions, and other similar products.
The unit combines a high quality output vacuum module with a heated sealing bar to compress, evacuate, and close film bags, supporting downstream packing and warehousing operations.
Technical Specifications
Power supply: 110V/60Hz
Motor: 0.95 kW
Heating power: 1 kW

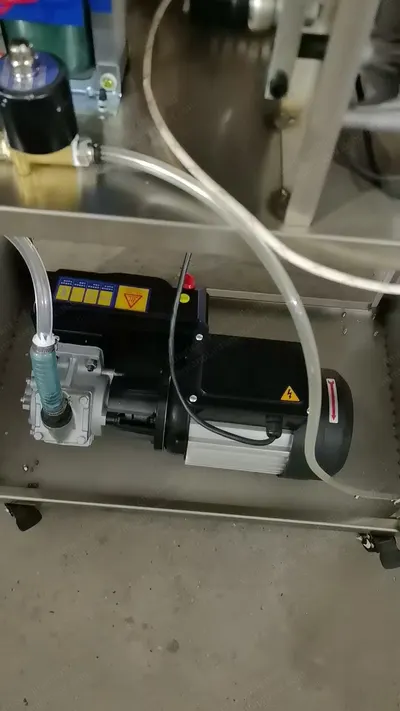

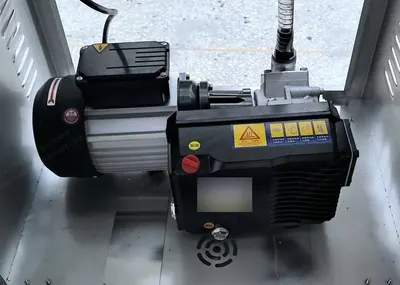

Vacuum pump displacement: 20 m³/h (706 ft³/h)
Limit vacuum degree: -0.08 MPa (-11.6 psi)
Maximum sealing length: 600 x 10 mm (x 0.39)
Overall dimensions of the base: 800 x 530 x 1125 mm (31.50 x 20.87 x 44.29)
Packing weight: 160 kg (352.74 lb)
Summary

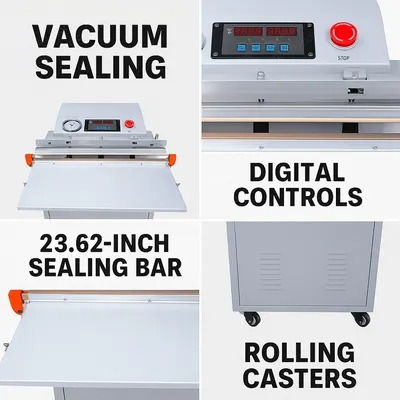

This outboard suction pillow sealer offers a practical footprint, a 23.62 inch sealing bar, and sufficient vacuum flow for compressing common pillow sizes prior to secondary boxing or master bagging.
It suits bedding producers and contract packagers who need dependable compression and closure on standard shop power, with straightforward installation and easy integration into existing packing lines.
