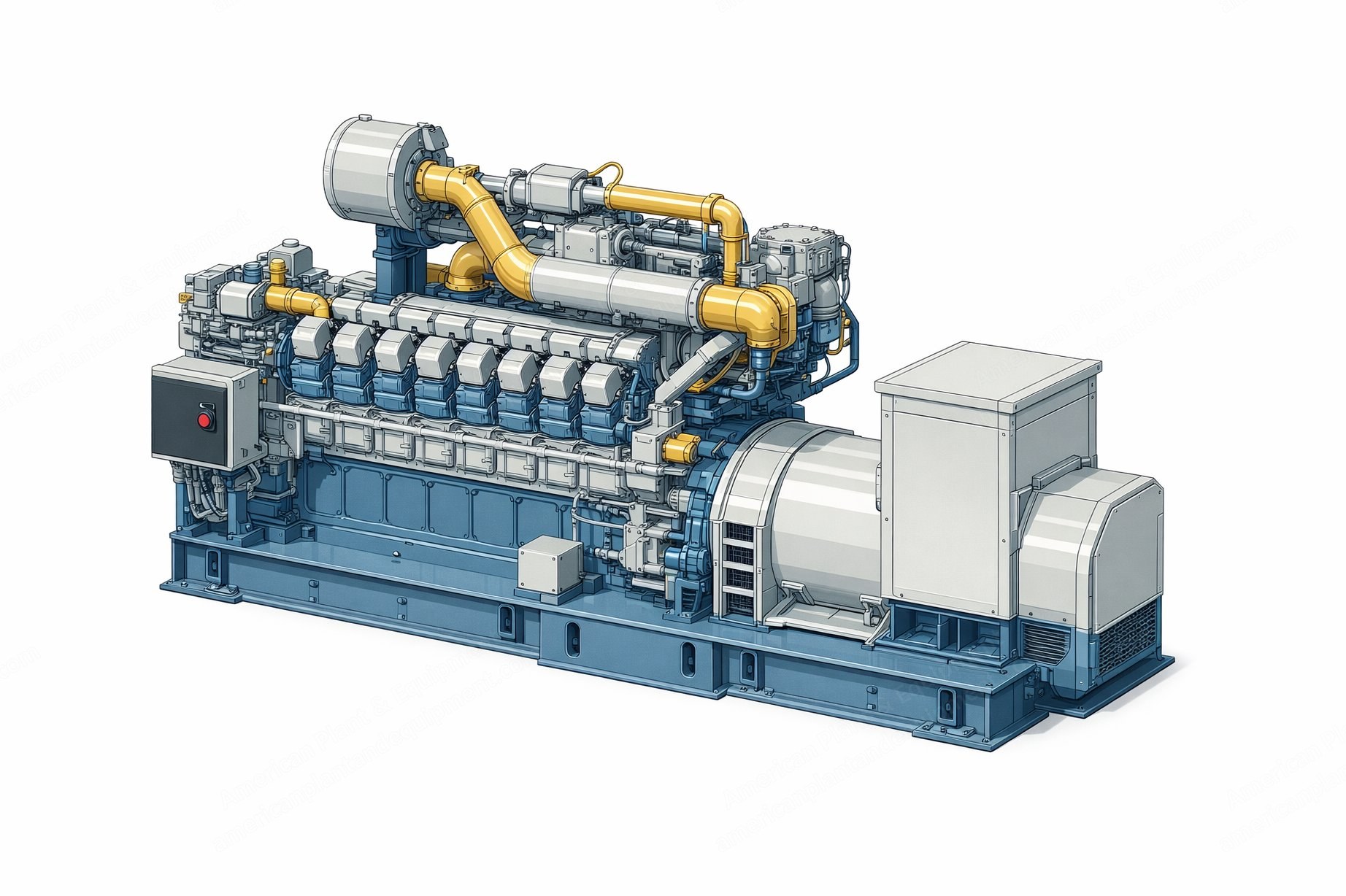

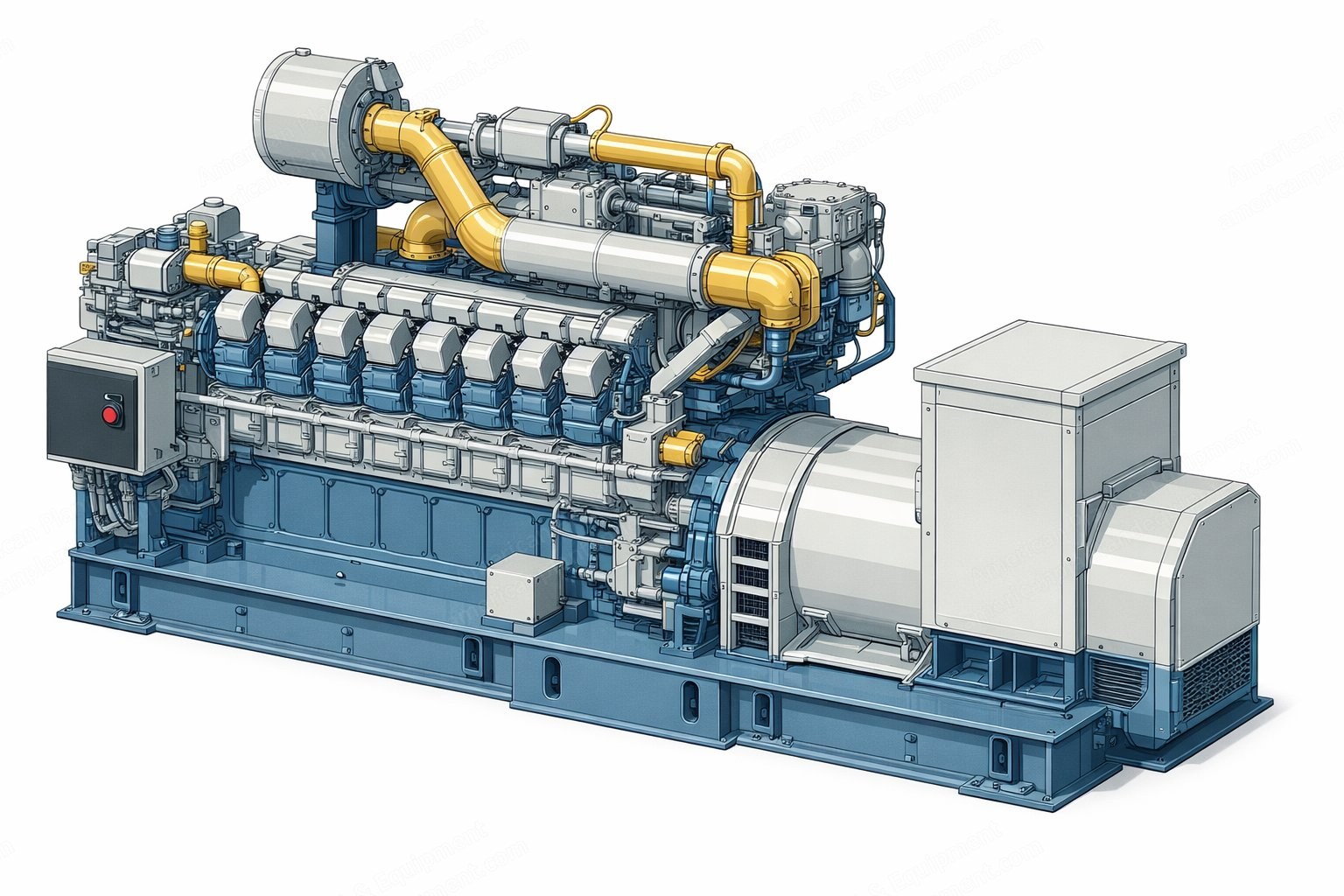

Caterpillar, G3516B LE, 2004, 2.6 MW, 480V, 60 Hz Gas Engine Generator Set Package

Overview

1. Complete package of two stationary gas engine generator sets.

2. Both units are sold together as one complete package.

3. Manufacturer: Caterpillar.

4. Model: G3516B LE.

5. Year of manufacture: 2004.

Electrical Rating

1. Package capacity: 2 x 1,300 kW (2.6 MW).

2. Rated output per set: 1,300 kW.

3. Apparent power: 1,625 kVA.

4. Power factor: 0.8 cos phi.

5. Frequency: 60 Hz.

6. Rating class: Continuous.

7. Generator voltage: 480 volts.

8. Generator current: 1,954 amps.

9. Speed: 1,800 rev/min.

10. Phases: 3 phase, 6 wire, wye, series connected.

11. Excitation: 20 volts, 5.1 amps.

12. Generator frame: 697.

13. Maximum temperature rise: 105 C by resistance.

14. Reference ambient: 40 C at 1,000 metres altitude.

15. Insulation: Class F.

Engine Data

1. Manufacturer: Caterpillar.

2. Model: G3516B LE.

3. Kind: Stationary to gas.

4. Year: 2004.

5. Work cycle: 04 times water cooled.

6. Nominal rotation: 1,800 RPM.

7. Number of cylinders: 16 cylinders, arranged in V.

8. Piston diameter: 170 mm.

9. Piston travel: 190 mm.

10. Engine displacement: 69 liters.

11. Compression ratio: 11.1:1.

12. Aspiration: Turbocharged, post-cooled.

13. Fuel system: Electronic ignition system.

Running Hours

1. Unit 1: 8,436 hours.

2. Unit 2: 7,835 hours.

Condition

1. Used, with running hours as recorded above.

Documentation Supplied

1. Engine photographs.

2. Nameplate and generator data plate photographs.

3. Hour meter photographs.
