Wartsila, 9L34SG, 2009, 15.7 MW Gas Engine Generating Set Package, 4 Units, 6600V

Wartsila, 9L34SG, 2009, 15.7 MW Gas Engine Generating Set Package, 4 Units, 6600V

Description

  1. Overview

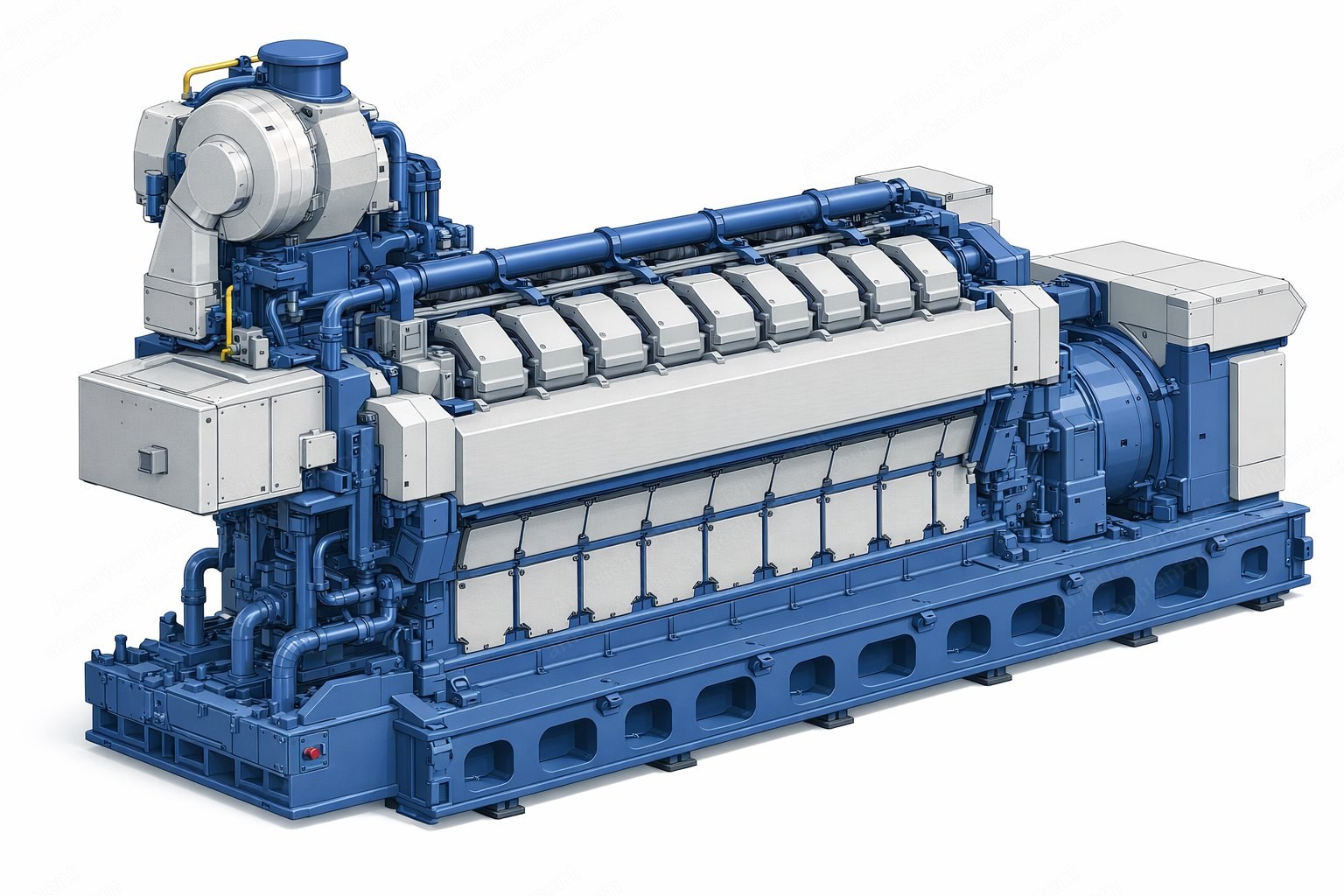

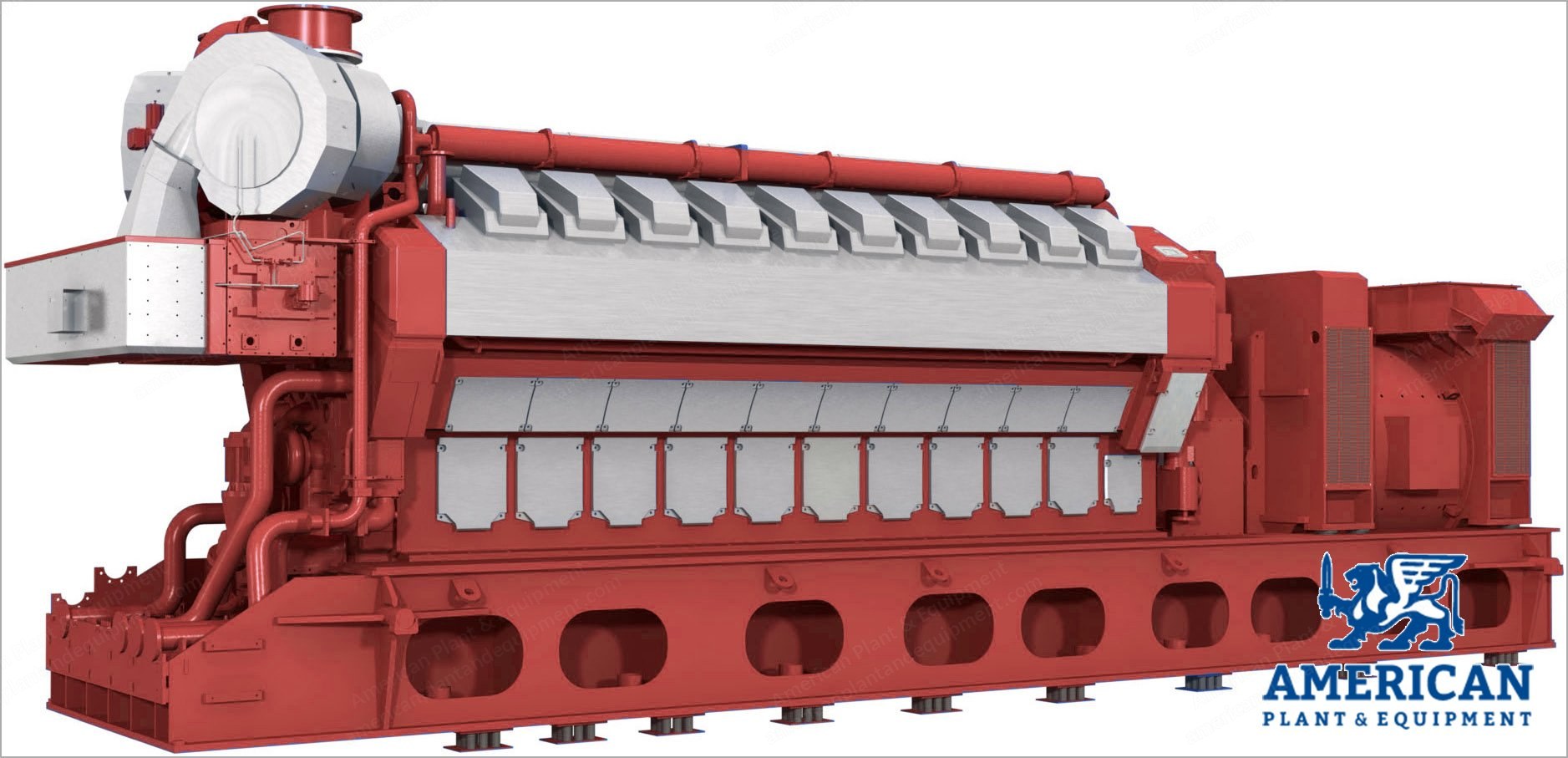

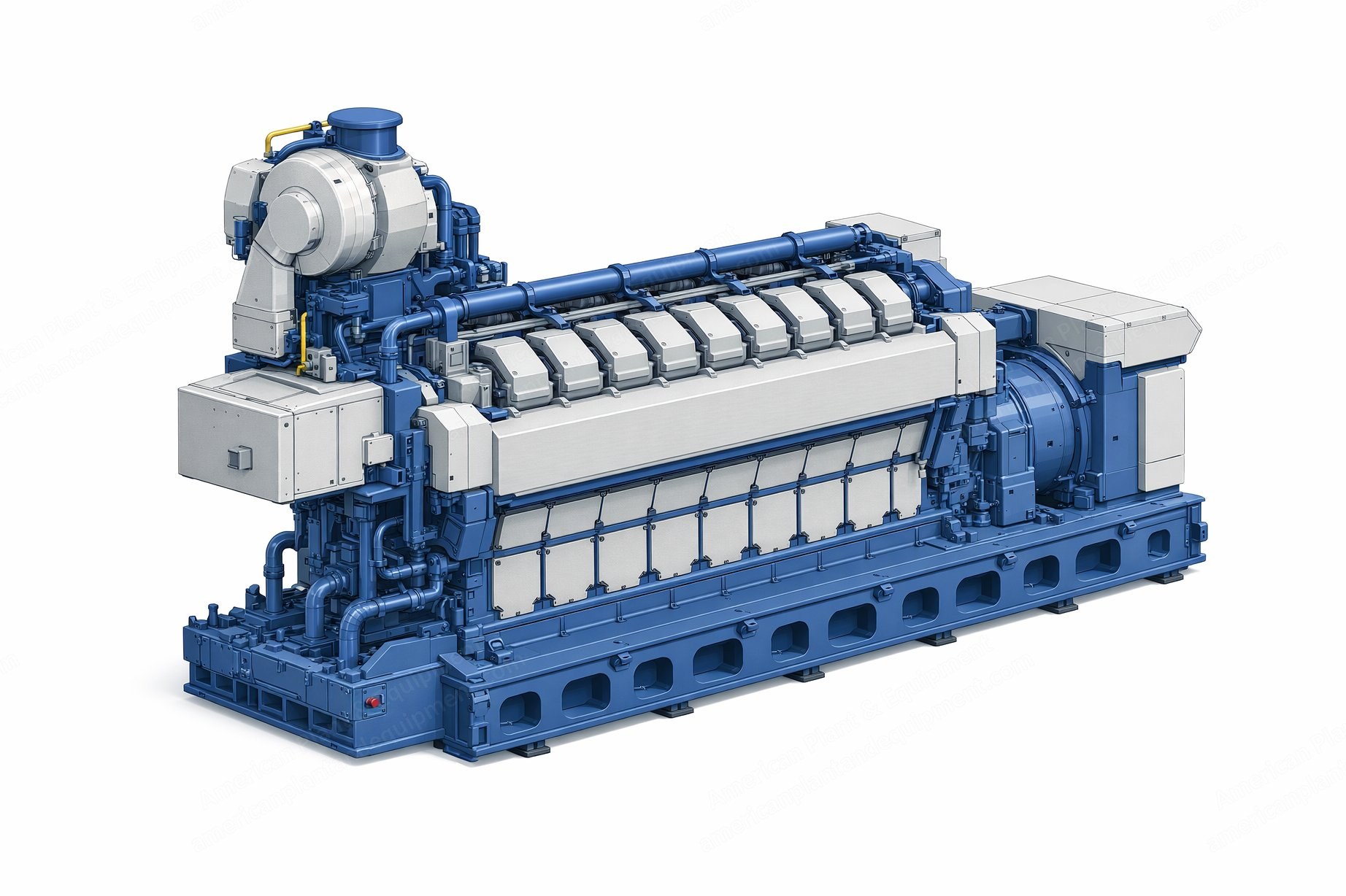

    1. Wartsila 9L34SG gas engine generating set package

    2. Complete package of four unused natural gas fired generating sets with auxiliaries and spare parts

    3. Package capacity: 15.7 MW

    4. Year of manufacture: 2009

    5. Offered as one complete package comprising four generating sets, not a single machine

    6. All four units are sold together with the auxiliary equipment and spare parts listed below

  2. Specifications

    1. Make: Wartsila

    2. Model: 9L34SG

    3. Engine type designation: W9L34SG

    4. Spec. No: 174121

    5. Total package output: 15.7 MW

    6. Configuration: 4 x W9L34SG, 3.9 MW each

    7. Rated power per engine: 3,915 kW

    8. Nominal speed: 720 rpm

    9. Speed: 12 r/s, 720 r/min

    10. Rotation direction: CCW

    11. Voltage: 6,600 V

    12. Frequency: 60 Hz

    13. Manufactured: 5/2009 (two units) and 9/2009 (two units)

  3. Condition

    1. Unused, zero running hours

    2. Running hours recorded as zero (0) for all four engines, recorded 05.11.2019

    3. Units have never been placed in service

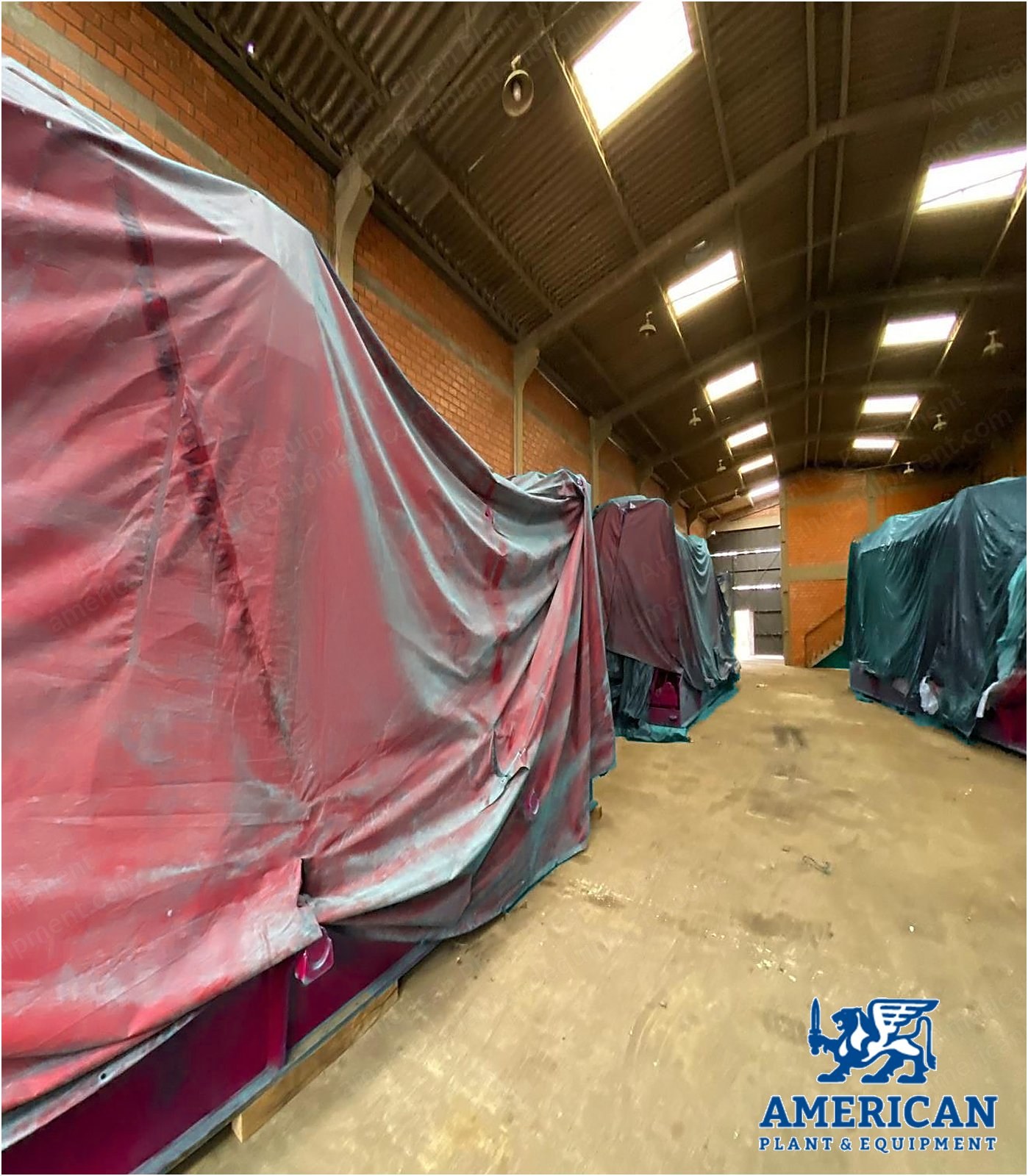

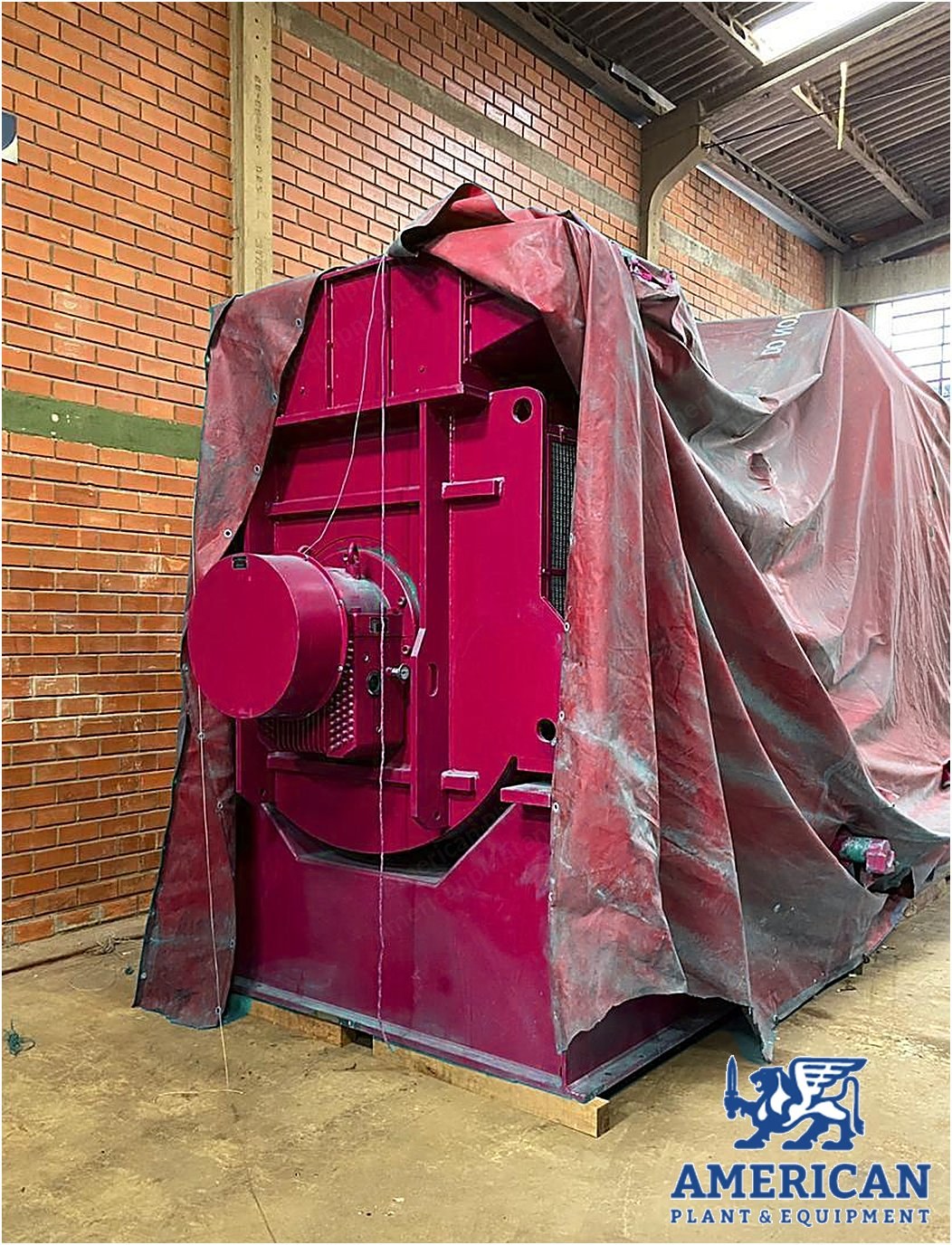

    4. Stored indoors under protective covers on timber skids

    5. Still crated and boxed per the packing list

  4. Main Components Included

    1. Compressed air system for instrumentation, control and starting of the generating sets: TR050-10CE WD SPEC, 500 L, safety valve, pressure gauge and ball valve ready installed

    2. Starting air unit 2*HL2/160 El/El, 114 m3/h, 30 bar, 440 V / 60 Hz

    3. Air intake system for the generating sets: ASC size H3x3W, with vertical weather louvre and compressed air header, header equipped with 3 diaphragm and solenoid valves (2 units)

    4. Air intake system: ASC III panel pack filters

    5. Lubricating oil system: QBF 011-041 oil mist separator module, OPEN DN100

    6. Lubricating oil system: QLC 901 lube oil transfer pump unit (mobile), 5.8 m3/h

    7. Exhaust gas system: CV-S-I-LW-RI DN800 PN6 rupture discs (4 units)

    8. Exhaust gas system: flanges for rupture discs, bolts for rupture discs, flanges and bolts rupture discs

    9. Exhaust gas system: DN 400 exhaust gas bellows

    10. Exhaust gas ventilation unit (2 units)

    11. Gas regulating unit for fuel flow, pressure and gas purity control of the generating sets

    12. 110 VDC control system: DC-power system OPUS C 24VDC MRC 24-1100 rectifier module (3 units)

    13. ROXTEC sealing system for generator (2 units)

    14. Spring package, vibration, art. no. 24251172 (4 units)

    15. Bracket for gas feed pipe, gas feed pipe assembly lower part

    16. Cover for cylinder head W9L34

    17. Pipe clamp gas feed pipe support

    18. Hexagon nuts, hexagon screws, distance sleeves and O-rings

    19. Prechamber modification set, multiduct gaskets and screws

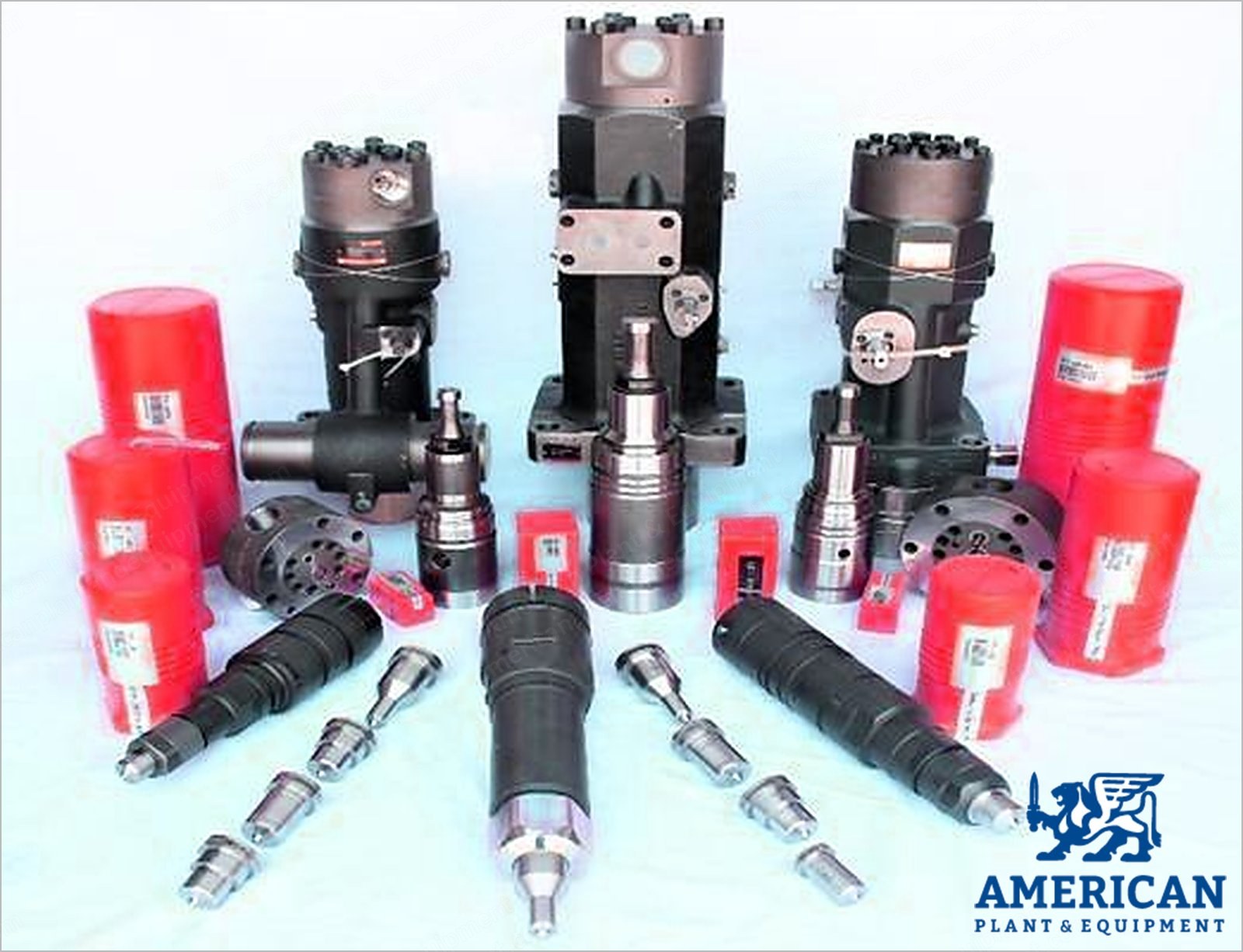

  5. Tools and Spare Parts Included

    1. TC tools for Napier 307, set of tools for NA307

    2. Engine maintenance tools for W9L34SG (3 sets)

    3. Hand tools for the generating sets

    4. Engine safety spare parts: 4 x W9L34SG

    5. Engine exchange spare parts: 4 x W9L34SG, including turbocharger EGT NA.307

    6. Commissioning spare parts: W9L34SG x 4

    7. Flexible connections: 4 x W9L34SG, including natural gas flexible hose
