NovaStar, NF197, New, Narrow Web Rotary Calender Heat Press, Heating Oil Heat-Setting Machine for Transfer Printing or Thermal Setting, 400 mm Drum Width, 5 kW (New)

NovaStar, NF197, New, Narrow Web Rotary Calender Heat Press, Heating Oil Heat-Setting Machine for Transfer Printing or Thermal Setting, 400 mm Drum Width, 5 kW

Description

  1. Overview
    1. Compact rotary calender heat press for sublimation transfer onto narrow webbings such as ribbon, lanyard, belt and similar narrow goods.

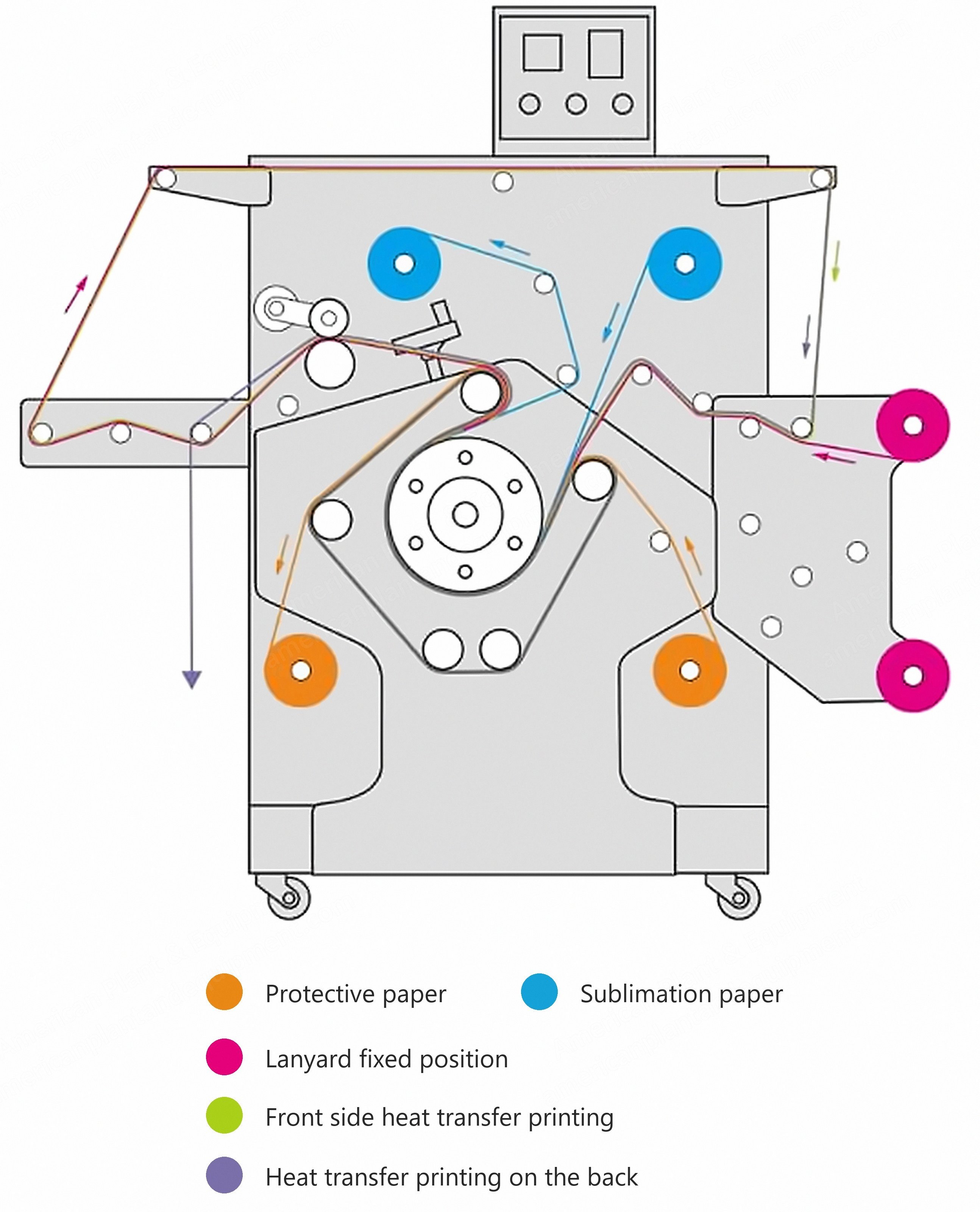

    2. Printed transfer paper and the webbing travel together around a heated drum under felt pressure, allowing the dye to move into the fabric.
    3. Both faces of the webbing can be transferred in one pass, and the webbing can be pre-shrunk in the same pass.
    4. The drum is oil filled and sealed, keeping the surface temperature even across the face and allowing quick recovery at working speed.
    5. Feed is roll to roll, entering at the bottom of the drum.
    6. Ten spacer rollers are supplied to position the webbing across the drum face.
    7. The frame is a single unitized construction, compact and portable, with no separate pieces that can work loose over time.
    8. The rolls are carried on one side only, so shafts and spacers can be changed from the open side.
    9. A twin unwind arrangement allows a fresh roll to be loaded while the machine keeps running.
    10. Speed is set by a silicon controlled rectifier frequency conversion drive.
  2. Applications
    1. Transfer printing.
    2. Reactivation of directly printed inks.
    3. Thermosetting and heat setting.
  3. Features
    1. Automatic shut down once the drum has cooled to 90 C (194 F).
    2. Sealed oil filled heating system with a sealed switch.
    3. Hard chrome drum of dual layer construction.
    4. Heavy duty heating resistors.
    5. Nomex felt, tension adjusted by hand.
    6. The felt can be released from the drum by hand if the power fails.
    7. Dual side transfer and pre-shrink in one pass.
    8. Small footprint, low power draw and a high safety design.

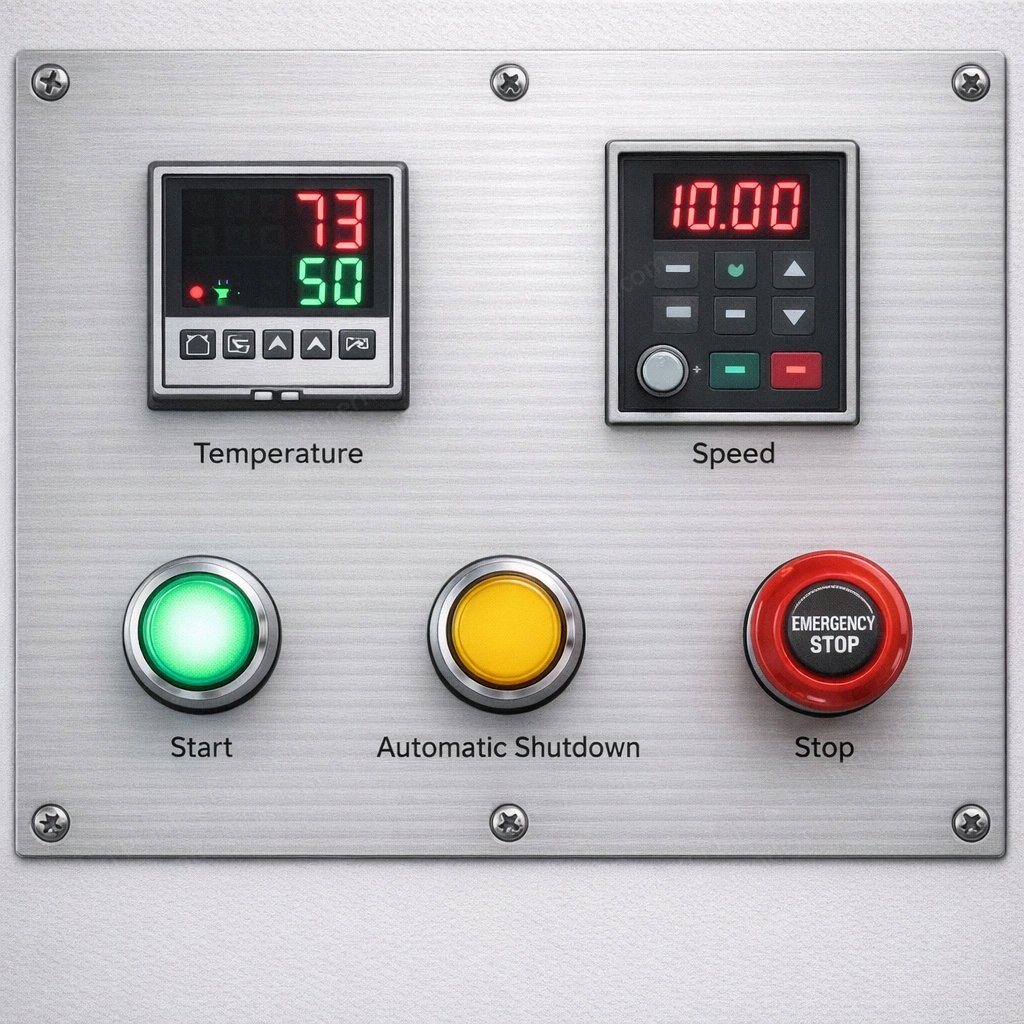

    9. Includes operator panel, hand crank for full felt separation, spacer rollers, webbing fixing roller and a 100% Nomex felt.
  4. Power Supply
    1. 5 kW (6.7 hp), single phase 120V/230V.
    2. The machine is supplied for the United States power supply.
  5. Specifications
    1. Brand: NovaStar.
    2. Model: NF197.
    3. Condition: New.
    4. Heating media: heating oil, sealed oil filled.
    5. Drum: hard chrome drum, 210 mm (8.27 in) diameter.
    6. Drum width: 400 mm (15.75 in).
    7. Transfer speed: 1.1 m/min (43.3 in/min).
    8. Temperature: up to 240 C (464 F).
    9. Heating elements: 6 pcs.
    10. Spacers: 10 pcs.
    11. Application: roll to roll (ribbon, lanyard, belt, garment), feeding in through the bottom of the drum.
    12. Rollers: 2 feeding rollers and 2 inflatable collecting rollers.
    13. Air cylinder: yes.
    14. Felt size: 0.35 m (1.1 ft) x 1.74 m (5.7 ft) x 8 mm (0.3 in).
    15. Machine size: 1.415 x 1.01 x 1.29 m (56 in x 40 in x 51 in).
    16. Packing size: 1.50 x 1.00 x 1.45 m (59 in x 39 in x 57 in).
    17. Net weight 410 kg (904 lb), gross weight 456 kg (1,005 lb).
    18. Built to CE rules.
    19. HS code: 8443399000.
    20. Voltage: 120 V / 230 V, single phase.
  6. Other
    1. Other machine sizes are available on request.
