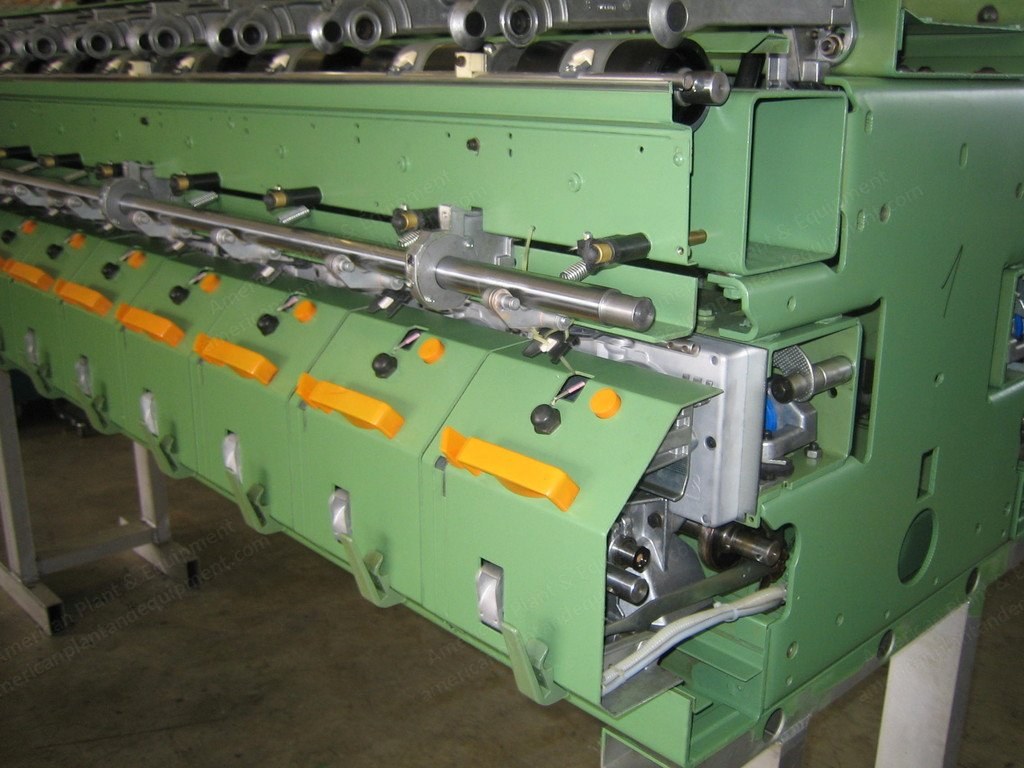

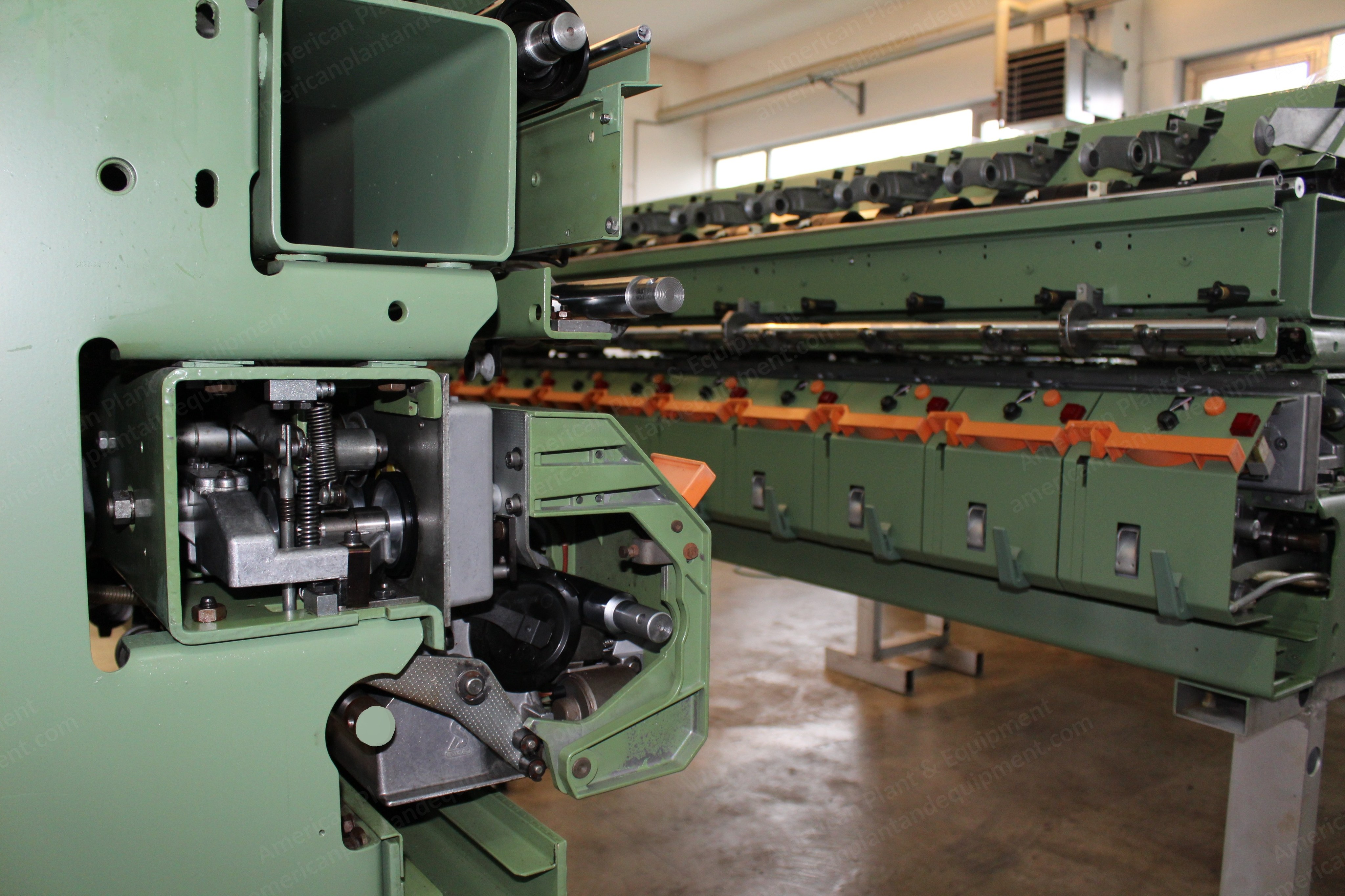

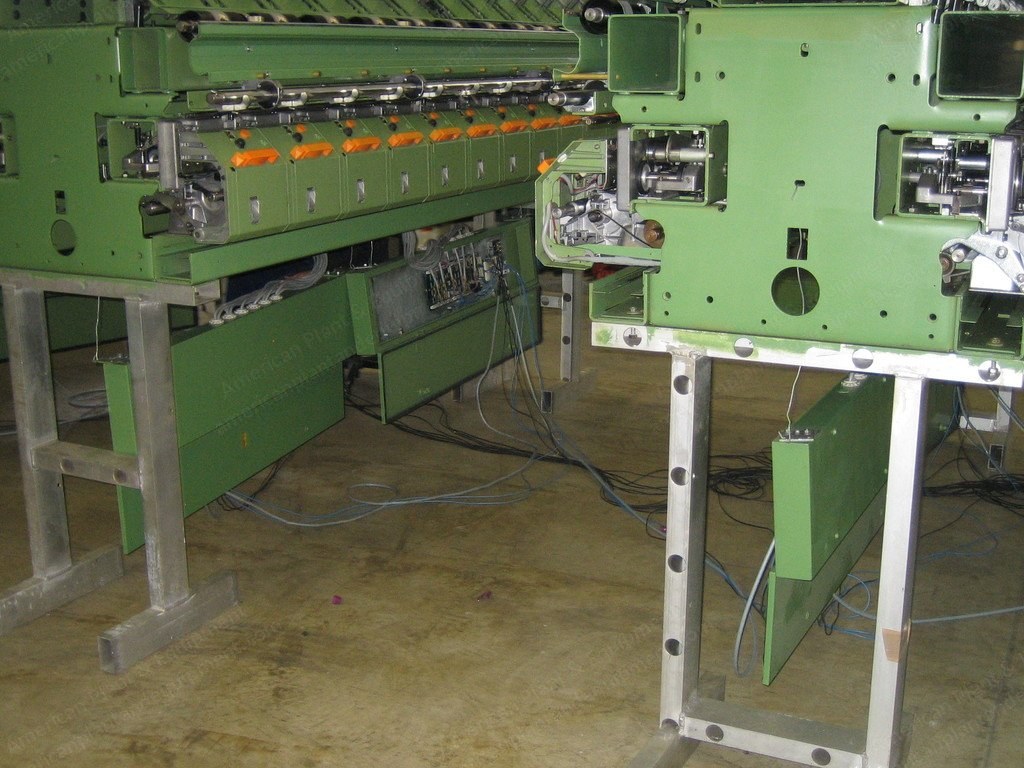

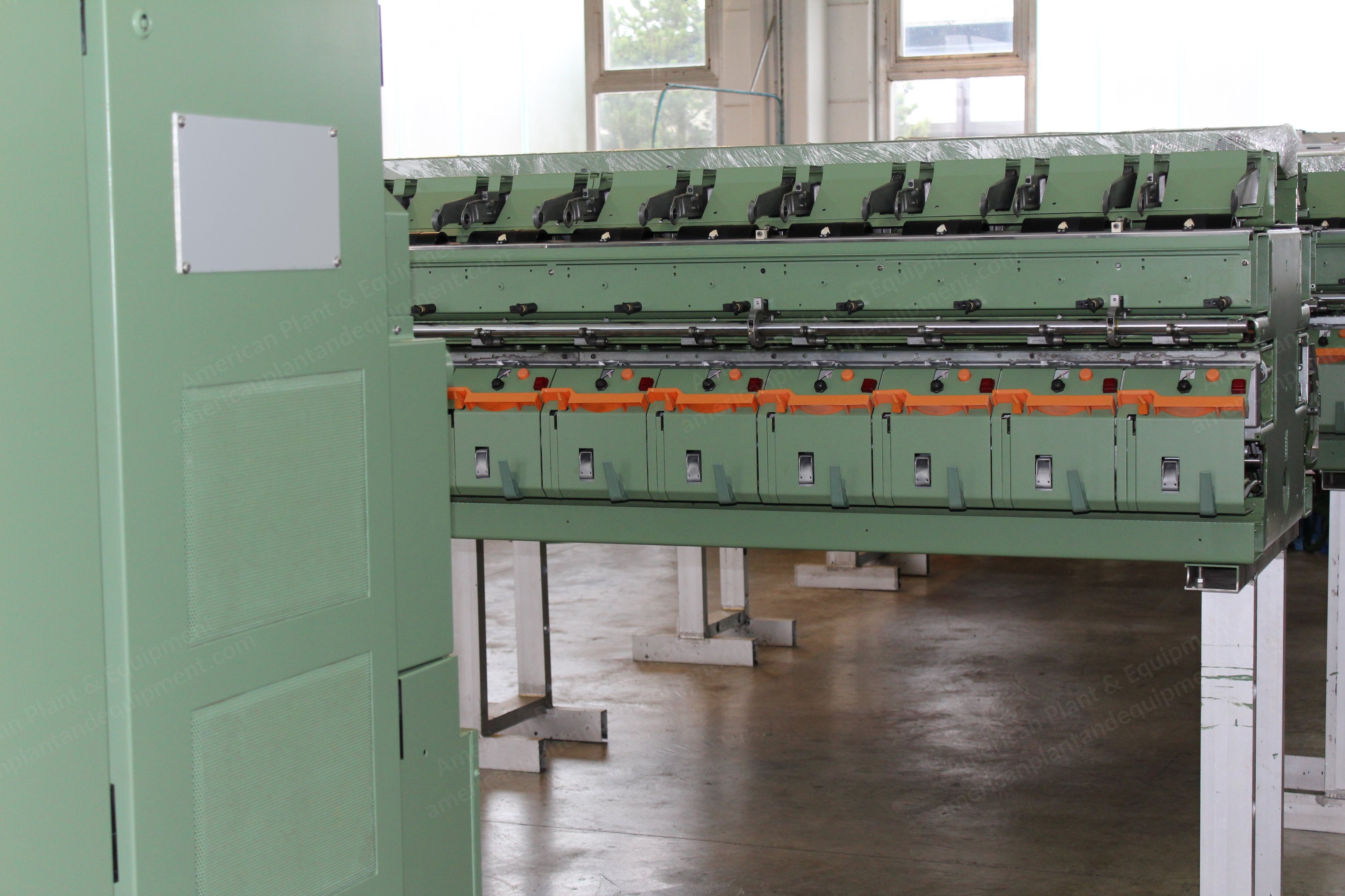

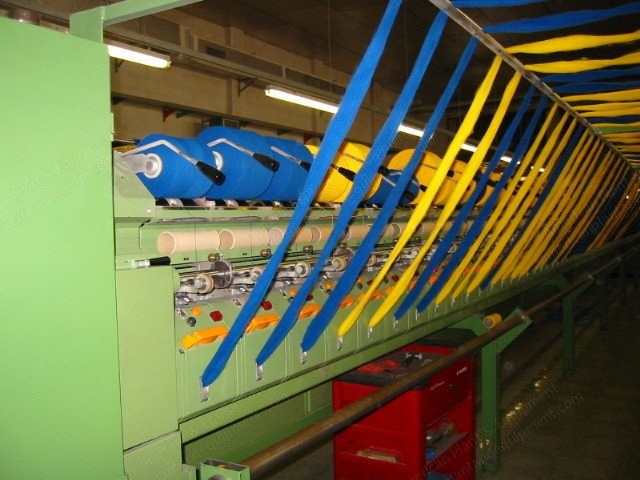

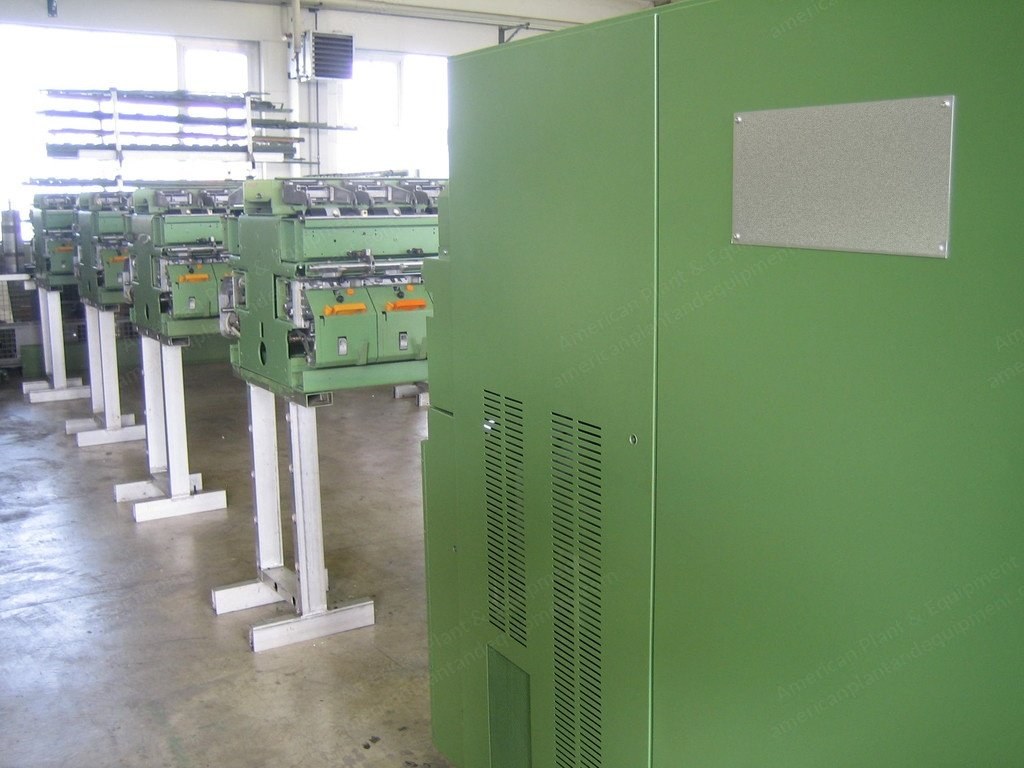

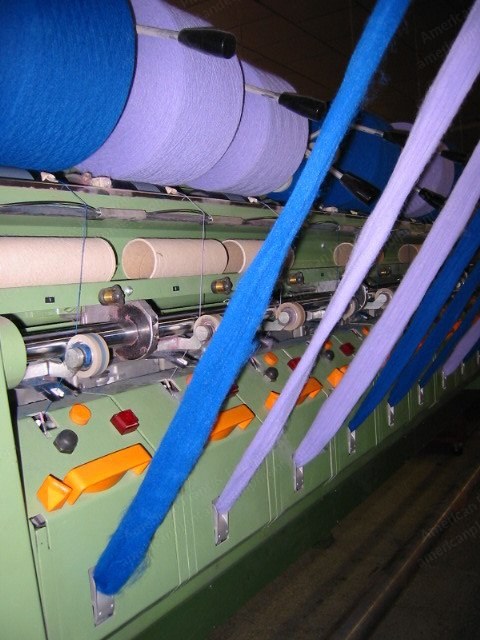

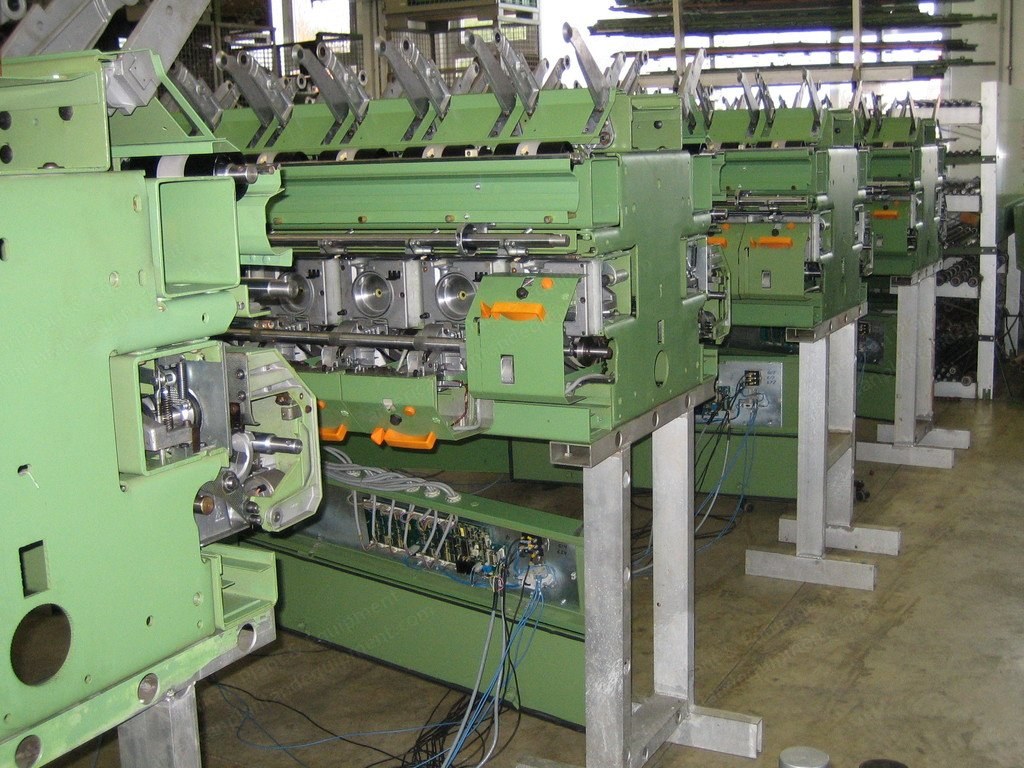

Ingolstadt, RU-11, Open End Rotor Spinning Machine, 96mm Rotors, 48 to 96 Positions

Ingolstadt, RU-11, Open End Rotor Spinning Machine, 96mm Rotors, 48 to 96 Positions

Description

  1. Overview

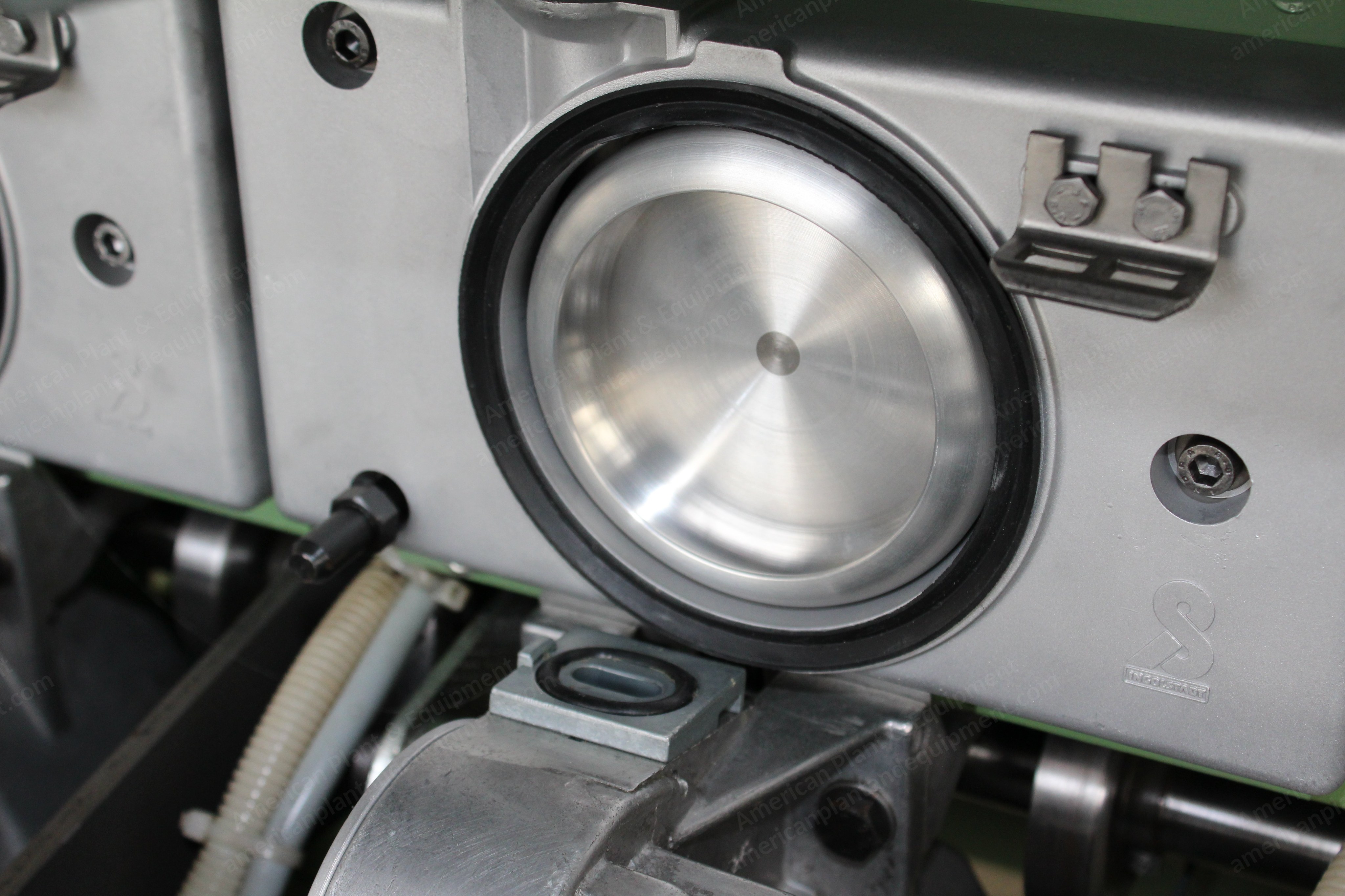

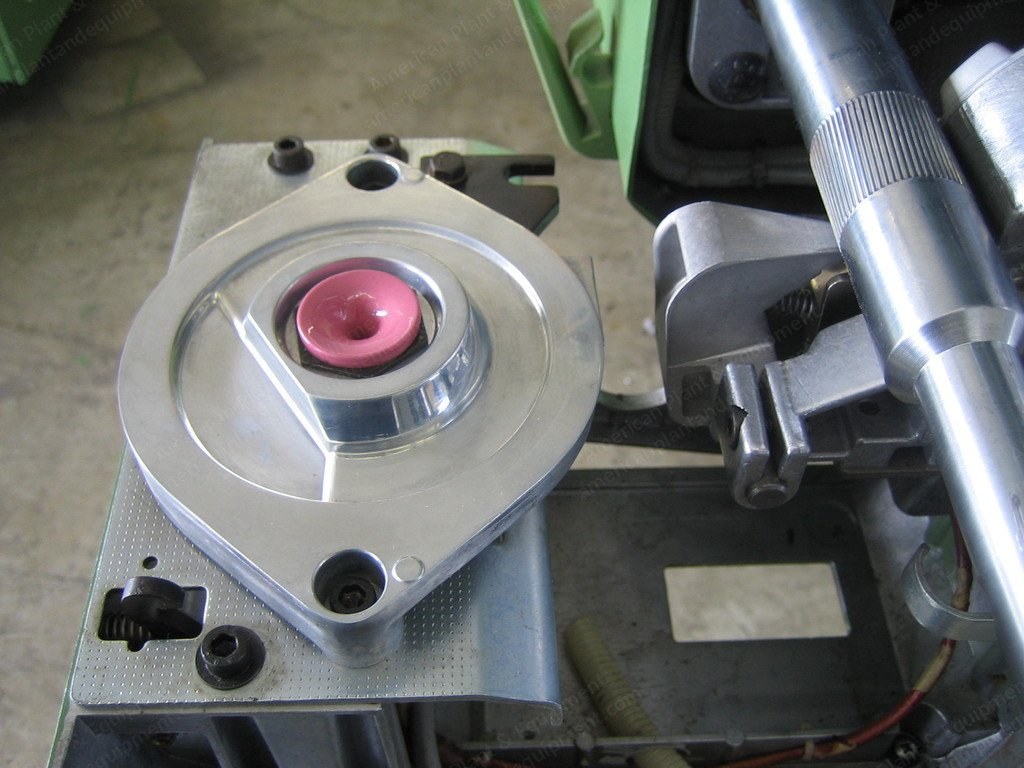

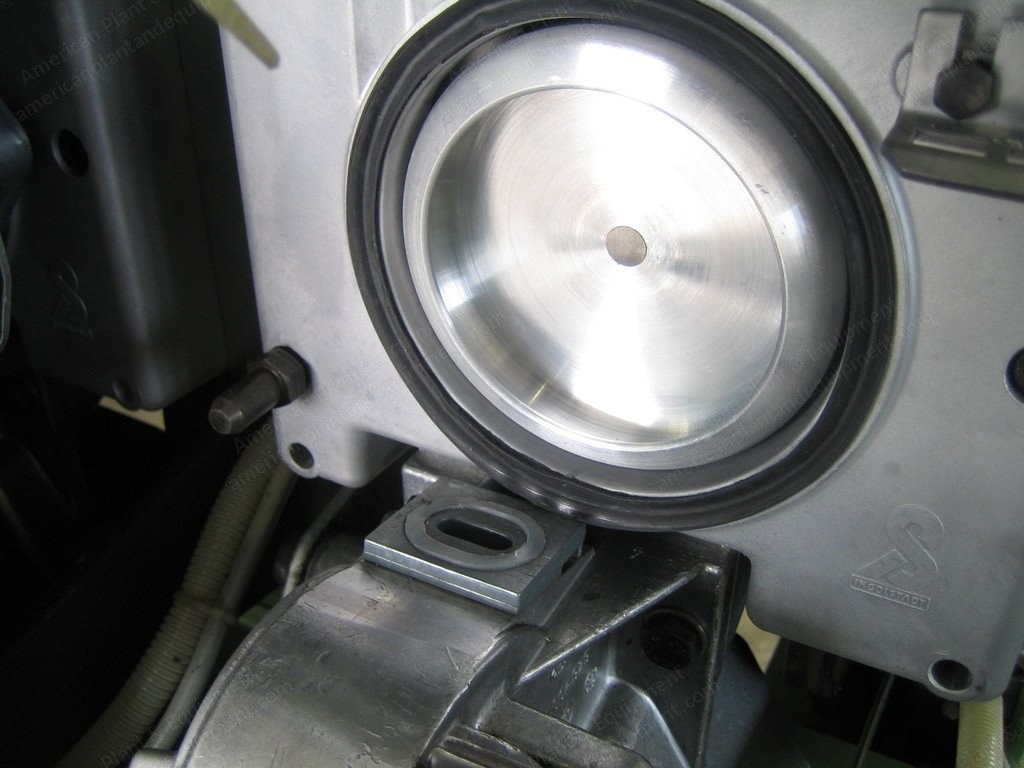

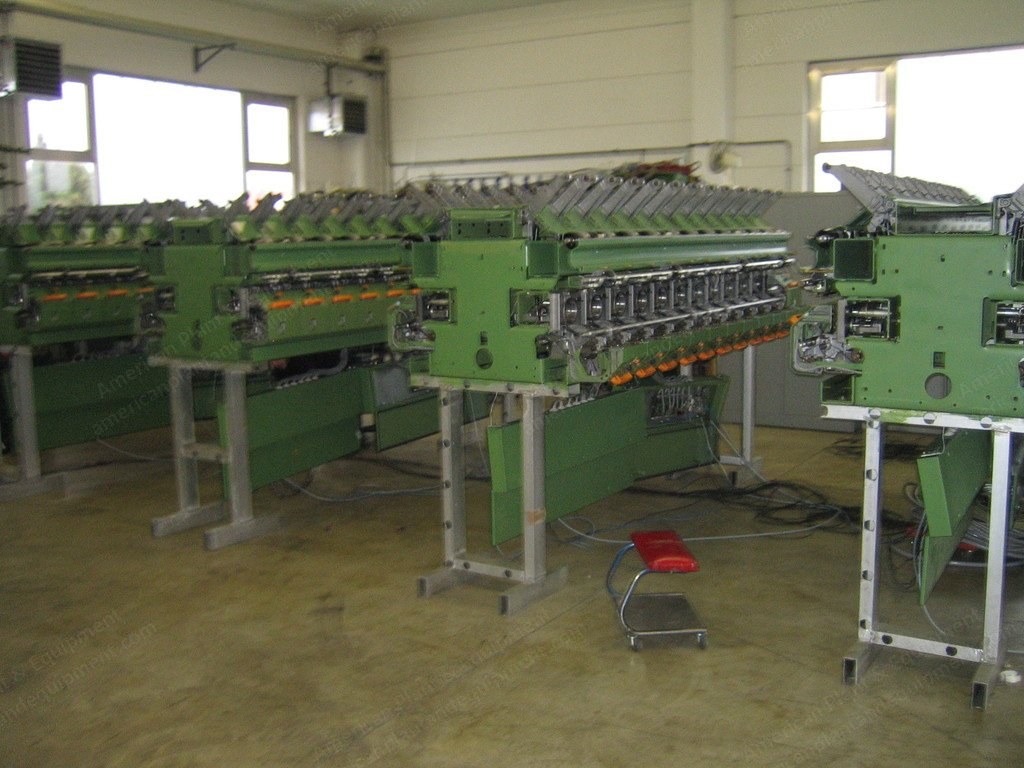

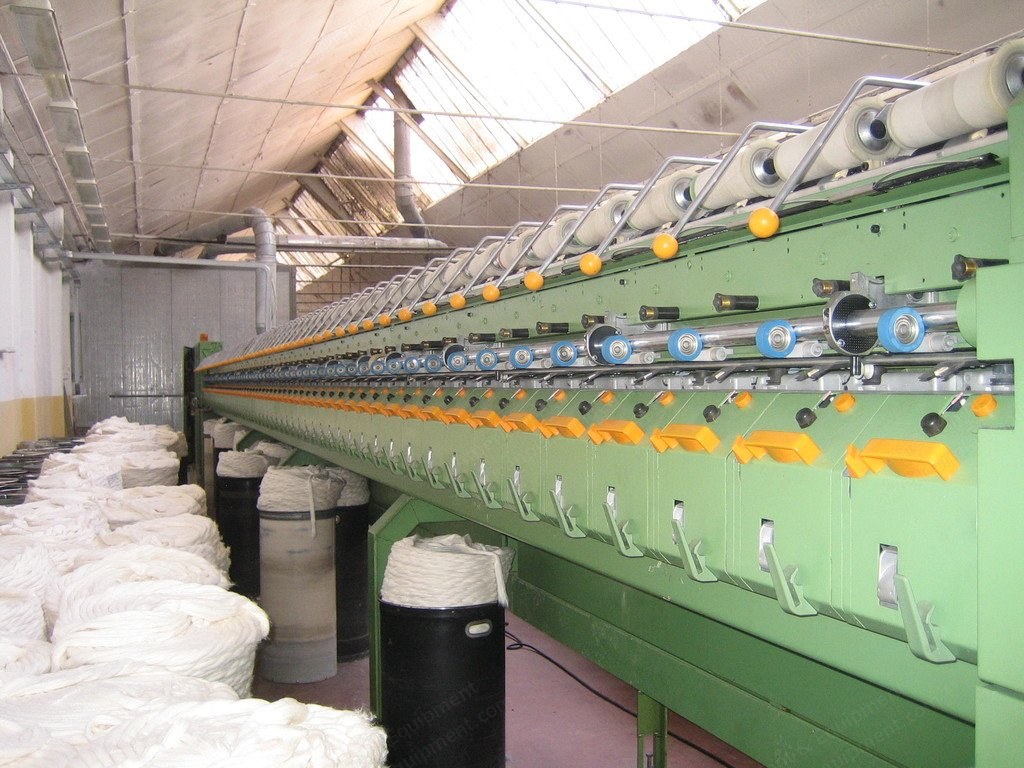

    1. Ingolstadt RU-11 open end rotor spinning machine, converted to accommodate 96 mm (3.78 in) diameter rotors.
    2. Available configurations: 48 positions, 56 positions, or 96 positions.
    3. A 96-position machine provides double the production of a 48-position machine.
  2. Specifications

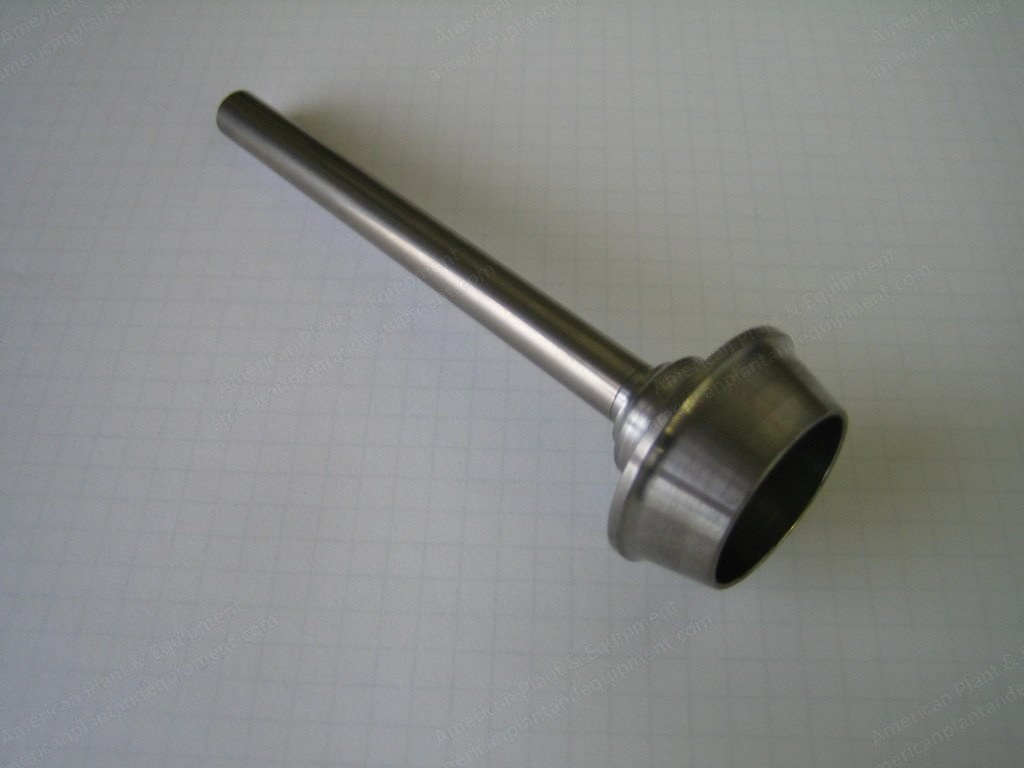

    1. Rotor diameter: 96 mm (3.78 in).

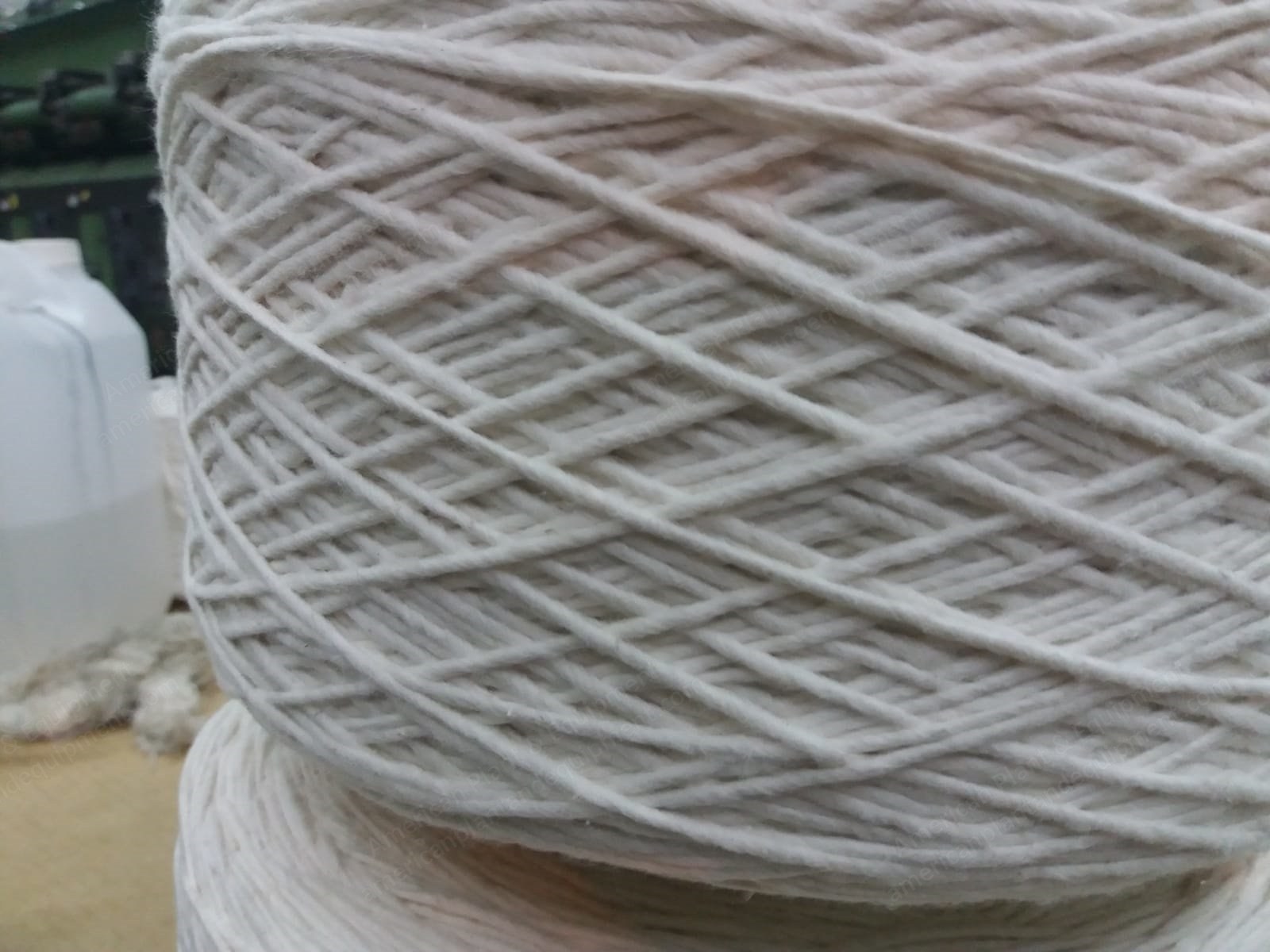

    2. Coarsest yarn count: Ne 0.6 or Ne 0.8.
    3. Coarsest yarn count with 100% cotton: Ne 0.5.
  3. Production Data for 48-Position Configuration
    1. Ne 0.8: delivery speed 80 meter/min (262 ft/min), hourly output 156 kg/h (344 lb/h), output per 24 hours 3,760 kg/24h (8,289 lb/24h).
    2. Ne 1: delivery speed 90 meter/min (295 ft/min), hourly output 122 kg/h (269 lb/h), output per 24 hours 2,928 kg/24h (6,455 lb/24h).
    3. Ne 2: delivery speed 90 meter/min (295 ft/min), hourly output 82 kg/h (181 lb/h), output per 24 hours 1,969 kg/24h (4,341 lb/24h).
    4. Ne 2.5: delivery speed 95 meter/min (312 ft/min), hourly output 64 kg/h (141 lb/h), output per 24 hours 1,559 kg/24h (3,437 lb/24h).
    5. Ne 3: delivery speed 100 meter/min (328 ft/min), hourly output 54 kg/h (119 lb/h), output per 24 hours 1,313 kg/24h (2,895 lb/24h).
    6. Ne 4: delivery speed 100 meter/min (328 ft/min), hourly output 45 kg/h (99 lb/h), output per 24 hours 1,094 kg/24h (2,412 lb/24h).
