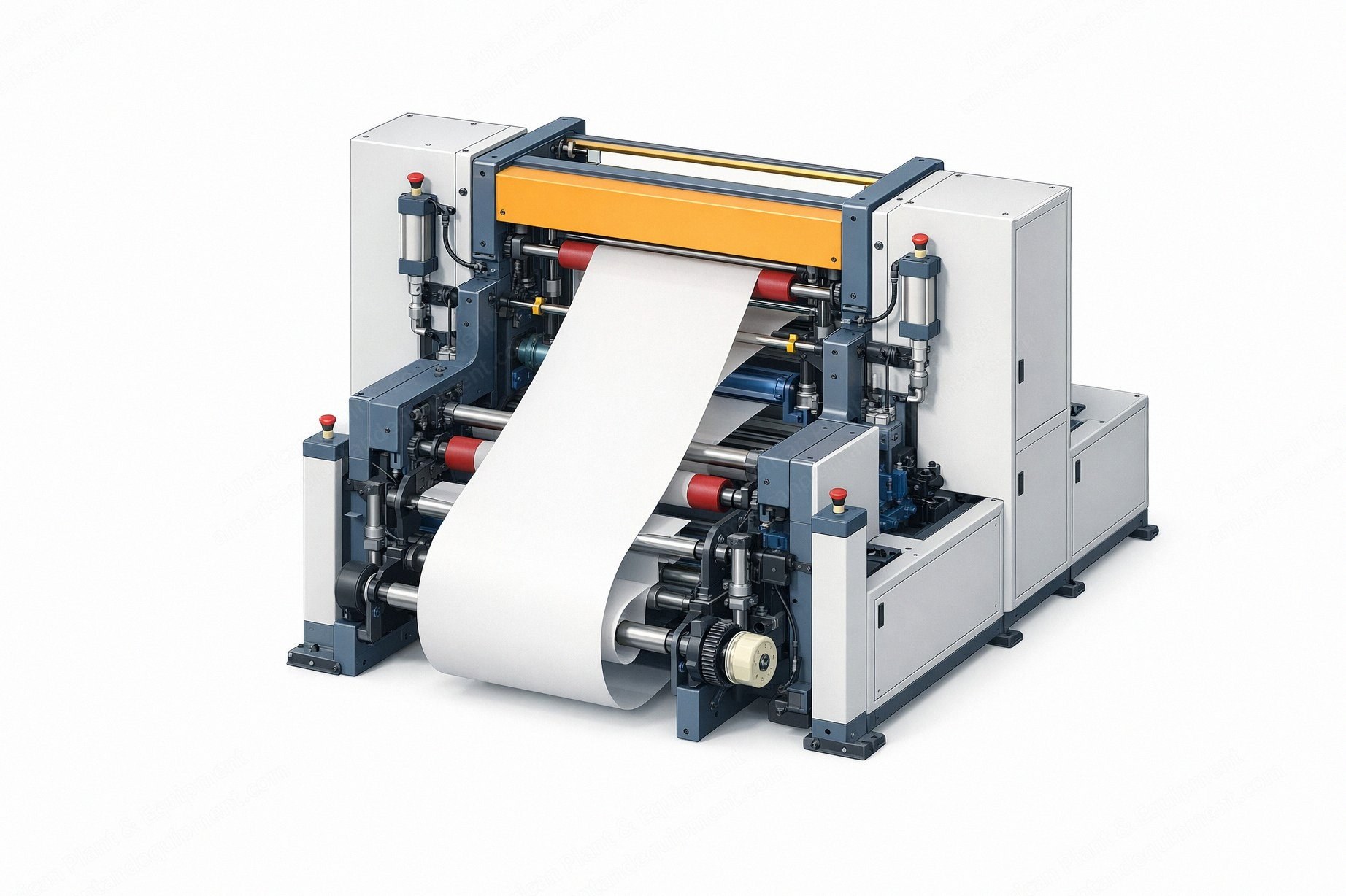

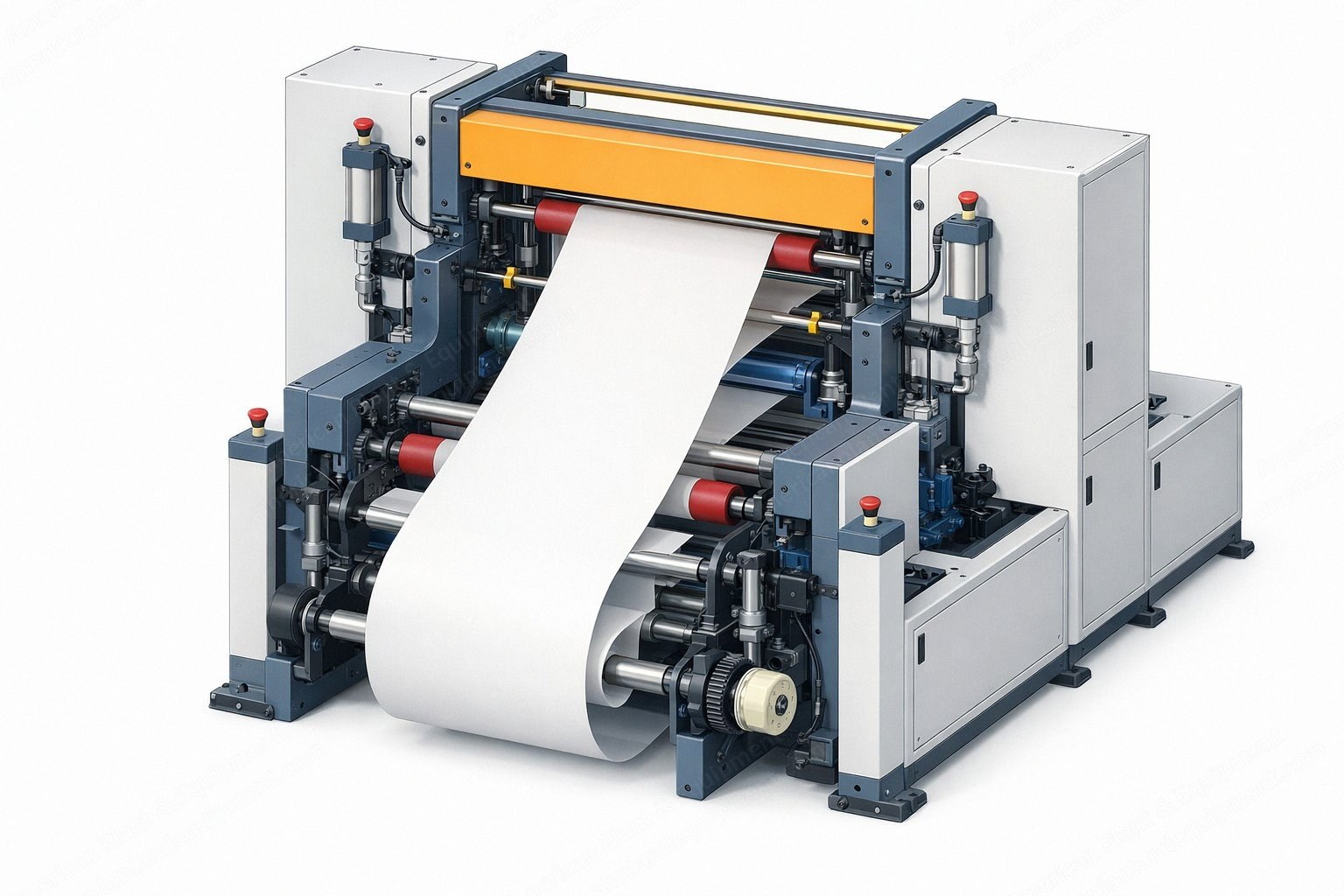

NovaStar, GS129, Laminating and Sheet Cutting Machine, 1,600 mm Max Roll Width, 12 kW (New)

NovaStar, GS129, Laminating and Sheet Cutting Machine, 1,600 mm Max Roll Width, 12 kW

Description

  1. Overview
    1. Brand: NovaStar.
    2. Model: GS129.
    3. Laminating and sheet cutting machine, new and built to order.
    4. Design intended specifically for carbon fiber composite fabric.
    5. Maximum roll width capacity of 1,600 mm (63 in).
    6. Minimum working width of 60 in (1,524 mm).
    7. Fitted with a cross cutter able to produce sheets up to 100 in (2,540 mm).
    8. Voltage: 480 V, 3 phase, 60 Hz.
  2. Condition
    1. New, built to order.
  3. Materials Handled
    1. Plastic release film (outer face): 1 mil (0.0254 mm) thick.
    2. Carbon fiber fabric (middle layer): 0.005 in (0.127 mm) thick.
    3. Paper backing (other outer face): 3 mil (0.0762 mm) thick.
    4. Web width: 60 in (1,524 mm).
    5. Roll weight: approximately 300 lb (136 kg) per roll.
    6. Roll core inner diameter: 3 in (76 mm).
    7. Roll outer diameter: up to 12 in (300 mm).
  4. Specifications
    1. Maximum loading jumbo roll width: 1,600 mm (63 in).
    2. Maximum loading jumbo roll diameter: 500 mm (19.7 in).
    3. Maximum loading jumbo roll weight: 300 kg (661 lb).
    4. Unwind paper tube inner core diameter: 3 in (76 mm).
    5. Cutting length: less than 2,600 mm (102.4 in).
    6. Cutting precision: plus or minus 0.2 mm (0.008 in).
    7. Cutting thickness: less than 0.7 mm (0.028 in).
    8. Total power: 12 kW (16.1 hp).
    9. Power supply: 480 V, 3 phase, 60 Hz.
    10. Air supply: 0.6 to 0.8 MPa, 0.8 m³/min.
  5. Standard Configuration
    1. Integrated shafted unwind unit for jumbo roll loading, with magnetic powder brake handling tension control.
    2. Fuselage built from cast iron steel together with 20 mm (0.79 in) thick steel plate.
    3. Pneumatic automatic loading provided for heavy jumbo rolls.
    4. Two-roll unwinder, with each roll served by its own web guide system.
    5. Web guide system for edge detection, selectable between automatic and manual control.
    6. High precision ultrasonic sensor for rapid detection of a range of web edges, supplied with sensor, controller and correcting motor.
    7. Motor-driven peeling unit that rewinds the film and paper layers ahead of laminating.
    8. Laminating unit using an adjustable-pressure rubber upper roller against a fixed steel lower roller.
    9. Servo motors under synchronous control driving the high precision traction roller.
    10. Heavy duty casting knife holder with a fixed bottom knife and a movable upper blade.
    11. Two sets of high speed steel cutting knives for clean cuts and extended service life.
    12. Brake AC motor moves the cutting knife along guiding rails, giving rapid stopping and holding.
    13. Table lengthened to 2,600 mm (102.4 in) to suit sheet lengths up to 100 in (2,540 mm), with adjustable feet.
    14. Electrical unit with a tidily arranged control board, in line with recognized certification standards.
    15. Color touch screen with PLC system (Panasonic, Japan); English language selectable.
    16. Touch screen allows cutting length and quantity to be set and includes problem diagnosis with an I/O page for fault finding.
  6. Build Features
    1. All rubber rollers made of polyurethane for extended durability.
    2. All aluminum alloy guide rollers dynamically balanced and hard oxidation treated.
    3. All knife shafts made of #45 steel, coated with 100 micron (0.004 in) hard chrome and dynamically balanced.
    4. Servo motors under synchronous control for high precision traction.
    5. Pneumatic automatic loading for heavy jumbo rolls, plus ultrasonic web guiding for accurate feeding.
    6. Heavy duty casting knife holder and high quality steel cutting knives support clean cuts and long life.
  7. Major Bought-In Components
    1. PLC: Panasonic, Japan.
    2. Circuit breaker, contactor, relay: Honeywell, USA.
    3. Push buttons: Schneider, France.
