NovaStar, LC180, Laminating and Sheeting (Cross-Cutting) Machine, New, 1,600 mm (63 in) Working Width, 80 cuts/min (New)

NovaStar, LC180, Laminating and Sheeting (Cross-Cutting) Machine, New, 1,600 mm (63 in) Working Width, 80 cuts/min

Description

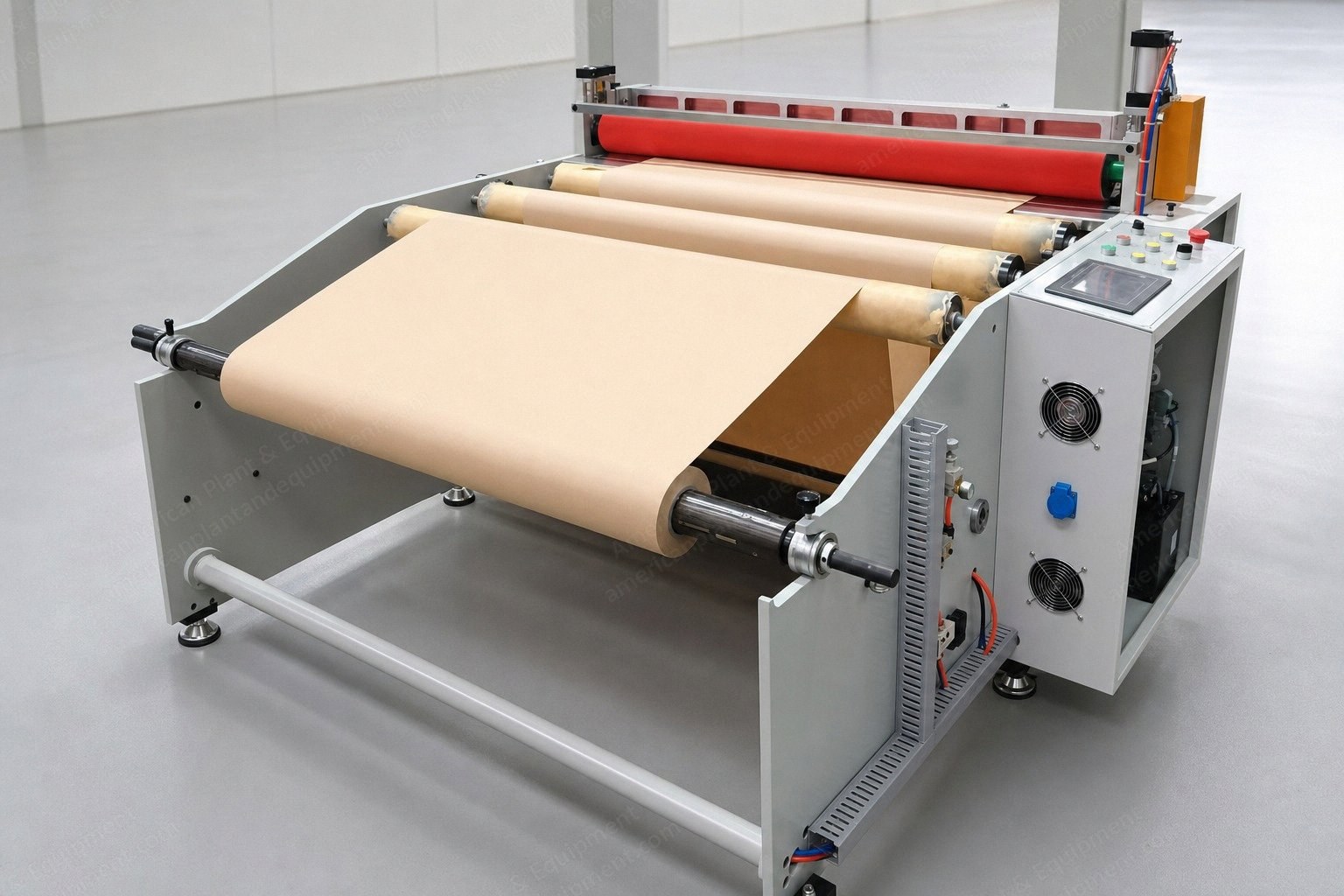

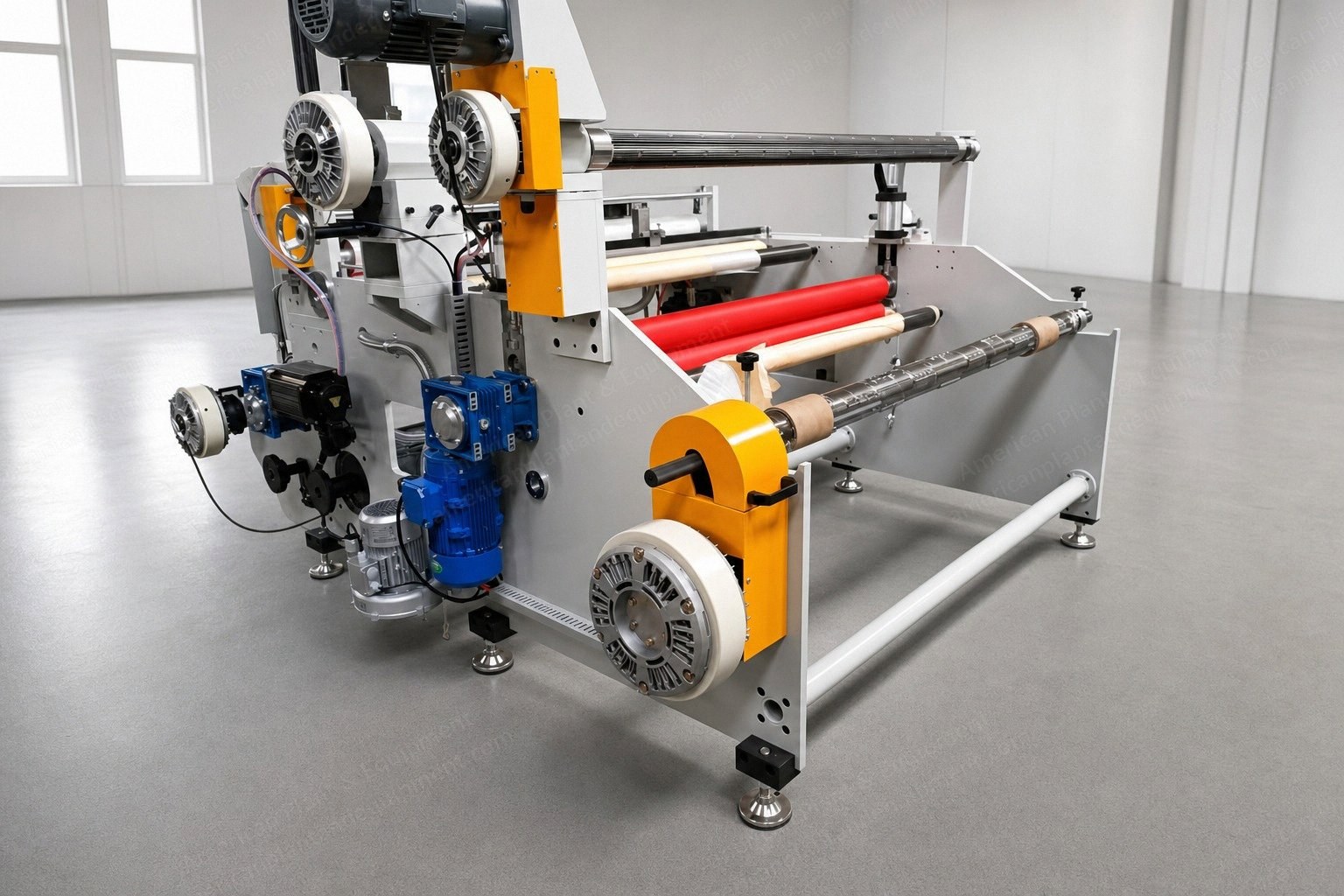

New laminating and sheeting (cross-cutting) machine, 1,600 mm (63 in) working width, built to order. Two webs are unwound, laminated through a pneumatic nip and cut to length onto a stacking table, with liner rewinds after lamination. Suitable for carbon fiber composite fabric and for paper, PET, PC, PVC, films and foils. Photos show a similar machine from the same builder.

A. Main Parameters

  1. Working width: 1,600 mm (63 in)

  2. Cutting speed: up to 80 cuts per minute

  3. Cutting accuracy: +/- 0.05 mm

  4. Cut length: programmable on the touch screen, with counting and automatic metering

  5. Material thickness: 0.009 to 8 mm, depending on material

  6. Roller load: 300 kg per roller

  7. Installed power: 8 kW

  8. Electrical: 3 phase, supplied with a transformer for a 440 V supply

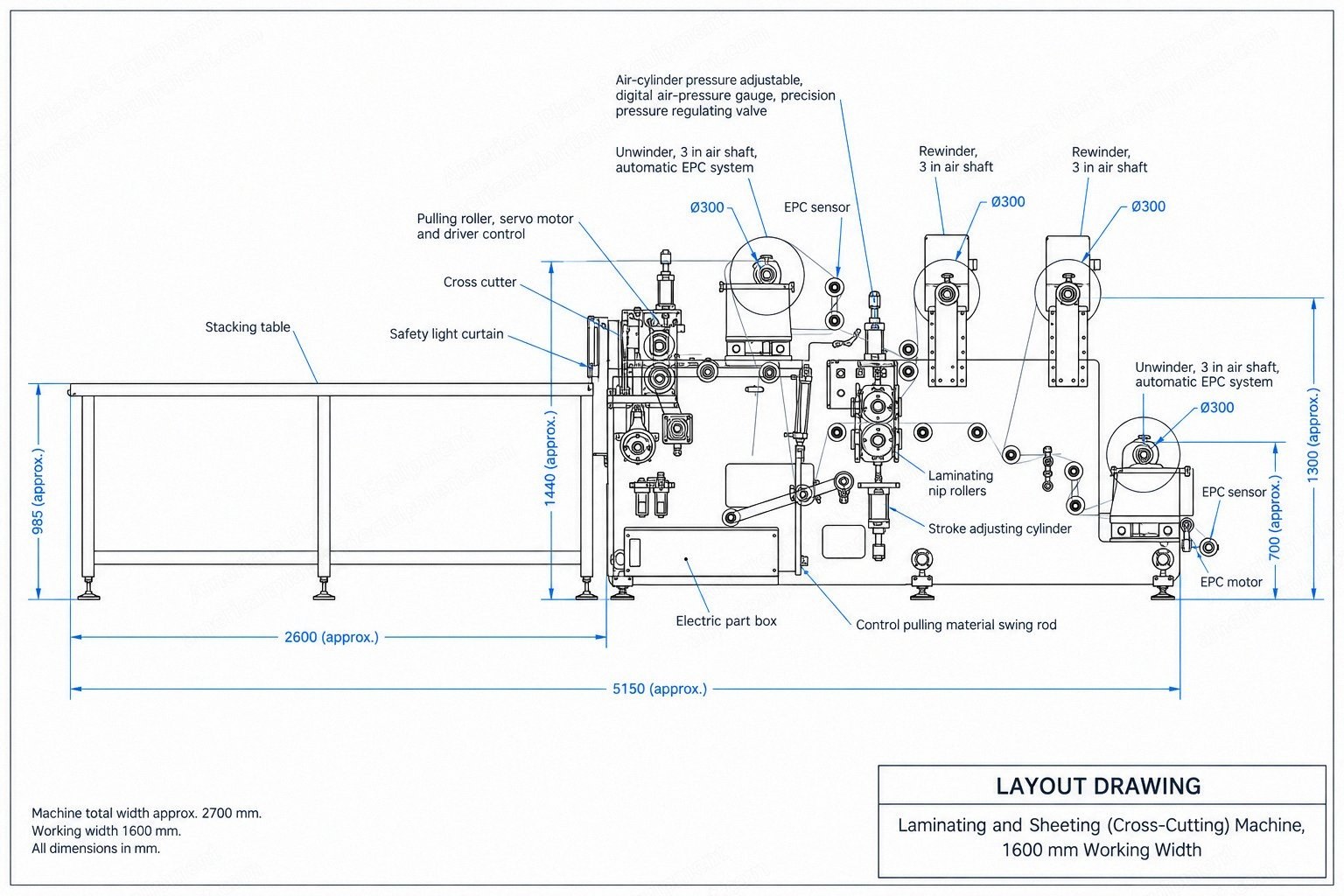

  9. Overall layout: approx. 5,150 mm long x 2,700 mm wide, including a 2,600 mm (102 in) stacking table

  10. Machine weight: approx. 2,500 kg

B. Configuration

  1. 2 unwinds on 3 in air shafts, each with automatic EPC edge guiding

  2. 2 rewinds on 3 in air shafts (liner take-ups after lamination)

  3. Laminating nip rollers with pneumatic pressure, digital air pressure gauge and precise pressure regulating valve

  4. Dancer roller with touch sensor controlling feed and tension before cutting

  5. Servo driven pulling roller with thick PU rubber covering

  6. Servo driven cross cutter with SKD11 steel blade

  7. Safety cover and safety light curtain at the cutter; the machine will not run with the cover open

  8. Hard anodized polished aluminum guide rollers

  9. 20 mm solid steel side walls

  10. PLC and servo drives by Mitsubishi, touch screen operation

C. Documentation and Service

  1. English operation and maintenance manual, electrical drawings and wiring diagrams, training videos

  2. Complete installation and maintenance tool kit

  3. 12 month warranty, wear parts excluded

  4. Working video of the finished machine before shipment

  5. Lead time: 30 days to build and 30 days to ship
