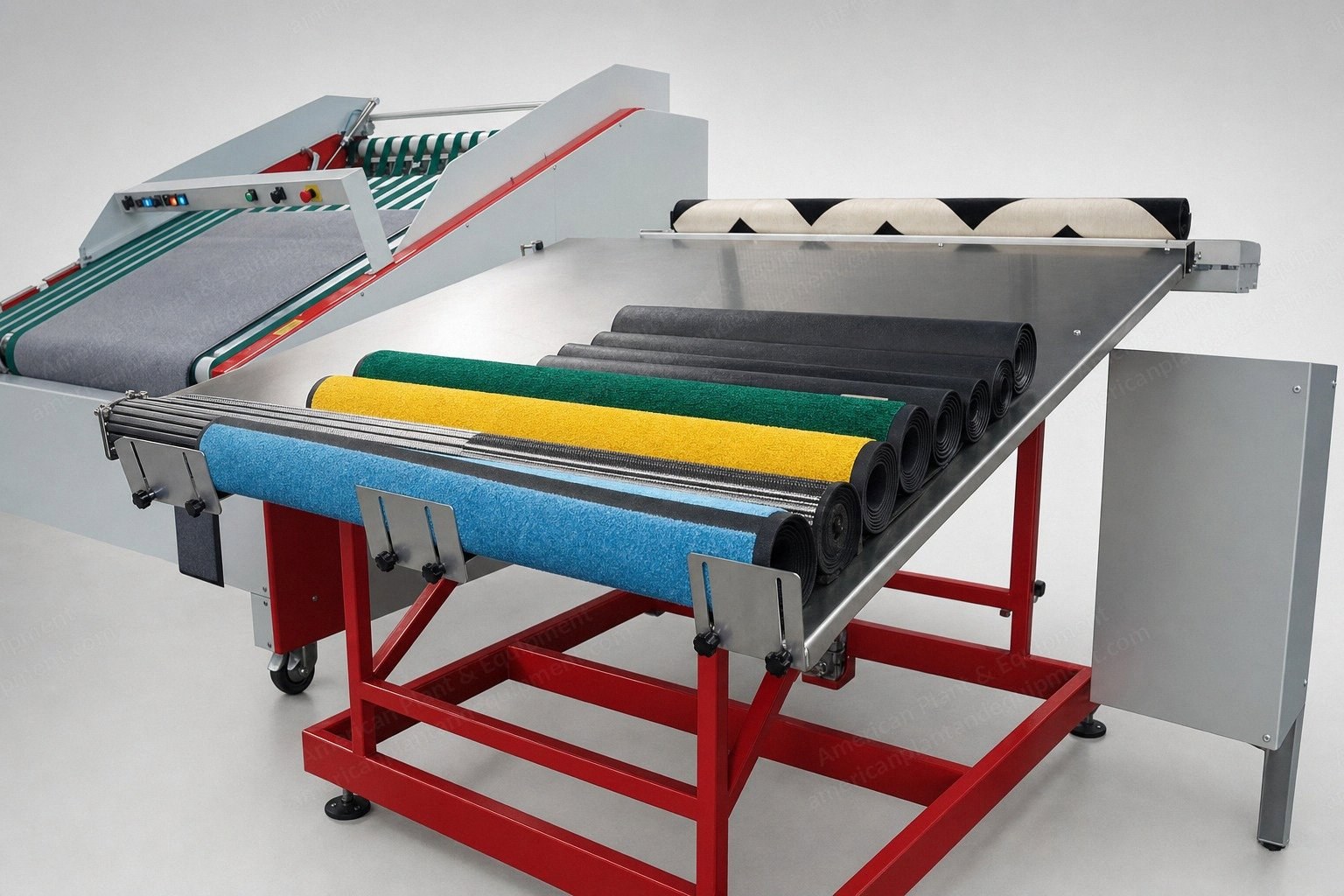

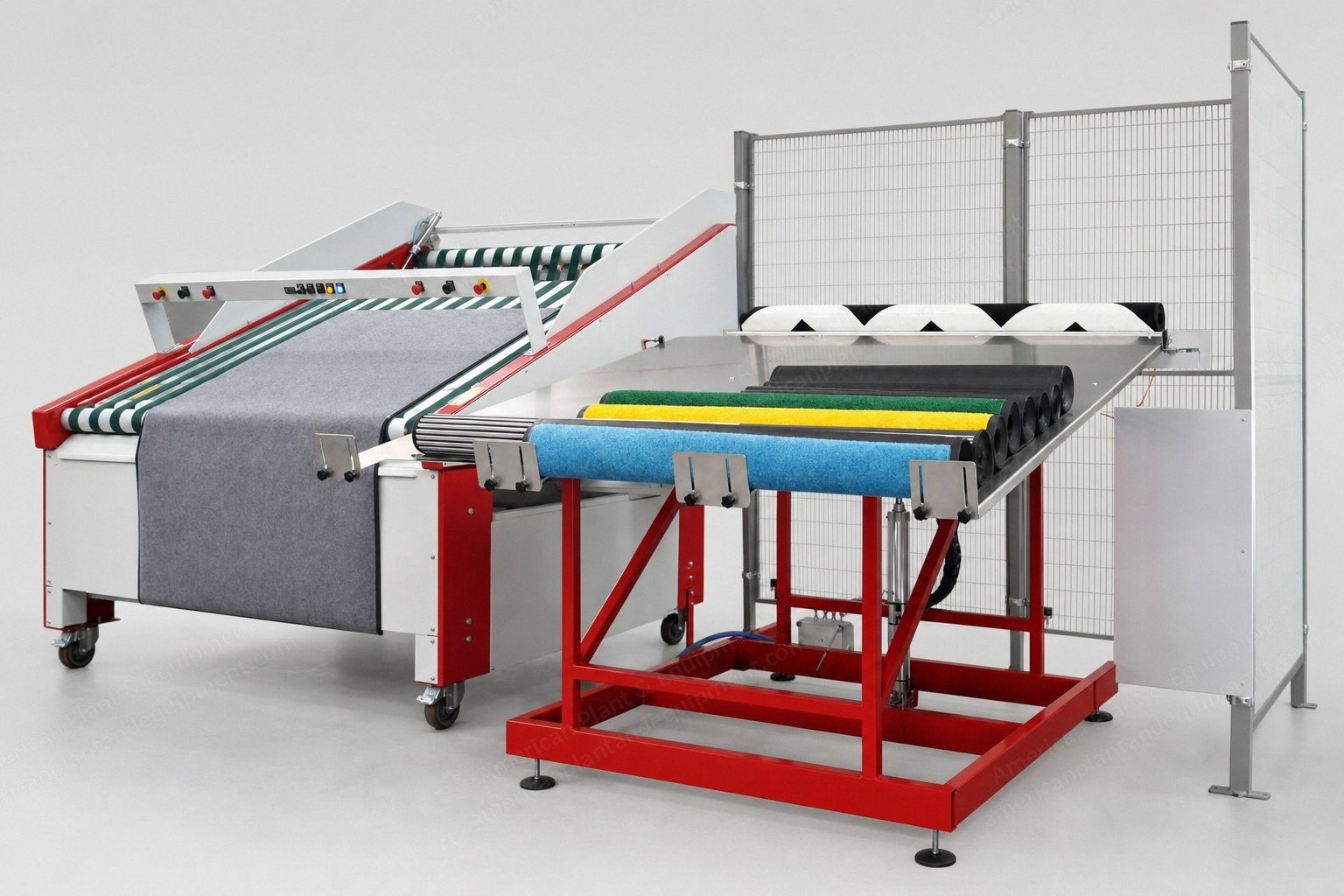

NovaStar, PL104, Automatic Output and Storage System for 1,700 mm Mat Roller, New, 400 Mats/h (New)

New automatic output (discharge and storage) system for mat roller, built to order.

A. Main Parameters

1. For the matching 1,700 mm mat roller: ergonomic, rapid discharge of rolled mats
2. System 1, single output: 1 unit and 1 storage table, storage for 15 to 20 mats
3. System 1 dimensions: W 2,100 x D 2,300 x H 1,400 mm (W 82.68 x D 90.55 x H 55.12 in)
4. Capacity: approx. 400 mats per hour, depending on mat type
5. Compressed air: 6 bar
6. Voltage: 220-240 V, 1 phase, 50 Hz

B. Features

1. Simple installation
2. Usable with or without trolley
3. System 2, trolley output: several units to store the mats, sort them by length or width, or load them straight into a trolley
4. System 3: custom output systems on request
5. CE certified
