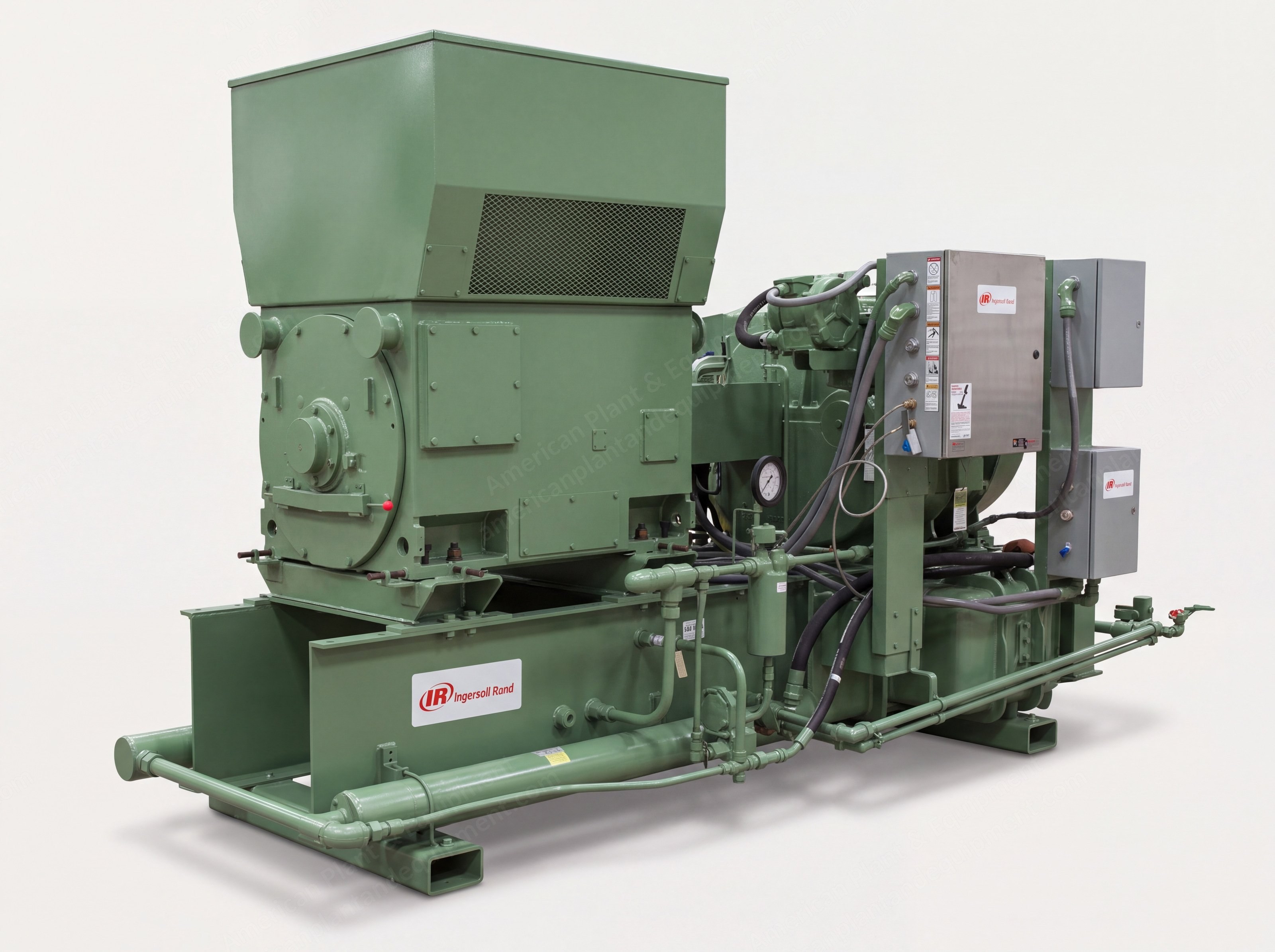

Ingersoll Rand, TURBO-AIR 3000, Centrifugal Air Compressor Package, 900 HP, 140 PSIA Discharge, 4160 V, 60 Hz, 2023, New Unused

Ingersoll Rand, TURBO-AIR 3000, Centrifugal Air Compressor Package, 900 HP, 140 PSIA Discharge, 4160 V, 60 Hz, 2023, New Unused

Description

  1. Machine

    1. Ingersoll Rand TURBO-AIR 3000 three-stage centrifugal air compressor package, electric motor driven through an integral gear.

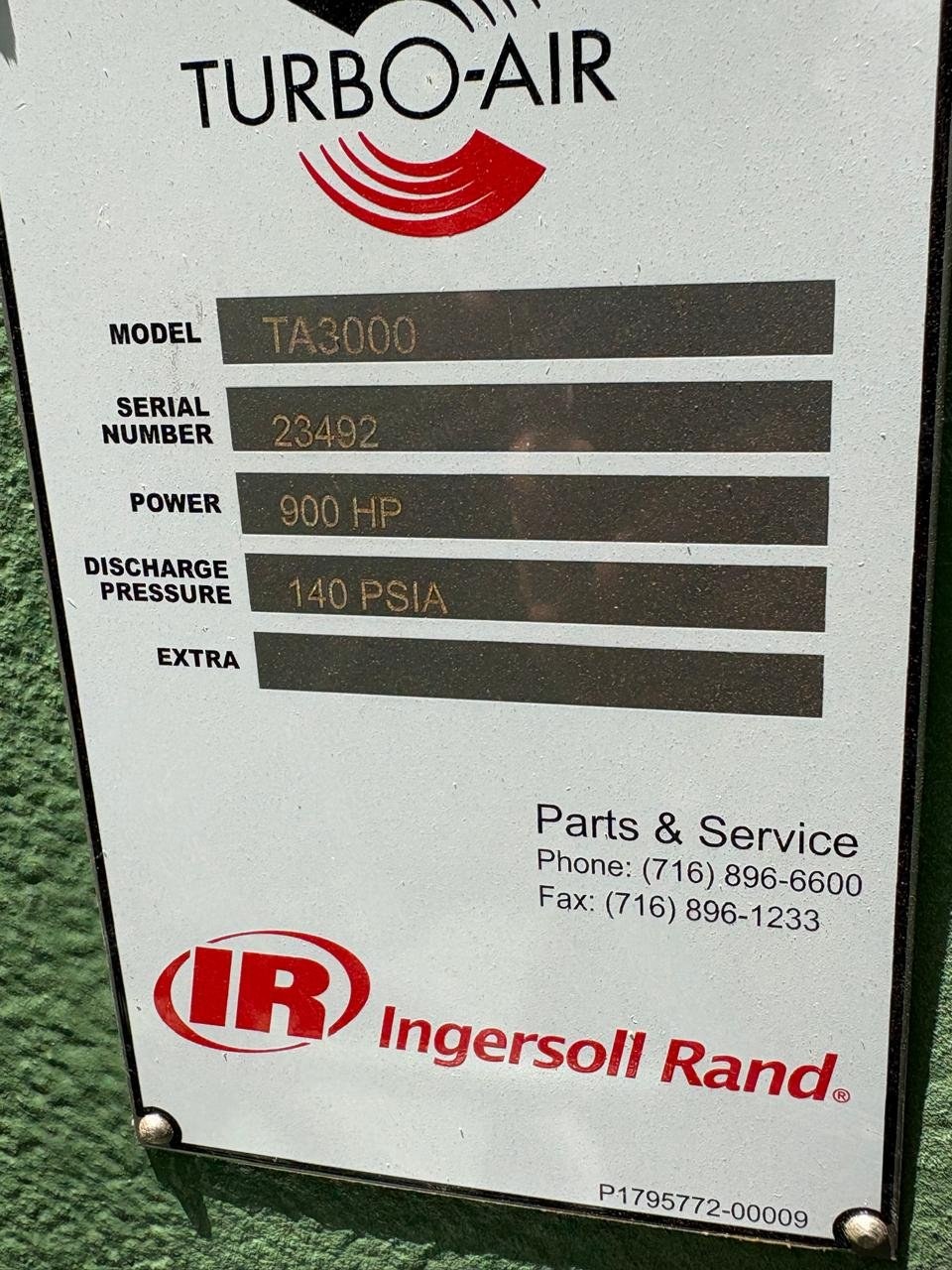

    2. Compressor nameplate: model TA3000, power 900 HP, discharge pressure 140 PSIA (about 125 PSIG).

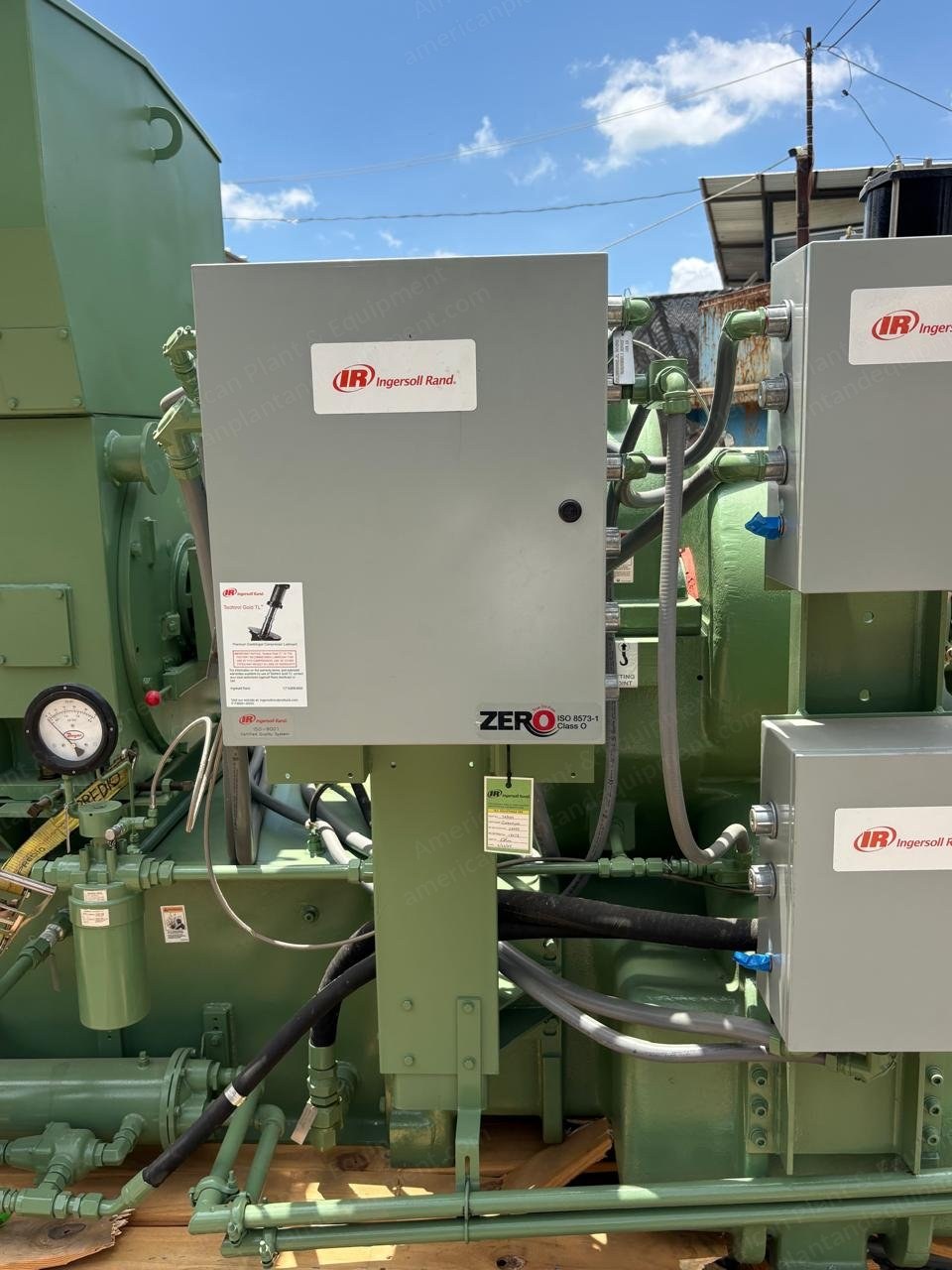

    3. 100 percent oil-free. The package carries the Ingersoll Rand ZERO and ISO 8573-1 Class 0 badge.

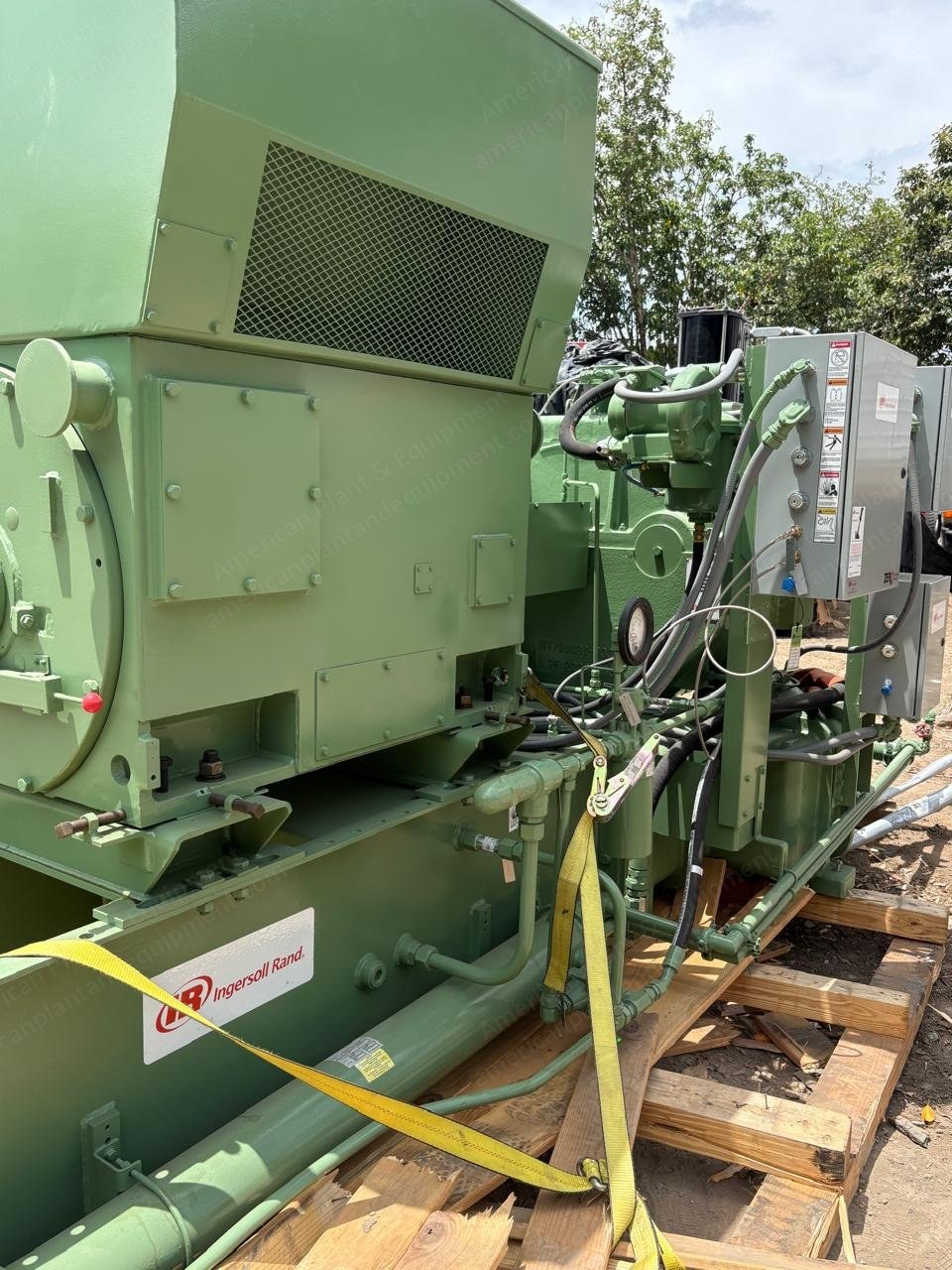

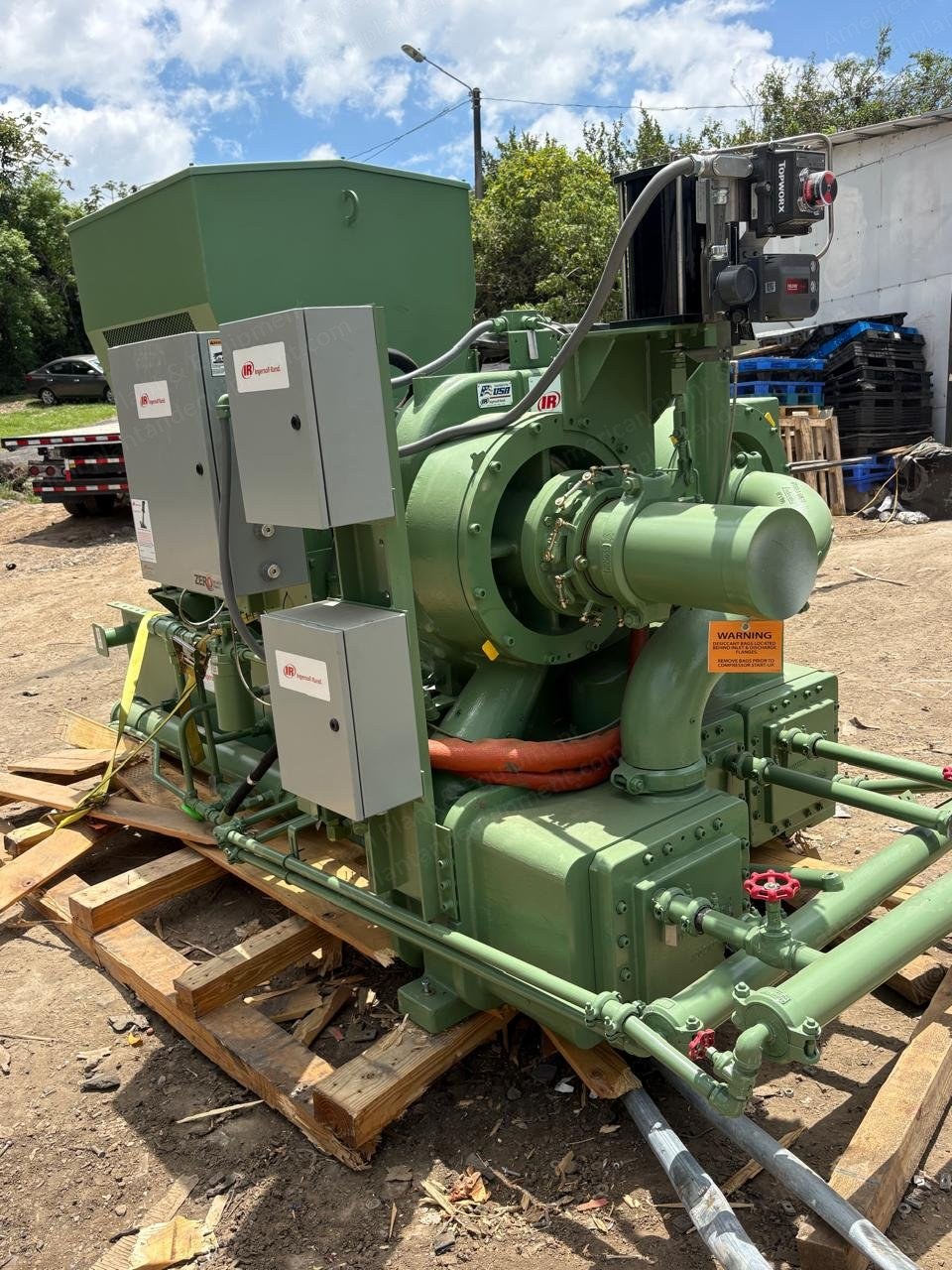

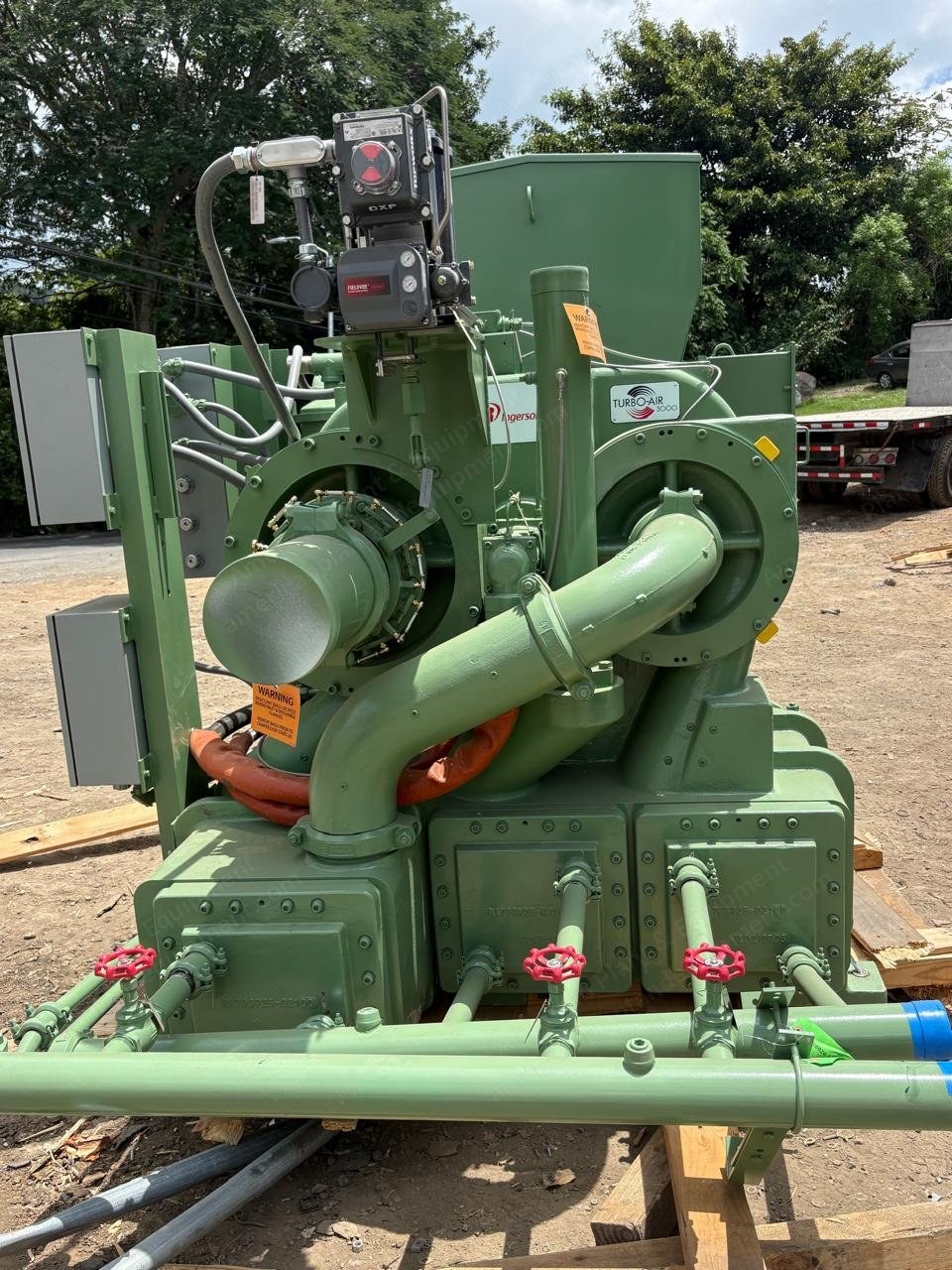

    4. Complete package on a fabricated steel base frame: drive motor, compressor and gear casing, water-in-tube intercoolers and aftercooler, inlet guide vane with a TopWorx actuator, self-contained lubrication system, interconnecting piping, Ashcroft instrumentation, condensate drains, and machine-mounted Ingersoll Rand control and junction panels.

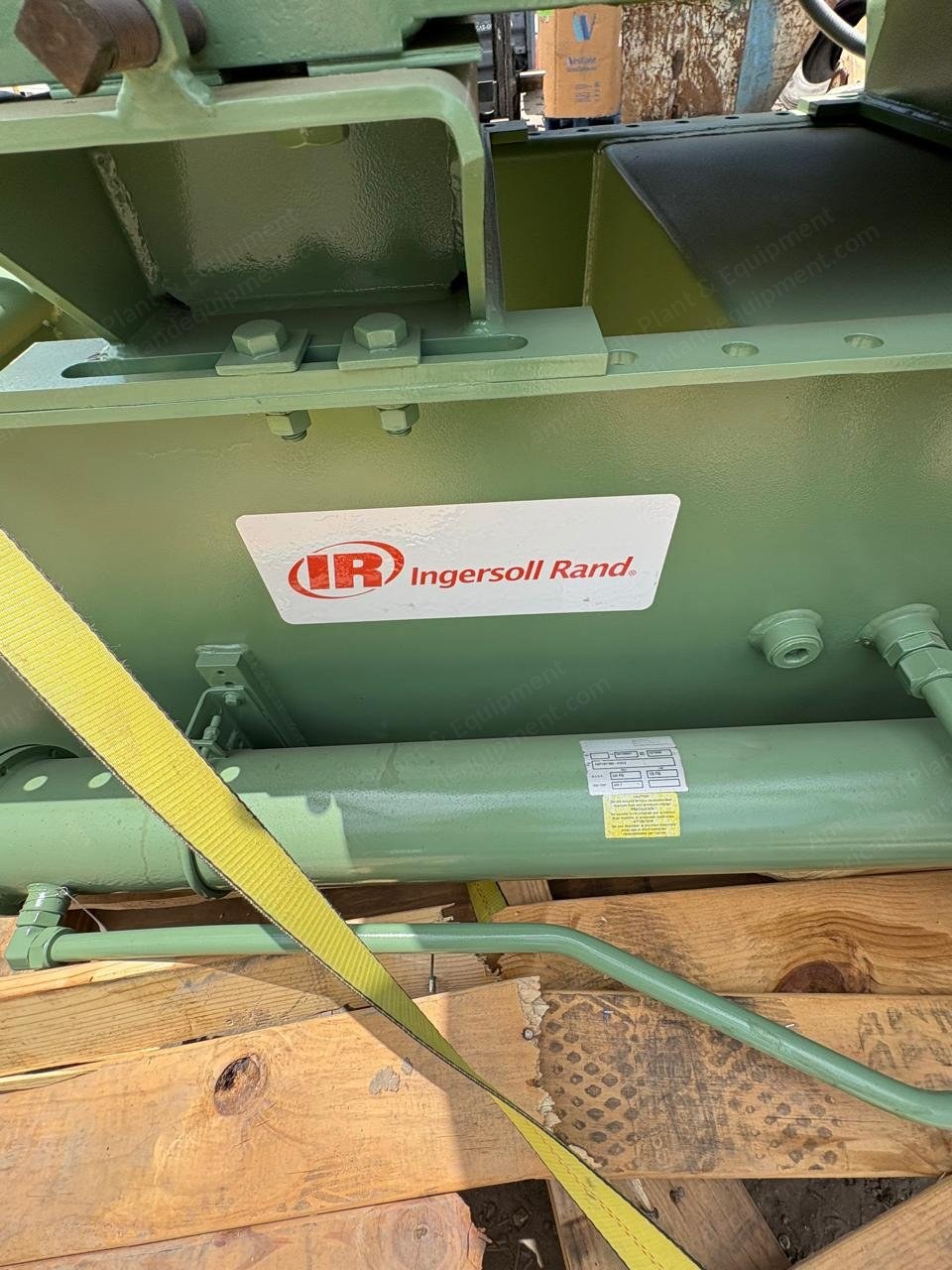

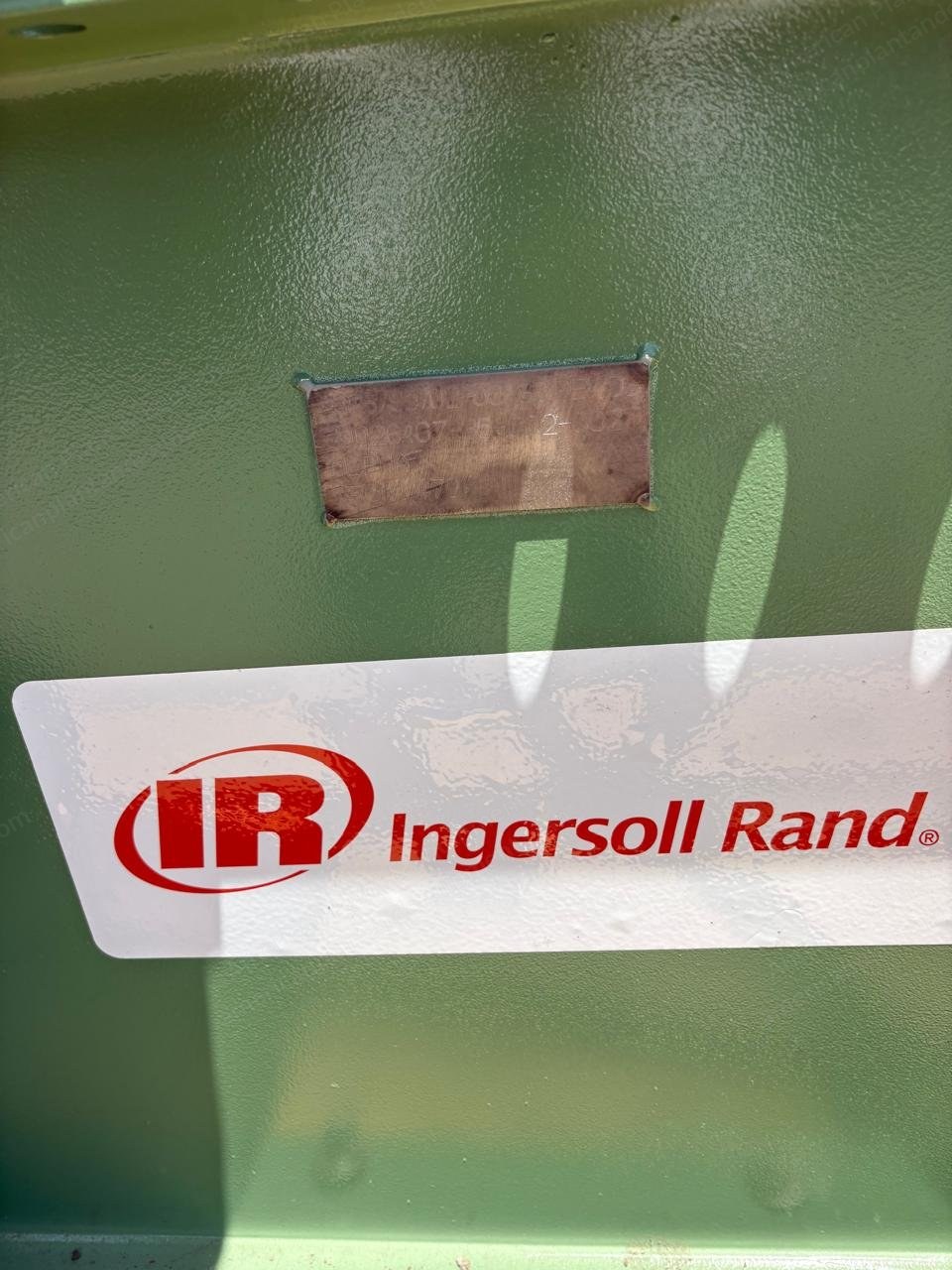

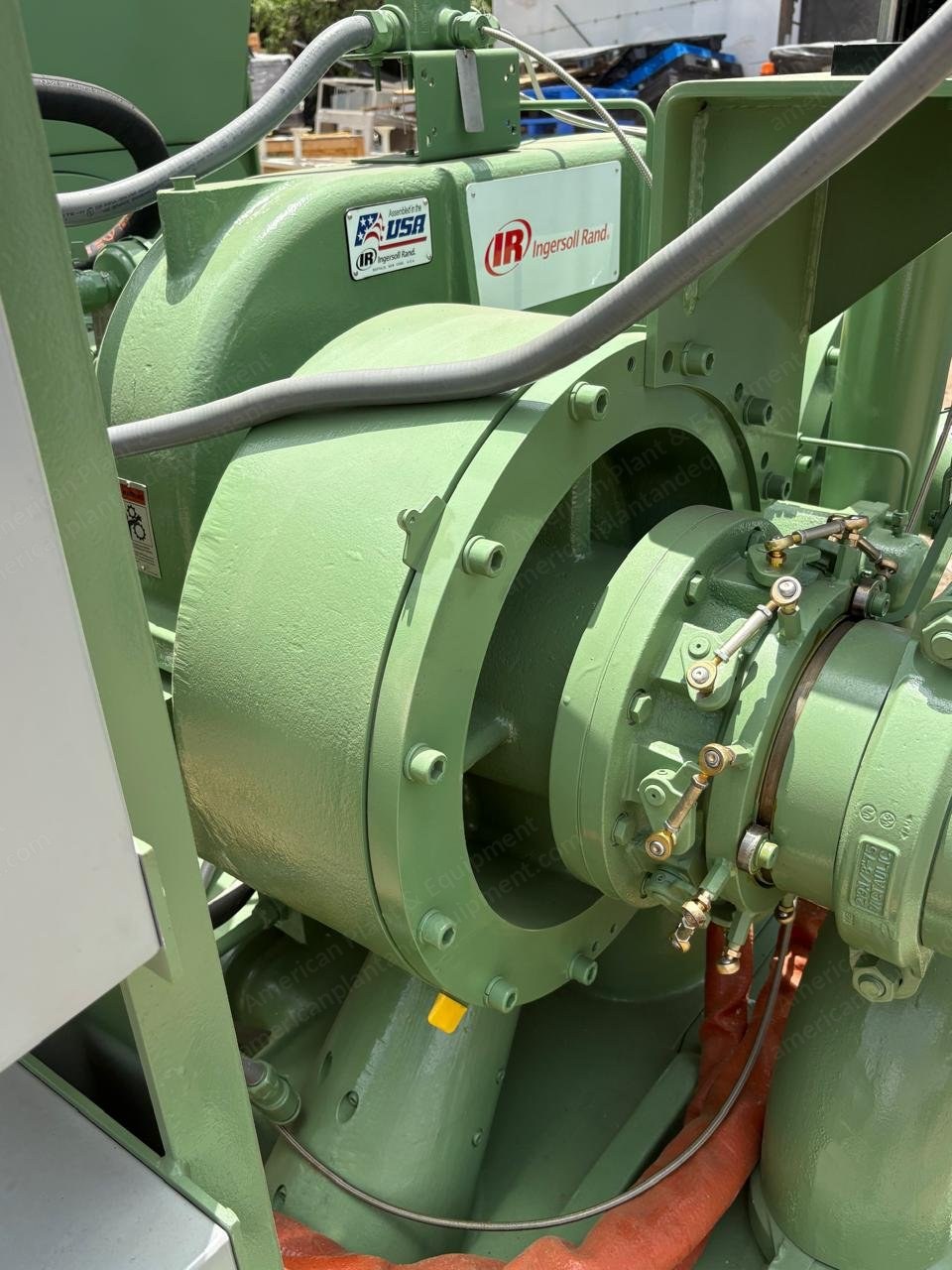

    5. Built in the USA. The castings carry Ingersoll-Rand and Made in U.S.A. marks and the package carries the Proudly Built in the USA decal.

    6. Finished in machinery green.

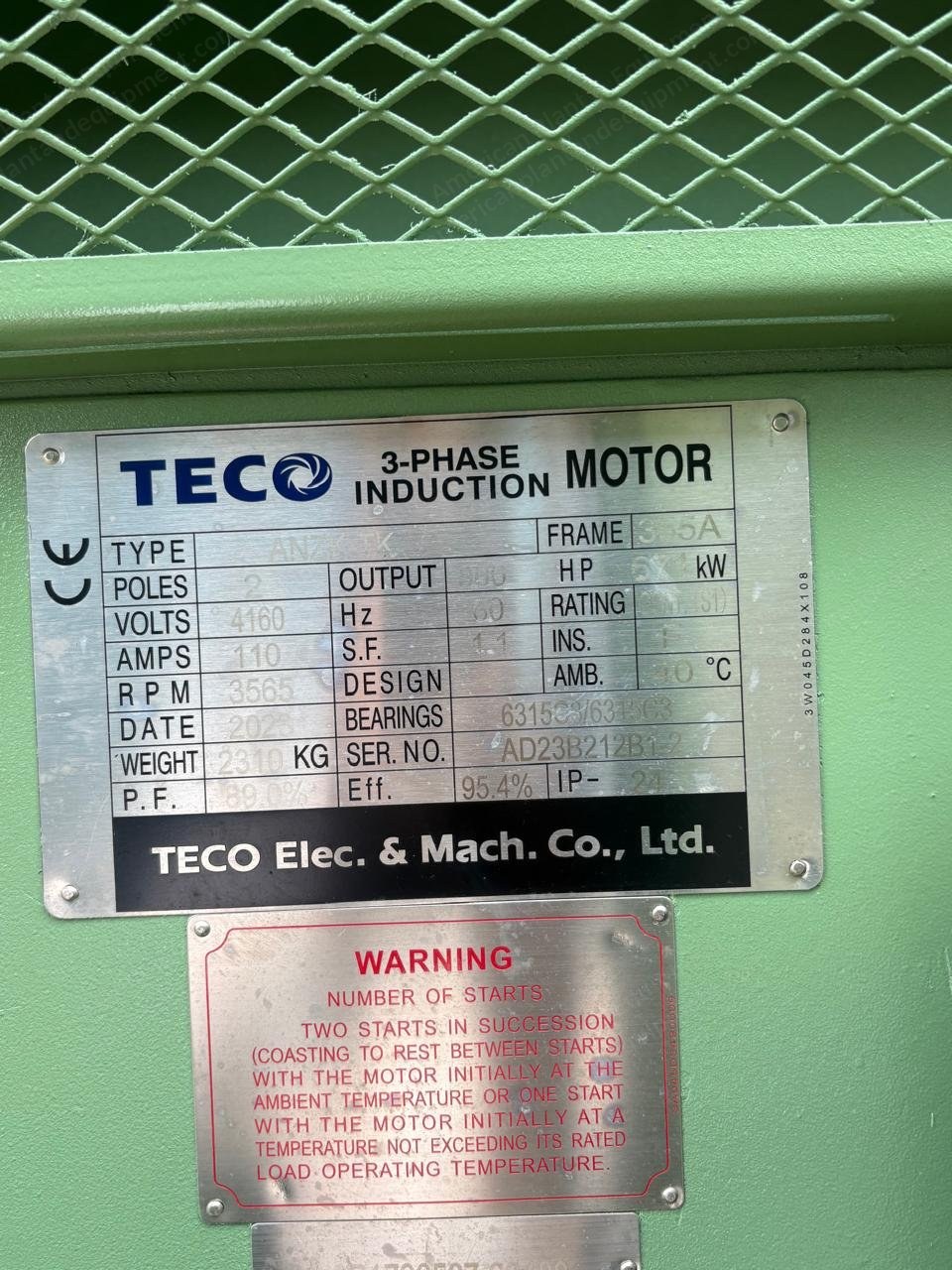

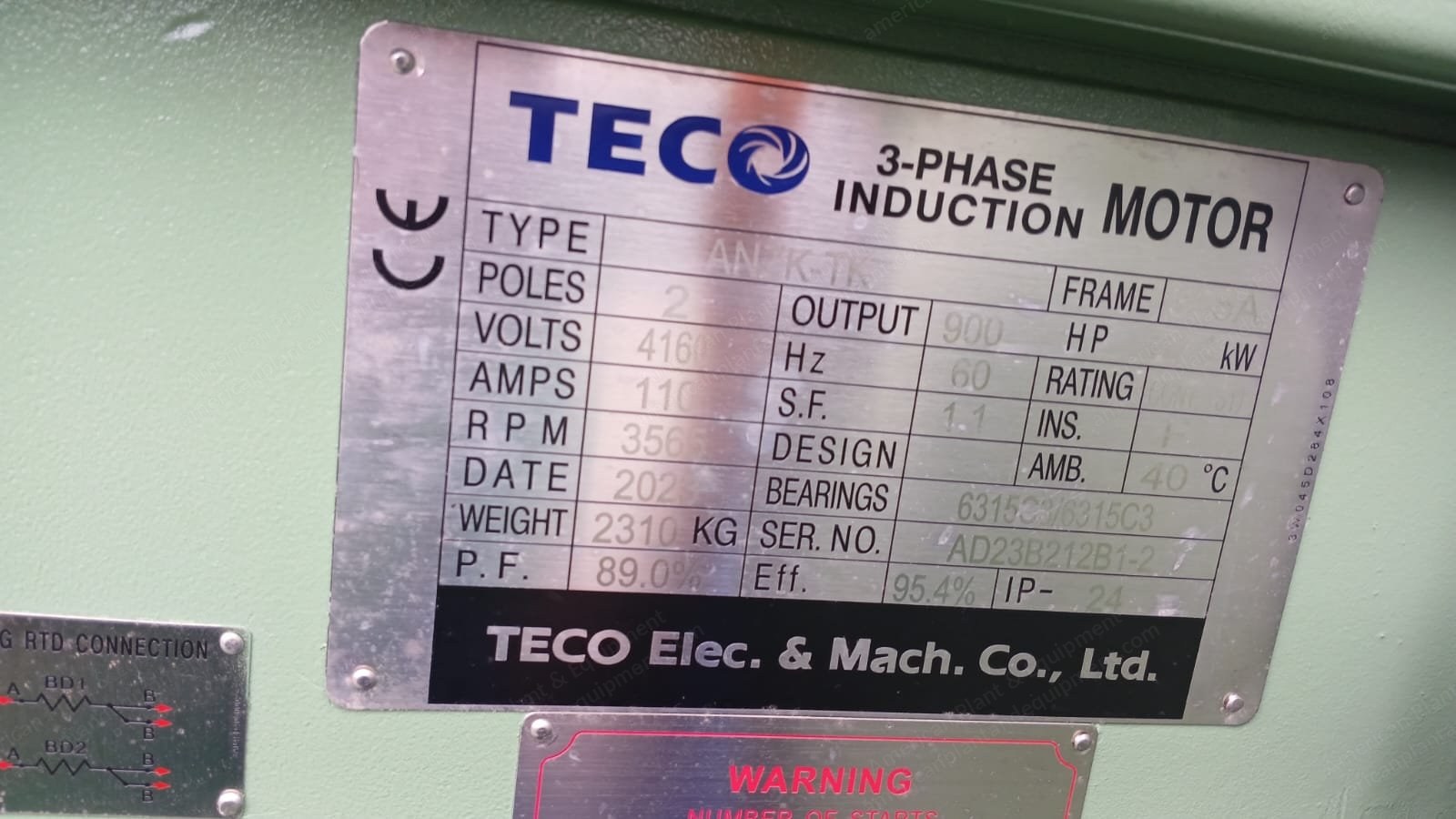

  2. Drive Motor, Read from the Nameplate

    1. TECO Elec. and Mach. Co., Ltd., 3-phase induction motor.

    2. Output 900 HP (671 kW).

    3. 4160 V, 60 Hz, 3 phase, 110 A.

    4. 2 poles, 3565 RPM.

    5. Service factor 1.1.

    6. Duty CONT. (S1).

    7. Class F insulation, 40 C ambient, IP24 enclosure.

    8. Efficiency 95.4 percent, power factor 89.0 percent.

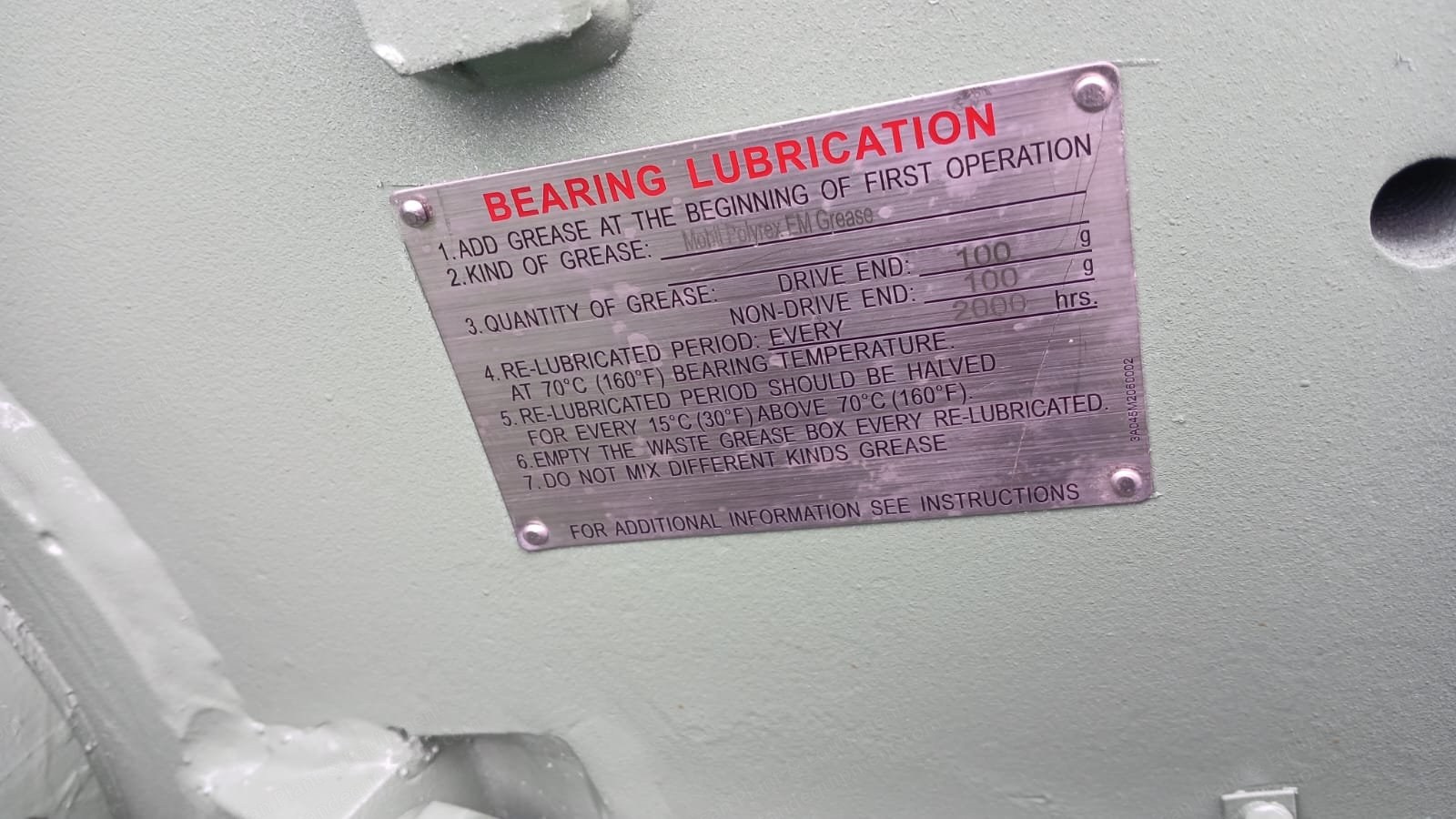

    9. Bearings 6315C3 / 6313C3, Mobil Polyrex EM grease, 100 g each end, re-lubricate every 2000 hours.

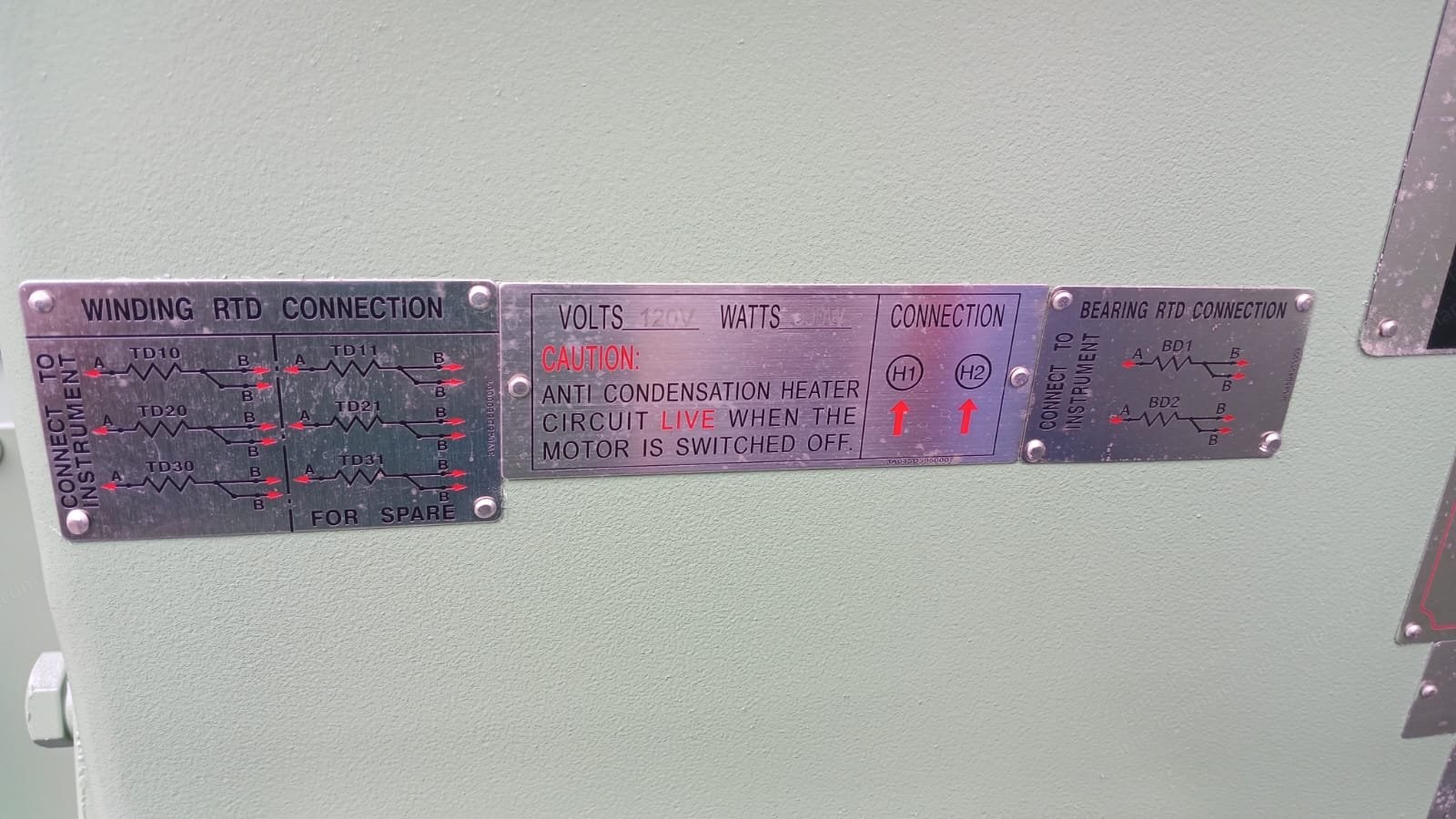

    10. Winding and bearing RTDs fitted, plus a 120 V 300 W anti-condensation space heater.

    11. Motor weight 2310 kg (5093 lb).

    12. Motor built 2023.

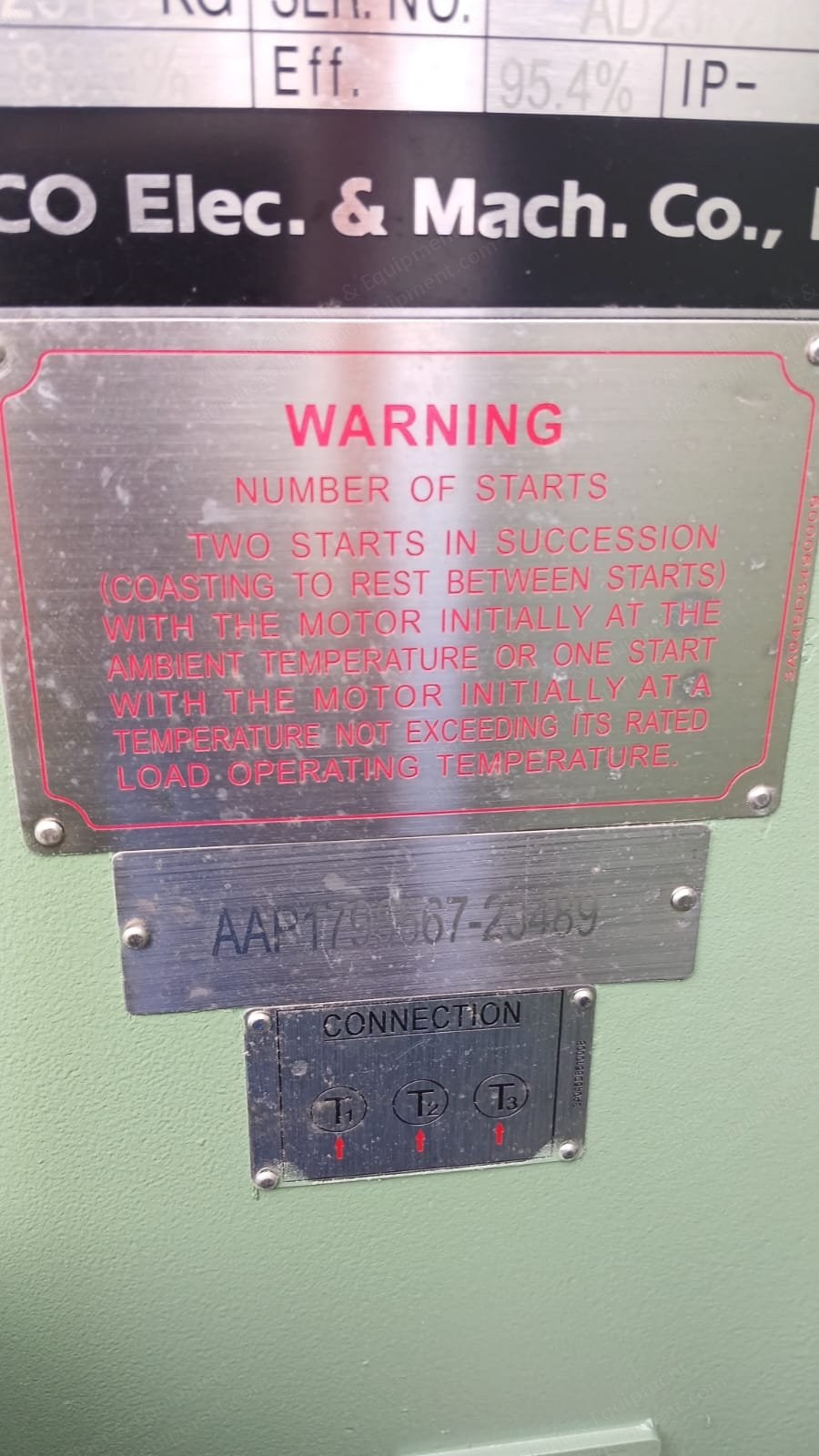

    13. Starting restriction stated on the motor: two starts in succession from ambient temperature, or one start with the motor at its rated load operating temperature.

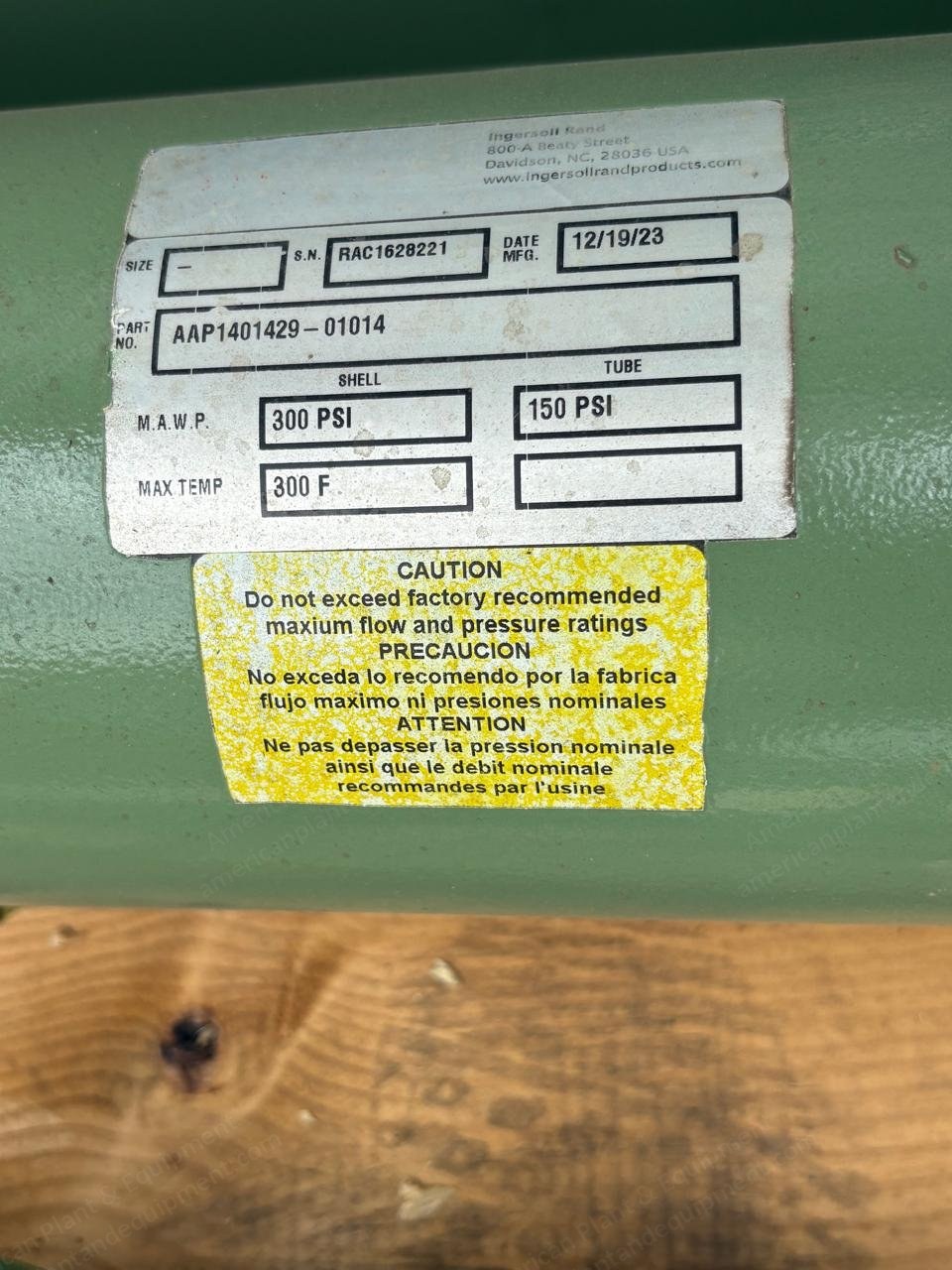

  3. Coolers, Read from the Data Plate

    1. Ingersoll Rand, 800-A Beaty Street, Davidson, NC 28036 USA.

    2. Date of manufacture 12/19/2023.

    3. Shell maximum allowable working pressure 300 PSI, tube maximum allowable working pressure 150 PSI.

    4. Maximum temperature 300 F.

  1. Condition

    1. New and unused. The factory shipping desiccant bags are still fitted, and the package carries the Ingersoll Rand warning "Desiccant bags located behind inlet and discharge flanges. Remove bags prior to compressor start up."

    2. The inlet and discharge flanges are still blanked and no process piping has ever been connected.

    3. Paint, decals, hanging factory tags and shipping straps are all as delivered from the factory.

    4. Built December 2023 and never commissioned.

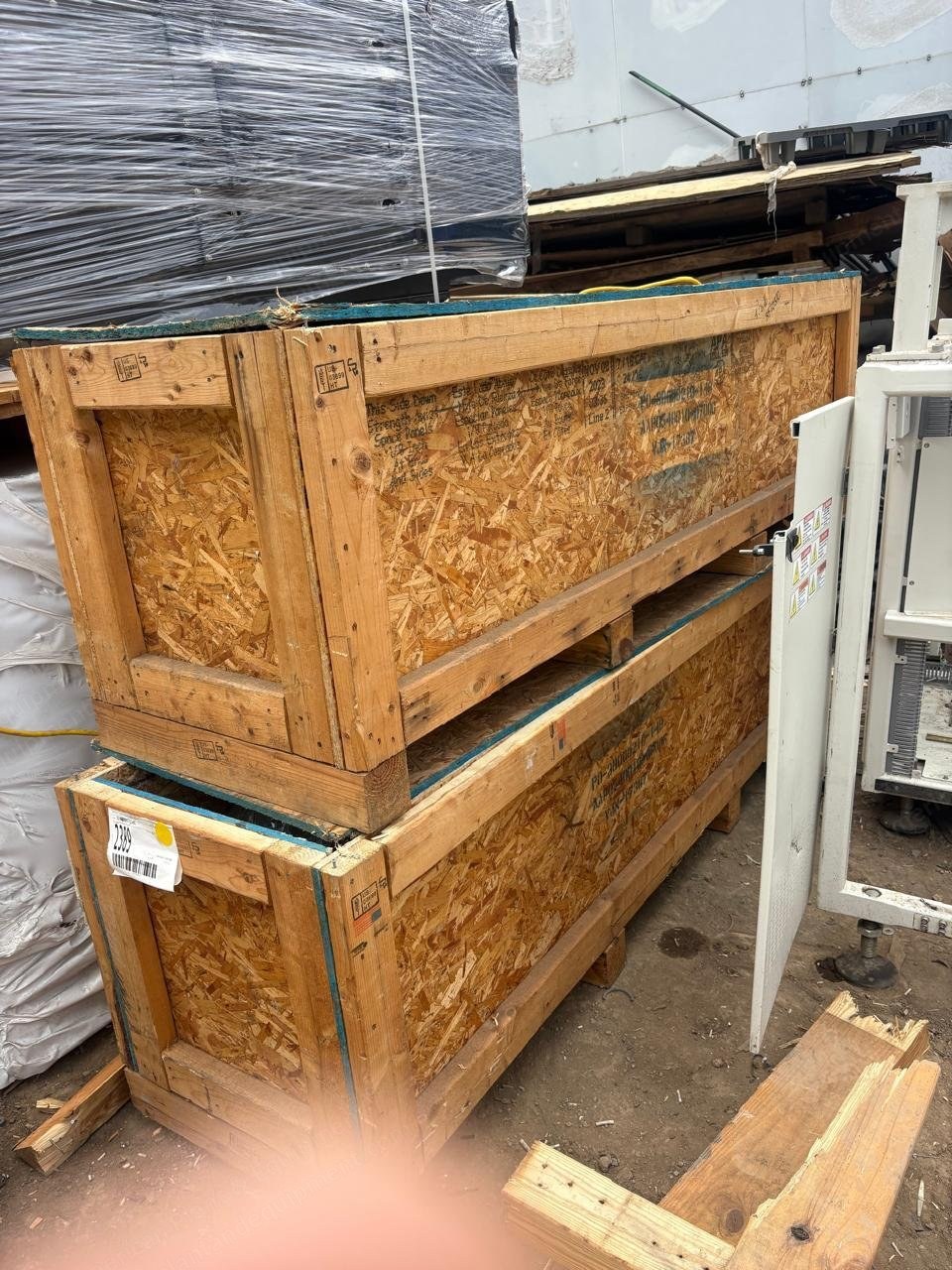

    5. Currently skidded and stored outdoors, with loose components packed in heavy OSB export crates carrying the IPPC and ISPM-15 heat-treated mark, so the packing is already certified for international shipment.

  2. Quantity and Availability

    1. 5 units available.

    2. Ready to load, skidded and crated.

    3. Sold subject to prior sale.

  3. To Be Confirmed

    1. Rated capacity in CFM. It is not shown on the nameplate. Ingersoll Rand publishes a 2000 to 4000 CFM range for the TURBO-AIR 3000 family.

    2. Whether all 5 units carry the identical configuration.
