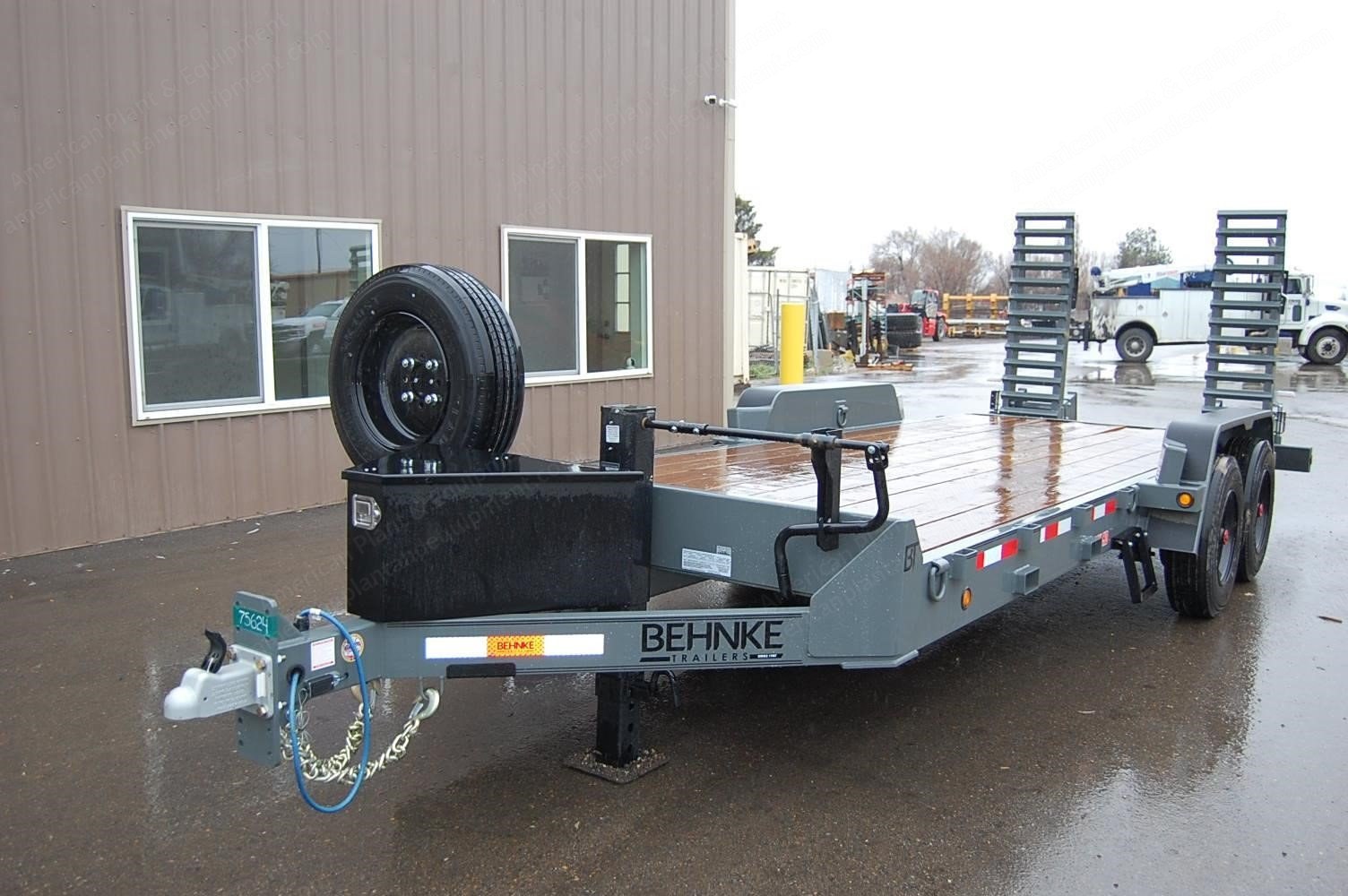

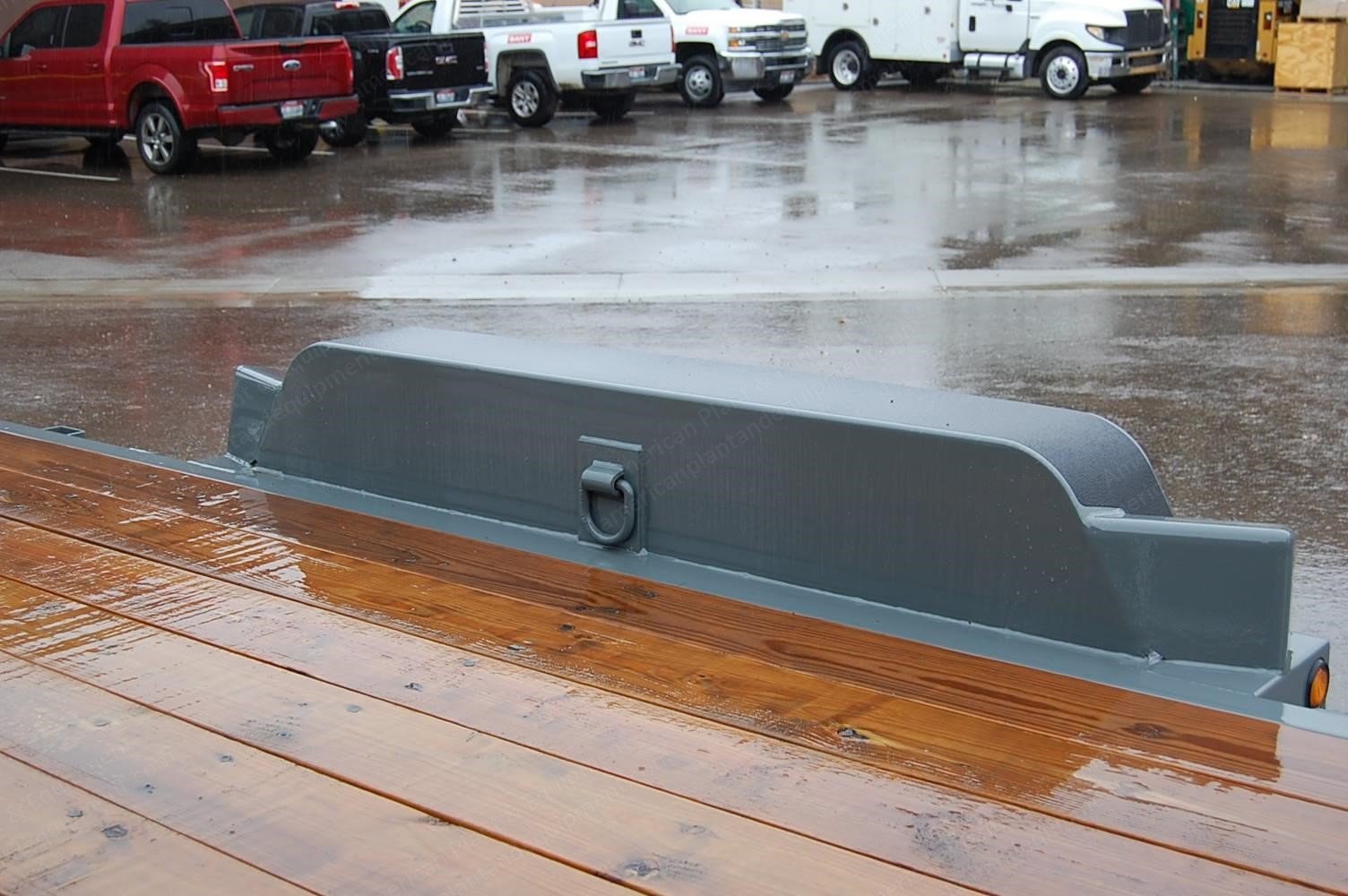

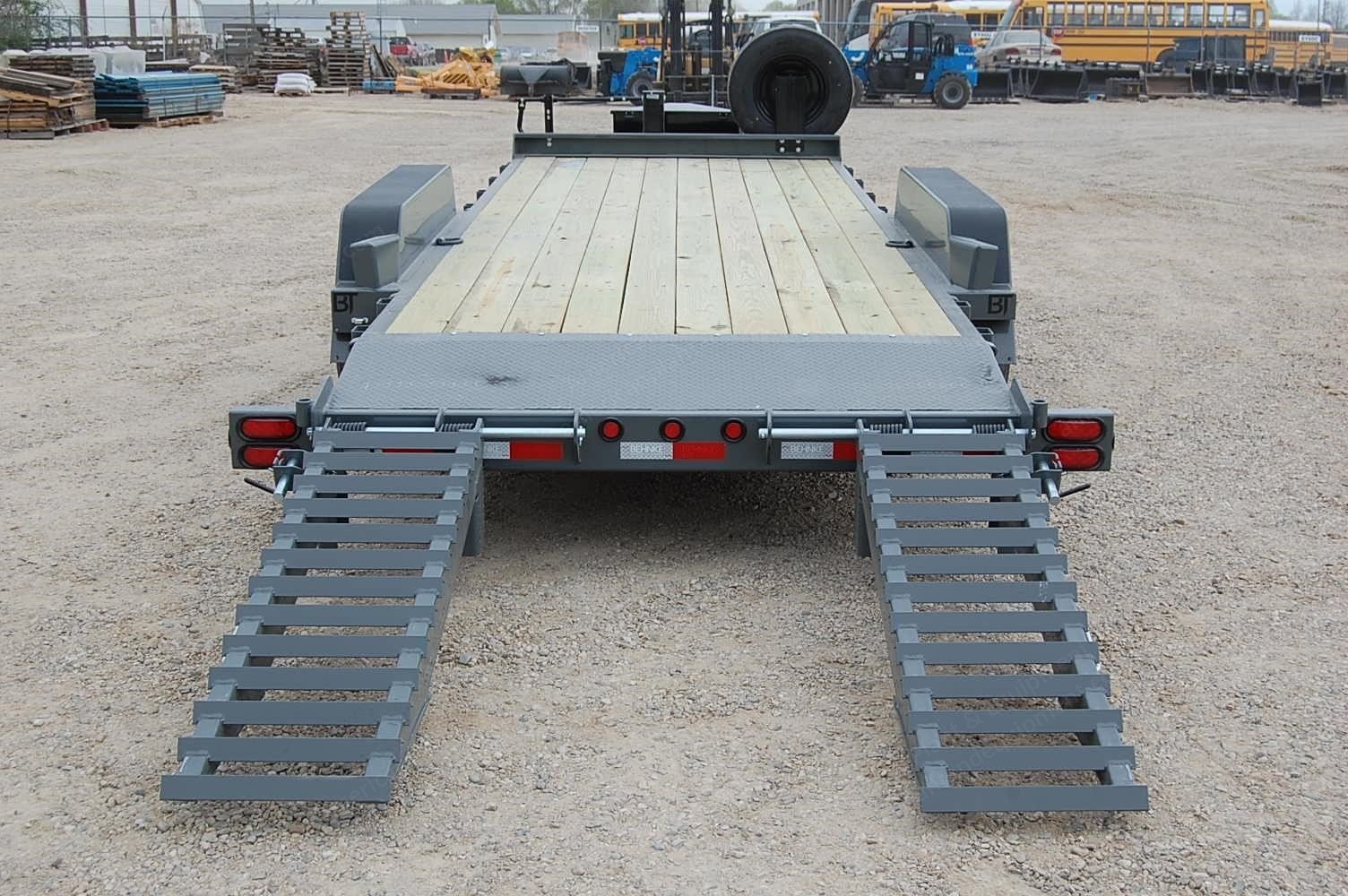

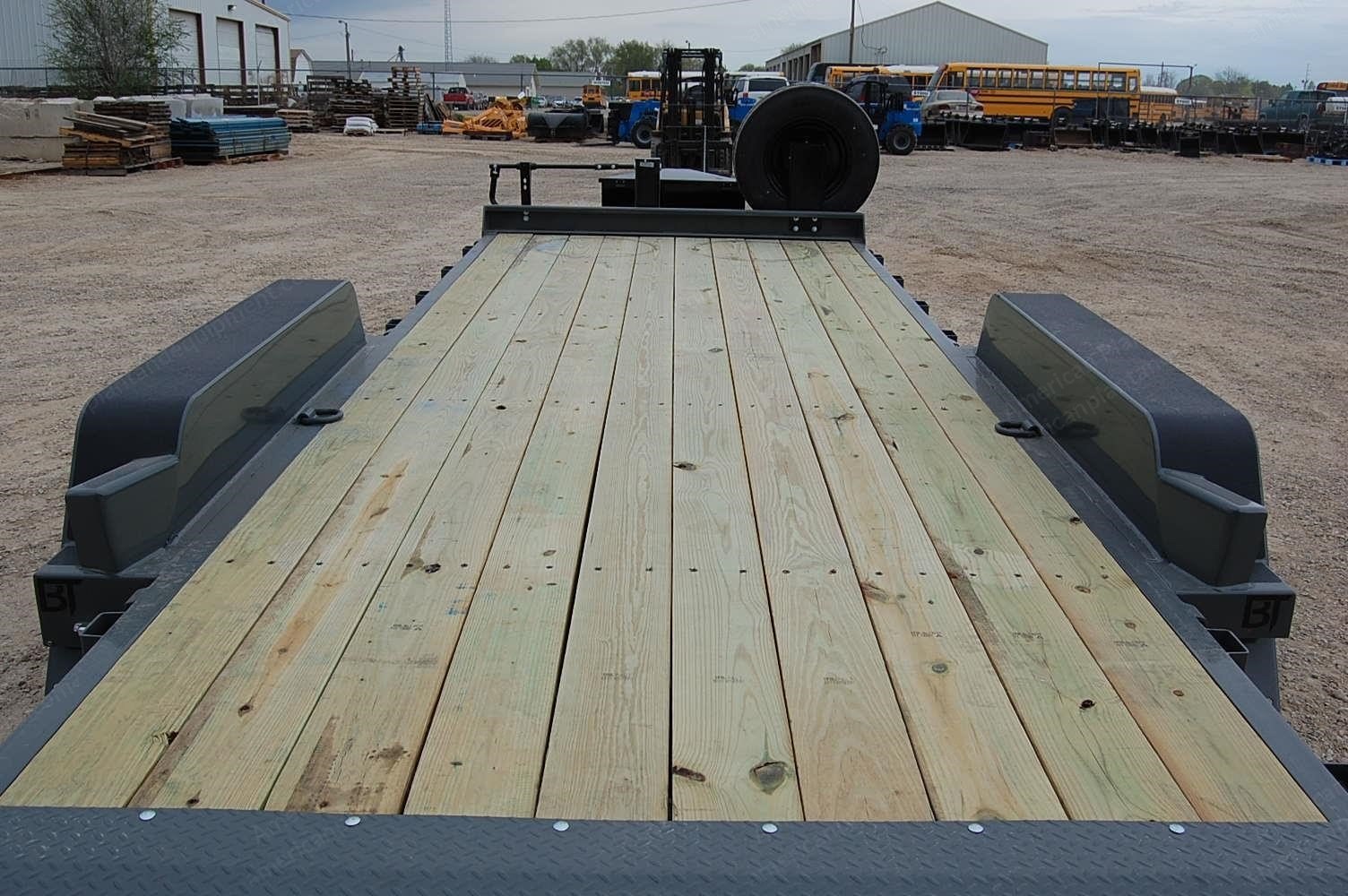

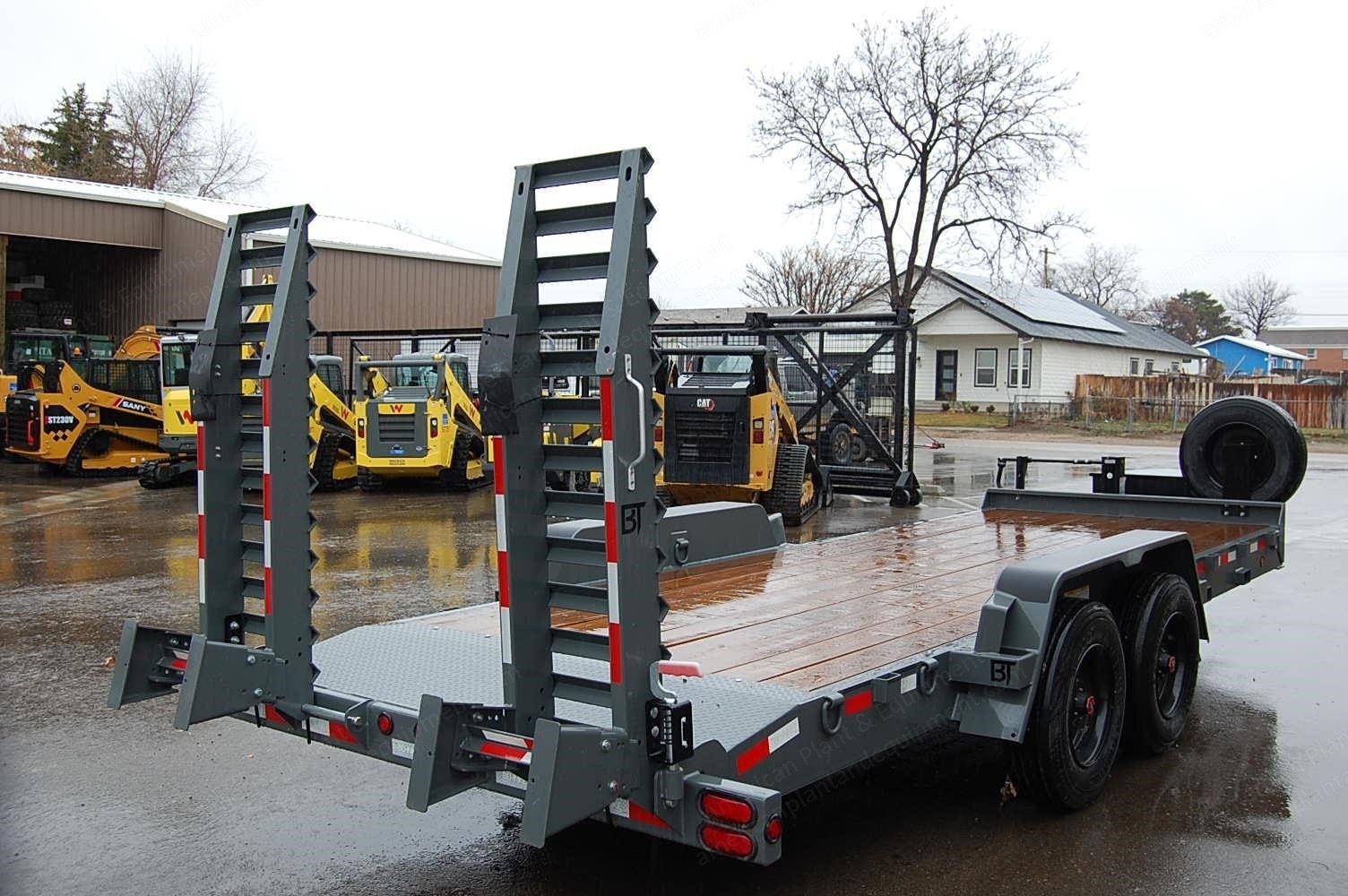

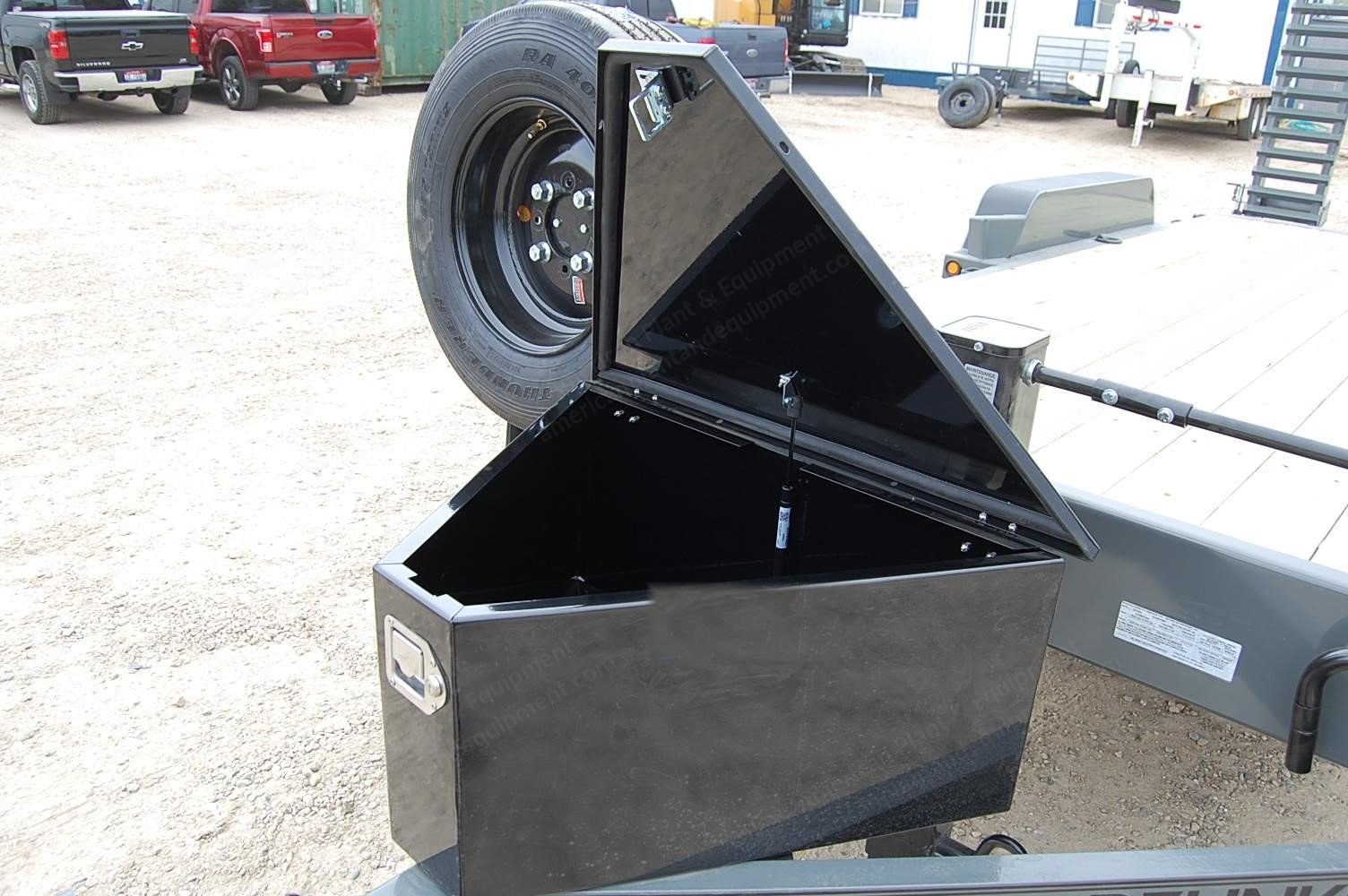

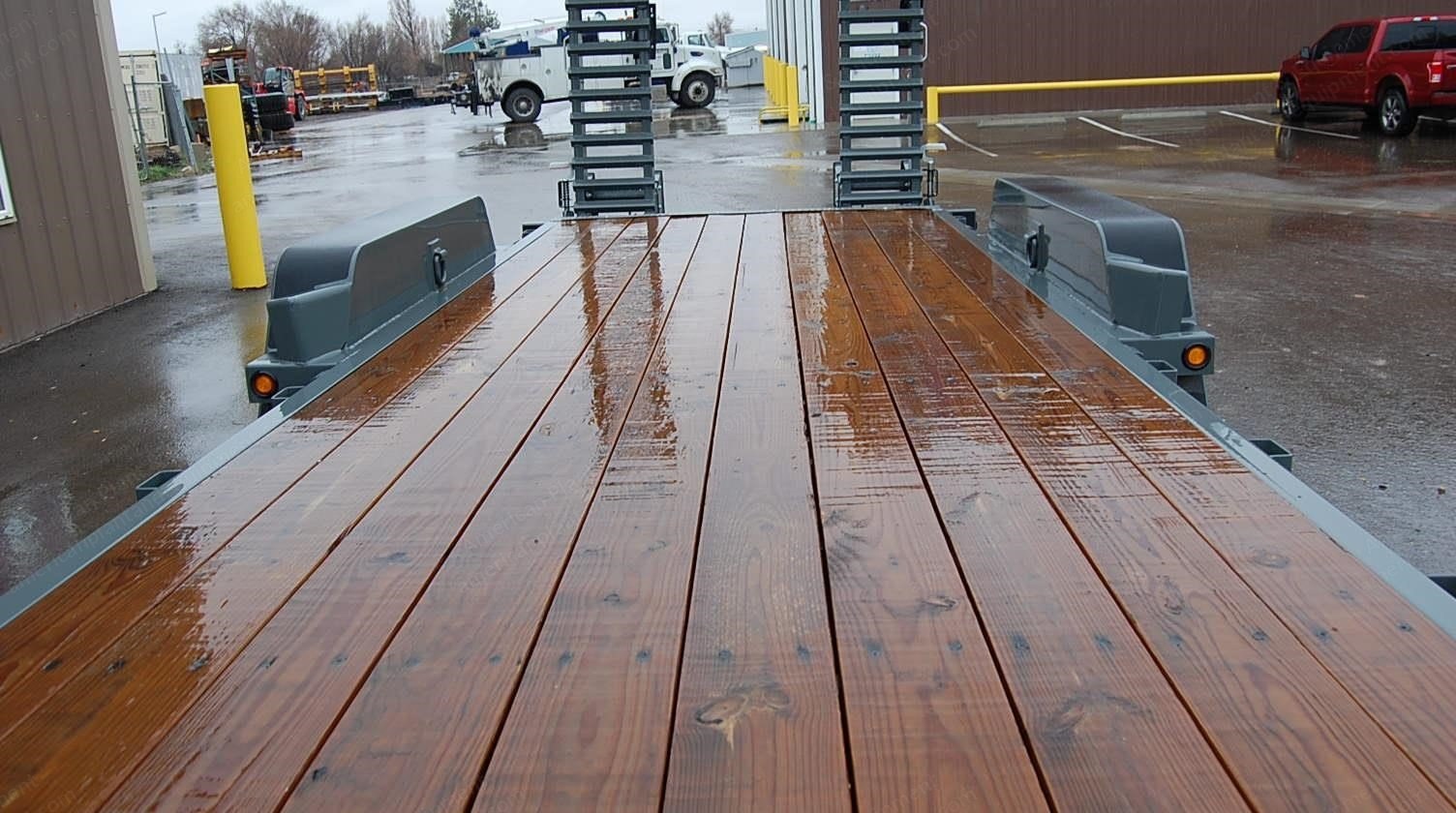

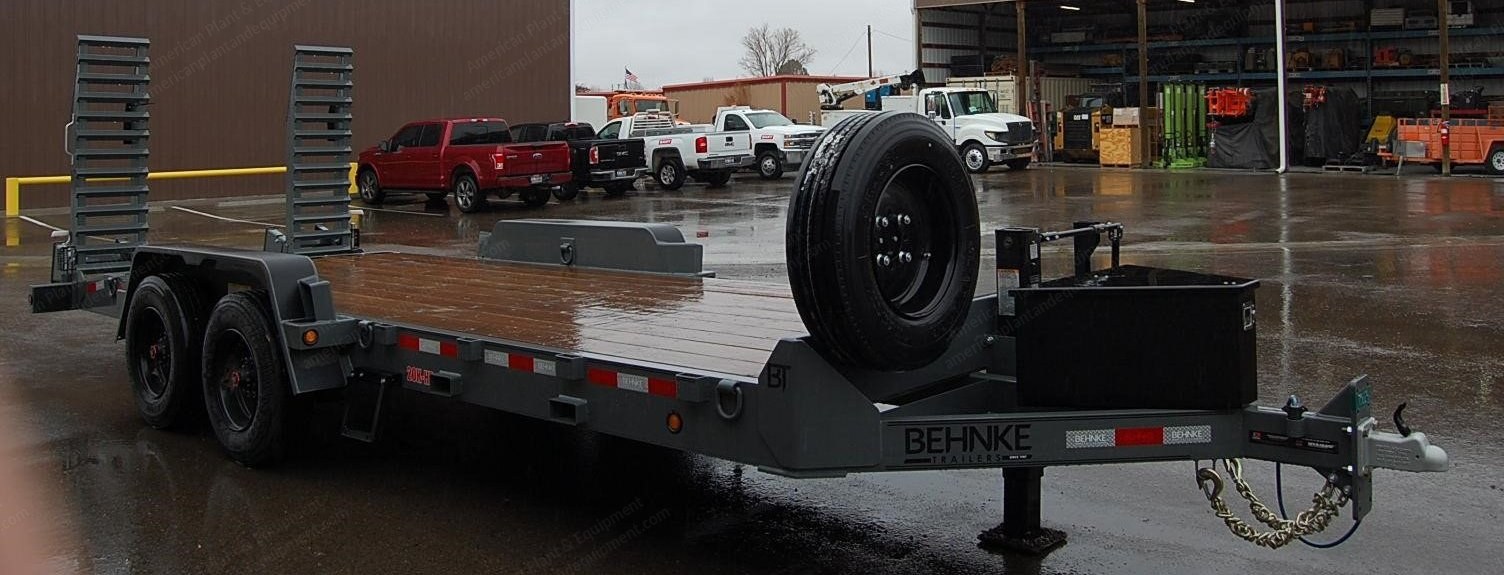

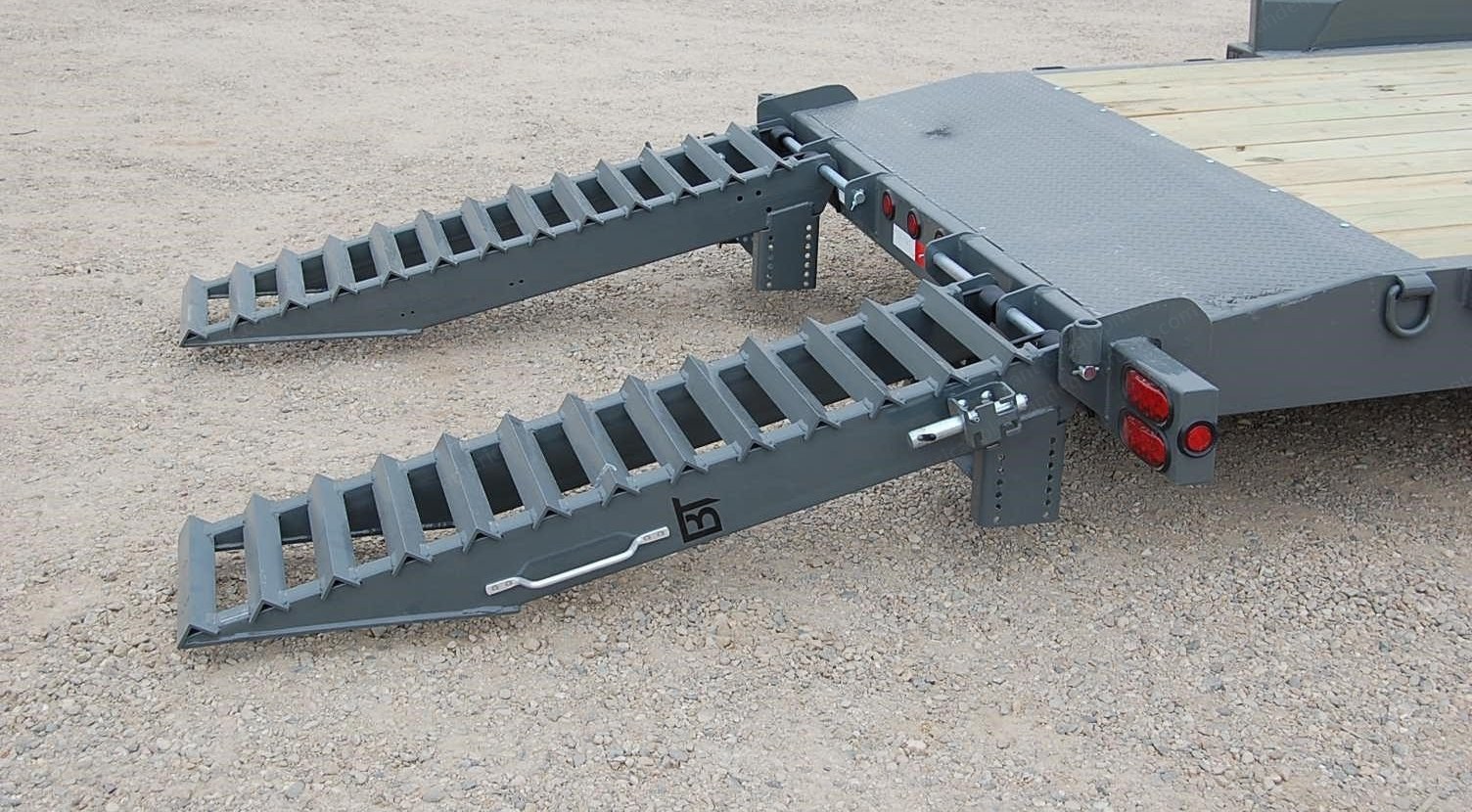

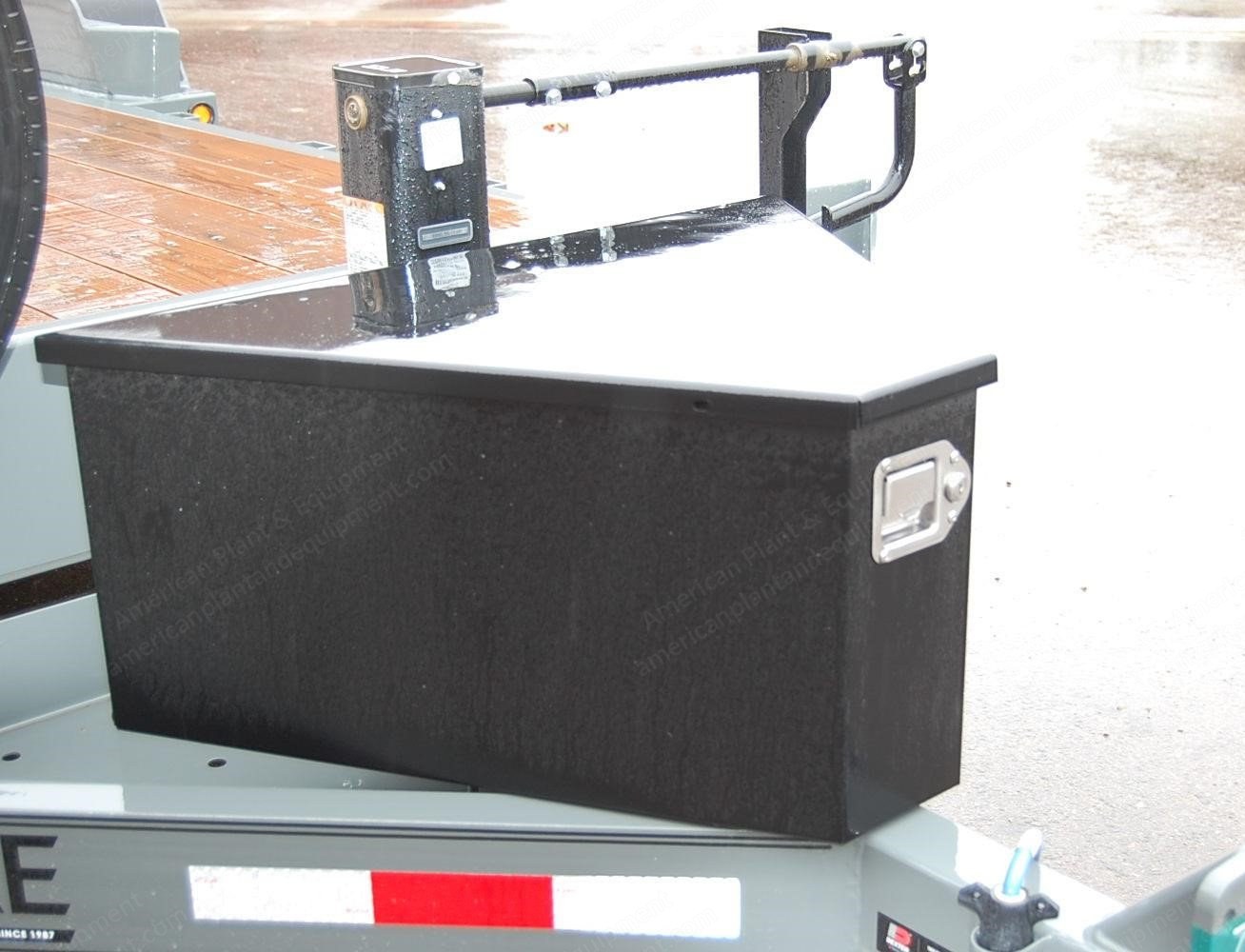

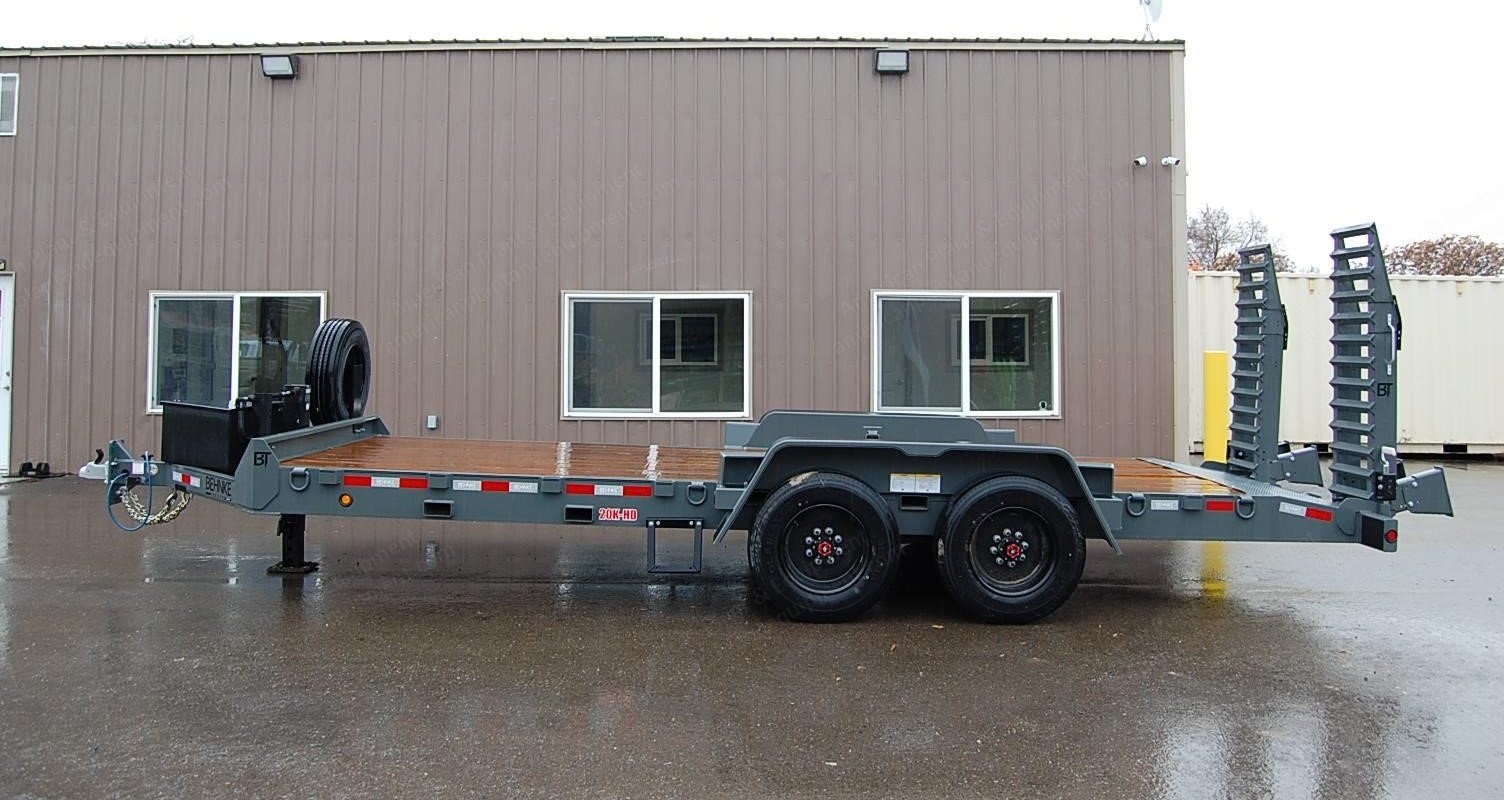

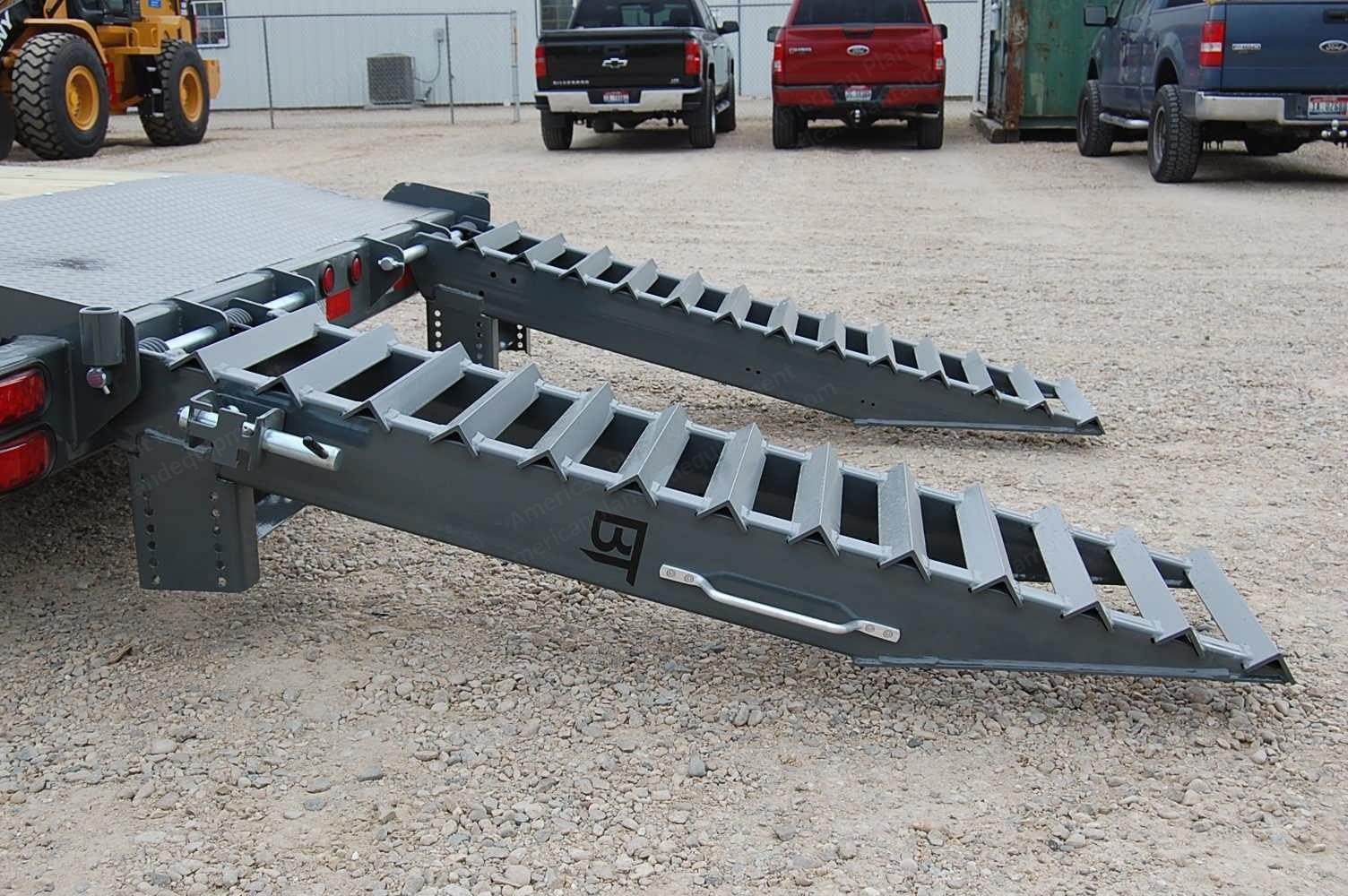

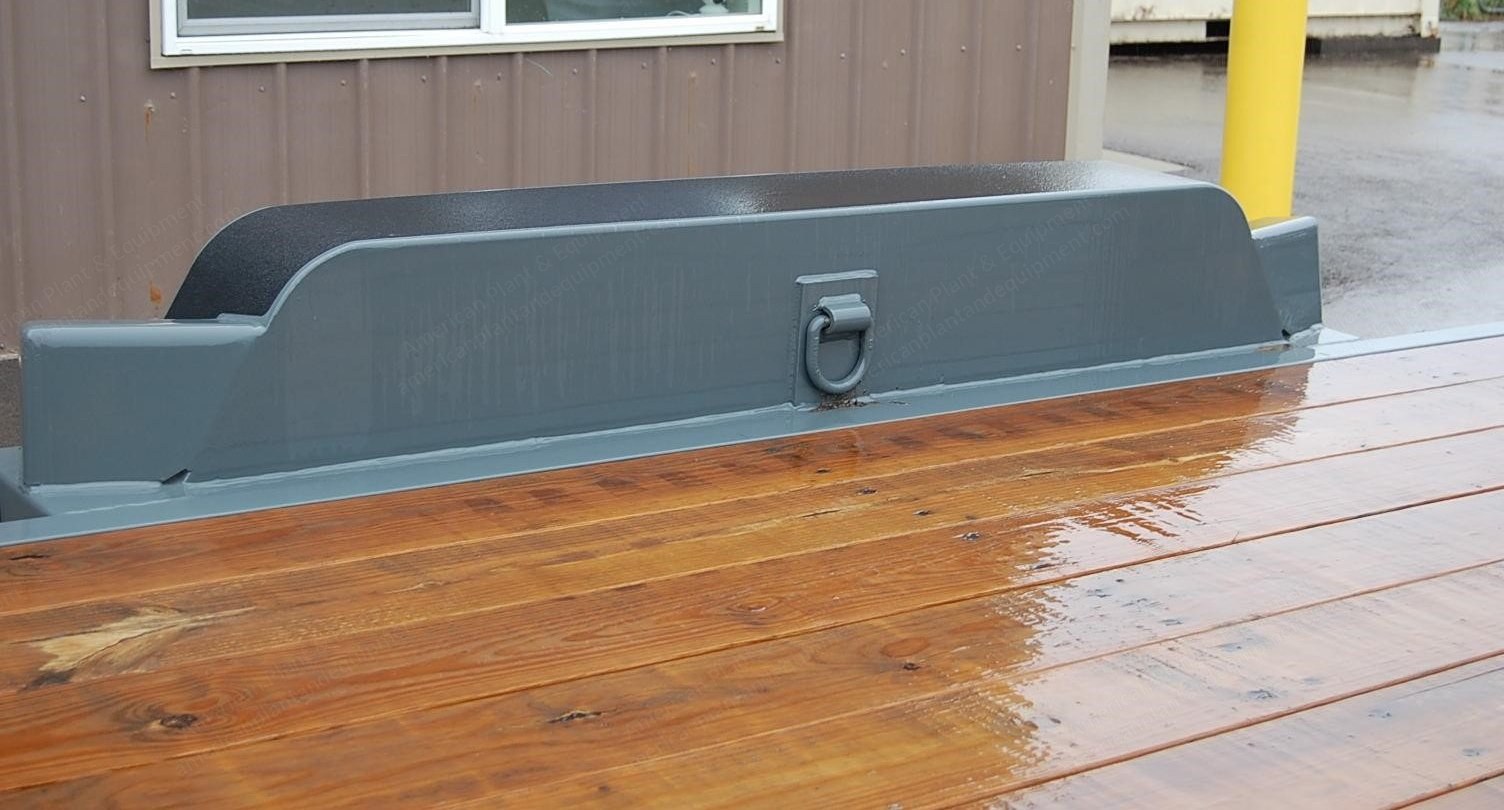

Description Overview Machine type: utility ramp equipment trailer, tandem axle, torsion suspension, electric brakes Year: 2025 Condition: new and unused Ratings And Capacities Gross vehicle weight rating 20,000 lb (9,072 kg) Trailer weight 4,920 lb (2,232 kg) Axles: 2 each, 10,000 lb (4,536 kg) Torflex Dexter oil bath axles Coupler: 2-5/16 in adjustable coupler rated 21,000 lb (9,525 kg), or pintle hitch Jack: 1 each, 12,000 lb (5,443 kg) spring loaded drop leg jack Deck, Ramps And Frame Bed 18 ft (5,486 mm) plus a 2 ft (610 mm) diamond tread tail Ramps: 5 ft (1,524 mm) heavy duty stube style Width between fenders 83 in (2,108 mm) Deck height 26 in (660 mm) Frame: 8 in x 2 in x 3/8 in tube frame, with 5 in x 5 in x 5/16 in angle iron Crossmembers: 3 in channel every 12 in (305 mm) Front rail: 5 in (127 mm) tall, solid Flush floor with no lip around the edge Floor: 2 x 8 treated wood Composition: steel Fenders: 2 heavy duty 1/8 in formed fenders, with fender guard, plus an additional set of fender guards Pallet fork holders accessible from both sides, with chain links welded to the pallet fork tubes for securement Stake pockets, and 12 extra D rings V shaped tongue mount toolbox Bolt on step Safety chains: 2 each, 1/2 in grade 70 Running Gear And Brakes Number of rear axles: tandem; axle type: fixed; suspension: torsion Brakes: electric, forward self adjusting, on both axles Tires: 4 each 235/75R 17.5 super single, 16 ply, 100 percent remaining; all steel wheels Spare tire and rim, spare tire mount and spare tire rack Finish And Electrical Finish: zinc rich primed and powder coated; standard color Charger Grey Rubber mounted LED lights, light plug holder, modular wire harness, reflector tape 12 volt breakaway kit with full charge indicator, switch and battery Dimensions Length 18 ft (5,486 mm), the bed length Deck height 26 in (660 mm) Trailer weight 4,920 lb (2,232 kg)
