NovaStar, DG627, Ironing Machine, 8-200 mm (New)

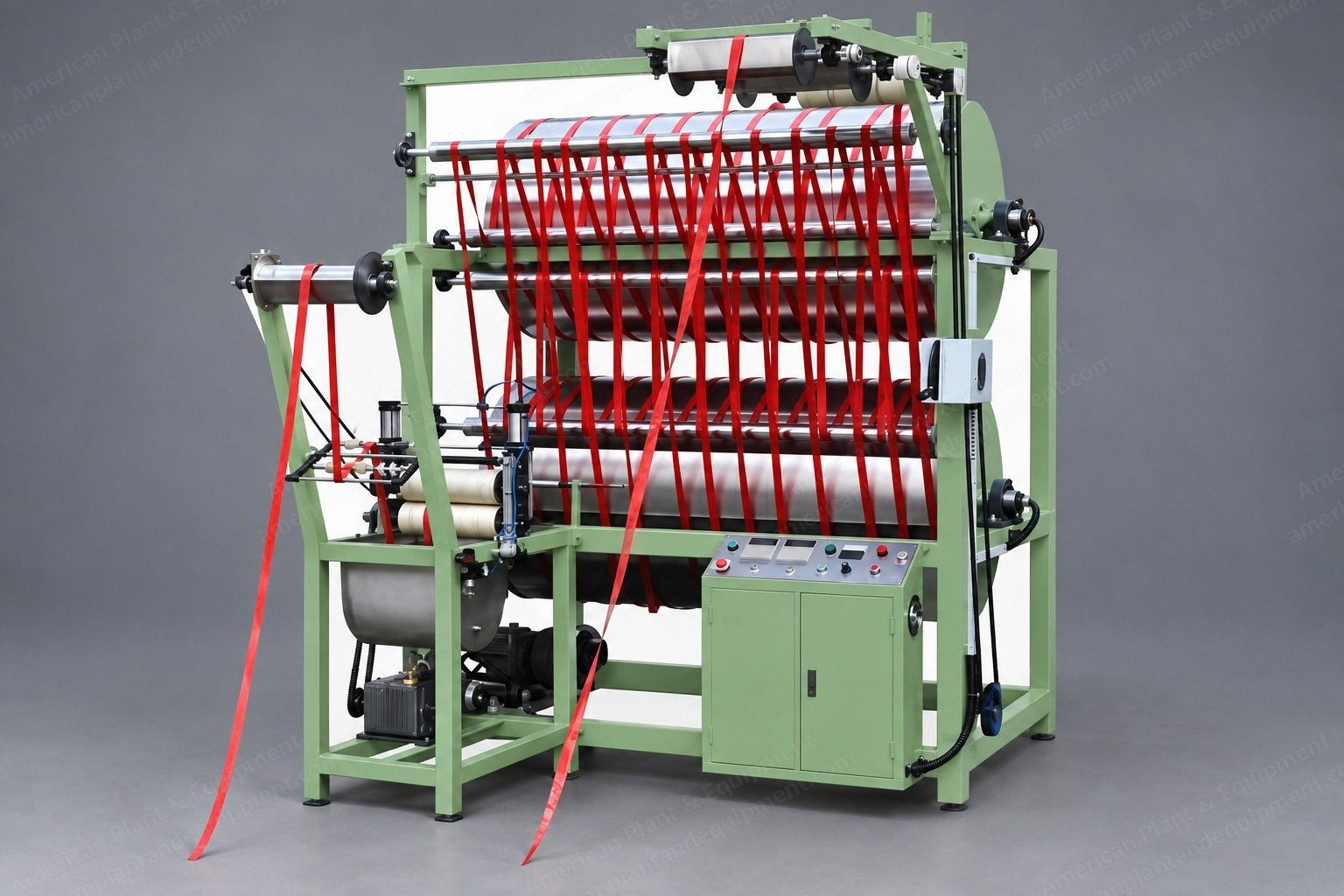

NovaStar, DG627, Ironing Machine, 8-200 mm

Description

  1. Overview
    1. Specially used to shape, starch and harden all kinds of narrow woven fabric.
    2. Equipped with a water tank for bleach or dye, heat-setting and straightening.
  2. Key Features
    1. Fast quick heating, easy control, temperature stable.
    2. Electric and gas heating system optional.
    3. Positive tape feeding, running speed by the converter, tape tension by the manual controlled (tape in&out).
    4. Gas burning heating employs advanced electronic ignition system and electromagnetic valve control, the burning is complete and no pollution.
    5. Stainless steel, anti-heat film, Teflon coated roller option.
  3. Specifications
    1. Drum size/dia phi*length L (mm): 780*1500.
    2. Drum option: 1. stainless steel 2. with heat-resist film 3. Teflon coated.
    3. Motor: 1.5 KW (2.0 hp), 480v, 940r/min, 60Hz, 5.57A.
    4. Heat power (each drum fitted with 9 heating tubes): 27 kw (36.2 hp) (each heating tube 1.5kw).
    5. Tape width (mm): 8~200.
    6. Running speed: 30~40 meter/minute, roller speed by converter, tape tension by tape in/out speed manually control.
    7. Heating method: electric heating or gas heating optional.
  4. Packing Dimensions
    1. Packing size (mm): drum parts: 2500*1330*2300; water sink part: 1200*700*1780.
