Min. to max. printing repeat: 450 to 1050 mm (17.7 to 41.3 in)

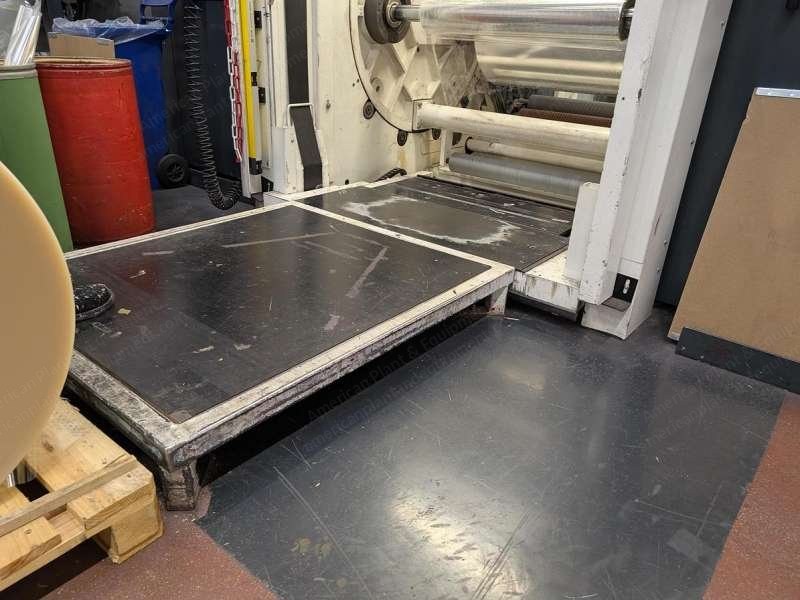

Unwind type: Automatic turret
Max. unwind reel diameter: 1000 mm (39.4 in)
Rewind type: Automatic turret
Max. rewind reel diameter: 1000 mm (39.4 in)
Drying type: Steam
Features
Web guides
Video camera (IPQ Check Pro 100% inspection, installed 2016)
Corona treater
Viscosity control
Minimum of 50 gravure cylinders
Recent Investments (2016)
IPQ Check Pro 100% inspection system
Regi_star 20 register control update
Retrofit of the couplings and motors for the gravure cylinder drive to the latest Heliostar S specification, including inking-roller drives, chucks with adapters, chuck sensors for the gravure cylinder bearings, sidelay register parts and drives, the gravure cylinder drive motor, mounting parts and electrical accessories/documentation
