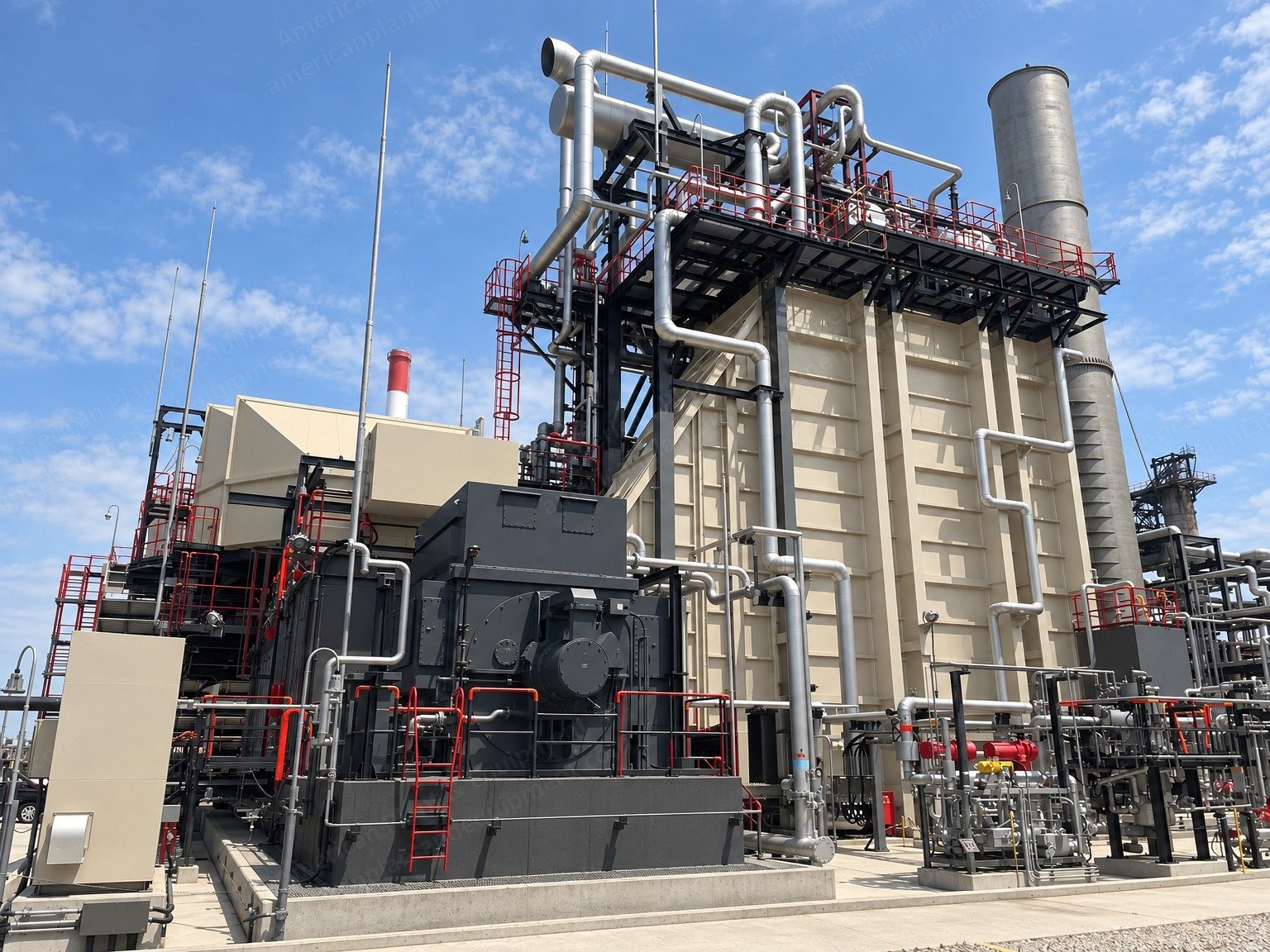

Kawasaki, L30A, 2020, Gas Turbine Generator Package, 34 MW, 60 Hz

Kawasaki, L30A, 2020, Gas Turbine Generator Package, 34 MW, 60 Hz

Description

  1. Overview
    1. Kawasaki Heavy Industries L30A gas turbine, supplied as a complete power generation unit.
    2. Year 2020.
    3. Rated output 34,150 kW, approximately 34 MW.
    4. Frequency 60 Hz.
    5. Fuel: natural gas.
    6. Condition: excellent and fully operational.
  2. Running Hours
    1. Total hours on natural gas: 19,596.
    2. Total hours on liquid fuel: 439.
    3. Total starts: 67.
  3. Gas Turbine
    1. Power turbine with a horizontally split casing and a multi-can combustor, which reduces maintenance.
    2. Inspection ports placed for easy access.
    3. Cooling water requirement: 160 m3/h (704 US gallons per minute).
    4. NOx emissions: 15 ppm at 15% O2.
    5. Operating range of the dry low emission system: 70 to 100%.
  4. Gearbox
    1. Flender-Graffenstaden, type TX90/4C.
  5. Generator
    1. Meiden synchronous generator, 2020 model.
    2. Rated power 37,945 kVA.
    3. Rated voltage 11,000 V.
    4. Rated current 1,992 A.
    5. Speed 1,800 rpm.
    6. Weight 83 tons (83 metric tons, 183,000 lb).
  6. Steam Absorption Chiller
    1. FCO Kawasaki, 2020 model.
    2. Cooling capacity 2,462 kW.
    3. Steam consumption 2,695 kg/h (5,942 lb/h).
    4. Power supply 440 V, 60 Hz.
  7. Scope of Supply
    1. Complete gas turbine unit, including the gearbox, the generator and the steam absorption chiller.
