Trutzschler and Saurer Schlafhorst, 2004 to 2005, Complete Open-End Spinning Plant, 2,520 Rotors

Trutzschler and Saurer Schlafhorst, 2004 to 2005, Complete Open-End Spinning Plant, 2,520 Rotors

Description

  1. Overview
    1. A complete open-end spinning plant by Trutzschler and Saurer Schlafhorst, built 2004 to 2005 and installed in 2006.
    2. 2,520 rotors in total.
    3. Overhauled by Saurer Schlafhorst in 2017 to 2018 with updated controls.
    4. Offered subject to prior sale.
  2. Opening and Cleaning
    1. Complete Trutzschler opening and cleaning line, year 2005, consisting of:

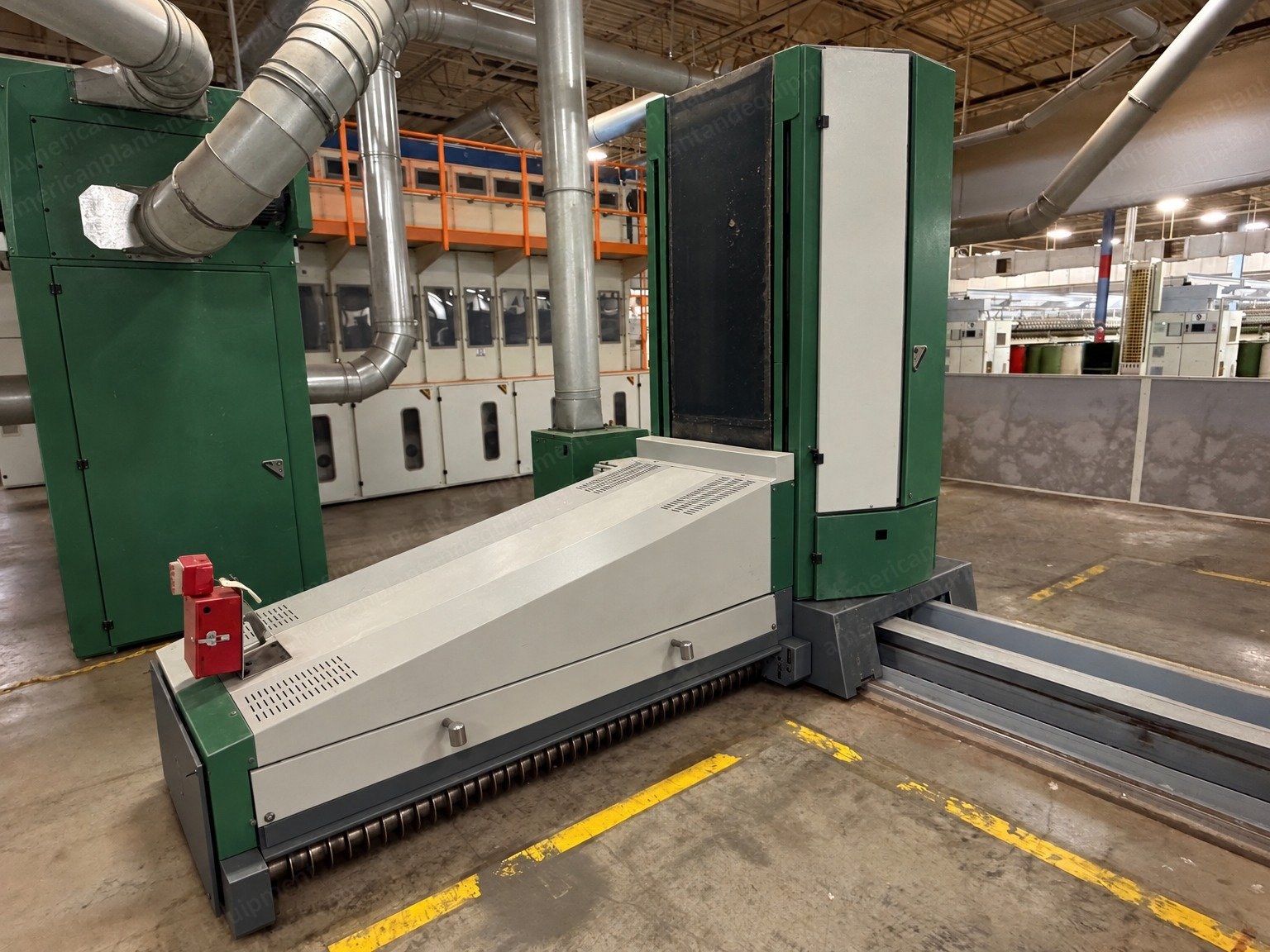

    2. 1 x BO-A2300 automatic bale opener with 60 bale laydown.
    3. 1 x Argus AD-50 metal detector with diverter drop tank.
    4. 2 x BR-CO condenser on stand.
    5. 2 x MPM-10 multi-mixer.
    6. 1 x VRW-2 two-way valve.
    7. 2 x CL-C4 four-roll cleaner with FDO reserve trunk and BR-CO condenser.
    8. 2 x SP-DX Dustex.
    9. 1 x control panel, material transport fans and stock duct.
  3. Carding
    1. 9 x Trutzschler TC03 carding machines, year 2005.
    2. Feed trunk, triple lickerin, integrated draw frame (IDF).
    3. 20 x 48 inch (508 x 1,219 mm) sliver coiler with automatic can changers.
  4. Open-End Spinning

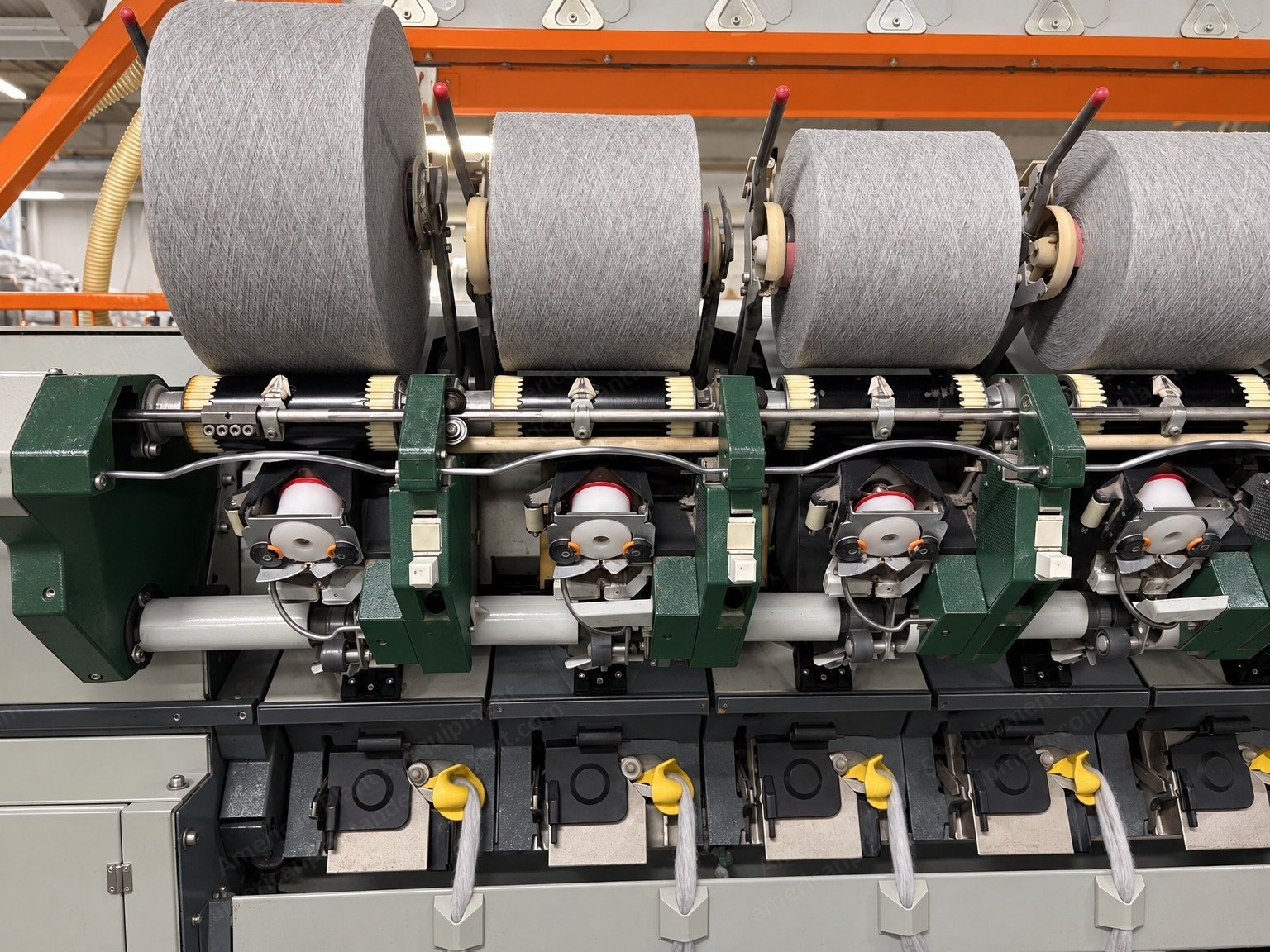

    1. 7 x Saurer Schlafhorst Autocoro 360 open-end spinning frames, year 2004, type ACO 360, 360 rotors each.
    2. Yarn counts currently running: 18/1, 20/1, 28/1 and 30/1.
    3. Fiber construction currently running: 90/10 heather gray.
    4. Spin box SE12; Corolab yarn clearer; Schlafhorst Informator; 3 Coromat piecer carriages.
    5. Opening rollers: 3 x B174 DN and 4 x OS21.
    6. Rotors: Belcoro, 3 x G 530 BD and 4 x G 528; rotor diameter 28 mm (1.1 inch) on 4 frames and 30 mm (1.2 inch) on 3 frames.
    7. Length measuring, waxing and Coroshuttle all available.
    8. Drum type SRZ tube with double drive tires; bull-nosed cheese or cone; delivery package cheese; traverse 145 mm (5.7 inch); cylindrical tube take-up; KSK6 navel; face plates 3 x 30 mm (1.2 inch) and 4 x 28 mm (1.1 inch).
    9. Feed can size 20 x 48 inch (508 x 1,219 mm).
  5. Available in Addition
    1. Yarn conditioner and packing line.
    2. Waste collection unit with bale press and briquetting line.
    3. Humidity and temperature line.
    4. Accessories: sliver cans and others.
  6. Condition
    1. All machinery manufactured in 2004 and 2005, installed in 2006.
    2. Overhauled by Saurer Schlafhorst in 2017 to 2018 with updated controls.
    3. Currently stopped on the mill floor.
