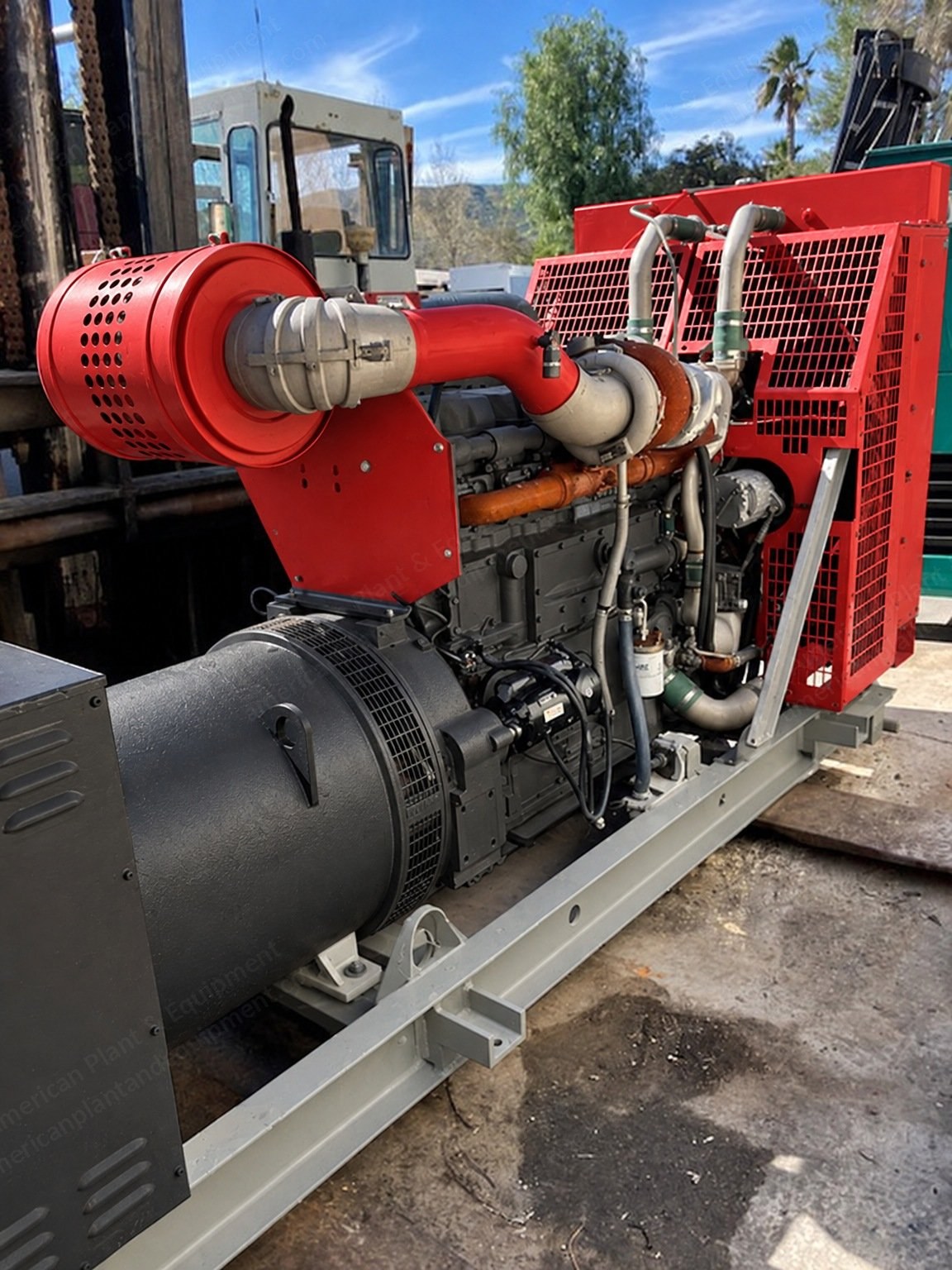

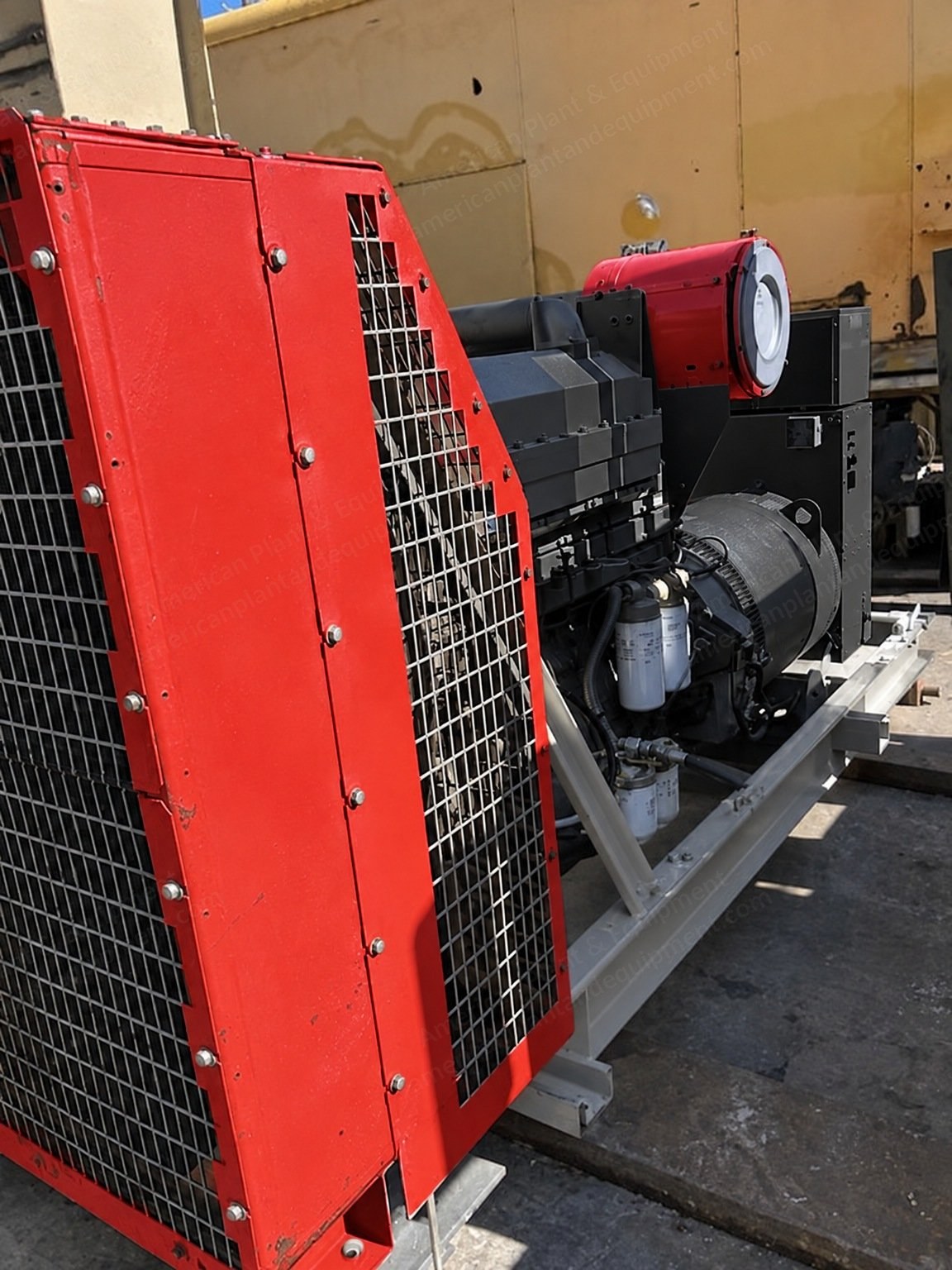

Cummins, KTA-1150, Diesel Generator Set, 400 kW, 500 kVA, 480/277 V, 60 Hz

Cummins, KTA-1150, Diesel Generator Set, 400 kW, 500 kVA, 480/277 V, 60 Hz

Description

  1. Overview

    1. Cummins diesel generator set.

    2. Powered by a Cummins KTA-1150 engine.

    3. 400 kW, 500 kVA, standby duty.

    4. 480/277 V, 3 phase, 60 Hz.

  2. Specifications

    1. Power rating 400 kW.

    2. Apparent power 500 kVA.

    3. Power factor 0.8.

    4. 3 phase.

    5. 1,800 rpm.

    6. 60 Hz.

    7. Standby duty.

    8. 480/277 V.

    9. 602 A.

    10. Insulation class F.

    11. Frame 500-2.

    12. Voltage regulator KR7FEM.

    13. Field current maximum 5.0 A, field voltage maximum 100 V.

    14. Built to NEMA MG1.

  3. Condition

    1. Used.
