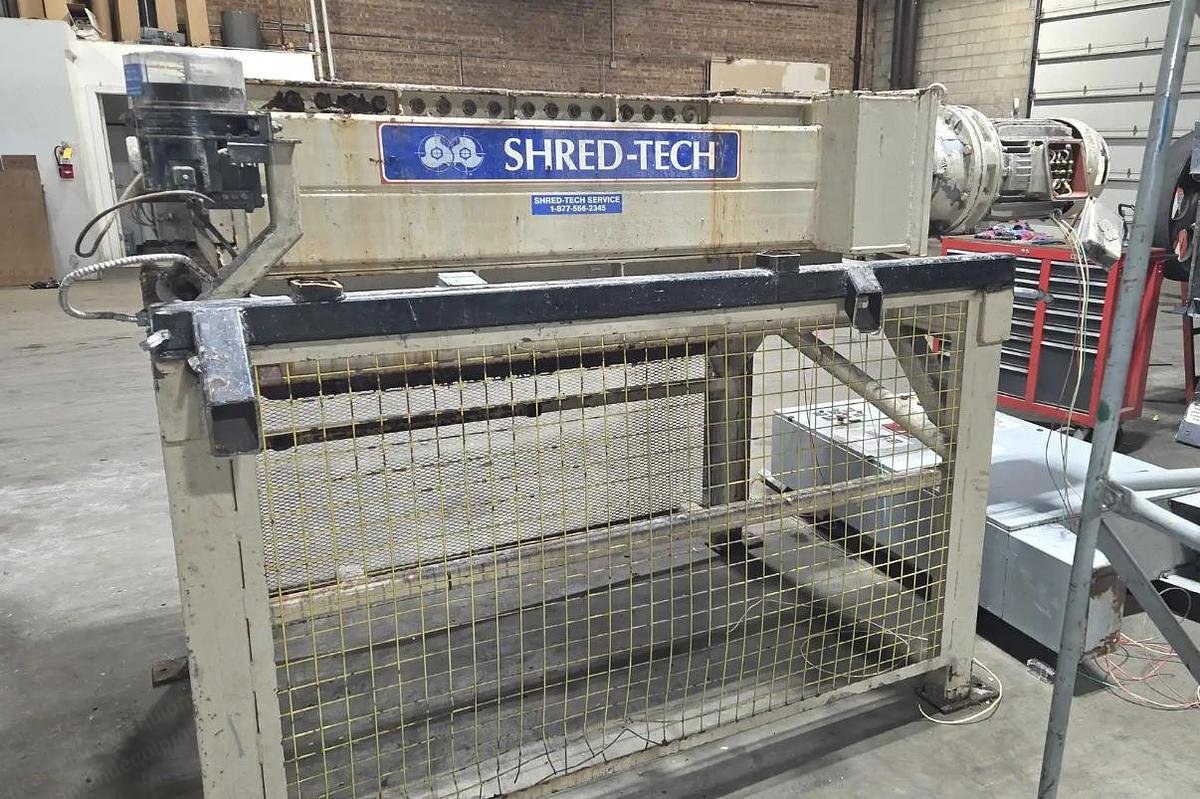

Shred-Tech, ST-50, Dual Shaft Shredder, 1 to 3 Tons per Hour, 40 to 60 HP

Shred-Tech, ST-50, Dual Shaft Shredder, 1 to 3 Tons per Hour, 40 to 60 HP

Description

  1. Overview
    1. Shred-Tech ST-50 dual shaft shredder
    2. Condition: used
  2. Performance And Drive
    1. Throughput: 1 to 3 tons per hour (material dependent)
    2. Drive motors: dual electric motors (standard)
    3. Motor power: 40 to 60 HP (29.8 to 44.7 kW) total
    4. Voltage: 208 V / 230 V / 460 V / 575 V, 3 phase, 60 Hz
    5. Cutter drive: electric gear-reduced drive
    6. Control system: PLC with automatic knife reversal on overload
  3. Cutting Chamber And Shafts
    1. Chamber sizes: 21 x 30 in (533 x 762 mm), 21 x 40 in (533 x 1,016 mm), 21 x 50 in (533 x 1,270 mm)
    2. Knife diameter: 10 in (254 mm)
    3. Number of shafts: 2
    4. Hex shaft size: 3-3/8 in (86 mm)
    5. Distance between shafts: 7.5 in (191 mm) center to center
  4. Dimensions And Weight
    1. Length: 100 to 120 in (2,540 to 3,048 mm)
    2. Width: 45 in (1,143 mm)
    3. Height: 107 in (2,718 mm)
    4. Weight: 4,900 to 5,500 lb (2,222 to 2,495 kg)
    5. Hopper opening: matches the cutting chamber length
    6. Hopper height: 44 in (1,118 mm)
    7. Discharge height: 40 in (1,016 mm)
  5. Construction And Features
    1. Heat-treated alloy steel hex shafts
    2. Labyrinth bulkhead walls protecting the bearings and seals
    3. Removable sectional cleaning fingers
    4. Heavy-duty welded steel construction
  6. Applications
    1. Electronic waste: hard drives, circuit boards
    2. Plastics: purgings, bumpers, moldings, pipes
    3. Wood: pallets, crate waste
    4. Medical waste: sharps, boxed waste
    5. Product destruction: prototypes, off-spec goods
    6. General waste: passenger tires, cardboard
  7. Equipped With

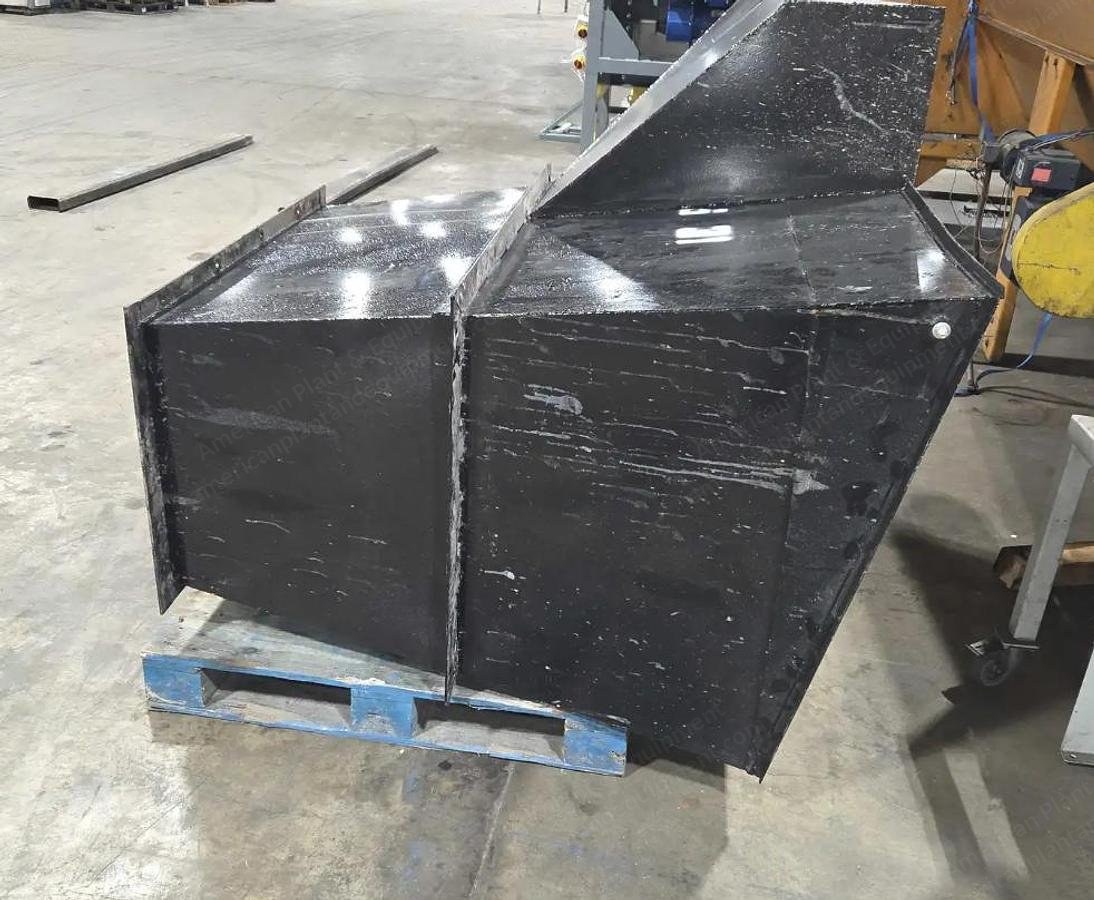

    1. Feed hopper
    2. Reversing control panel
