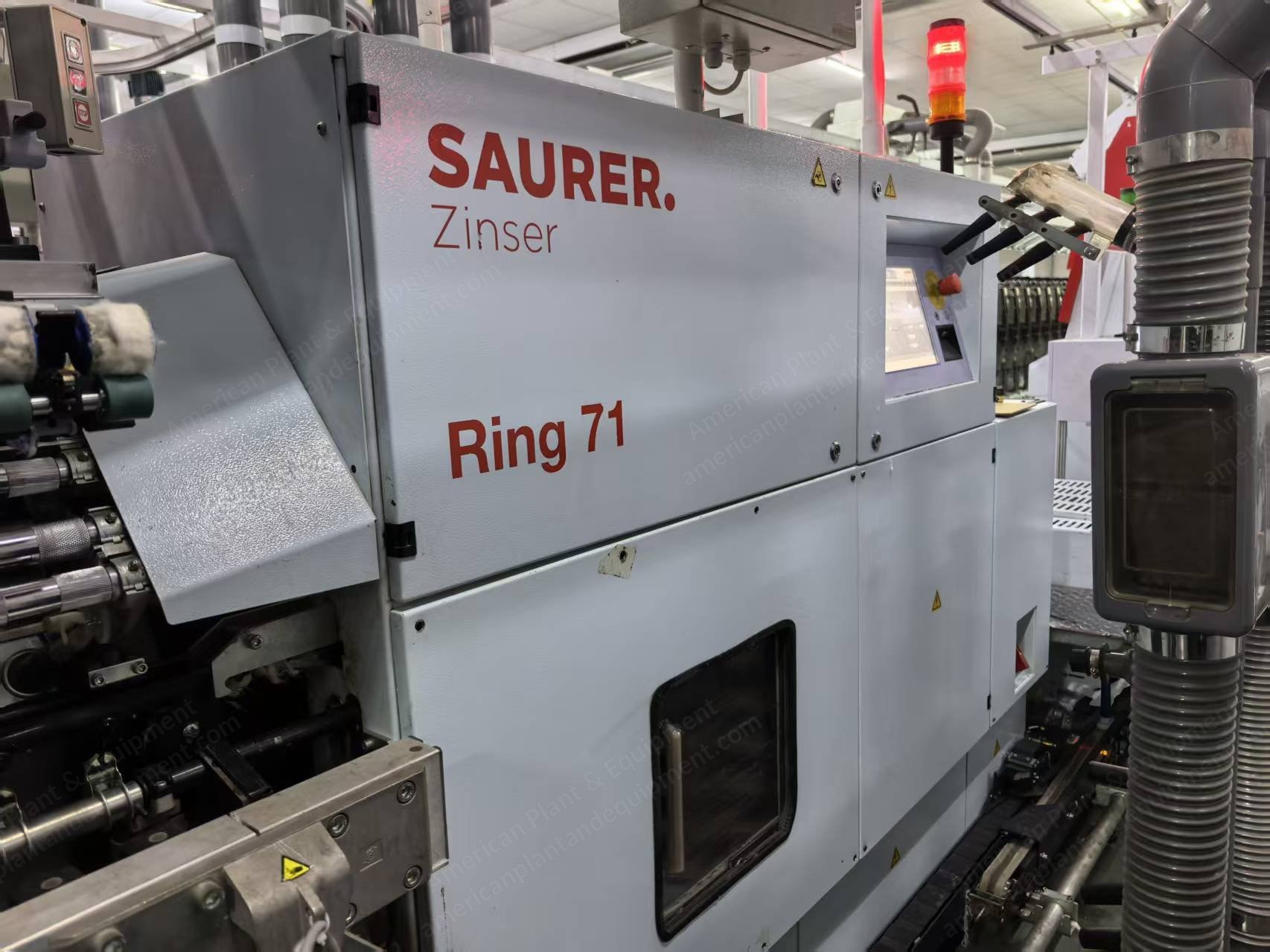

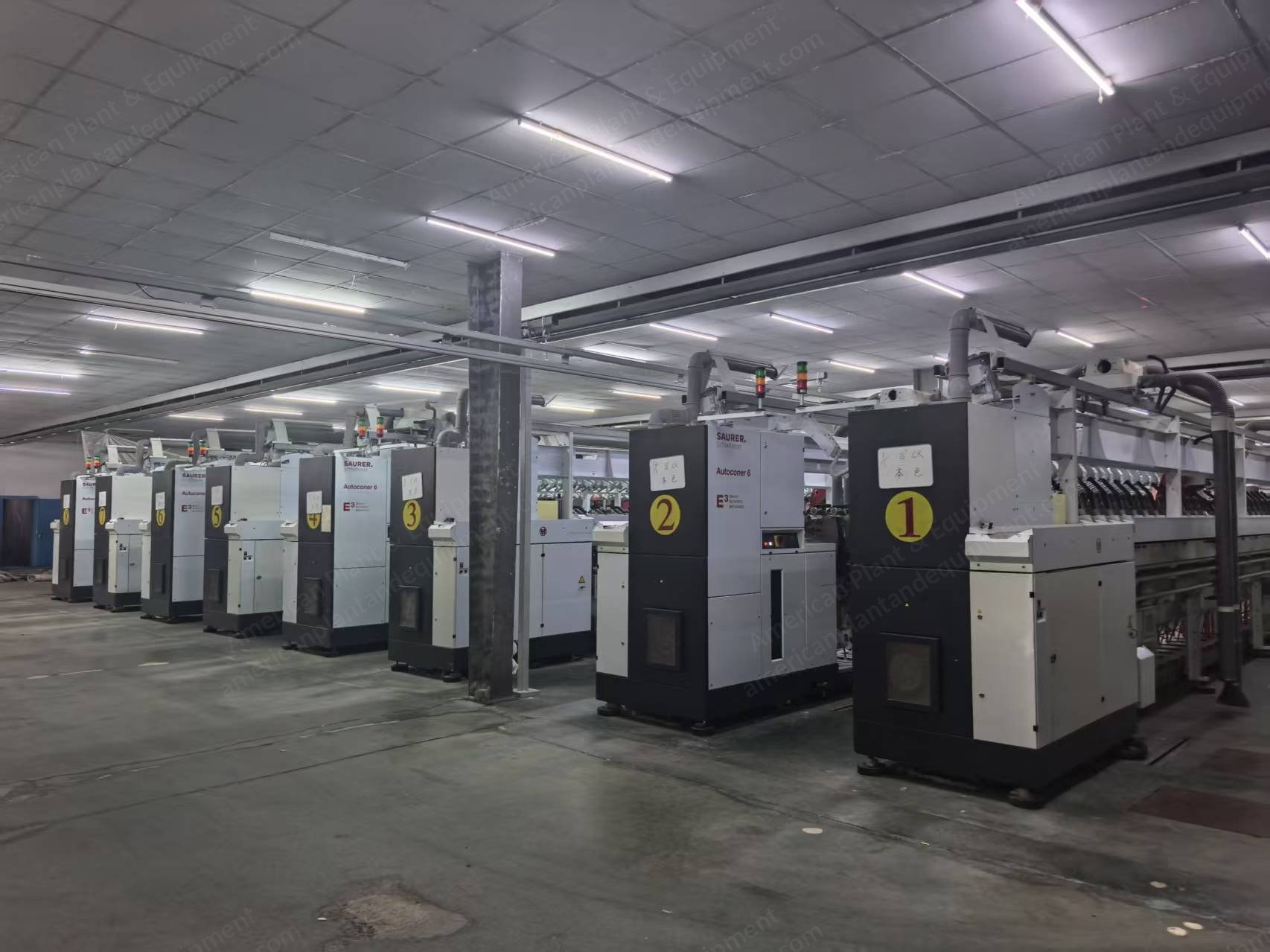

Zinser, G71/G72, 2017, Ring Spinning Frames, 1200 Spindles, Linked Schlafhorst Autoconer 6

Overview

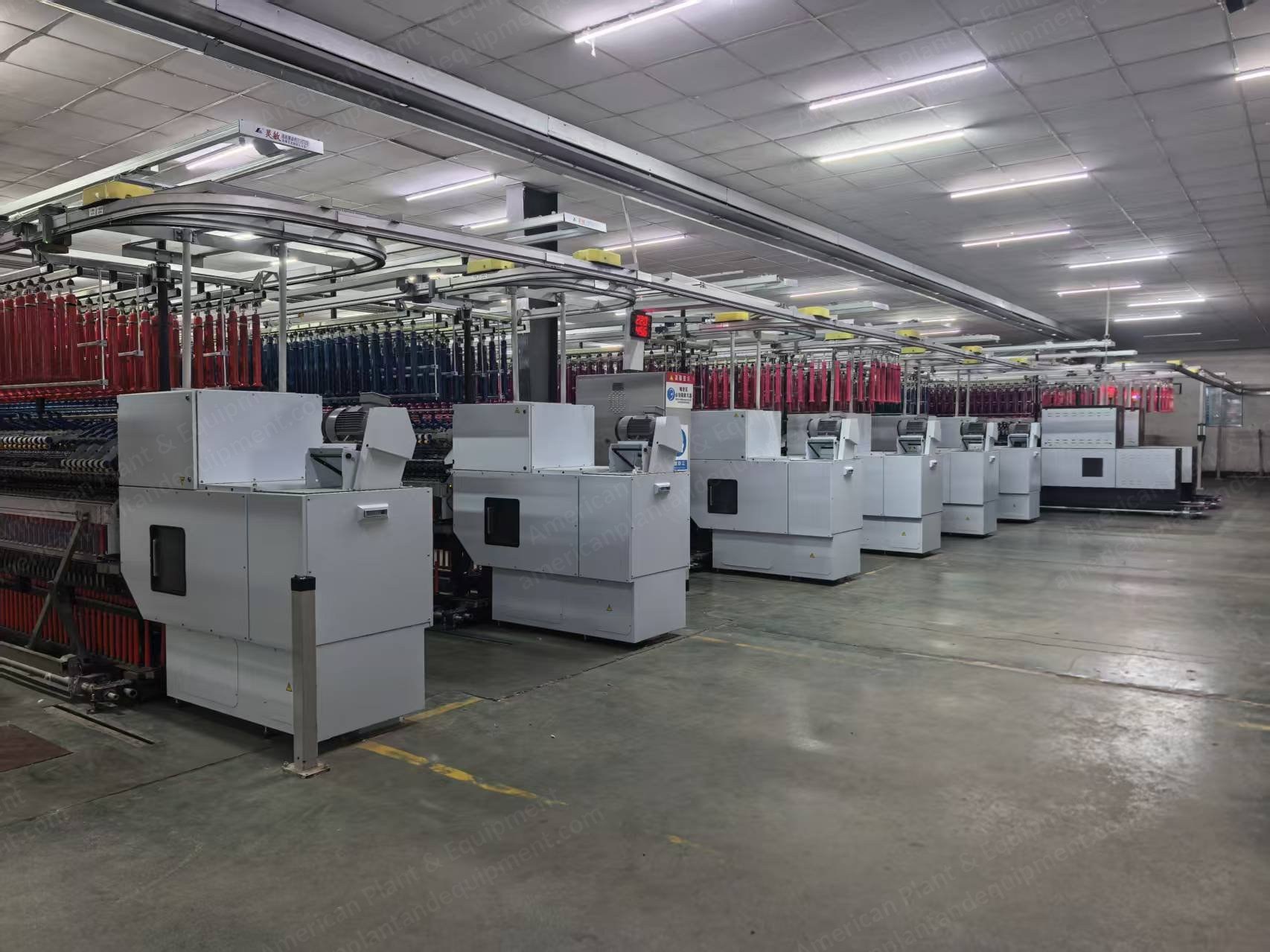

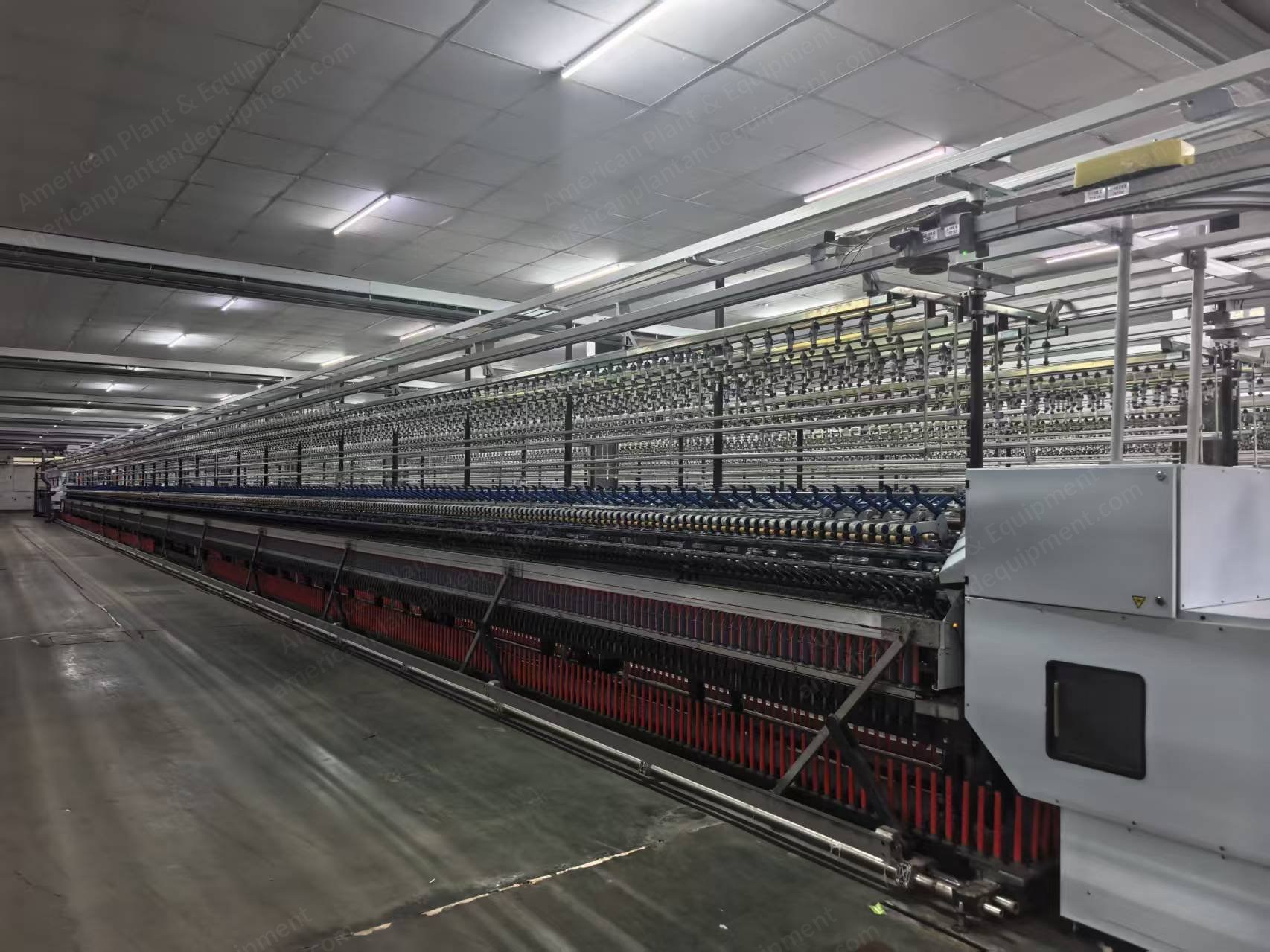

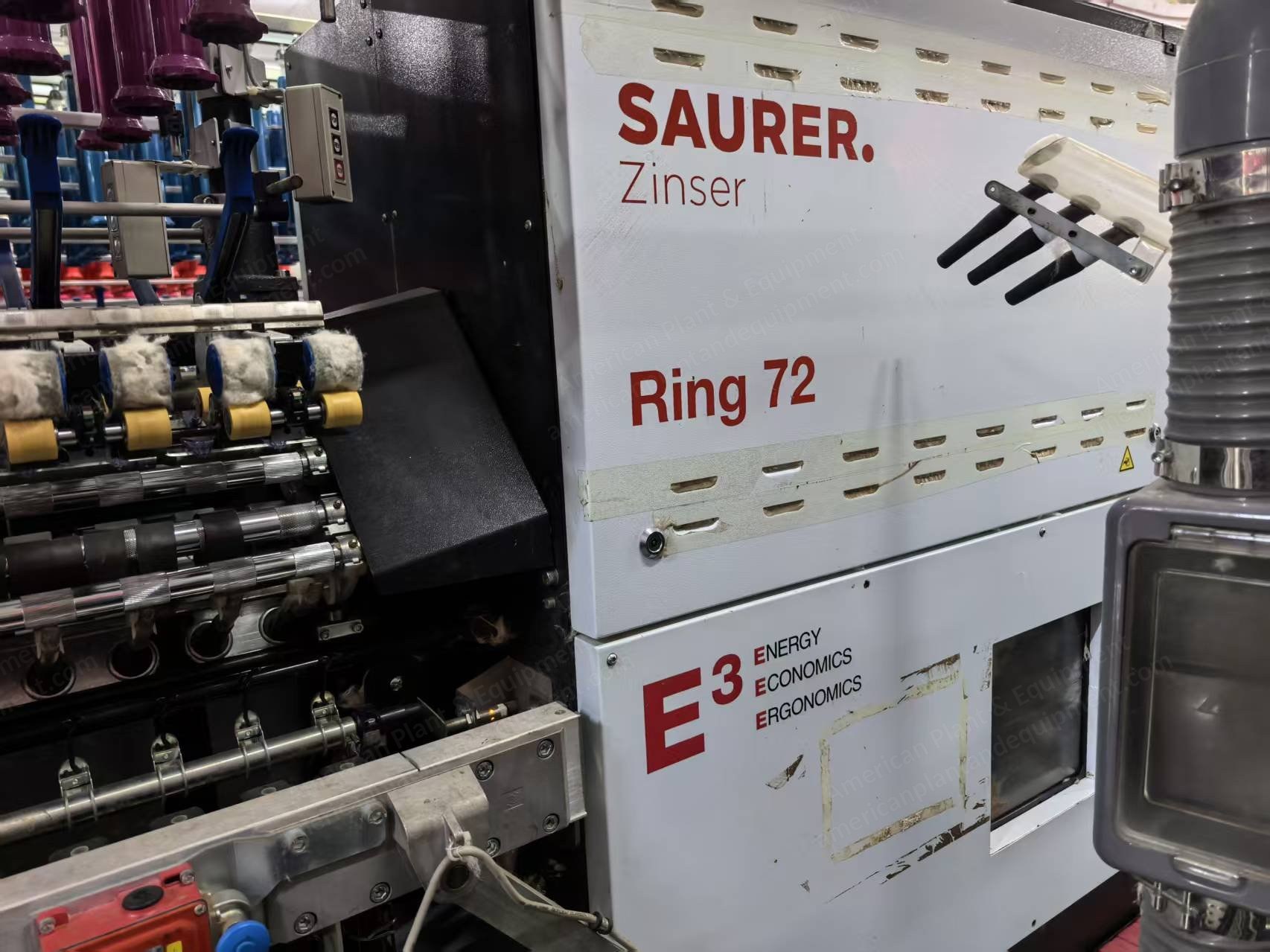

1. Zinser G71/G72 ring spinning frames, 1,200 spindles per machine

2. Year: 2017

3. Eight machines available: six Zinser G71 and two Zinser G72

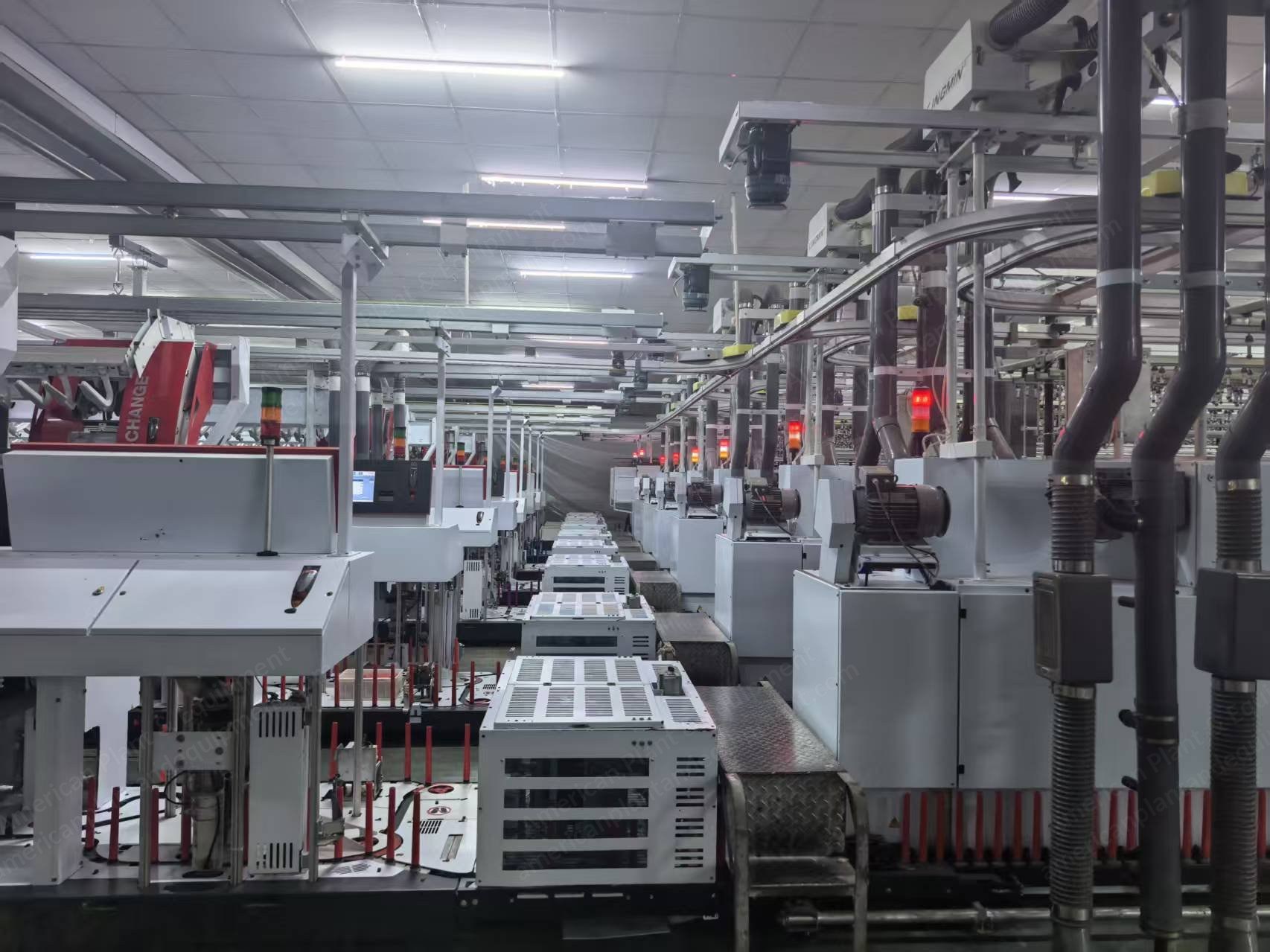

4. Each frame is linked to a Schlafhorst Autoconer 6 winder with 24 spindles

5. Automatic doffing

Ring Frame Specifications

1. Make: Zinser

2. Model: G71/G72

3. Type: ring spinning frames

4. Spindles per machine: 1,200

5. Gauge: 68.75 mm

6. Ring diameter: 45 mm

7. Spinning ring maker: Bracker Titan PG2

8. Spinning ring profile: normal, ring flange number 2

9. Tube length: 230 mm; tube taper 1:38

10. Bottom roller diameter: 27 mm

11. Automatic doffing: yes

12. Machine length: 44,694 mm (146 ft 8 in) in the linked-winder configuration

13. Machine width: 1,164 mm (45.8 in)

Drive and Drafting

1. Zinser frequency controlled variable speed drive

2. Installed main drive: 65.00 kW

3. Single tangential belt multi-motor spindle drive, SynchroDrive

4. Electronic draft system drive, Zinser ServoDraft

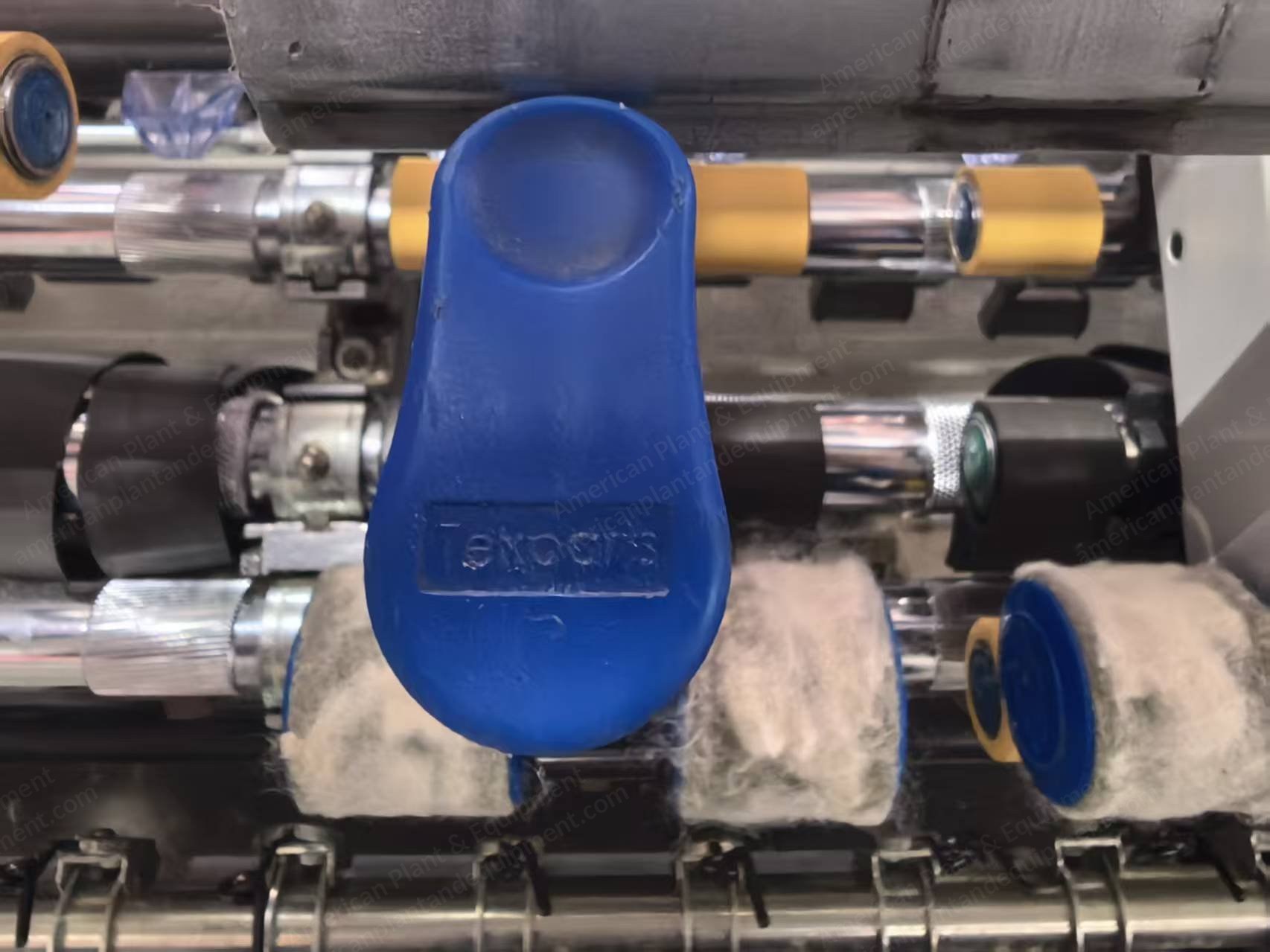

5. Texpart spring-loaded drafting

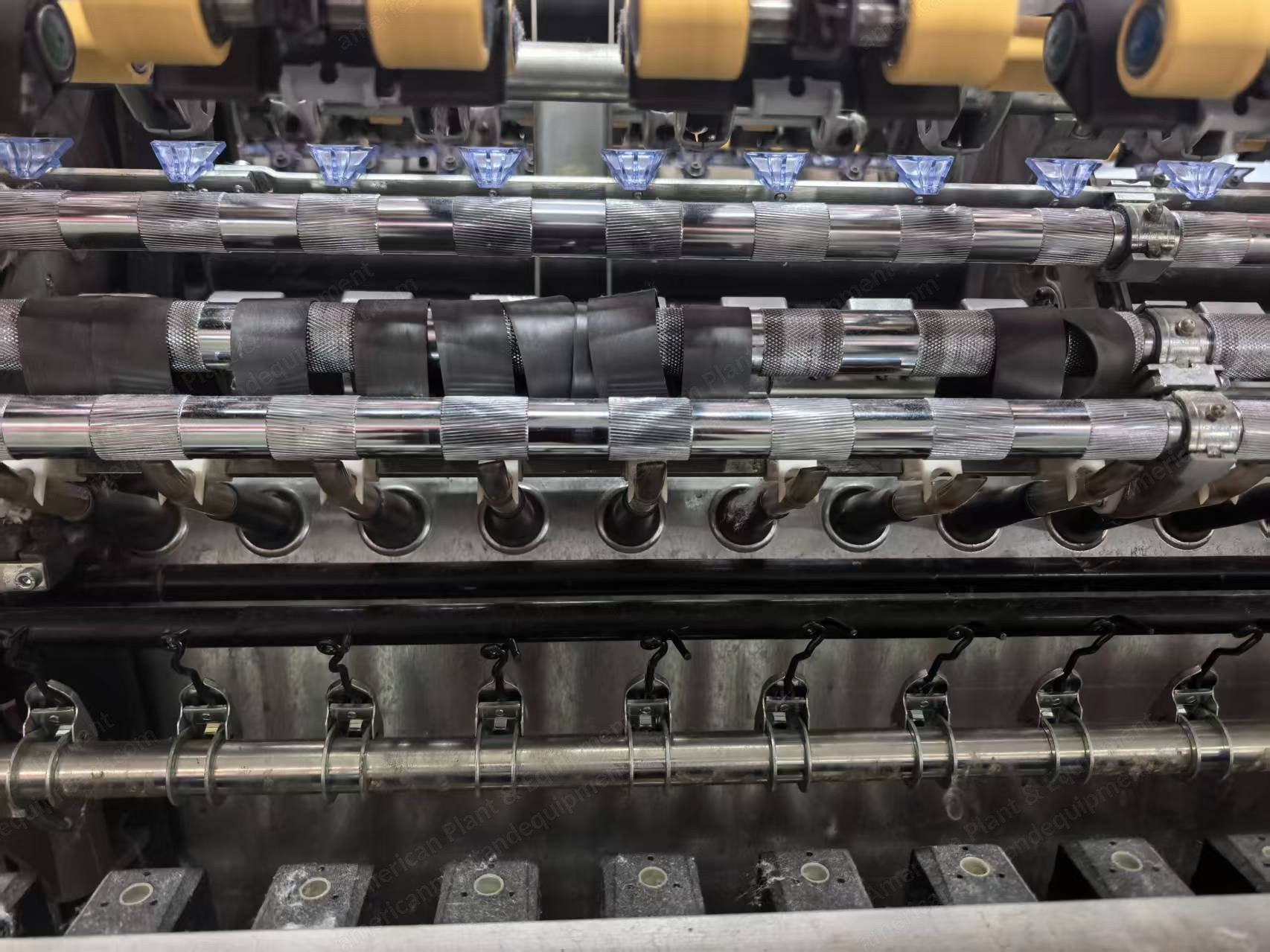

6. 3-roller, 2-apron Zinser drafting system with PK 2025 plus pendulum arms

7. Front top rollers: LP 1002 with cots

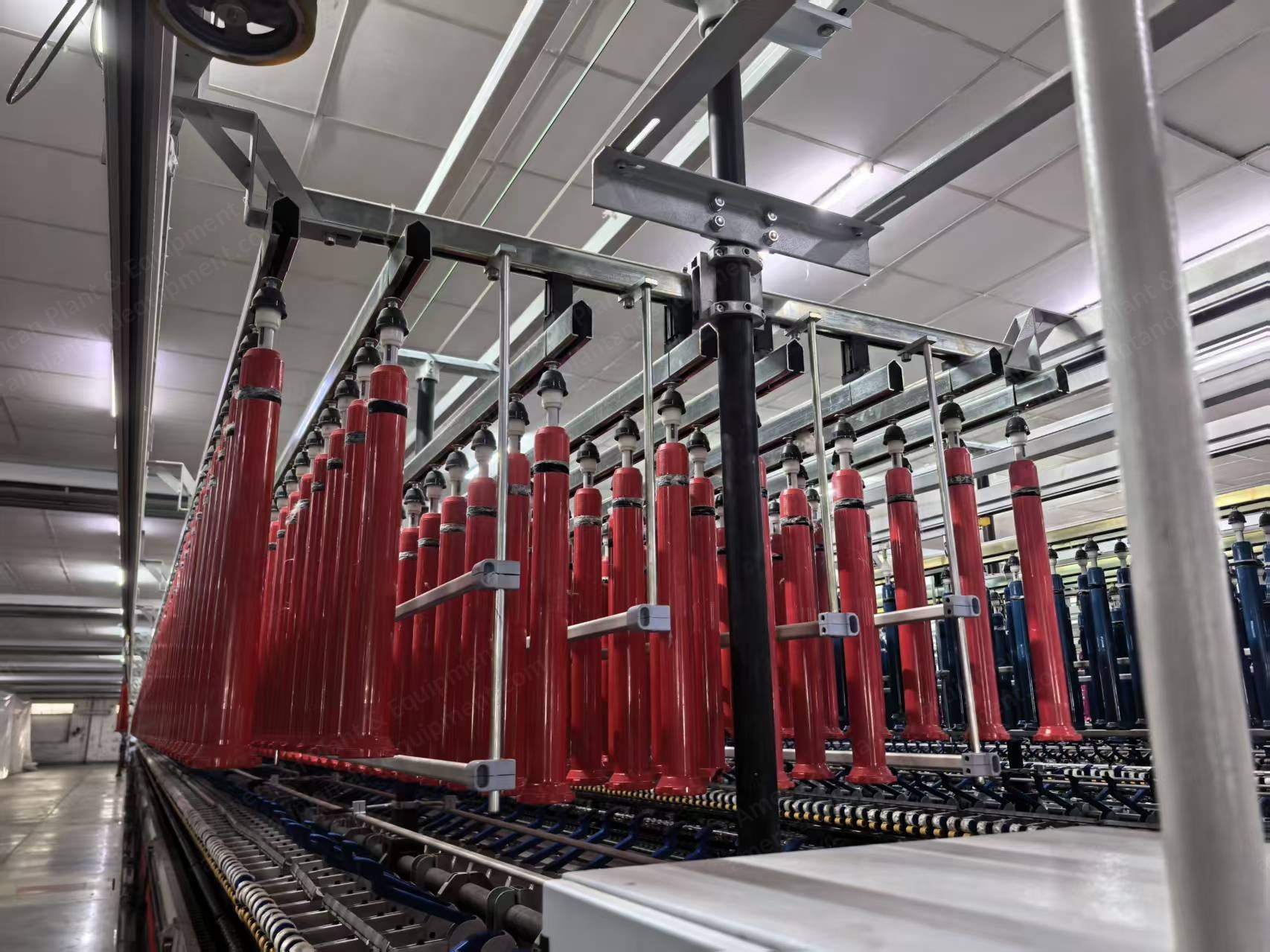

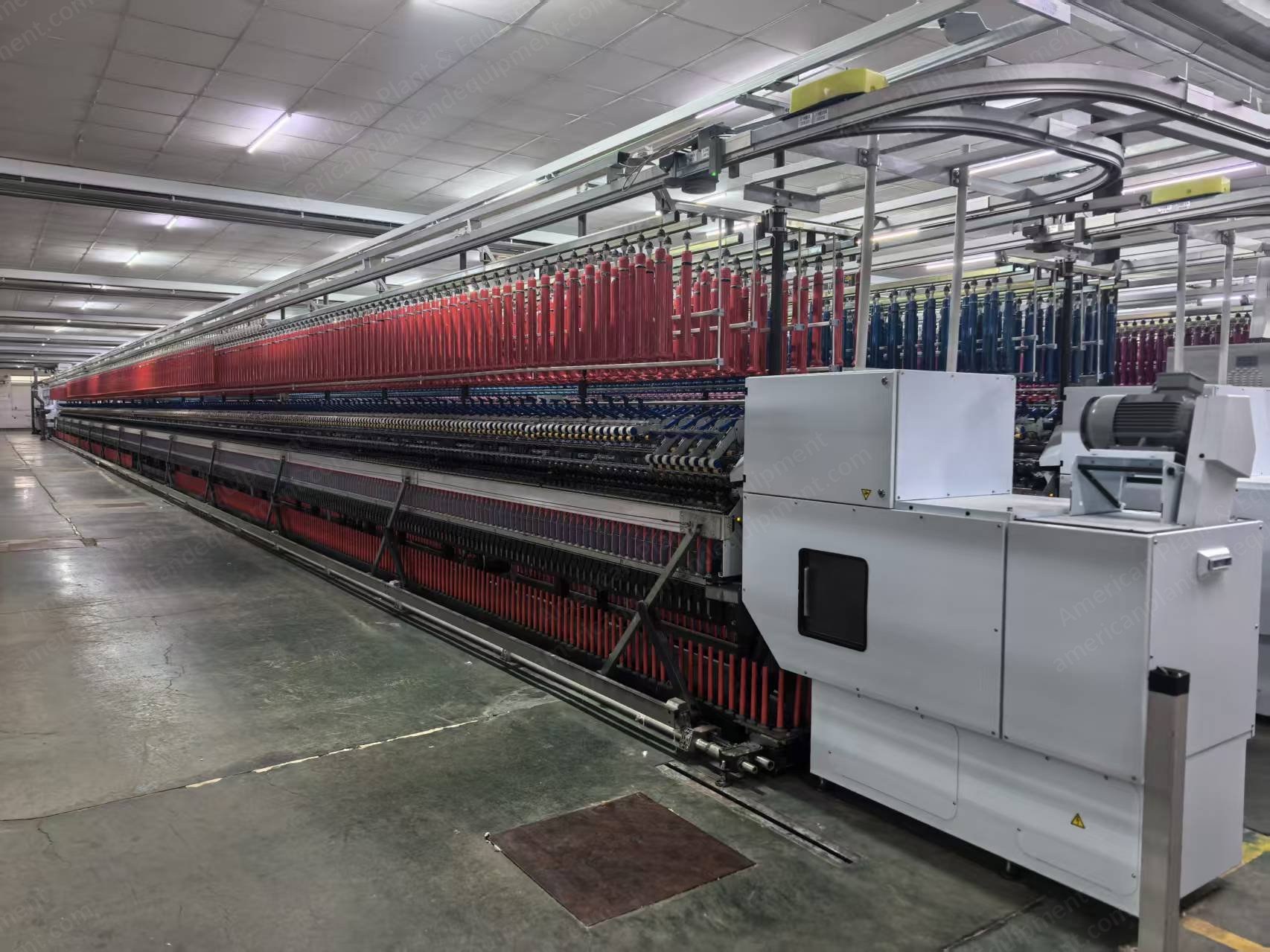

Creel

1. 8 roving bobbin rows with bobbin hangers with inner brake

2. Creel rods prepared for the installation of a traveling blower

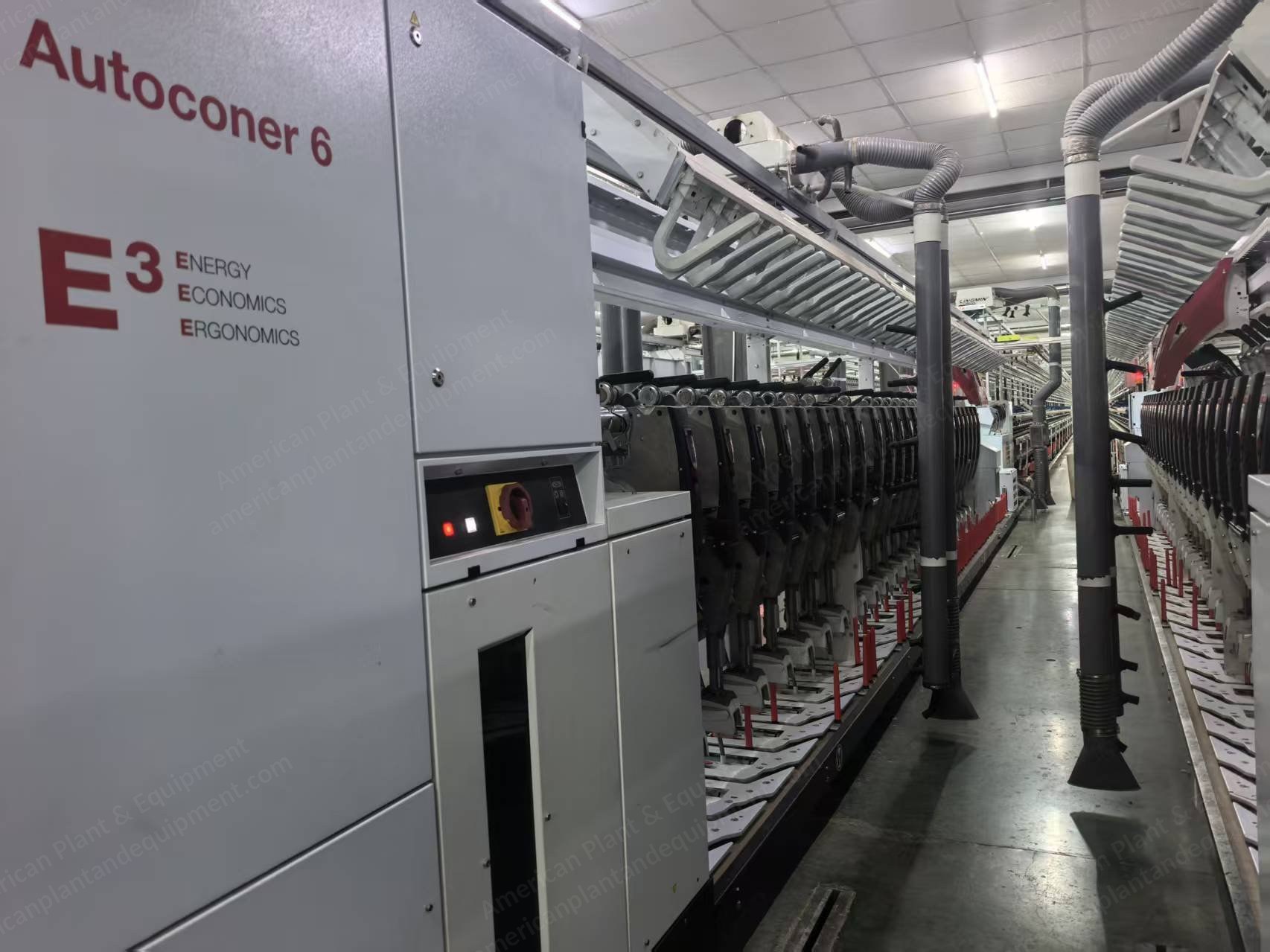

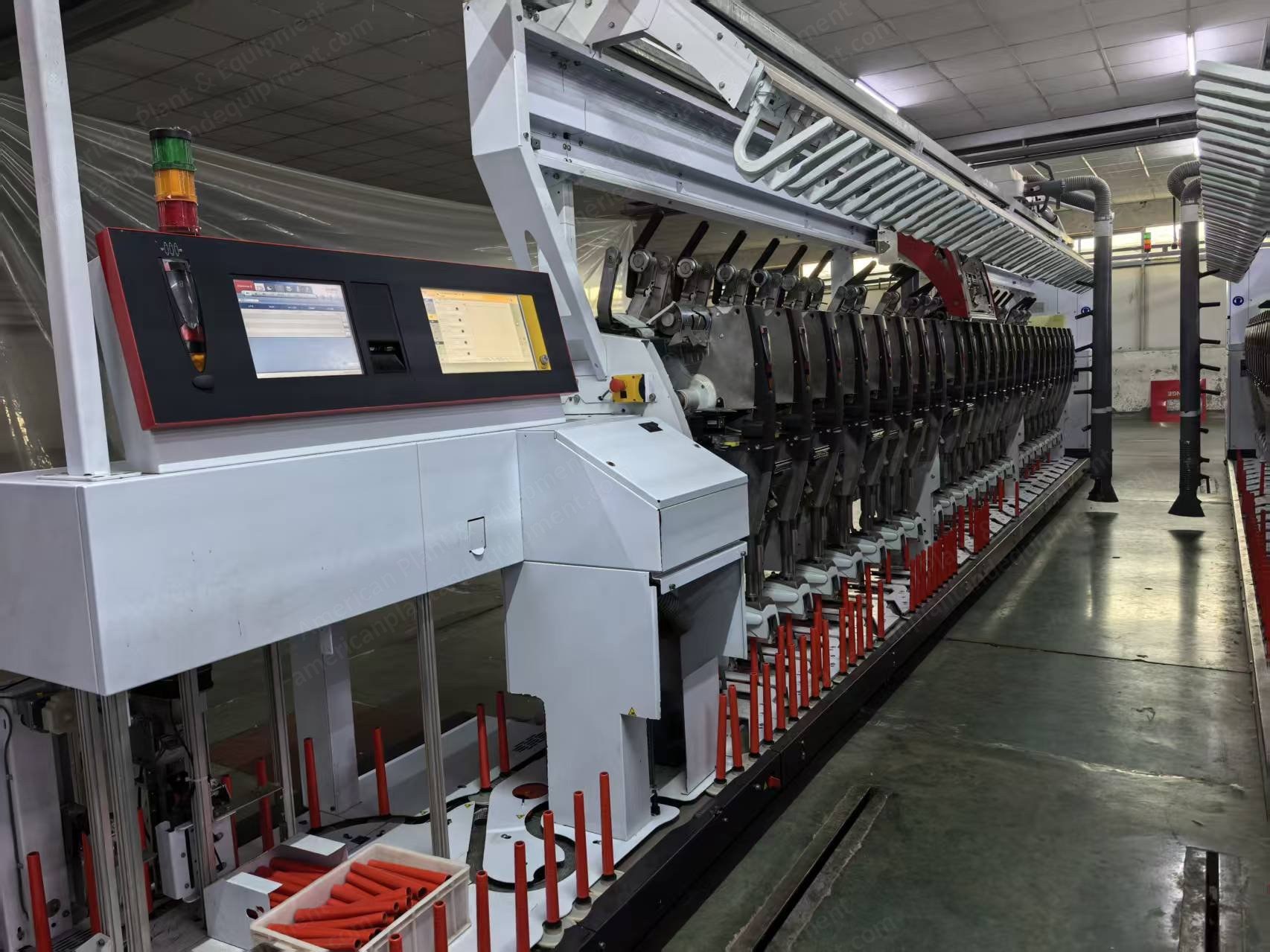

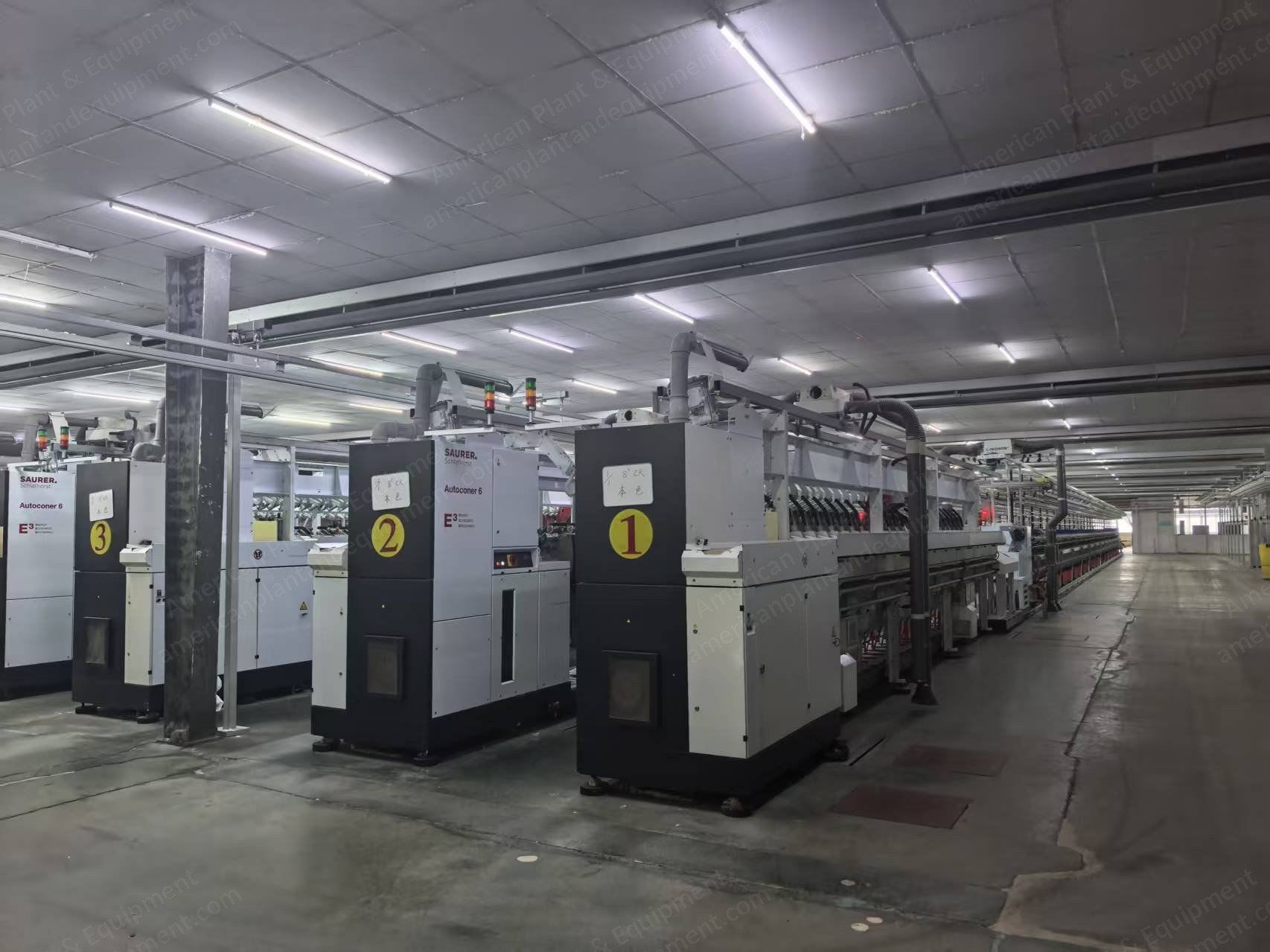

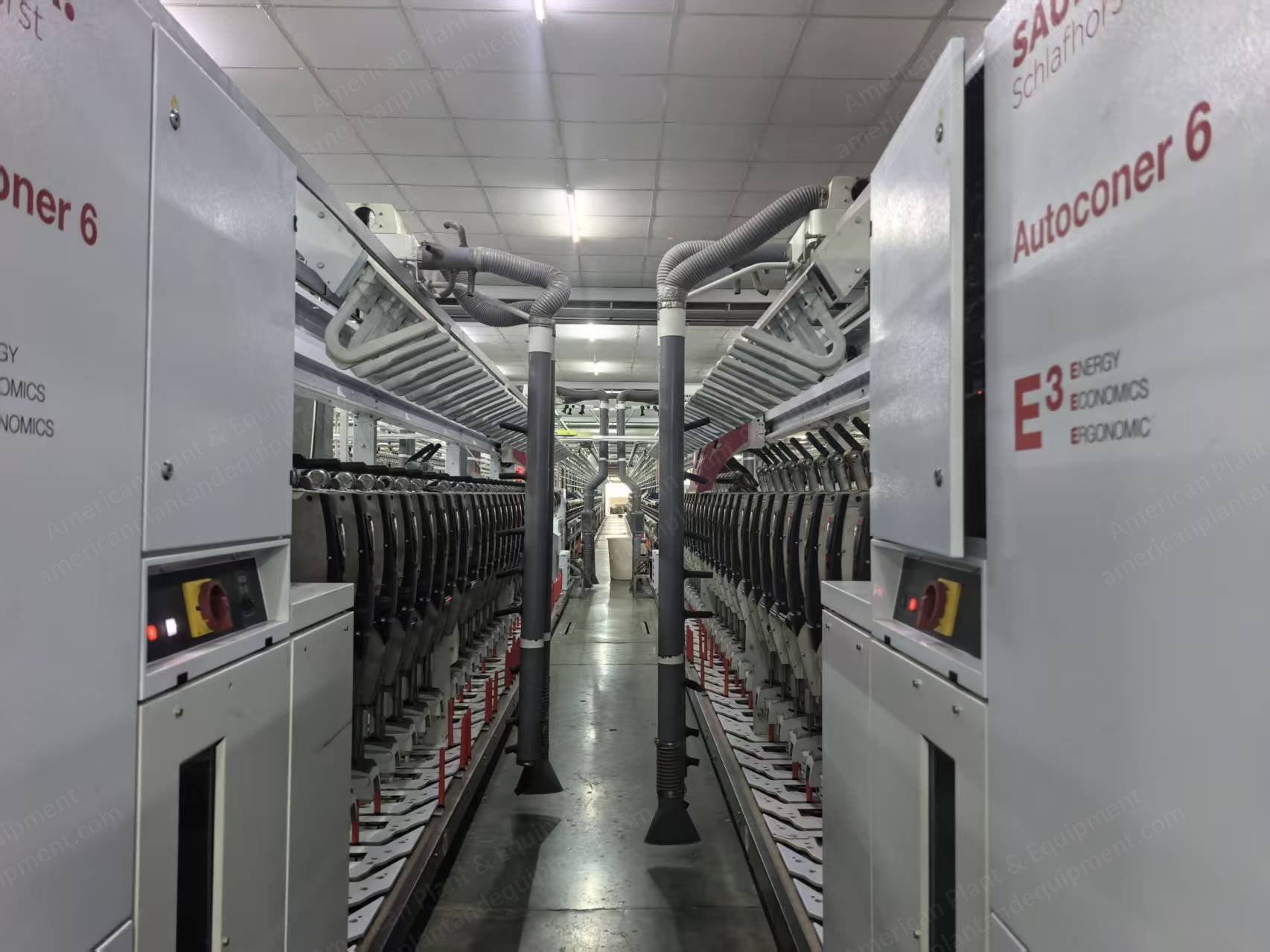

Linked Winder

1. Make: Schlafhorst

2. Model: Autoconer 6

3. Spindles: 24

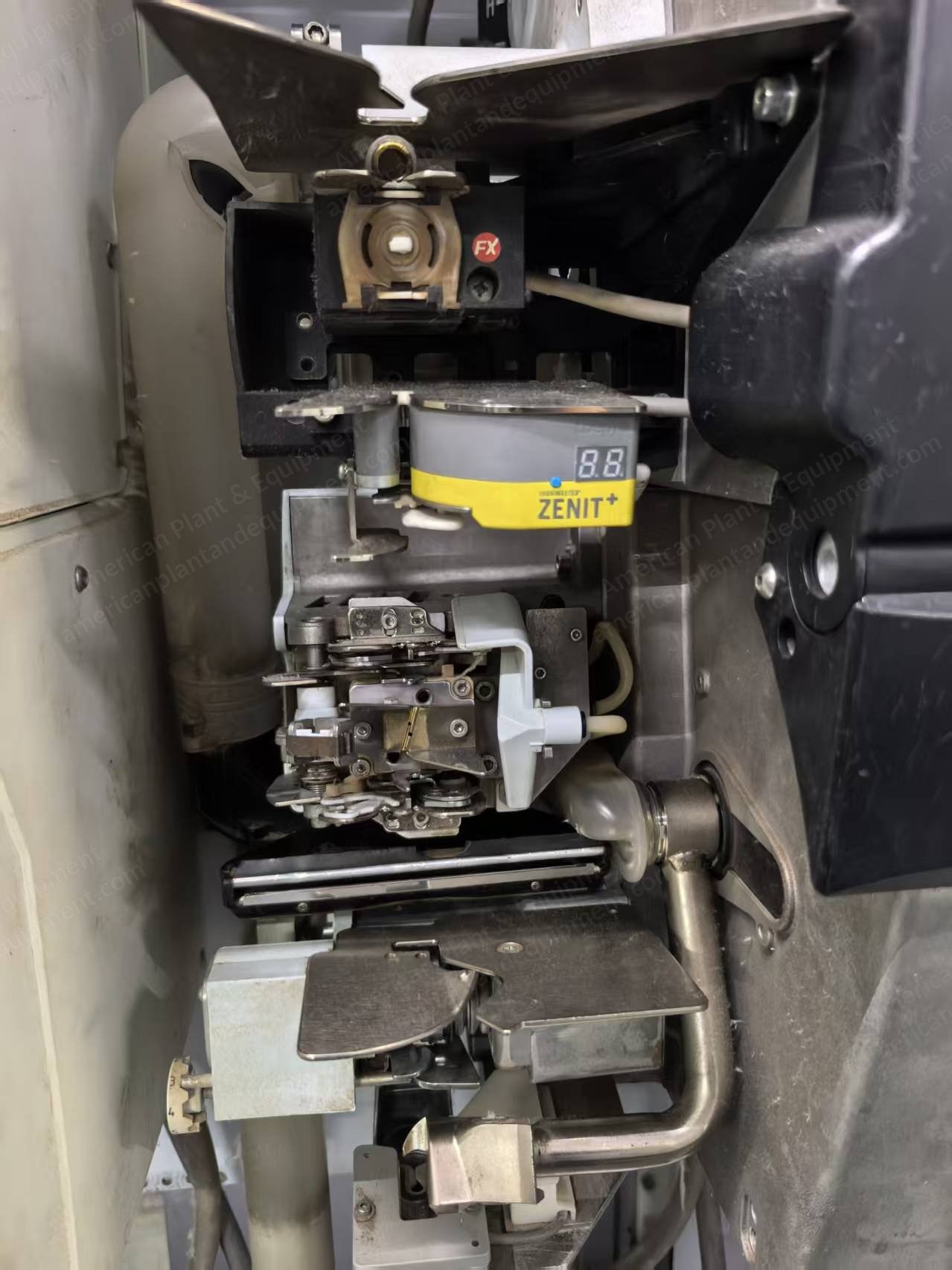

4. Clearer: Zenit Plus

5. Splicing: wet

6. Condition: excellent

Installation Data

1. Electrical supply: 480 V, 60 Hz

2. Voltage fluctuation: not more than plus or minus 10 percent

3. Altitude: up to 1,000 m (3,281 ft)

4. Spinning room temperature: 35 to 40 degrees C (95 to 104 degrees F)

Condition

1. Excellent
