Caterpillar, C27, 2011, 800 kW Mobile Generator Set, 480/277 V, 40 ft Container

Overview

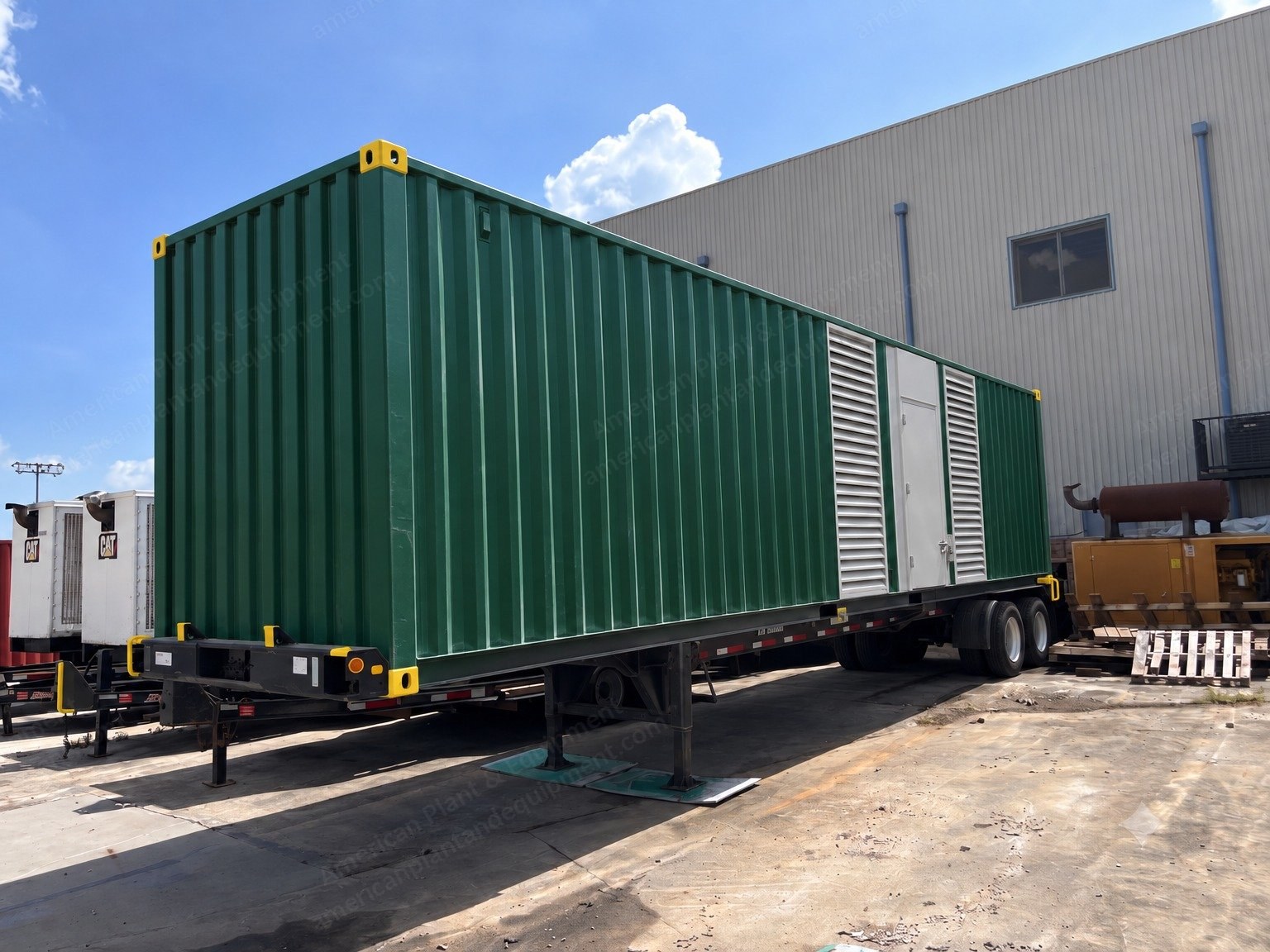

1. Caterpillar C27 mobile generator set built into a 40 ft (12.2 m) weatherproof container.

2. Year 2011.

3. 800 kW standby and 725 kW prime power, 480/277 V, 60 Hz, three phase.

4. Zero hours since top end overhaul; 12,164 original hours.

5. Tier 2 Flex emissions.

6. Freshly painted, cleaned, serviced and load tested.

7. Estimated ready date October 2026.

Generator Set

1. Caterpillar EMCP 3.3 control panel with dust cover.

2. 1,200 A circuit breaker with shunt trip.

3. Double wall remote fuel tank, 1,000 US gallons (3,785 L).

4. Weather enclosure, 40 ft (12.2 m) container.

5. Double axle semi trailer.

Engine

1. Caterpillar C27 diesel engine.

2. 1,105 HP (824 kW) at 1,800 rpm.

3. Tier 2 Flex emissions, ADEM governor, electric starter.

4. Engine driven radiator, heavy duty air cleaner, mounted instrument panel.

5. Battery charger, charging alternator, fuel water separator, fuel cooler, battery rack, battery cables, emergency stop, coolant level sensor, air inlet shutoff and mounted exhaust silencer.

Alternator

1. Caterpillar SR4B, 691 frame.

2. 800 kW, 1,000 kVA standby at 480/277 V, power factor 0.8, 60 Hz, three phase, six leads.

3. Double bearing, permanent magnet excitation, random wound, reconditioned.

Included Auxiliary Set

1. Caterpillar XQ20 auxiliary generator set of 2014, 20 kW standby, for night lighting and camp power.

2. 2,057 original hours.

3. Multi-voltage selector, Caterpillar C2.2 engine and an analog control panel.

Shipping

1. Weight 50,000 lb (22,680 kg).
