Caterpillar, XQ1475G, 2012, 1475 kW Natural Gas Power Module, 480/277 V, 1,052 Hours

Overview

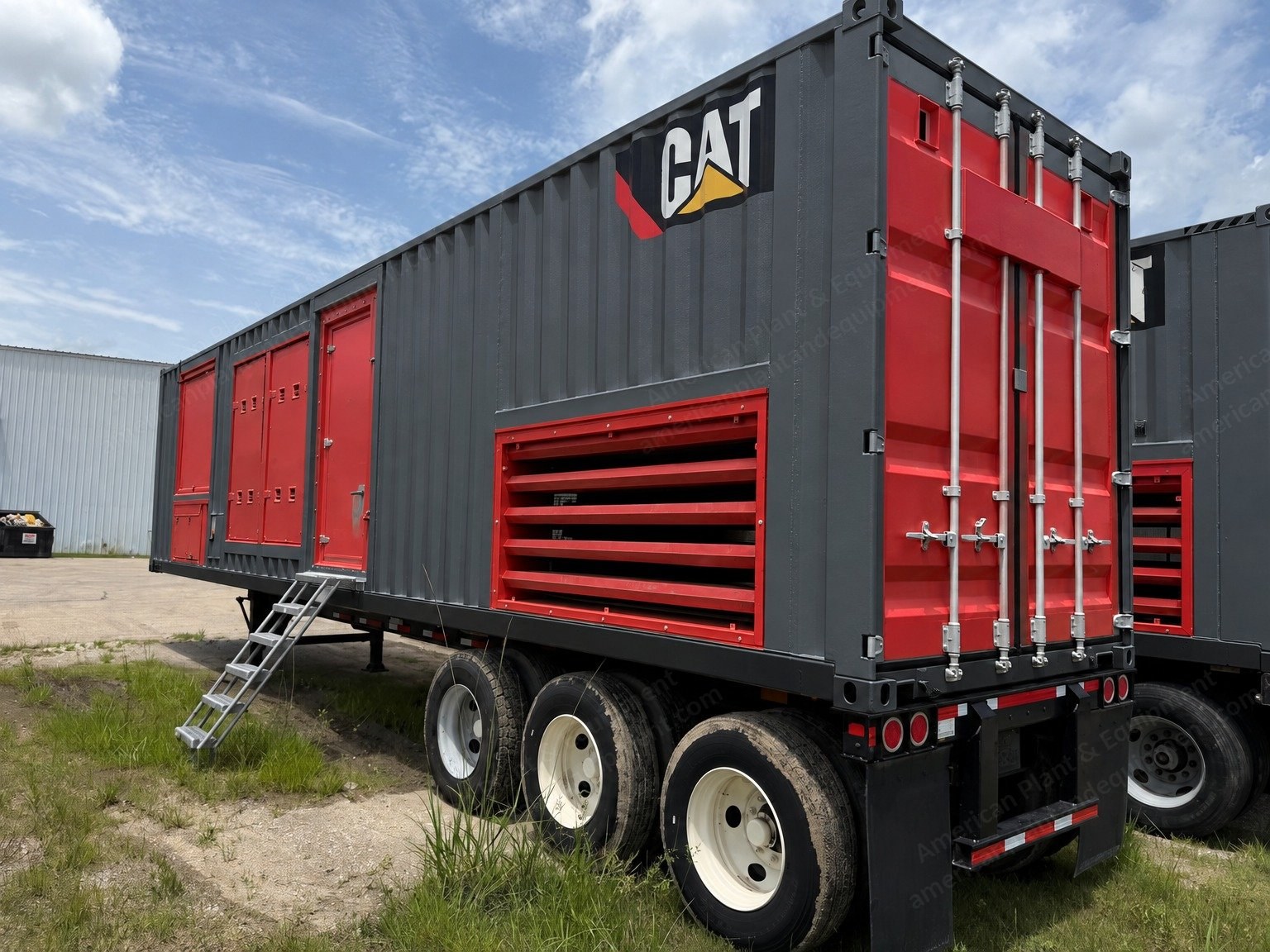

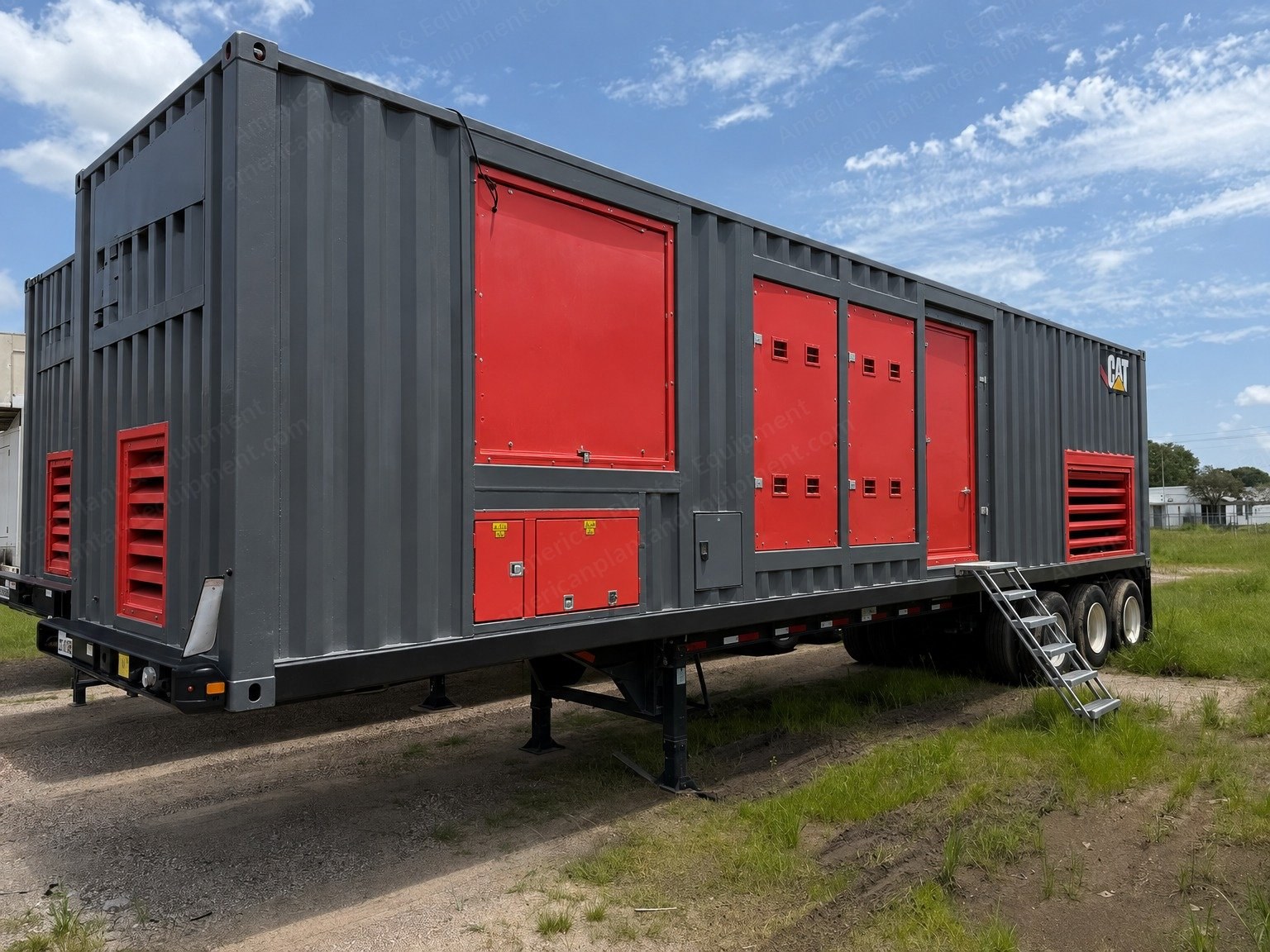

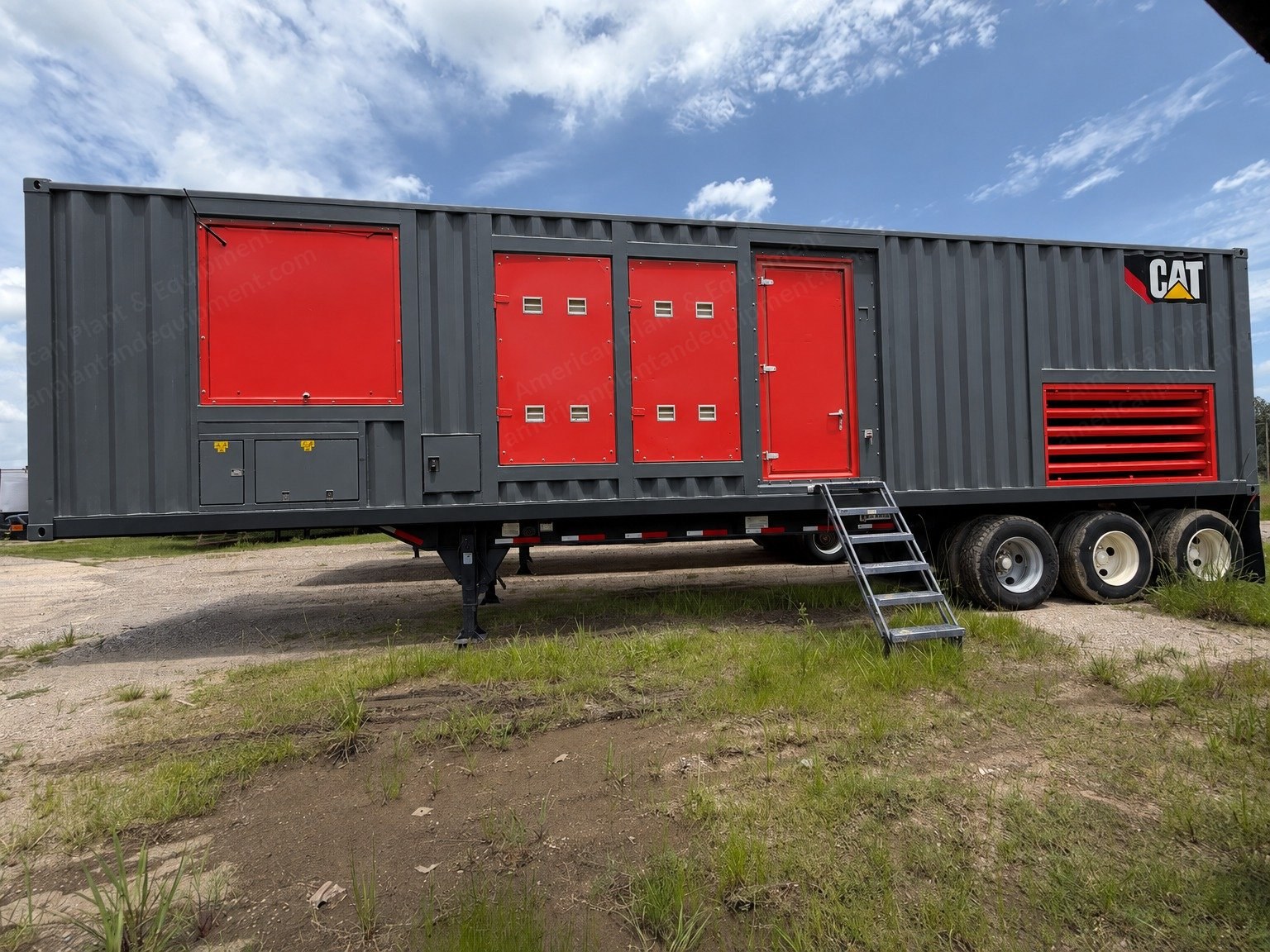

1. Caterpillar XQ1475G rental grade natural gas power module built into a 40 ft (12.2 m) sound attenuated container and trailer mounted.

2. Year 2012.

3. Rated 1,475 kW continuous, 1,844 kVA, 480/277 V, 0.8 power factor, 60 Hz, three phase.

4. 1,052 hours since its overhaul and 26,276 hours in total.

5. The overhaul was completed in 2021 at 25,224 hours by a Caterpillar dealer using OEM components, and the rebuild work orders are available.

6. Load tested and serviced.

7. Used.

Control and Switchgear

1. EMCP 4.2 control panel with a dust cover.

2. 3,200 A circuit breaker, electrically operated, with a shunt trip.

3. Power distribution panel and paralleling controls.

4. UL 2200 listed.

5. Detonation sensitive timing.

6. Multimode operation in island, multi-island and utility parallel modes.

7. Manual and automatic paralleling capability.

Gas Engine

1. Caterpillar G3516C rated 2,175 HP (1,622 kW) at 1,800 rpm.

2. Compression ratio 11.3 to 1, SAE 00 flywheel housing.

3. Runs on natural gas through a gas train with a gas regulator and an air fuel ratio controller.

4. ADEM governor, electric starter, remote radiator and a heavy duty air cleaner.

5. Electric pre-lube, jacket water heater, battery charger, charging alternator, battery rack, battery cables, emergency stop, coolant level sensor, oil level regulator, particulate filter and a mounted exhaust silencer.

Alternator

1. Caterpillar SR4B in the 826 frame.

2. Double bearing, permanent magnet excitation, random wound.

3. Bearing temperature RTDs, space heater and flex coupling.

Shipping

1. 480 x 96 x 114 in (12.19 x 2.44 x 2.90 m), length by width by height.

2. Weight 71,000 lb (32,205 kg).
