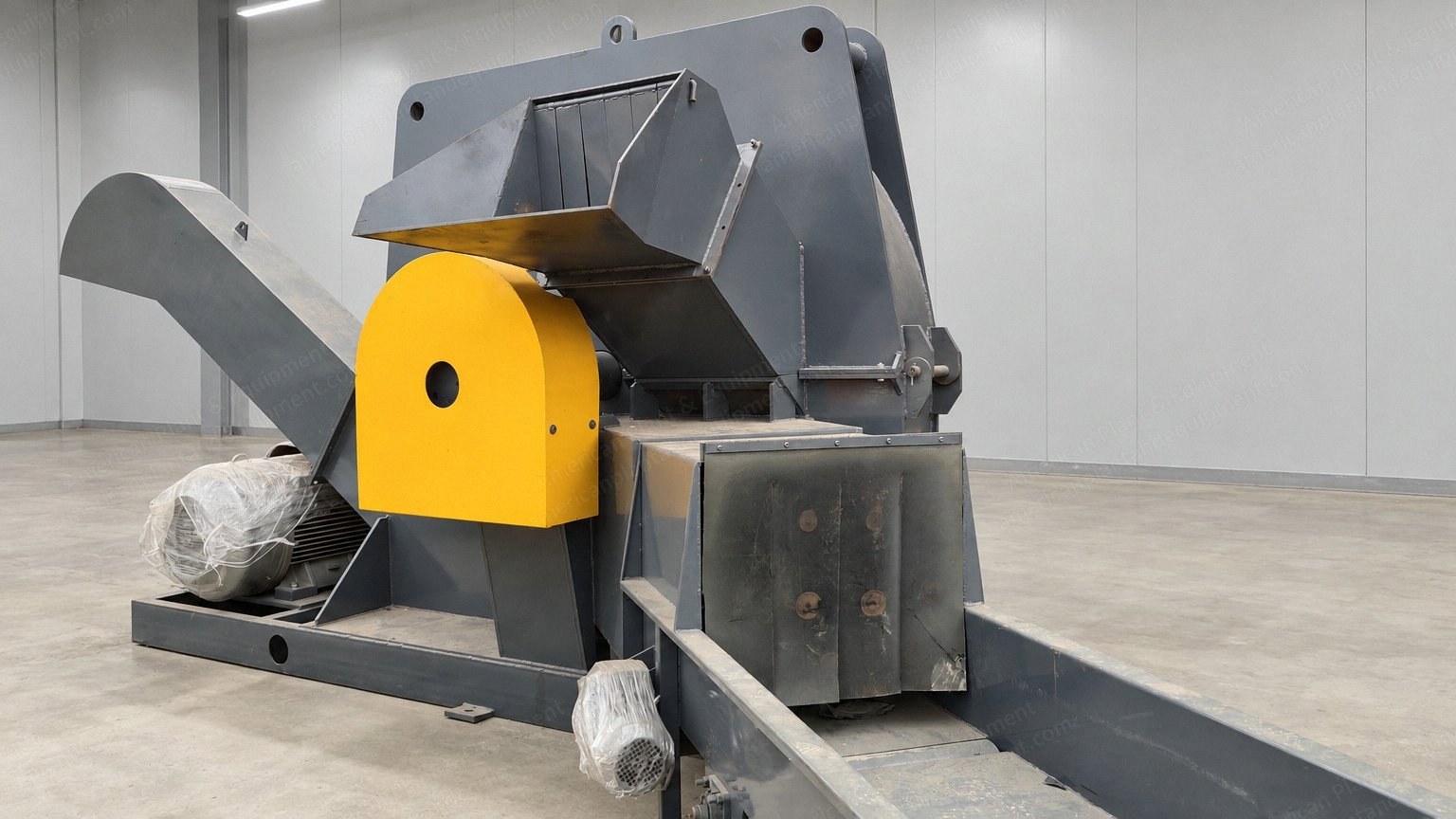

NovaStar, SG310, HDPE Pipe Crusher, 45 to 90 kW, 2.5 to 7 t/h (New)

NovaStar, SG310, HDPE Pipe Crusher, 45 to 90 kW, 2.5 to 7 t/h

Description

  1. Overview
    1. New HDPE pipe crusher, built to order, for crushing large HDPE pipe into small pieces so that it can be transported economically.
    2. A two-entry version is also built, so the machine will grind small purge and lump as well.
    3. Each size is supplied with its own infeed conveyor.
    4. Offered in three sizes, Model 250, 400 and 630.
  2. Model 250
    1. Motor 45 kW (60.3 hp).
    2. 10 rotary blades and 1 fixed blade.
    3. Conveyor 300 mm (11.8 in) wide by 3 m (9.8 ft) long.
    4. Capacity 2.5 to 3 t/h (5,510 to 6,610 lb/h).
  3. Model 400
    1. Motor 75 kW (100.6 hp).
    2. 10 rotary blades and 1 fixed blade.
    3. Conveyor 450 mm (17.7 in) wide by 3 m (9.8 ft) long.
    4. Capacity 3 to 4 t/h (6,610 to 8,820 lb/h).
  4. Model 630
    1. Motor 90 kW (120.7 hp).
    2. 10 rotary blades and 1 fixed blade.
    3. Conveyor 750 mm (29.5 in) wide by 3 m (9.8 ft) long.
    4. Capacity 5 to 7 t/h (11,020 to 15,430 lb/h).
  5. Supply
    1. New machine, built to order.
    2. Electrical supply built to the buyer's requirement; the standard US supply is 480 V, 60 Hz, 3 phase.
