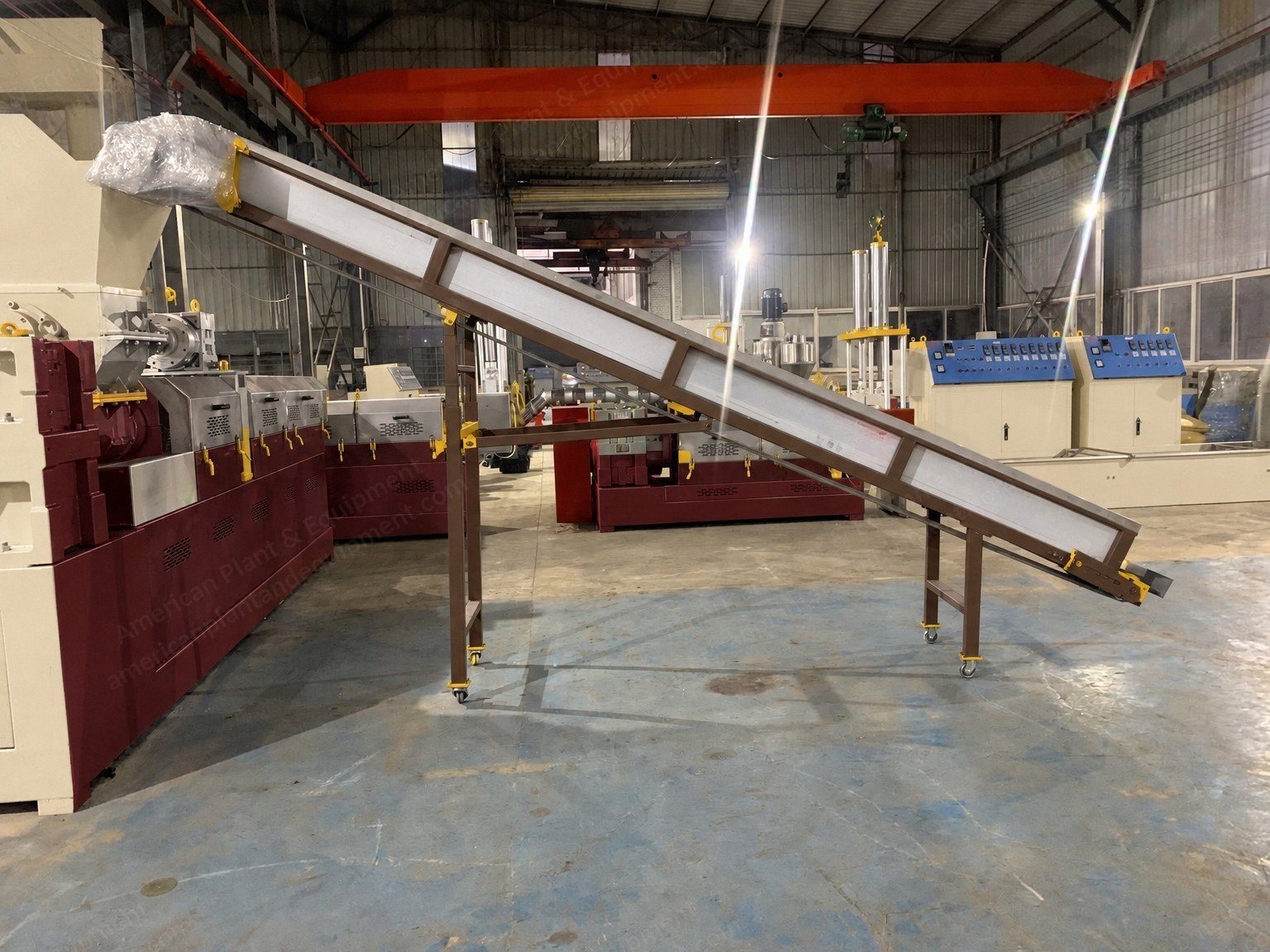

NovaStar, CZ141, PP Woven Bags Pelletizer, Three Stage Granulator, 500 to 1,000 kg/h (New)

NovaStar, CZ141, PP Woven Bags Pelletizer, Three Stage Granulator, 500 to 1,000 kg/h

Description

  1. Overview
    1. New three stage granulator and pelletizer for PP woven bags and PP film, built to order, for capacities above 500 kg/h.
    2. PP woven bags hold a lot of water after the washing line, which holds the temperature down; the three stage machine has a longer screw so that the material is plasticized properly.
    3. Offered in three sizes, 500, 800 and 1,000 kg/h.
  2. 500 kg/h (1,102.3 lb/h)
    1. Screws 200 + 200 + 200 mm (7.9 + 7.9 + 7.9 in).
    2. Motors 90 + 45 + 45 kW (120.7 + 60.3 + 60.3 hp).
    3. Gear boxes 375 + 315 + 315.
    4. 2 degassing stages.
  3. 800 kg/h (1,763.7 lb/h)
    1. Screws 280 + 260 + 220 mm (11.0 + 10.2 + 8.7 in).
    2. Motors 160 + 110 + 75 kW (214.6 + 147.5 + 100.6 hp).
    3. Gear boxes 450 + 375 + 315.
    4. 2 degassing stages.
  4. 1,000 kg/h (2,204.6 lb/h)
    1. Screws 320 + 260 + 220 mm (12.6 + 10.2 + 8.7 in).
    2. Motors 160 + 110 + 75 kW (214.6 + 147.5 + 100.6 hp).
    3. Gear boxes 450 + 375 + 315.
    4. 2 degassing stages.
  5. Supply
    1. New machine, built to order.
    2. Electrical supply built to the buyer's requirement; the standard US supply is 480 V, 60 Hz, 3 phase.
