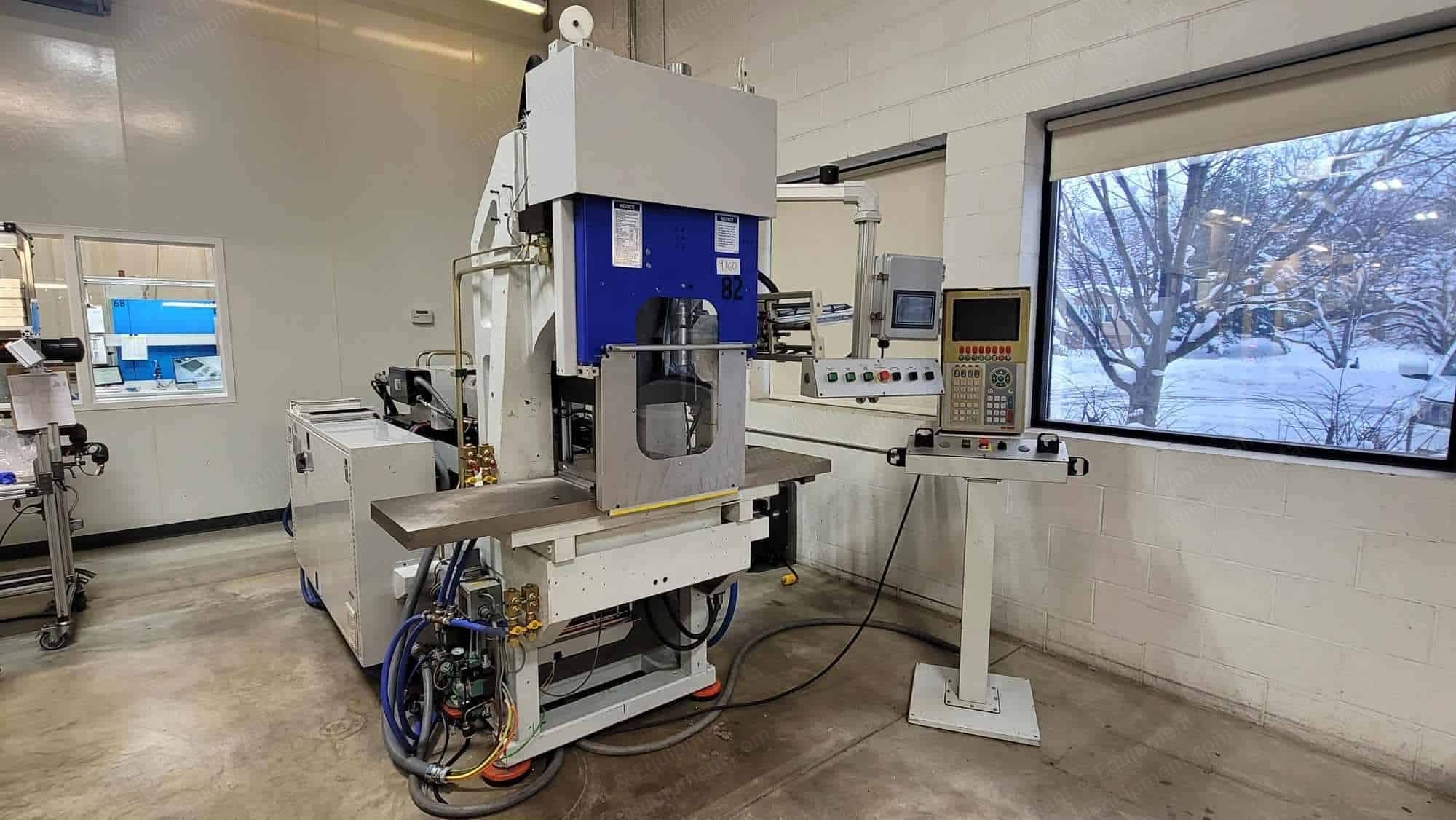

Newbury, V3-80RS, 2006, Vertical Injection Molding Machine, 80 Ton, 48 in Rotary Table

Newbury, V3-80RS, 2006, Vertical Injection Molding Machine, 80 Ton, 48 in Rotary Table

Description

  1. Overview
    1. Newbury V3-80RS vertical injection molding machine, built in 2006.
    2. 80 ton clamping force, C-frame clamp, with a 48 in (1,219 mm) diameter rotary table.
    3. Less than 5,000 hours.
    4. An extra screw and barrel are included.
  2. Injection Unit
    1. Screw diameter 1.25 in (32 mm), 20:1 length to diameter ratio.
    2. Shot size 2.65 oz (75 g).

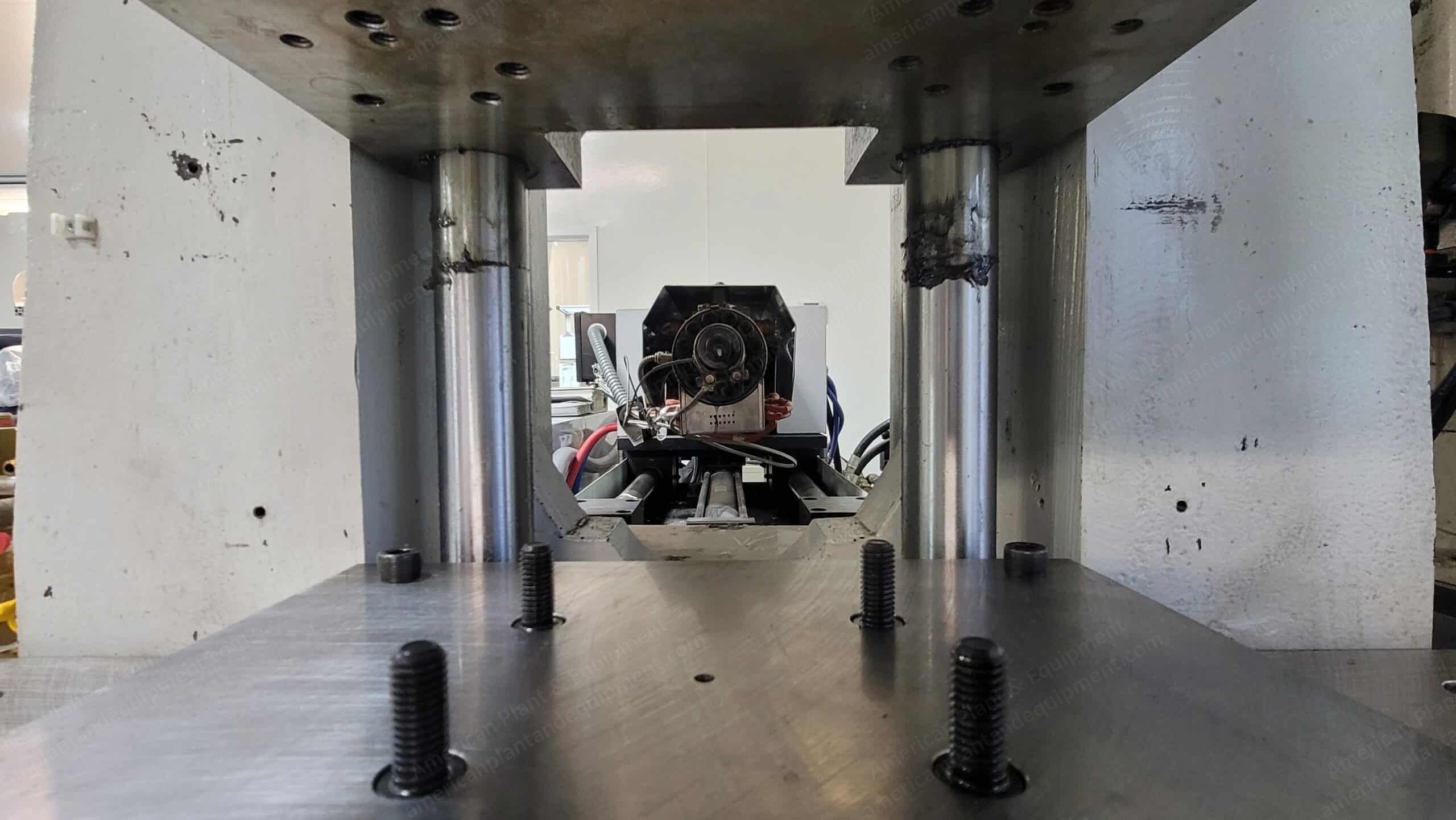

  3. Clamp And Tooling Space
    1. Clamping force 80 ton.
    2. C-frame clamp, so there is no tie bar spacing.
    3. Platen size 12 x 14 in (305 x 356 mm).
    4. Rotary table 48 in (1,219 mm) diameter.
    5. Minimum daylight 8 in (203 mm), maximum daylight 20.38 in (518 mm).
    6. Minimum mold height 8 in (203 mm).
    7. Clamp stroke 6.38 in (162 mm).
  4. Control

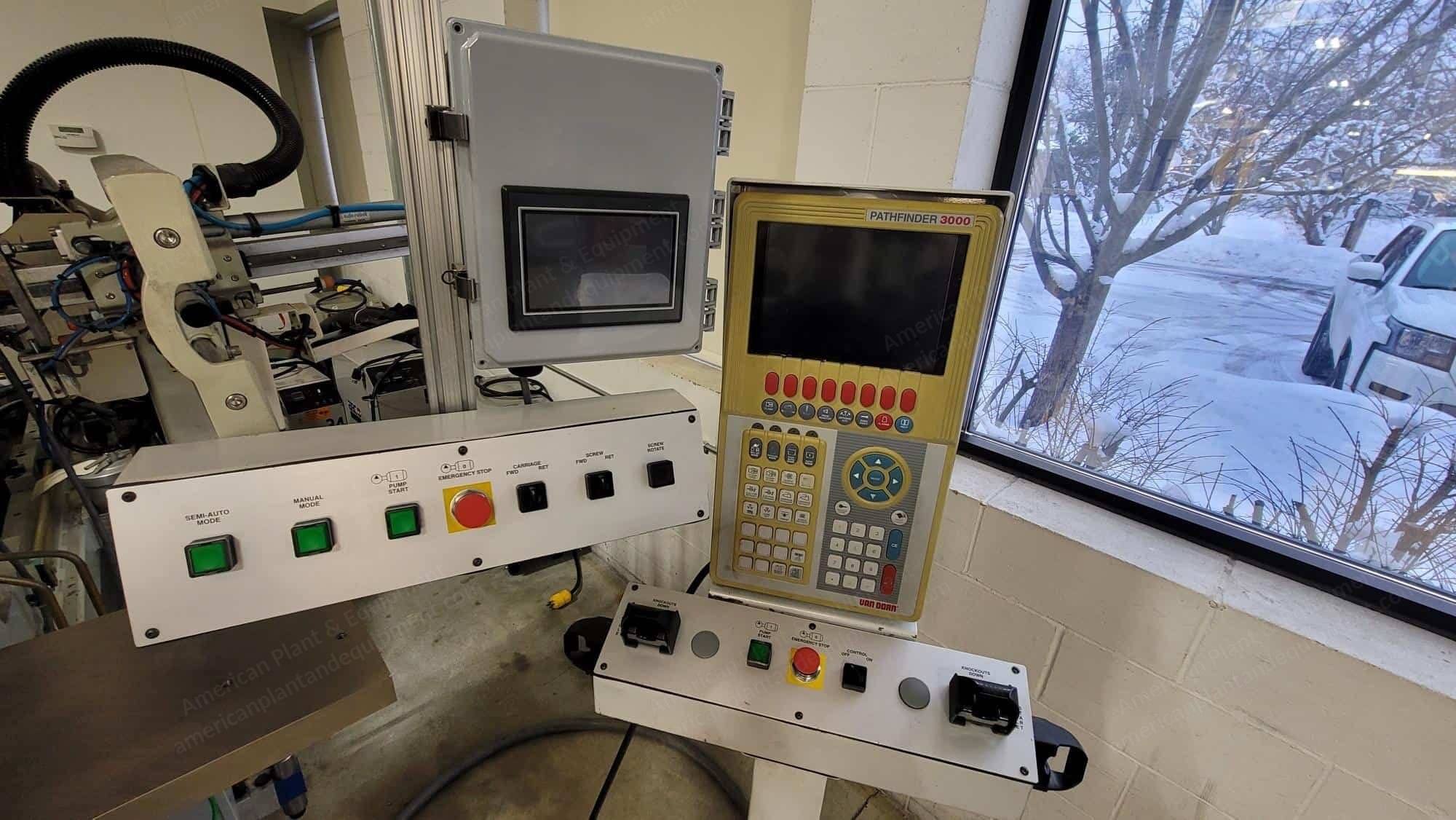

    1. Pathfinder 3000 control.
  5. Size And Weight
    1. Approximately 10 ft long by 7 ft wide by 8 ft high (3.0 x 2.1 x 2.4 m).
    2. Approximate machine weight 9,500 lb (4,310 kg).
  6. Condition
    1. Used, less than 5,000 hours.
