Total installed power for the equipment: 50.8 kW (68.1 hp)
Water consumption: cattle 20 tons per day, pigs 15 tons per day
Waste water: cattle 24 tons per day, pigs 18 tons per day
Labor: 14 to 16 workers
Cattle Killing and Bleeding Unit

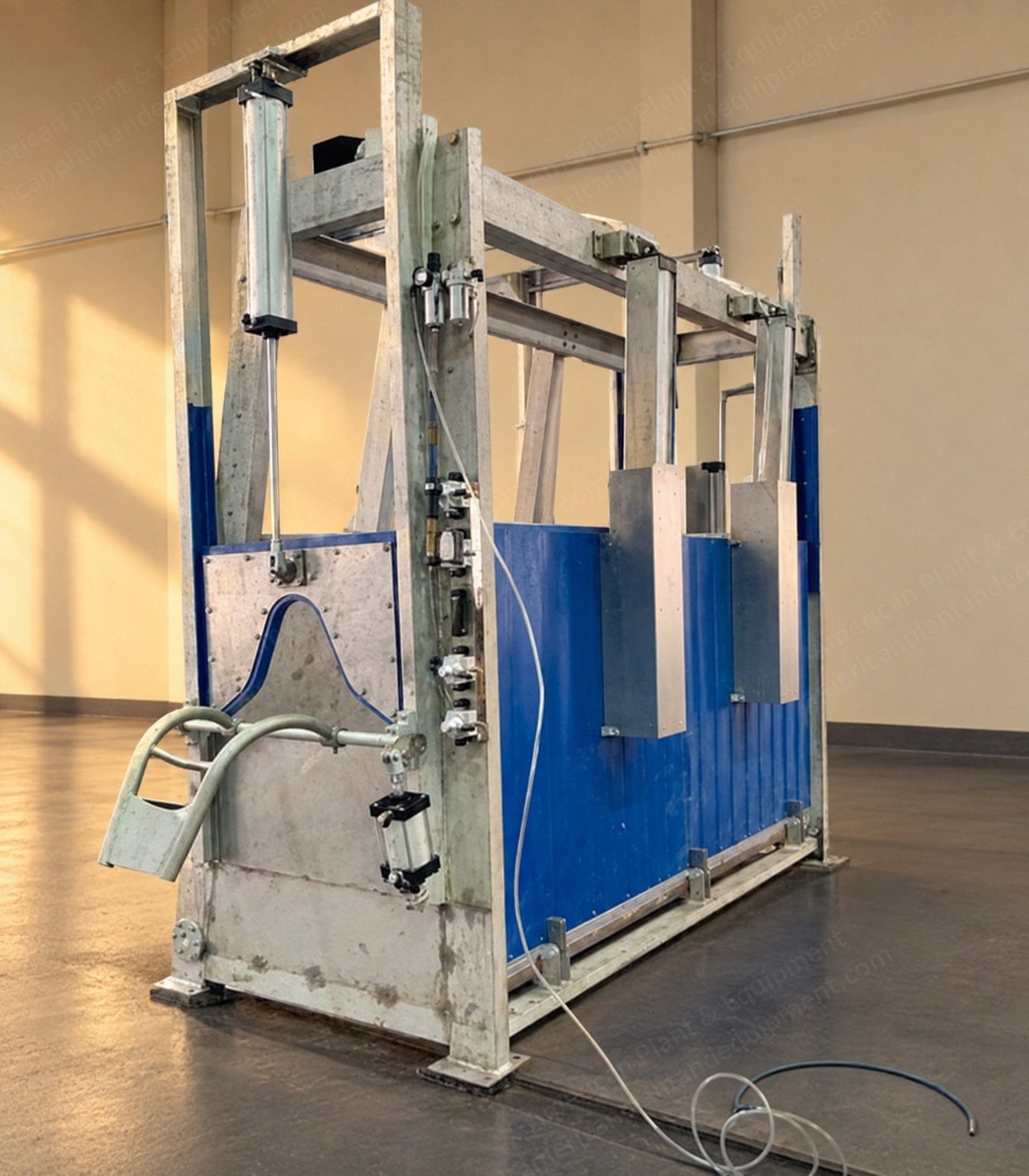

Oblique stunning box (1 set) with cattle receiving plate (1 set): cattle limit box, entrance device, head clamping device, side door lifting device and bottom overturn plate; hot-dip galvanized structure with polyamide plate; 0.6 to 0.8 MPa, 630 L air per cycle, up to 60 head per hour, 2,800 x 1,375 x 3,220 mm (L x W x H)
Security piles, 304 stainless steel (12 pcs): 120 mm diameter x 1,400 mm, 400 mm spacing
Bleeding hoist (1 set): 2 ton electric hoist, galvanized automatic hanging device and heavy hook, low-voltage control switches; 2,000 kg capacity, 3.0 kW, 6 m lifting height, 8 m/min
Bleeding conveying line with shackle return rail (30 m): galvanized 12# double channel steel, H225 galvanized hangers, 60 x 4 mm 304 stainless steel tube rail, 600 mm hanger spacing
Blood trough, 304 stainless steel (1 set): 3,000 x 1,000 x 400 mm
Cattle bleeding shackles (6 pcs): galvanized hanger and roller, 304 stainless steel shackle, 2,000 kg maximum load
Fixed platform for carcass transfer (1 set): 304 stainless steel columns, anti-skid fiberglass grating, water tray, ladder and handrail; 2,000 x 1,000 x 2,000 mm
Hoof slide chute, 304 stainless steel (1 set): 350 mm diameter x 2,400 mm
Carcass transfer hoist (1 set): 1 ton anchor chain electric hoist, 304 stainless steel hook; 1.5 kW, 1,000 kg, 3 m lifting height
Pig Killing, Scalding and Dehairing Unit
Pneumatic stunning box (1 set): 304 stainless steel with high-polymer nylon plate, pneumatic entrance and side door, stainless steel collection grid; 0.6 to 0.8 MPa, 190 L air per cycle, 1,700 x 600 x 2,000 mm, up to 100 head per hour
Hand-held electric pig stunner (1 set): stainless steel stunning tongs and stunning generator; 0.5 to 1.2 A, 70 to 90 V (pigs of 90 to 110 kg), 2 to 3 s stunning time, up to 120 head per hour
Bleeding elevator (1 set): hot-dip galvanized frame, galvanized plate chain, wear-resistant wheels with push dogs, 60 x 4 mm tube rail and 40 x 40 x 4 mm twin rail in 304 stainless steel; 1.5 kW, 2,100 mm lifting height
Bleeding tube rail with shackle return rail (30 m): galvanized 10# double channel steel, H225 cast hangers, 60 x 4 mm 304 stainless steel tube rail, 600 mm hanger spacing
Blood trough, 304 stainless steel (1 set): 3,000 x 1,000 x 400 mm
Pulley hooks with bleeding shackles (10 pcs): stainless steel cast hanger, 304 stainless steel shackle, 500 kg maximum load
Pneumatic pig unloading device (1 set): galvanized support, aluminum alloy cylinder; releases the pig into the scalding tank

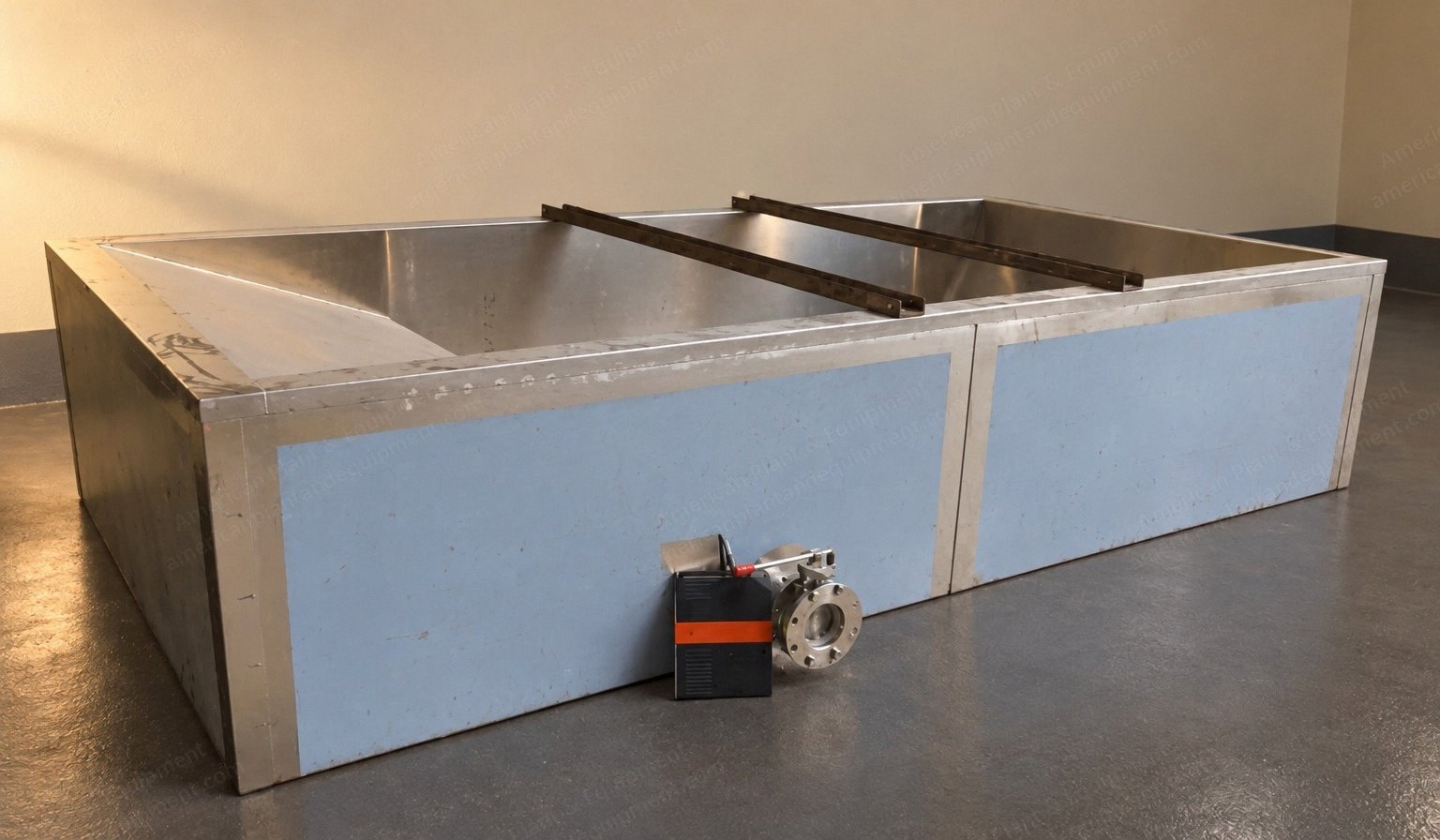

Steam scalding tank with temperature control system (1 set each): 304 stainless steel inside and out, 70 mm polyurethane insulation, stainless steam heating pipe; 58 to 62 °C (136 to 144 °F); 3,000 x 1,800 x 750 mm

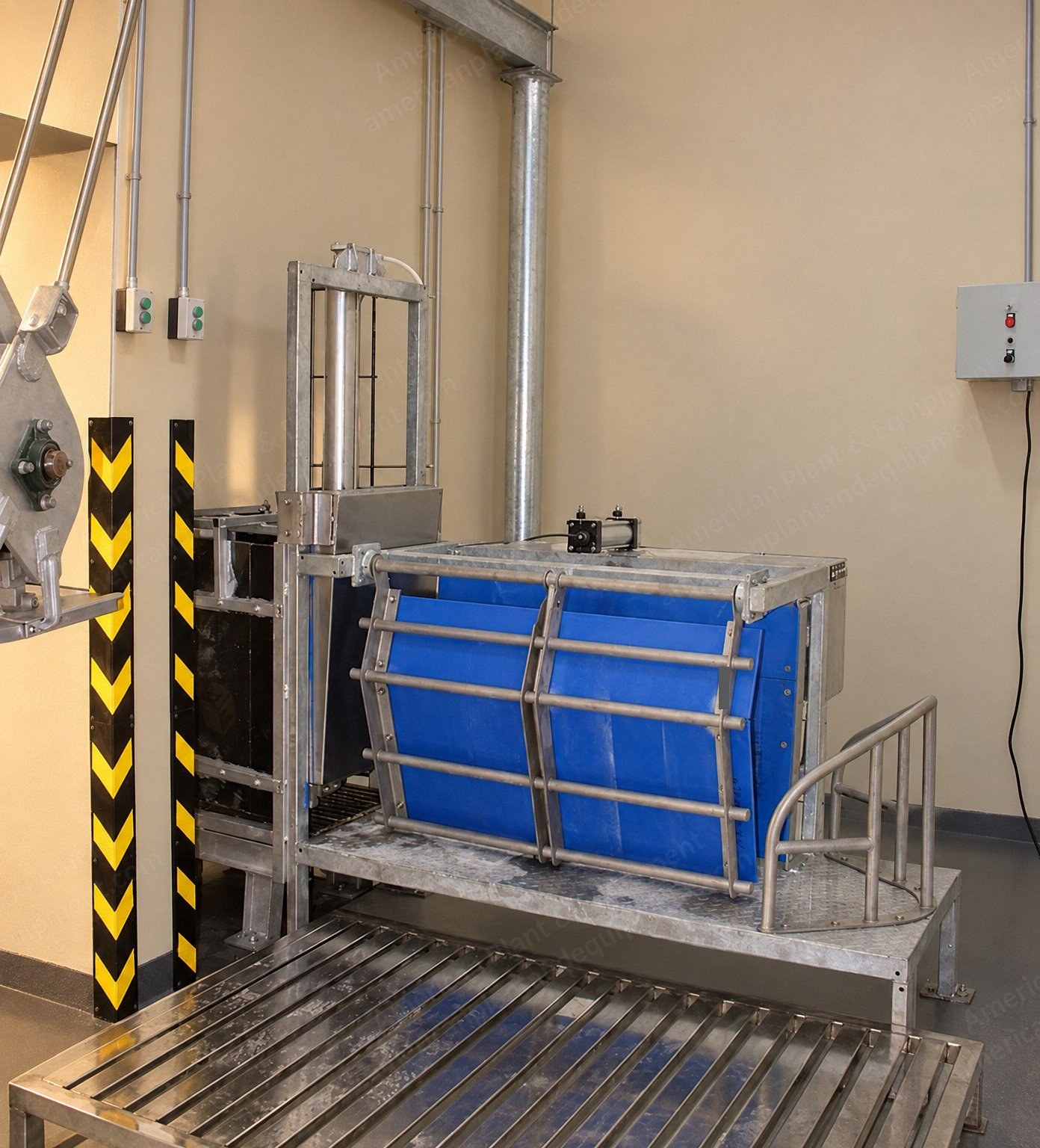

Hydraulic dehairing machine (1 set): galvanized frame, 2 dehairing rollers with rubber paddles, stainless steel rake, chain drive, hydraulic power unit; 5.5 + 2.2 kW, 1,800 mm effective length, pigs up to 130 kg, 30 to 40 s per pig, 100 head per hour, 2,350 x 1,300 x 1,700 mm, 1,650 kg
Carcass receiving table, 304 stainless steel (1 set): 1,800 x 1,200 x 700 mm
Pig carcass elevator (1 set): galvanized C-beam track, nylon rollers and plate chain, push dogs, 40 x 40 x 4 mm stainless double rail; 1.5 kW
Cattle and Pig Carcass Processing Unit

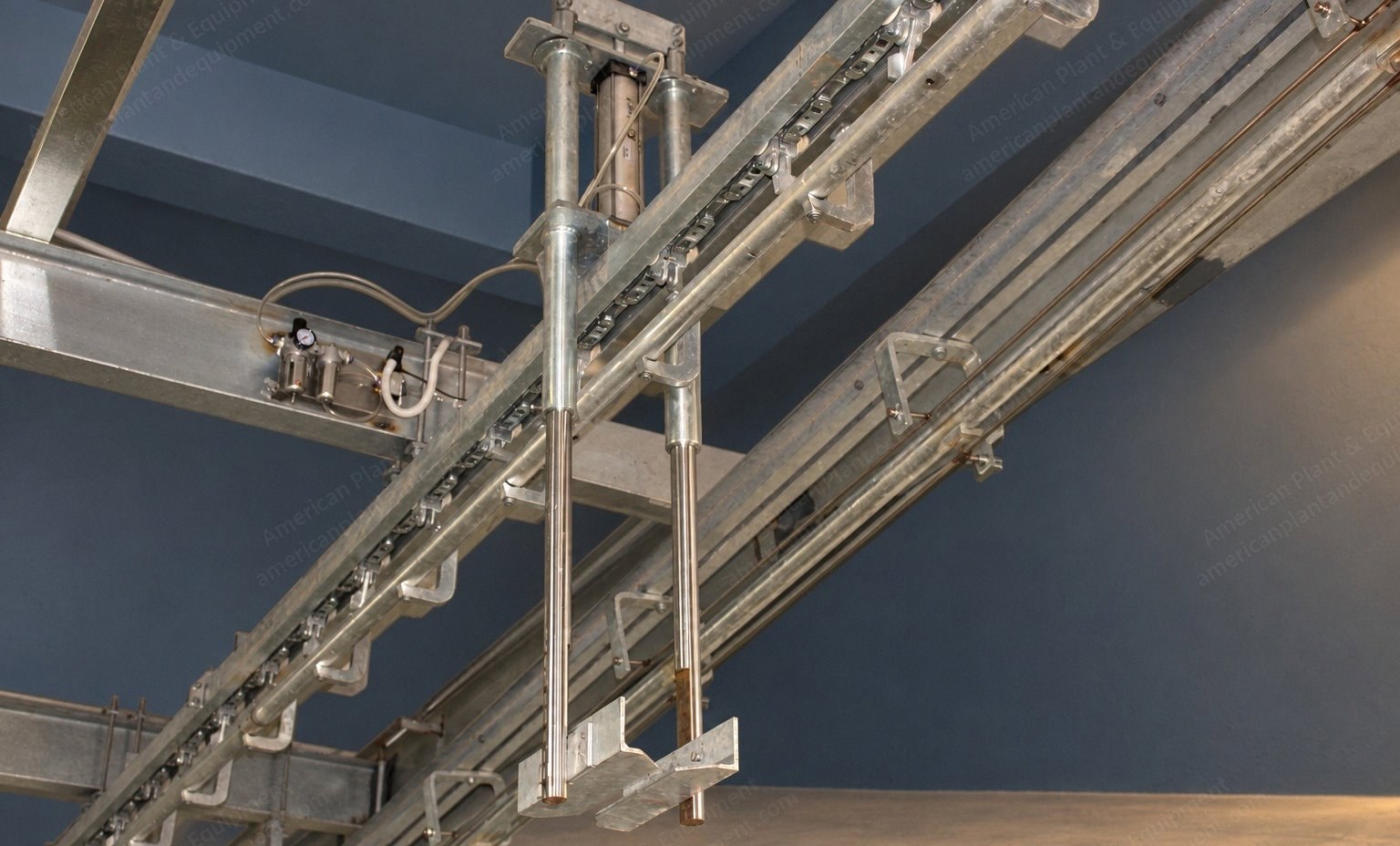

Manual carcass processing conveying line (48 m): galvanized 10# double channel steel, 60 x 4 mm 304 stainless steel tube rail, H225 hangers, 600 mm spacing

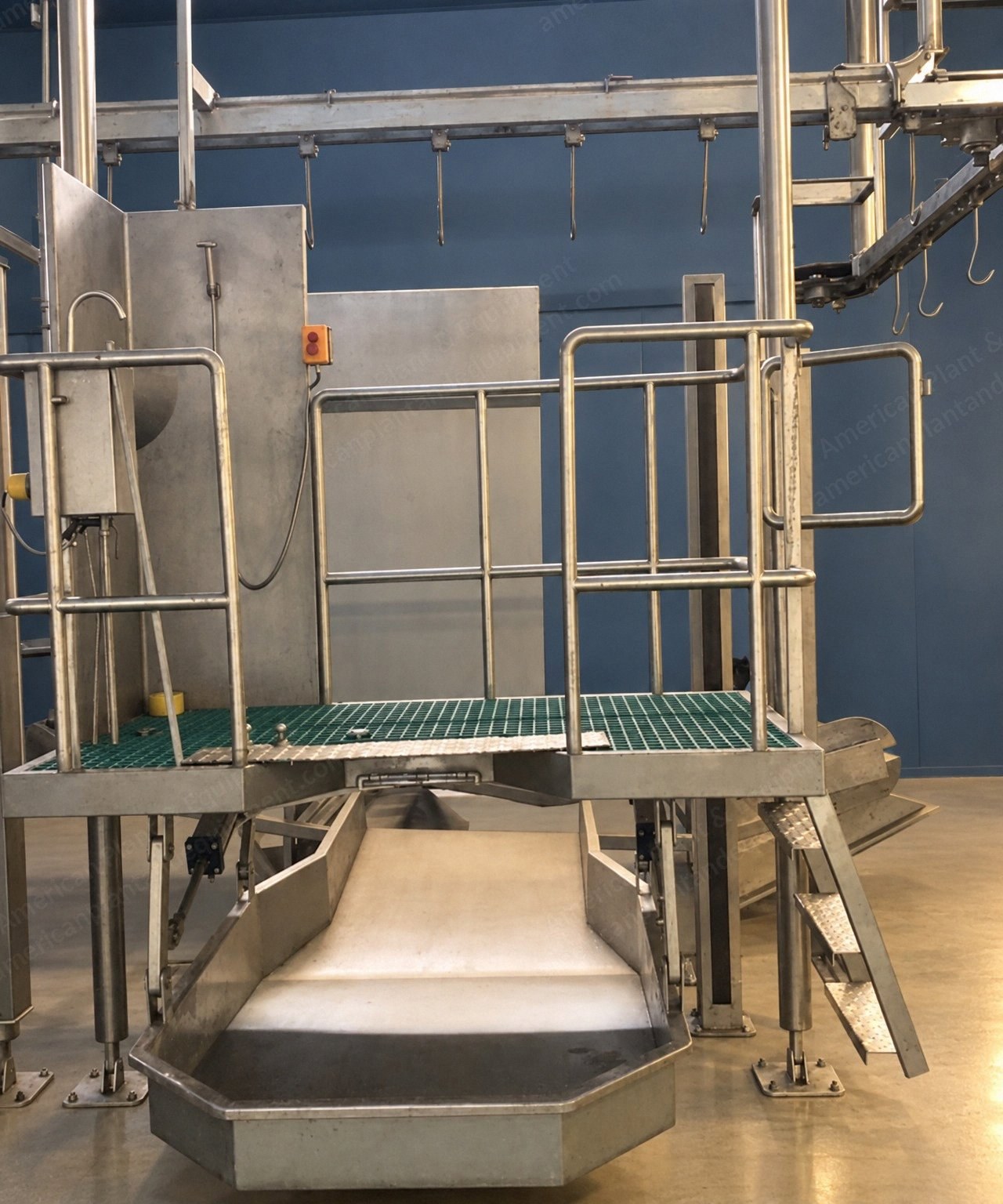

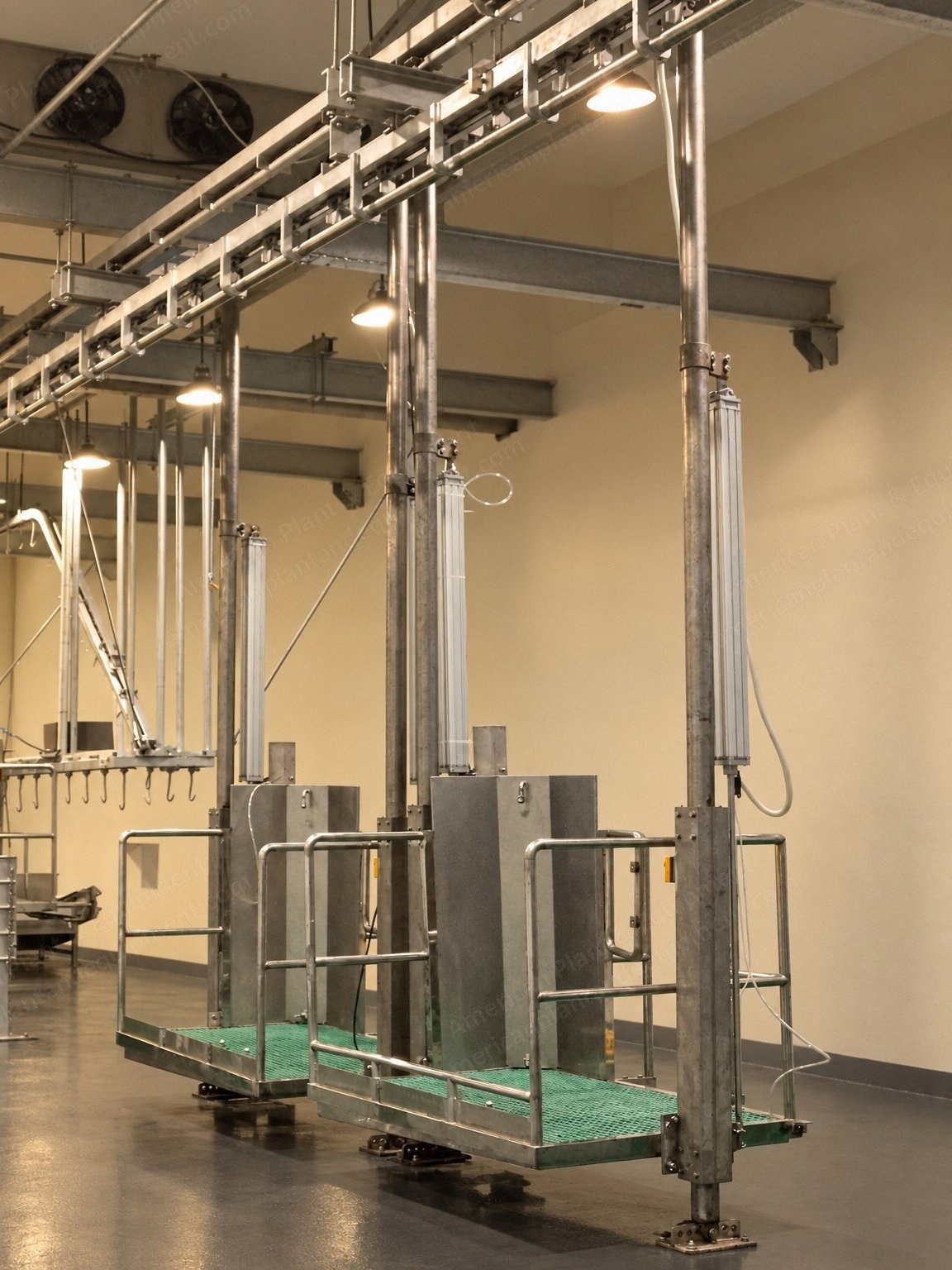

Dual-column lifting platforms, 304 stainless steel with anti-skid grating, ladder, handrail, pneumatic foot valve, apron washer and hand wash and knife sterilizer: breast pre-skinning (1 set), carcass splitting (1 set) and USDA carcass inspection (1 set), each 2,000 x 1,060 mm board, 1,600 mm lift, 250 kg, 370 L air per cycle; white offal platform with pneumatic offal slide (1 set), 1,000 mm lift, 310 L air per cycle

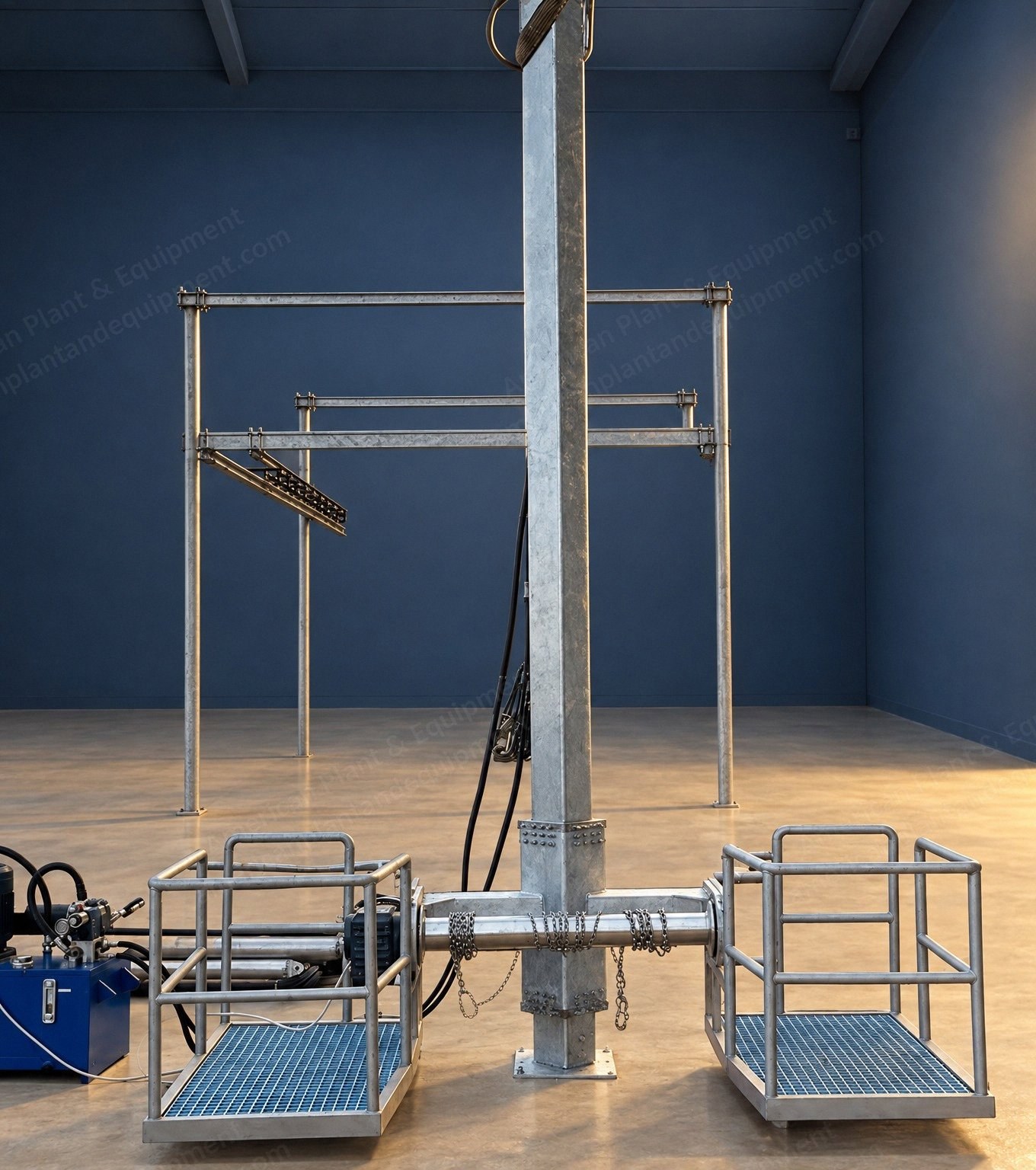

Hydraulic dehiding machine with lifting platform (1 set): galvanized frame, 304 stainless steel hide roller and chain, hydraulic power unit and controls, cross-lever handle, stainless platform; 5.5 kW hydraulic motor, 2.2 kW roller motor, 2.2 m cylinder stroke, 6 MPa, 1,200 x 800 mm platform, up to 40 cattle per hour
Fore-leg fixing stake (1 set): 304 stainless steel platform, ladder, handrail and leg chain; 1,000 x 800 x 1,400 mm
Sternum saw sterilizer (1 set): 82 °C (180 °F) hot water, electric heating 3.0 kW, 600 x 288 x 855 mm
Pneumatic hind-leg spreader (1 set): galvanized base, 1 feed cylinder and 2 spreading cylinders, 1,200 mm spread
Splitting band saw sterilizer (1 set): 82 °C (180 °F) hot water, electric heating 2.0 kW, 938 x 288 x 855 mm
On-rail carcass scale (1 set): high-precision load cells, LCD display with printer; 600 kg capacity, 50 g resolution
Fixed platform for carcass washing (1 set): 304 stainless steel, anti-skid grating, water tray, ladder and handrail; 1,600 x 1,000 x 1,000 mm
Splash screens, 304 stainless steel (2 sets): 3,500 x 1,550 mm (W x H)
Hand wash and knife sterilizers (3 sets): 304 stainless steel, rotating tap, foot switch, steam heated, 82 °C (180 °F)
Slaughter equipment electrical control box (1 set) with power and control cables (1 set): stainless steel waterproof enclosures with breakers, contactors, transformers, emergency stops and operator switches
By-Product Processing Unit
Hoof scalding tank (1 set): 304 stainless steel, 60 mm polyurethane insulation, steam heated, 58 to 62 °C; 1,900 x 900 x 700 mm
Stainless steel workbenches (3 sets): 1,900 x 900 x 800 mm

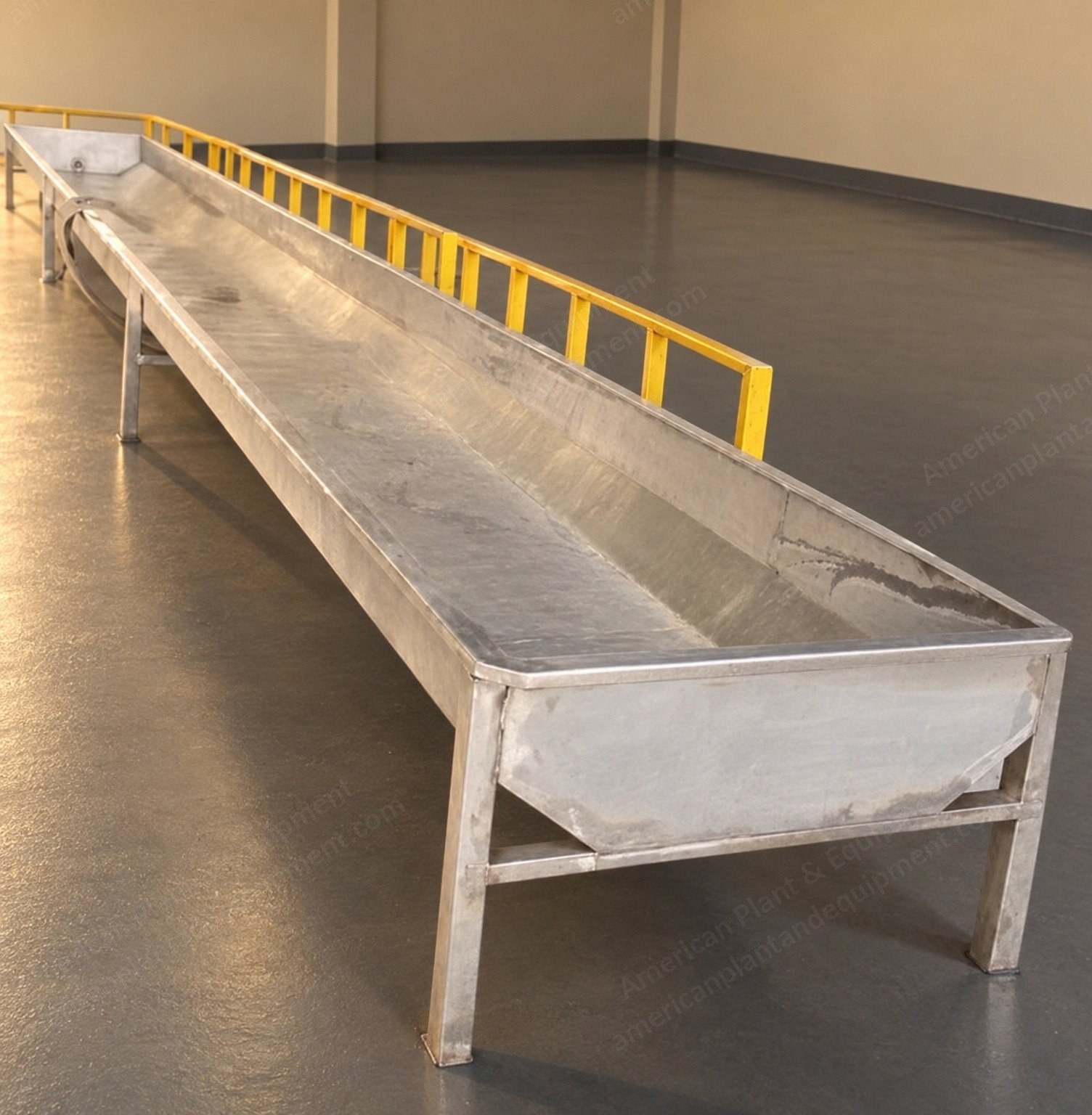

White offal receiving chute (1 set): 8,900 x 900 x 800 mm, 50 mm deep

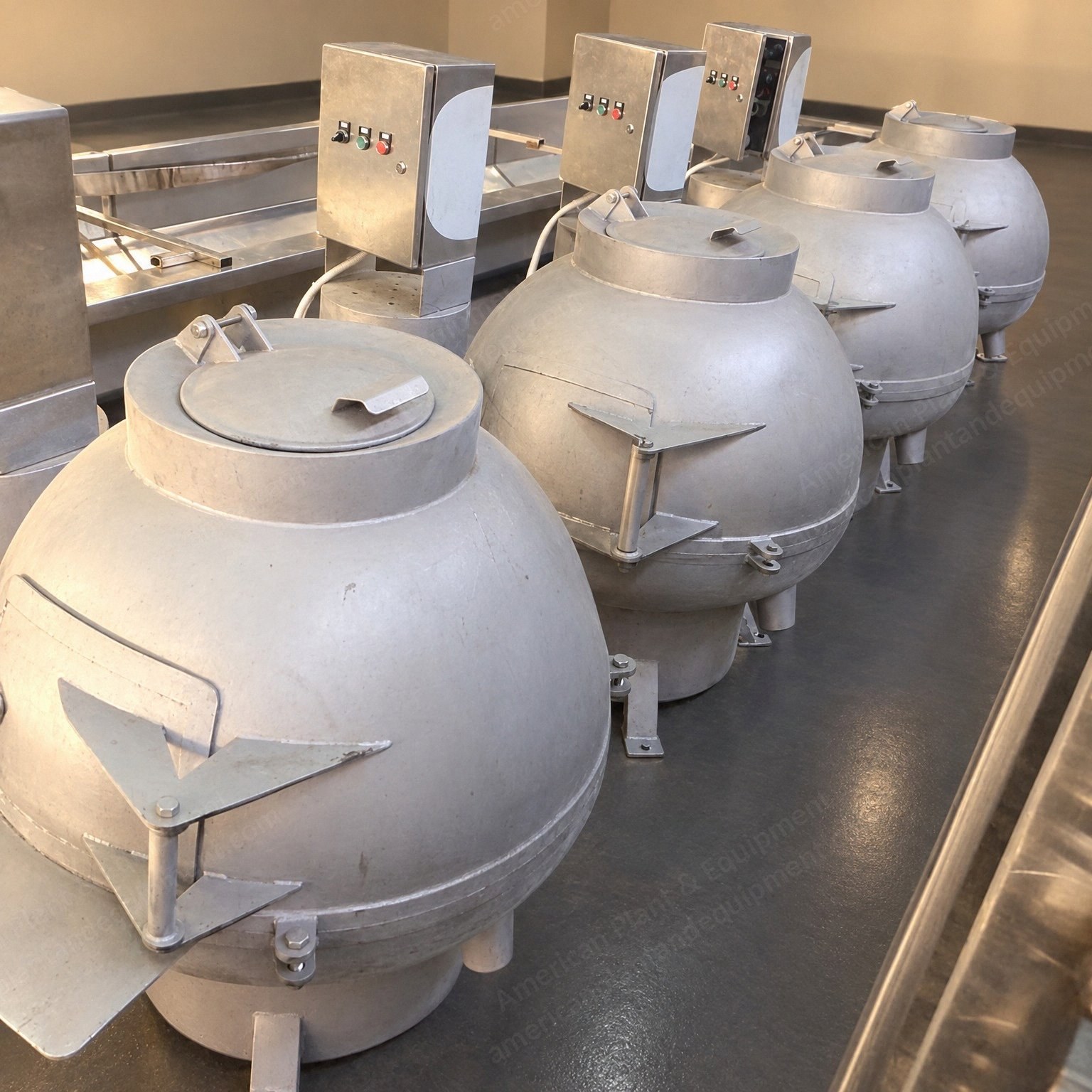

Tripe washing machine (1 set): 304 stainless steel, 4.0/5.5 kW two-speed, 55 to 60 °C water; 120 cattle tripes or 600 sheep/goat tripes per hour
Red offal receiving chute (1 set): 3,000 x 900 x 800 mm, 50 mm deep
200 L standard trolleys, 304 stainless steel (6 sets): 620 x 620 x 700 mm
Carcass Transport and Storage Unit

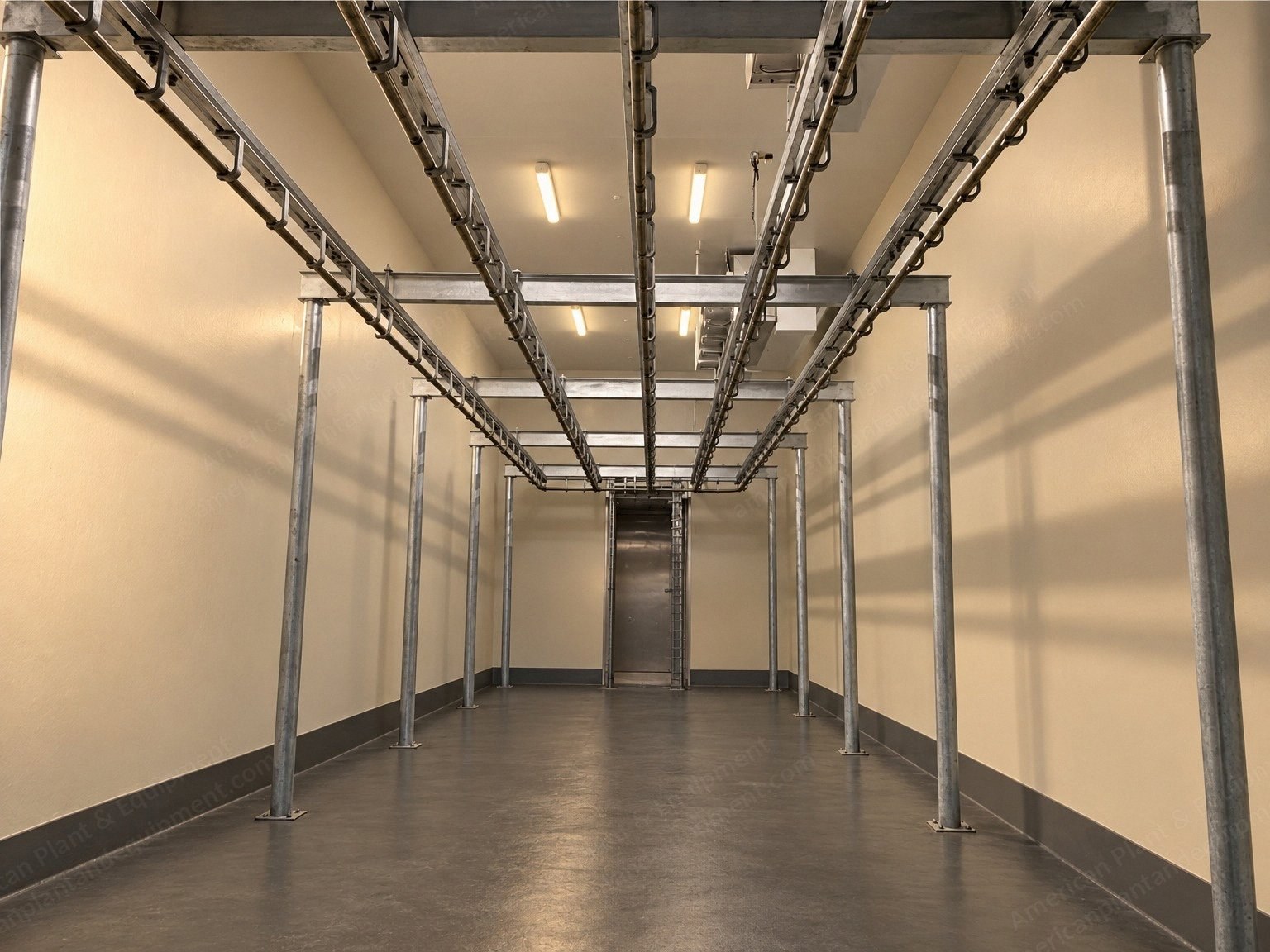

Carcass transport and storage tube rail (150 m) for chilling, deboning and dispatch: galvanized 10# double channel steel, H225 cast hangers, 60 x 4 mm 304 stainless steel tube rail
Screw air compressor: 11 kW, 0.8 MPa, 1.7 m³/min, 1,050 x 750 x 1,000 mm
1.0 m³ compressed air tank: 800 mm diameter x 2,200 mm
Main, precision and high-precision compressed air filters
Compressed air dryer: 0.375 kW, 2.0 m³/min, 730 x 420 x 680 mm
Compressed air piping: 3/4 in to 1 1/2 in galvanized main pipe, 1/2 in galvanized branches, fittings, stainless steel valves, water-oil separators and pressure control valves
Not Included
Pneumatic cattle stunner, sternum saw, splitting band saw and reciprocating breaking saw (buyer to supply)
Installation and installation tools, boiler and hot water, cold water and steam piping, foundations and building, refrigeration and chilling systems, waste water treatment plant and harmless treatment system for condemned material
