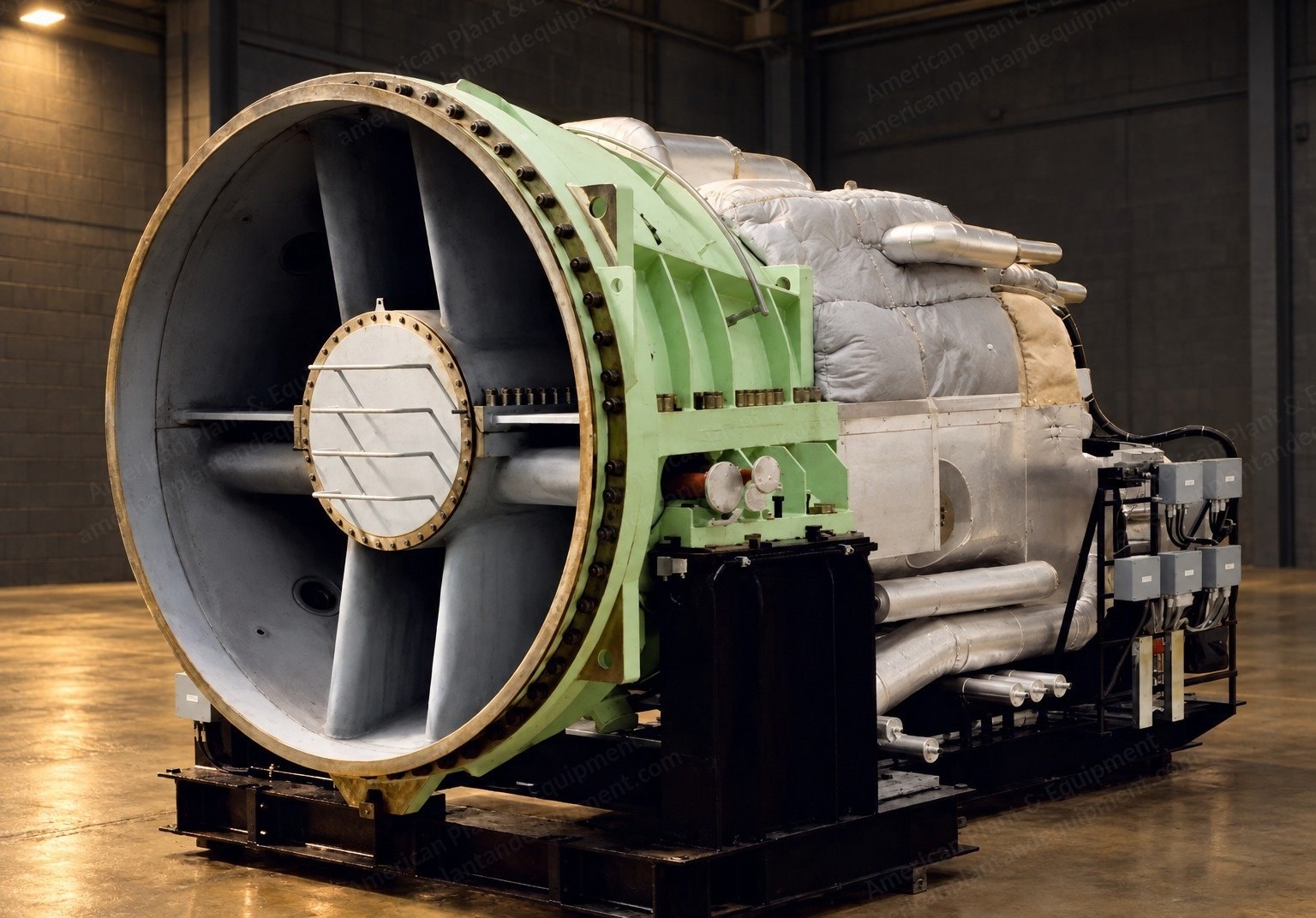

Siemens, SST400, Steam Turbine Generator Set, 30MW, 10.5kV, 50Hz (New)

Siemens, SST400, Steam Turbine Generator Set, 30MW, 10.5kV, 50Hz

Description

  1. Overview
    1. Siemens SST400 steam turbine generator set, 30 MW, offered as new.
    2. Output: AC, three-phase.
    3. Customization available.
  2. Generator (Nameplate Data)
    1. Manufacturer: Siemens AG, Erfurt, Germany (Siemens AG Energy Sector, Fossil Power Generation)
    2. Kind of machine: generator
    3. Machine code: SGEN5-100A-4P
    4. Rated power: 38,000 kVA
    5. Rated power factor: cos phi = 0.85
    6. Range of rated voltage: 10,500 V +/-5%
    7. Rated current: 2,089 A
    8. Frequency: 50 Hz
    9. Number of phases: 3
    10. Connection: YYYY
    11. Phase sequence: U1 V1 W1
    12. Rated speed: 1,500 rpm
    13. Type of excitation: self excitation
    14. Type of cooling: air cooling
    15. Insulation class: F
    16. Temperature rise corresponds to class: B
    17. Cooling air temperature: 38 °C (100 °F)
    18. Type of construction: IM 1005
    19. Rating and performance standard: IEC 60034
    20. Total weight: 57,600 kg (126,986 lb)
    21. Rotor weight: 15,900 kg (35,053 lb)
    22. Stator weight: 24,600 kg (54,234 lb)
  3. Services Available
    1. Full turnkey EPC service available: design, construction, installation and spare parts supply.
  4. Warranty
    1. Warranty: 12 months.
    2. After-sales service: 12 months.
