NovaStar, CG226, Tarpaulin Coating Line, 3200 mm (126 in) Working Width, 2 Coating Heads, 10 Stenter Chambers (New)

Name: NovaStar, CG226, Tarpaulin Coating Line, 3200 mm (126 in) Working Width, 2 Coating Heads, 10 Stenter Chambers
Brand: NovaStar
SKU: V-2796

‹ Go Back Next Product ›

Description

Overview
1. New coating line for tarpaulin, built by the manufacturer to order
2. Working width 3200 mm (126 in)
3. Two coating heads, each followed by an oil-heated hot air stenter (3 chambers and 7 chambers)
4. Two crush calenders, cooling cylinders and 50 m (164 ft) accumulators at entry and exit
5. Overall length approx. 60,404 mm (198 ft 2 in); machine space 59,004 mm (193 ft 7 in)

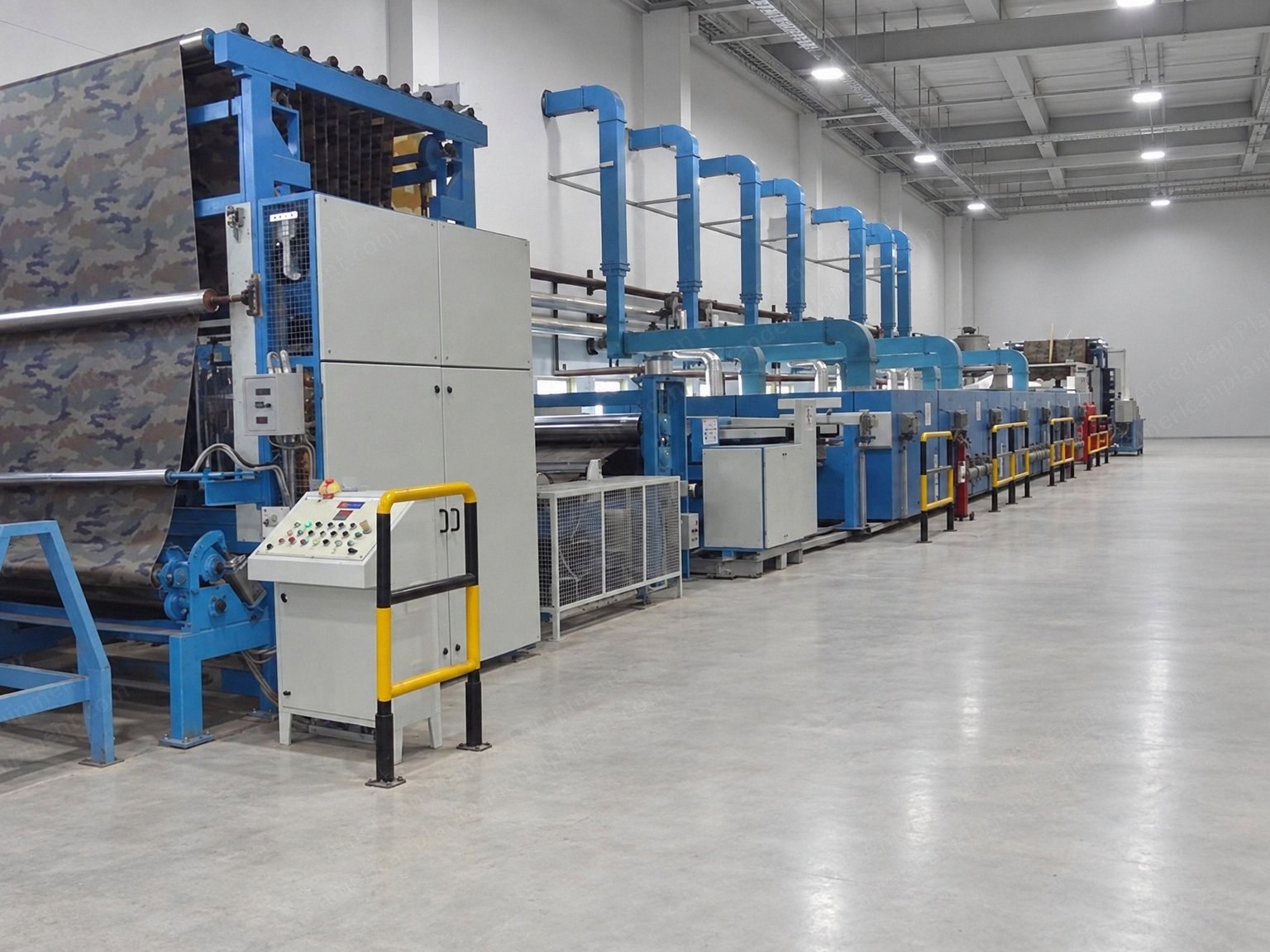

Line Composition, in Running Order
1. Unwinder unit

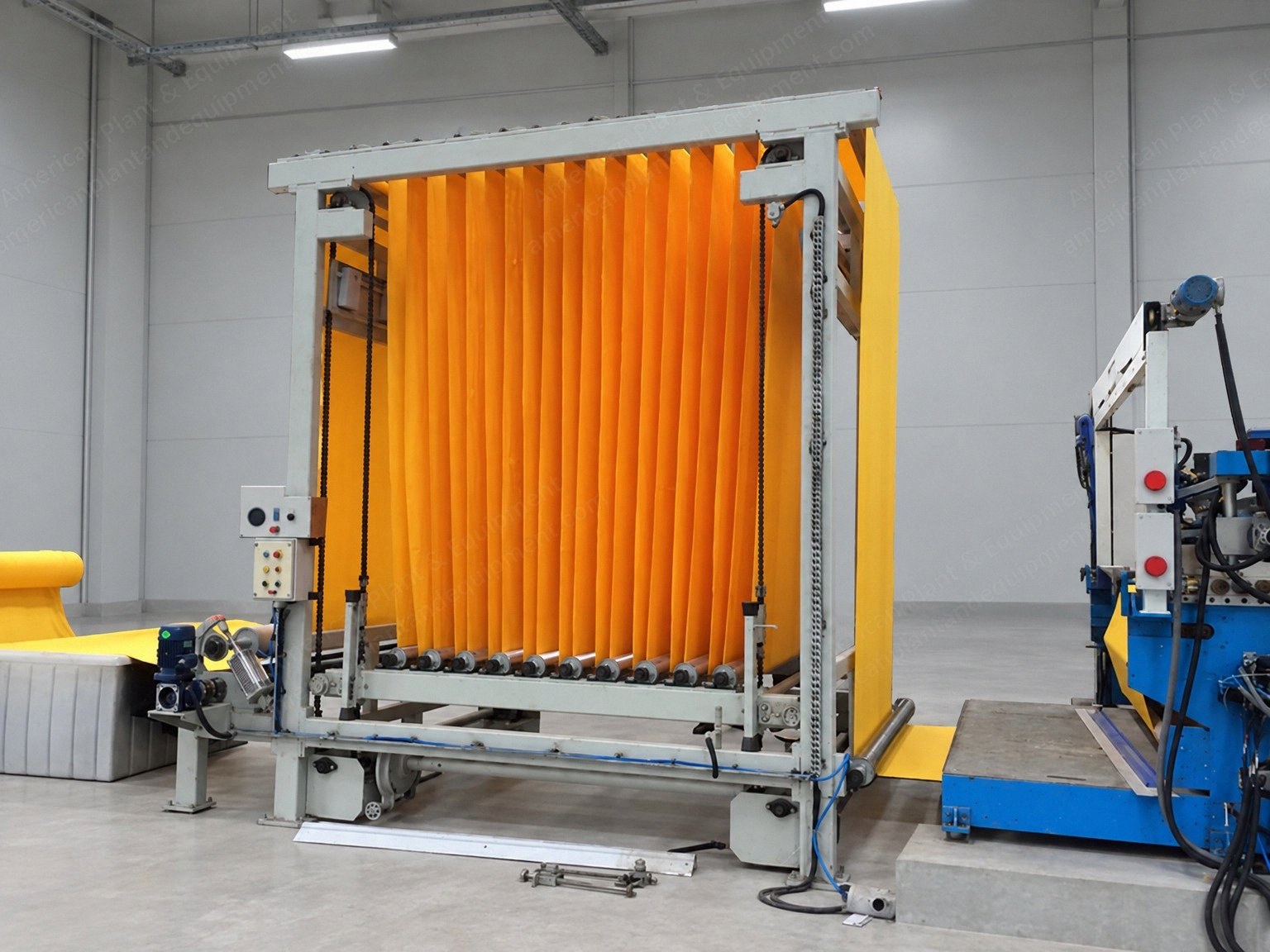

2. Accumulator, 50 m (164 ft)
3. Heating cylinders, 6 pcs
4. 2-bowl padder
5. Vertical dryer, 12,000 mm (39 ft 4 in) high
6. 1st crush calender
7. 1st coating head

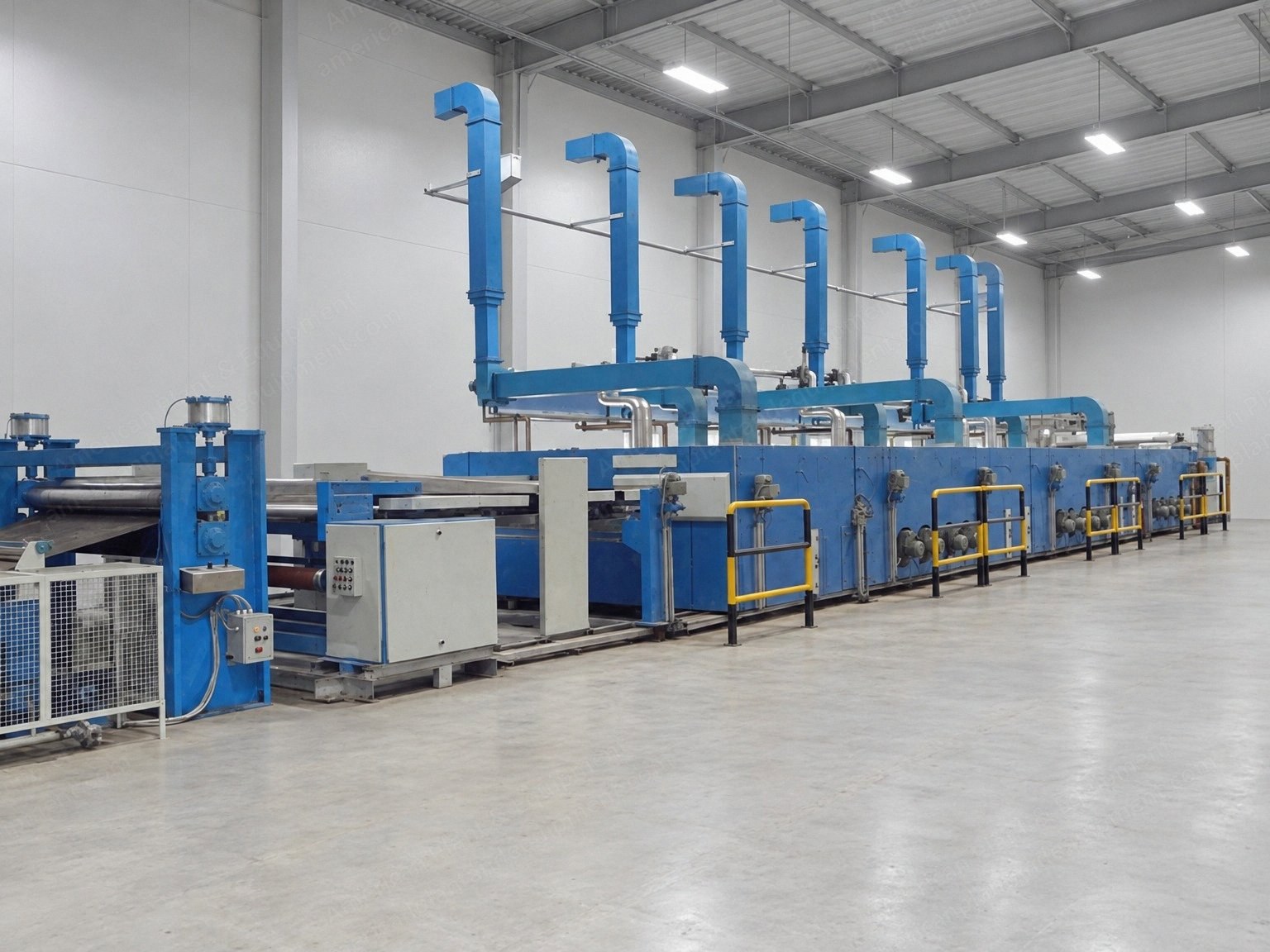

8. 3-chamber stenter, oil heated
9. 2 cooling cylinders

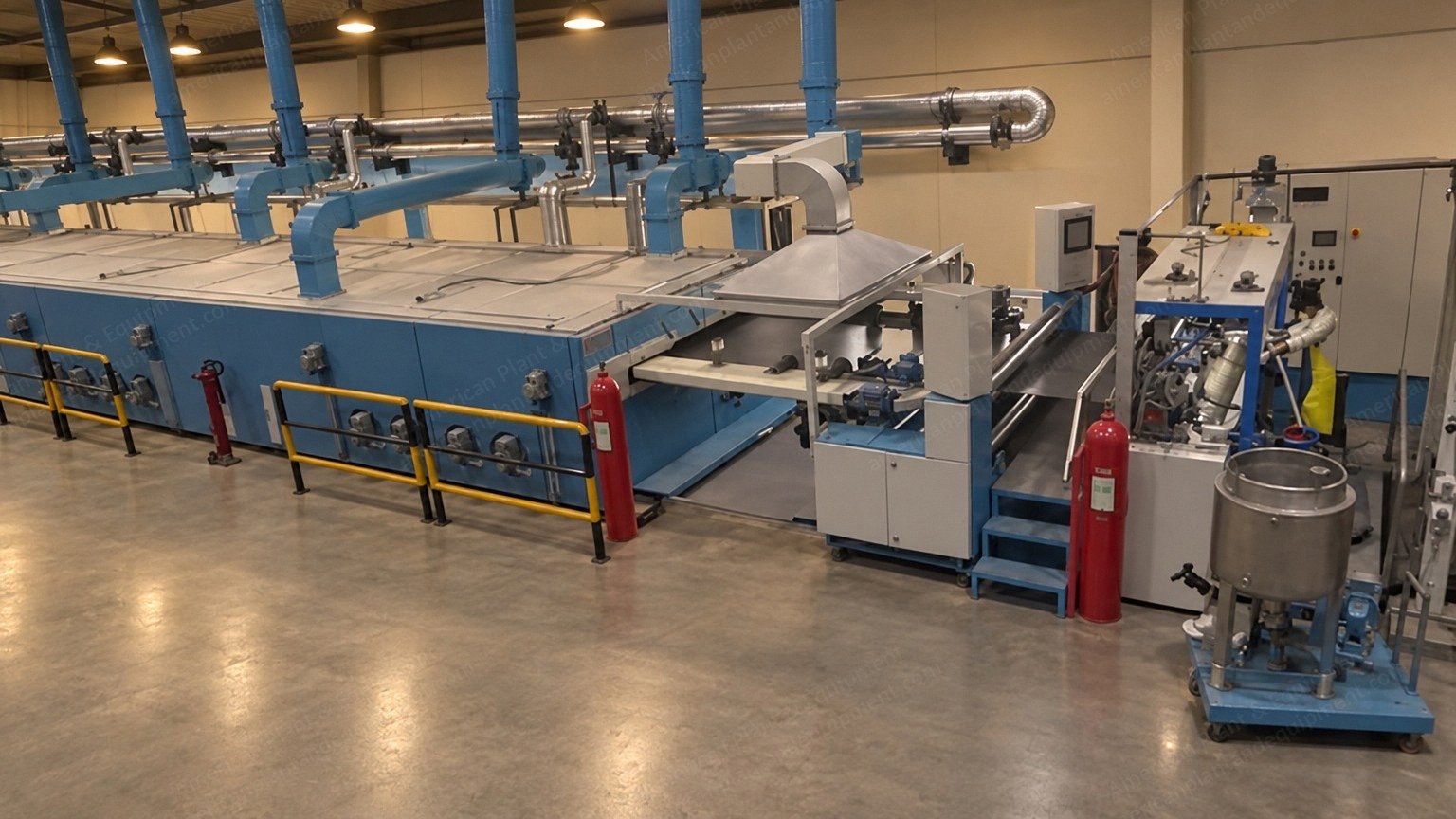

10. 2nd coating head

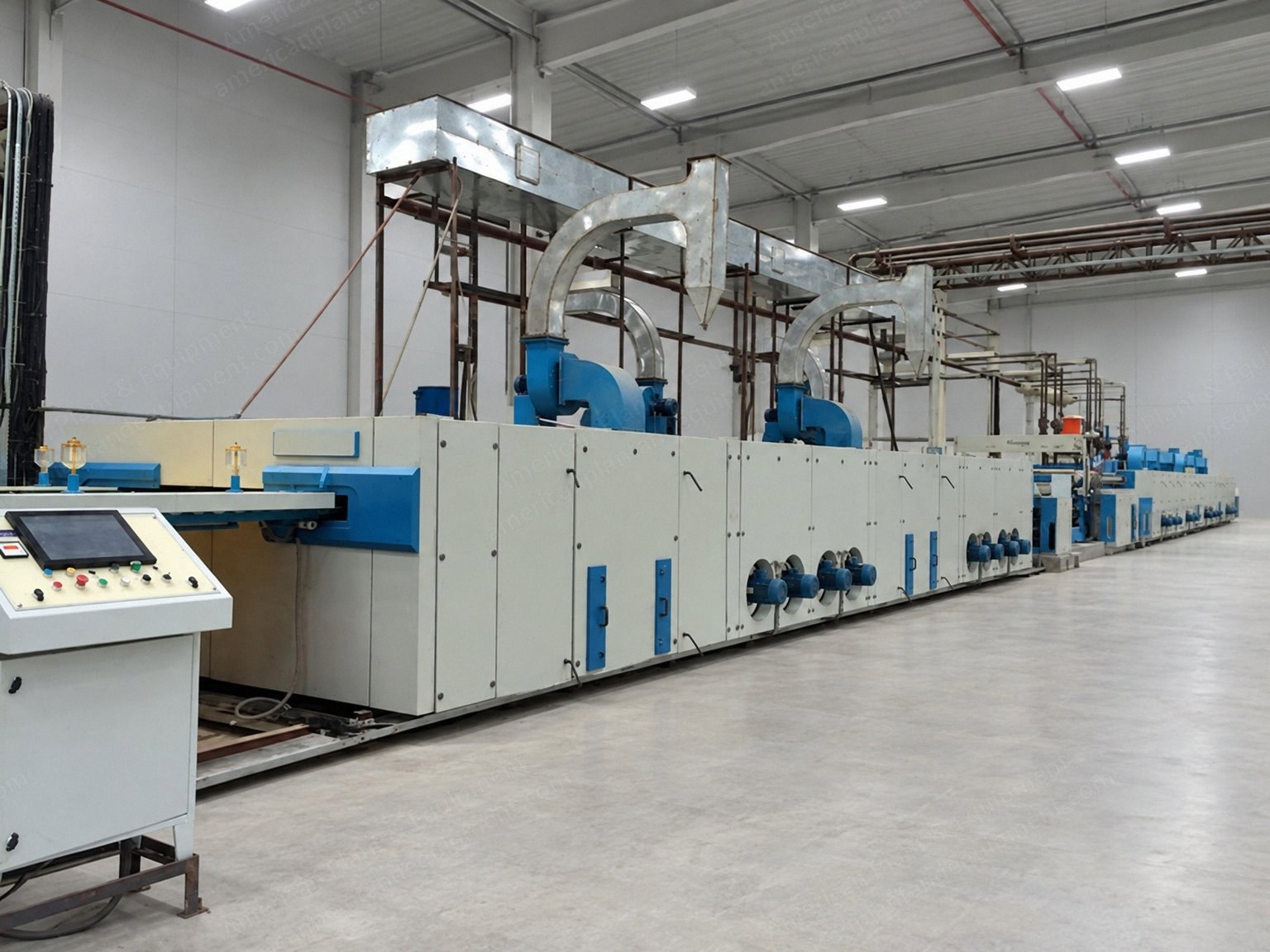

11. 7-chamber stenter, oil heated
12. 2nd crush calender
13. Cooling cylinder
14. Accumulator, 50 m (164 ft)
15. Double big-batching unit

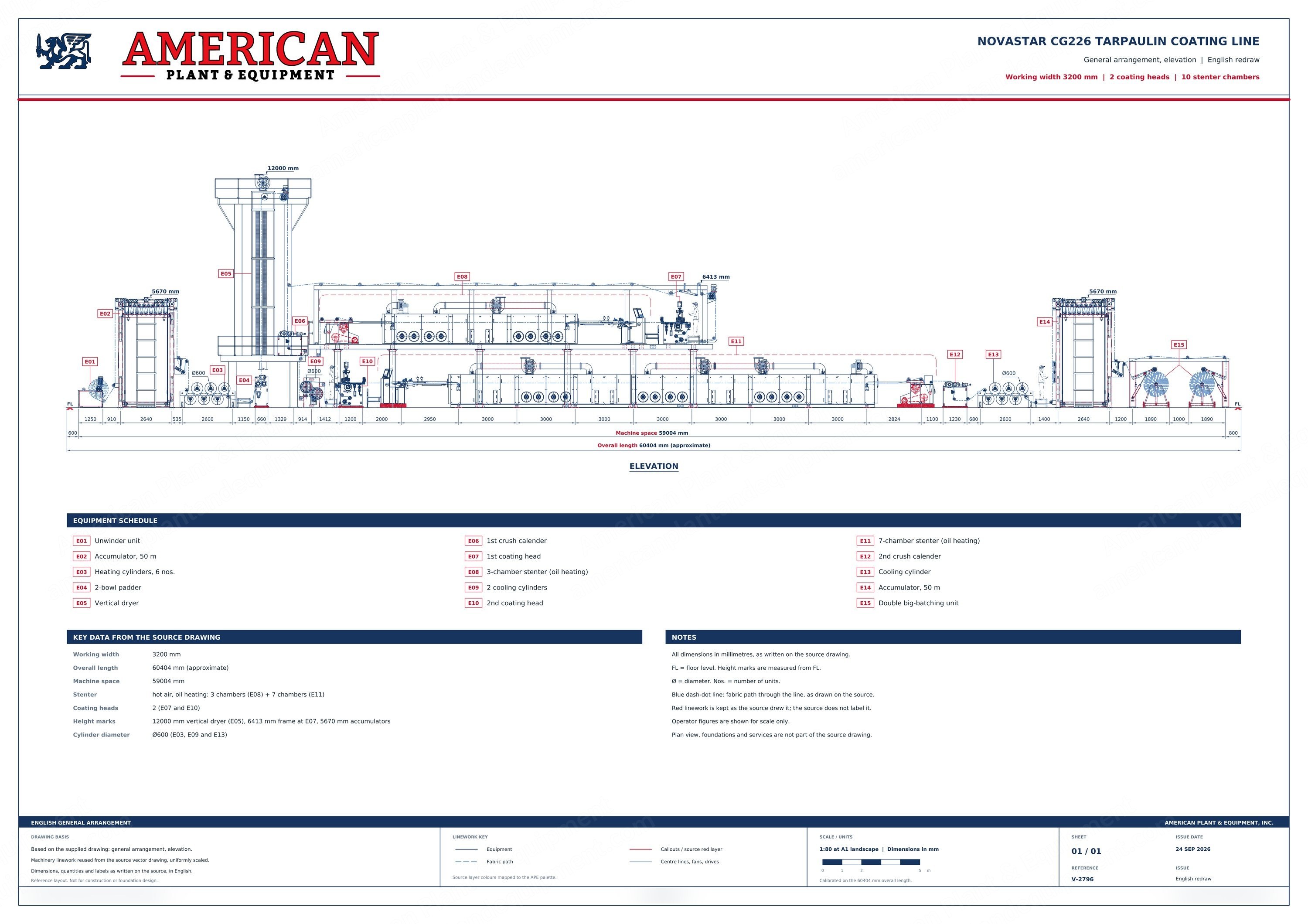

Dimensions (General Arrangement Drawing)
1. Stenter chambers 3000 mm (118 in) long each
2. Cylinders 600 mm (23.6 in) diameter
3. Accumulator height 5670 mm (18 ft 7 in)
4. Upper stenter level 6413 mm (21 ft 0.5 in)
5. Vertical dryer height 12,000 mm (39 ft 4 in)
6. Machine space 59,004 mm (193 ft 7 in); overall length approx. 60,404 mm (198 ft 2 in)
Supply
1. Seaworthy packing
2. Erection and commissioning by the manufacturer's engineers available
3. General arrangement drawing available
