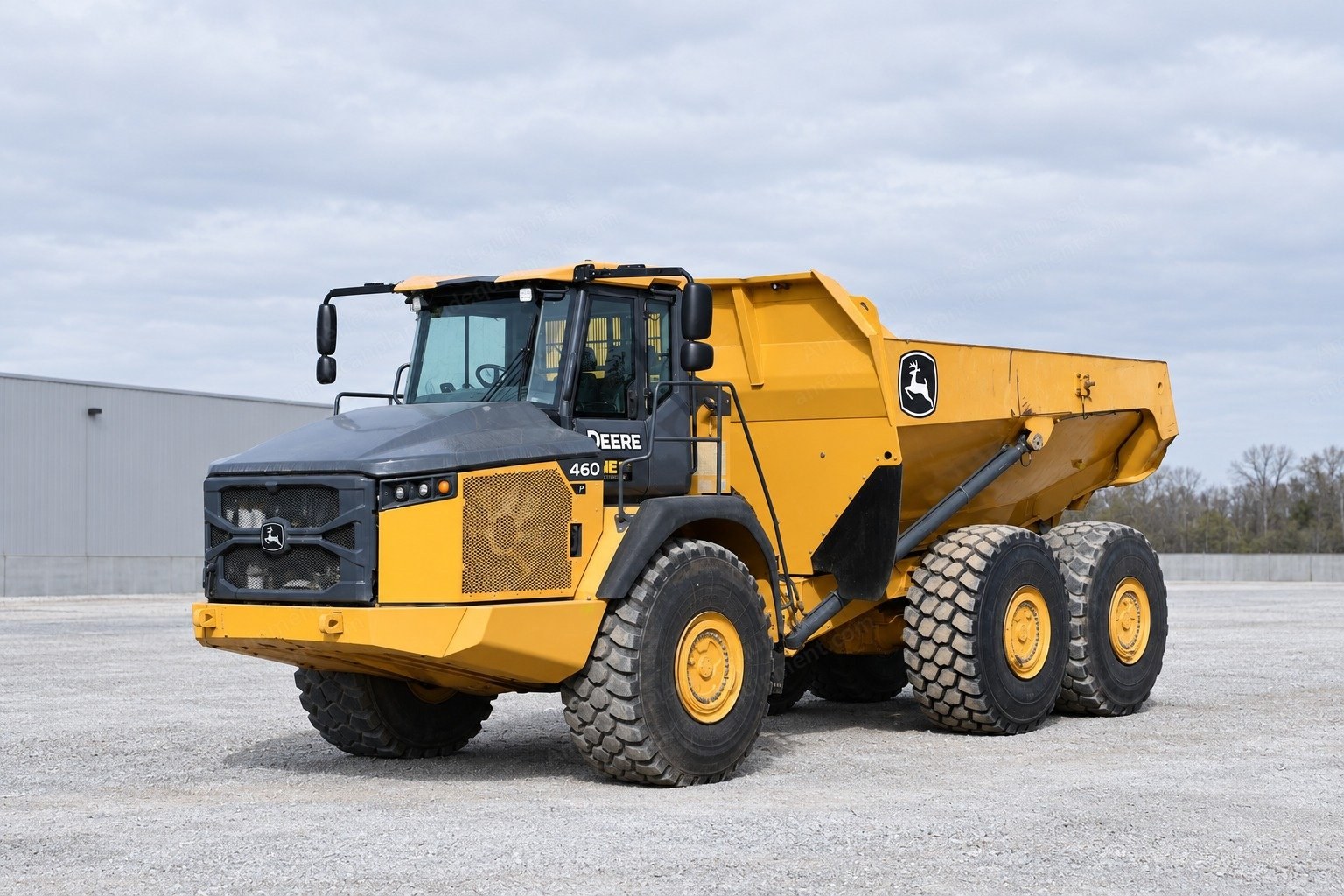

John Deere, 460 P-Tier, 2023, Articulated Dump Truck, 46 Ton Capacity, 6121 Hours

John Deere, 460 P-Tier, 2023, Articulated Dump Truck, 46 Ton Capacity, 6121 Hours

Description

  1. Overview
    1. 2023 John Deere 460 P-Tier articulated dump truck
    2. Capacity: 46 ton
    3. 6x6
    4. Used, hours: 6,121.1
    5. Serviced at 6,112 hours: oil, fuel, air and cabin air filters
  2. Engine and Drivetrain
    1. John Deere PowerTech 6135, 13.5 L, Final Tier 4 / Stage IV
    2. 481 hp (359 kW), torque 1,827 lb-ft (2,477 Nm)
    3. Transmission: 8 forward / 4 reverse, fully automatic electronically modulated PowerShift, load-speed adaptive with gear-skip and gear-hunting protection
    4. Max speed: 34 mph (55 km/h) forward, 10 mph (16 km/h) reverse
    5. DEF
  3. Dump Body
    1. High-strength steel body
    2. Rated payload: 92,197 lb (41,820 kg)
    3. Struck capacity: 25.5 cu yd (19.5 m3)
    4. Heaped capacity: 32.9 cu yd (25.2 m3); 35.4 cu yd (27.1 m3) with the optional tailgate
    5. Max dump angle: 70 degrees; raise 12 s, lower 7 s
    6. On-board weighing with light indicators
  4. Chassis, Steering and Suspension
    1. Steering: 2 hydrostatically actuated double-acting cylinders, ground-driven secondary steering pump, 45 degrees each side
    2. Turning circle radius: 15 ft 2 in (4.62 m) inside, 29 ft 2 in (8.89 m) outside
    3. Front suspension: semi-independent leading A-frame with transverse link and self-leveling oil-filled struts with nitrogen-charged accumulators
    4. Rear suspension: load-equalizing pivoting walking beams with laminated suspension blocks, tri-link geometry and transverse links
    5. Tires: 29.5R25 E-3 radial, singles, about 80% overall (front 85%, rear 75%)
  5. Cab and Equipment
    1. Level 2 trim
    2. Heated and ventilated leather air suspension seat, buddy seat
    3. A/C and heat (A/C condition good)
    4. Backup camera (rear camera, secondary display)
    5. LED lights, power heated mirrors, AM/FM/Bluetooth radio
    6. JDLink
    7. Auto greaser, chrome exhaust, mud flaps
    8. Debris package, maintenance and service package, auxiliary equipment package with fire extinguisher
    9. Without object detection system; without receiver
  6. Capacities and Dimensions
    1. Fuel: 161 gal (609 L); DEF: 12.7 gal (48 L)
    2. Operating weight: 69,886 lb (31,700 kg)
    3. Length 34 ft 11 in (10.64 m), width 12 ft (3.66 m), height 12 ft 9 in (3.89 m), ground clearance 21 in (533 mm)
