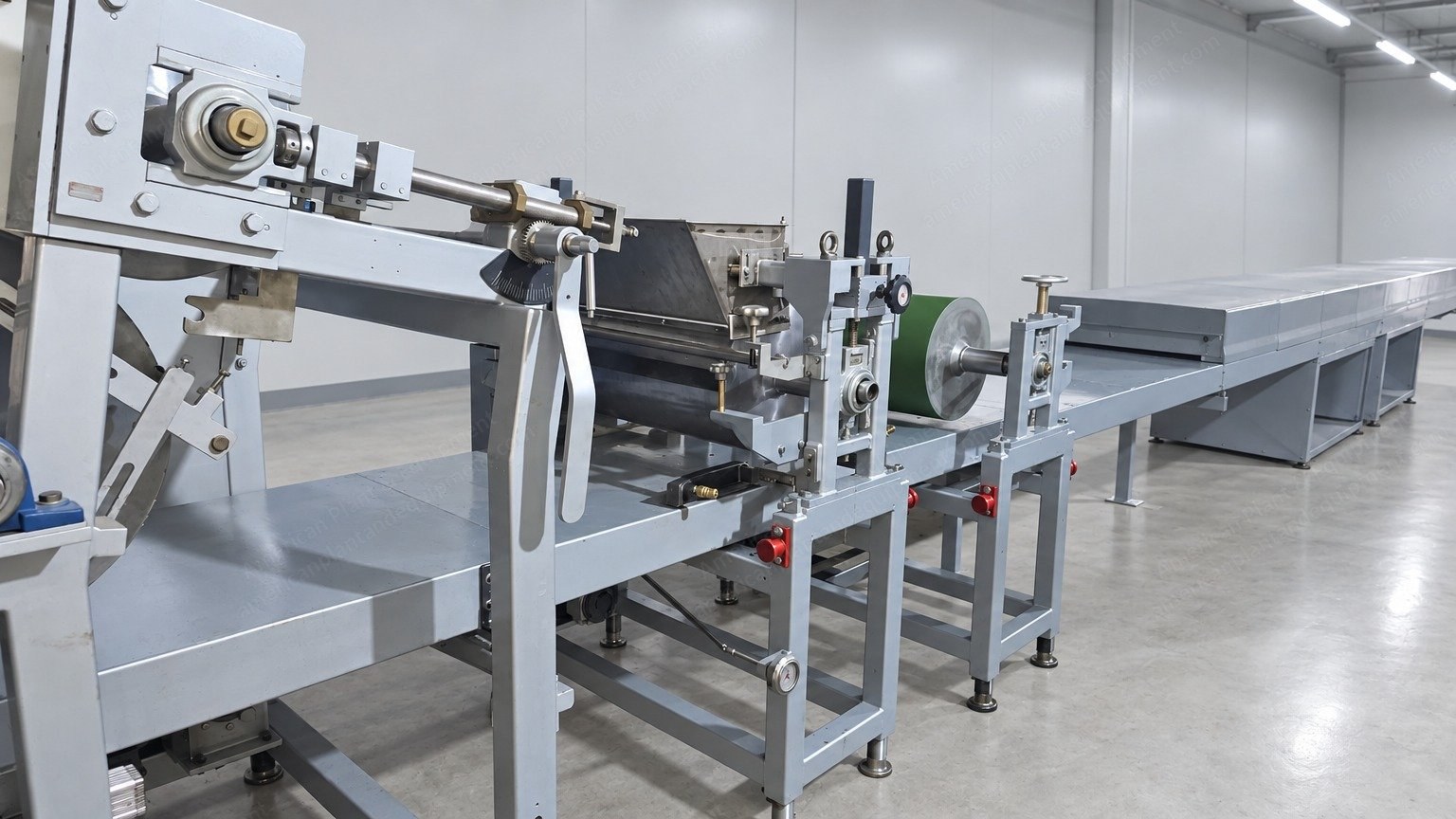

Sollich, Conbar, Date Bar Production Line, 40 cm Useful Width, with Morton DZ Mixer and Flow Wrapper

Sollich, Conbar, Date Bar Production Line, 40 cm Useful Width, with Morton DZ Mixer and Flow Wrapper

Description

  1. Overview
    1. Complete date bar production line: mixing, forming, cooling, slicing, cutting and flow wrapping
    2. The Sollich Conbar line also produces cereal bars, nougat bars and similar bars
  2. Line Components
    1. Morton No. 4 DUP DZ arm mixer-extruder, capacity up to 250 L (66 gal)
    2. Sollich 40 cm Conbar line: forming drum Type WEB 600, cooling tunnel, slicer and splitter, guillotine knife
    3. Flow pack wrapping machine with automatic 90-degree feeder, output up to 200 pcs/min

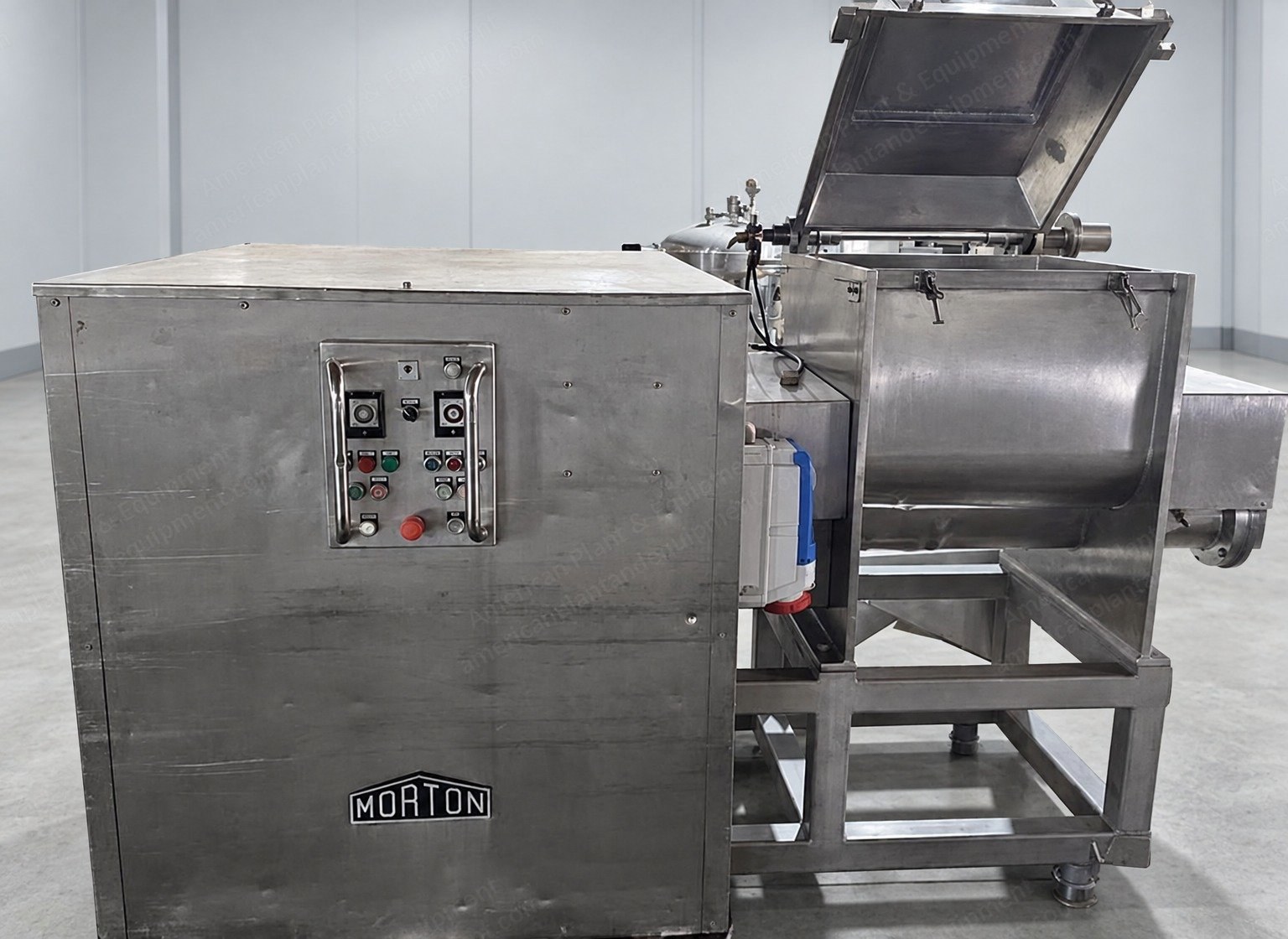

  3. Morton No. 4 DUP DZ Arm Mixer-Extruder
    1. Heavy-duty DZ (double Z-arm) mixer-extruder designed for intensive mixing applications
    2. Twin Z-type blades provide powerful, thorough blending of high-viscosity materials
    3. Constructed in stainless steel for durability and hygiene
    4. Integrated extrusion capability: the mixed product is formed directly into sheet form, combining mixing and forming in one step
    5. Capacity: up to 250 L (66 gal)
  4. Sollich 40 cm Conbar Line
    1. Useful width: 40 cm (15.7 in)

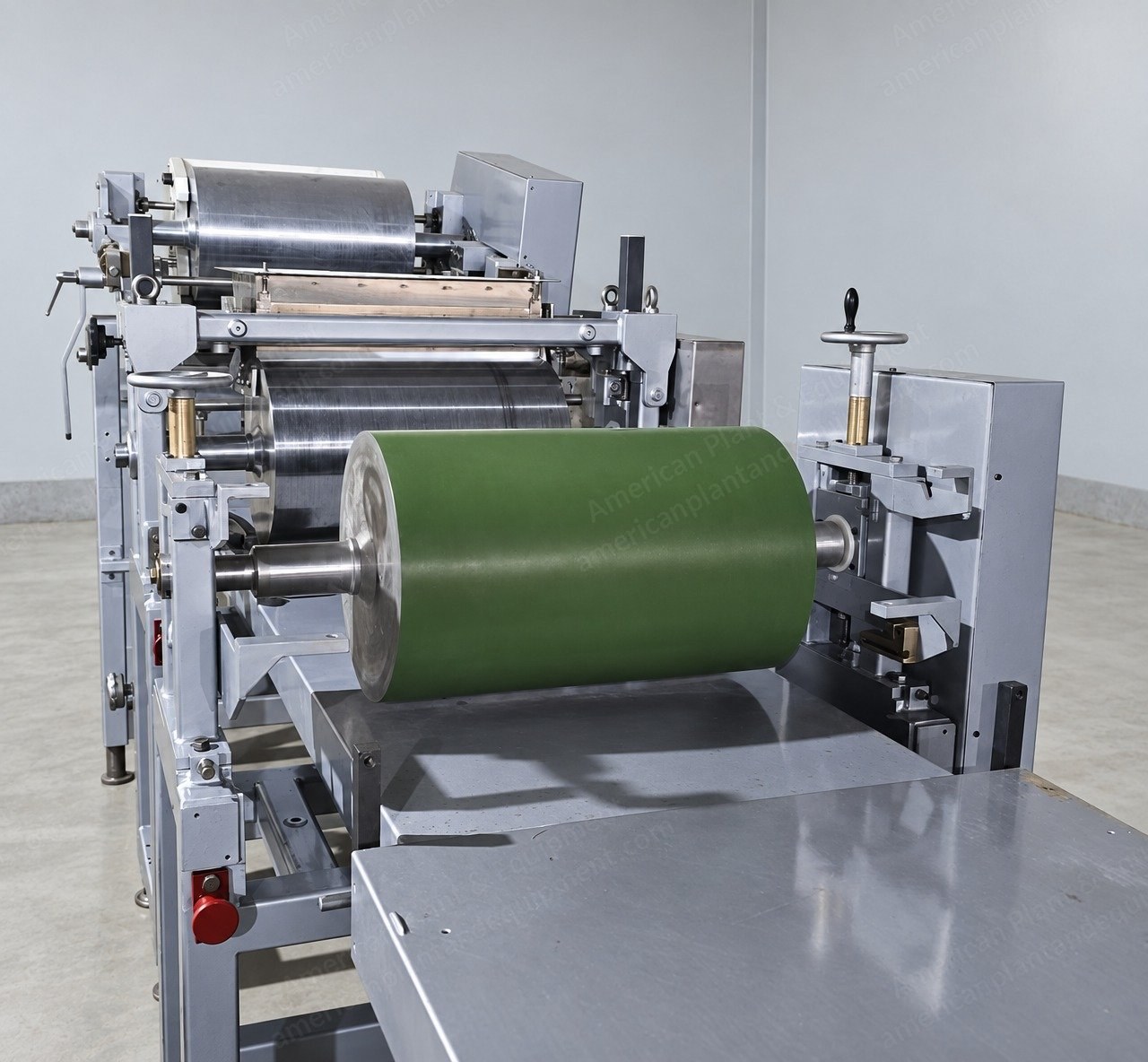

    2. Sollich forming drum Type WEB 600, useful width 40 cm (15.7 in)

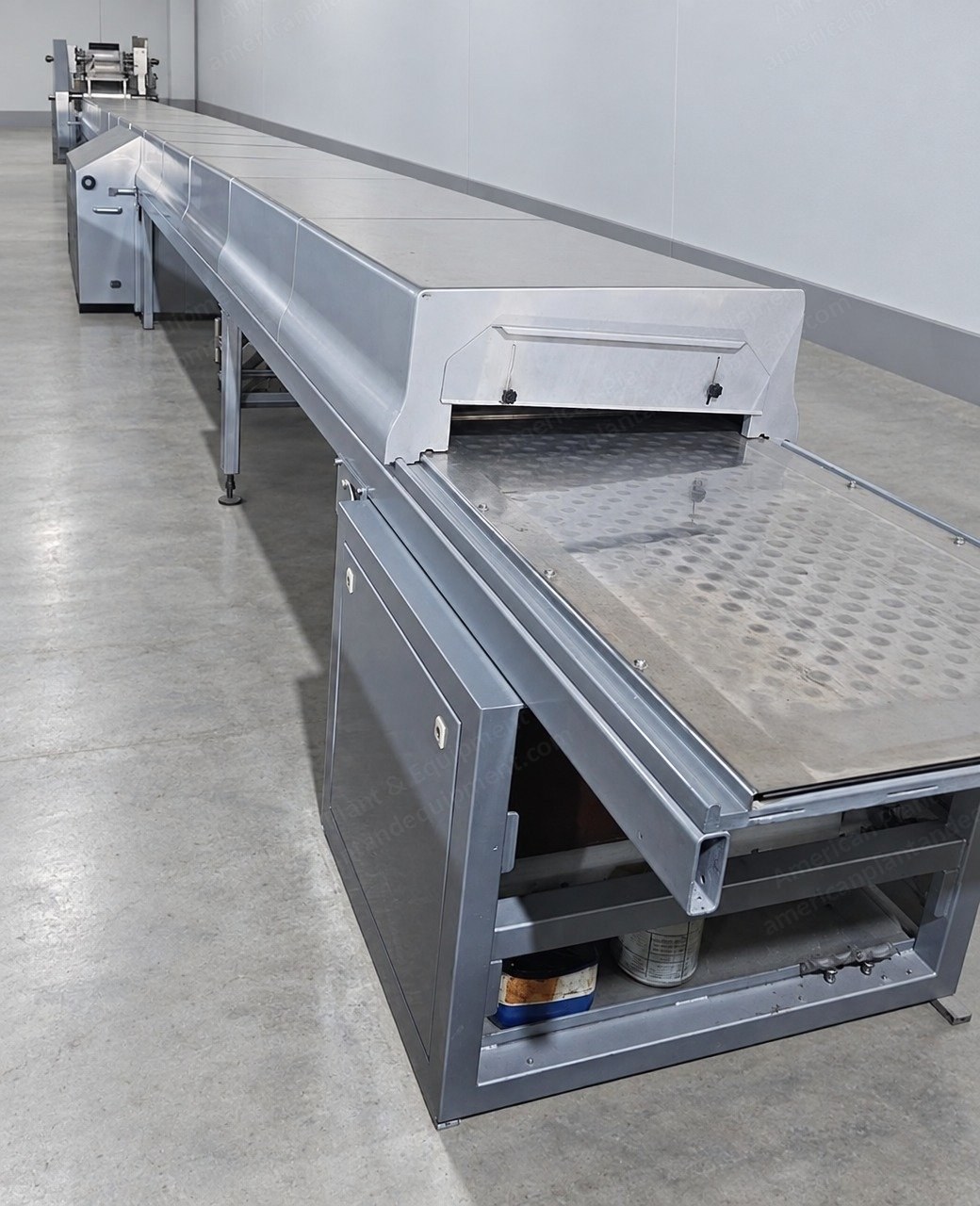

    3. Sollich cooling tunnel: approximate length 14 m (45.9 ft), useful width 40 cm (15.7 in)

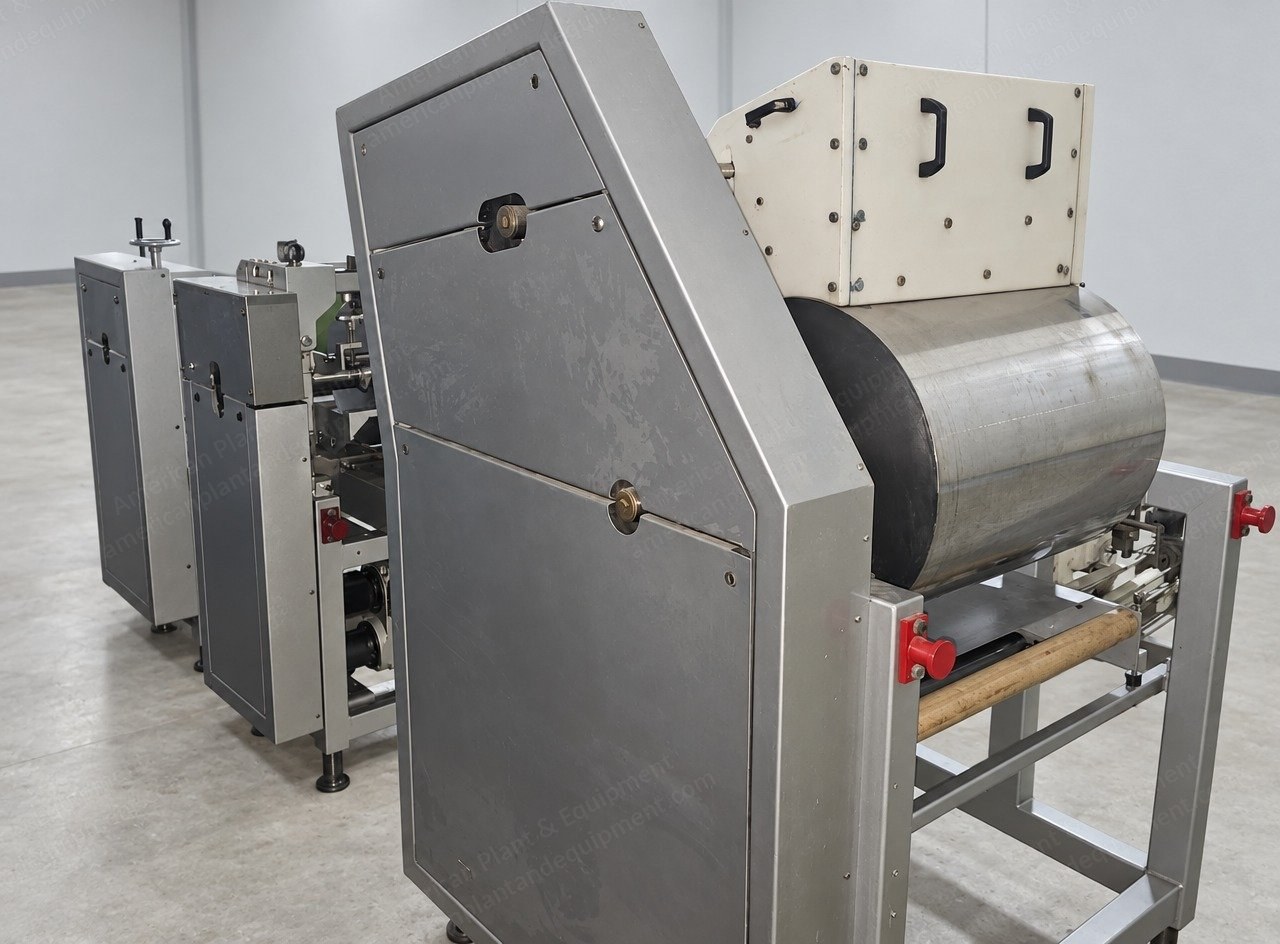

    4. Sollich slicer and splitter

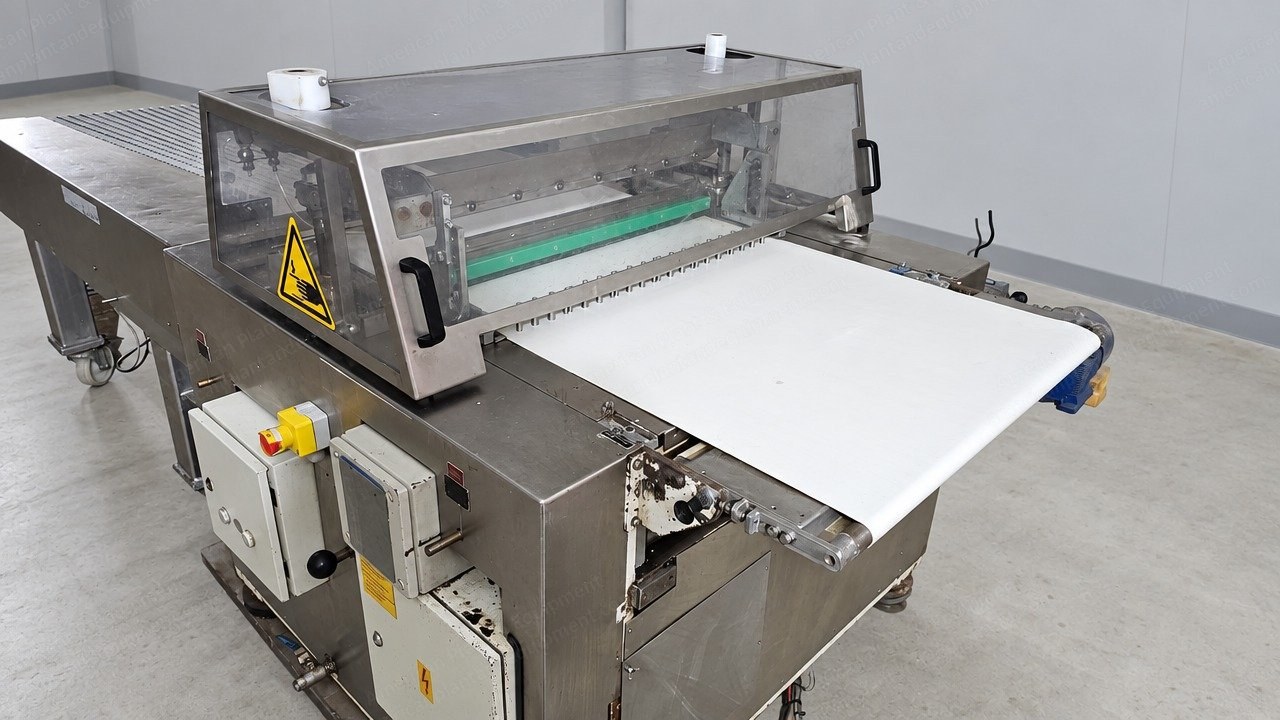

    5. Sollich guillotine knife
    6. Products: date bars, cereal bars, nougat bars and similar bars

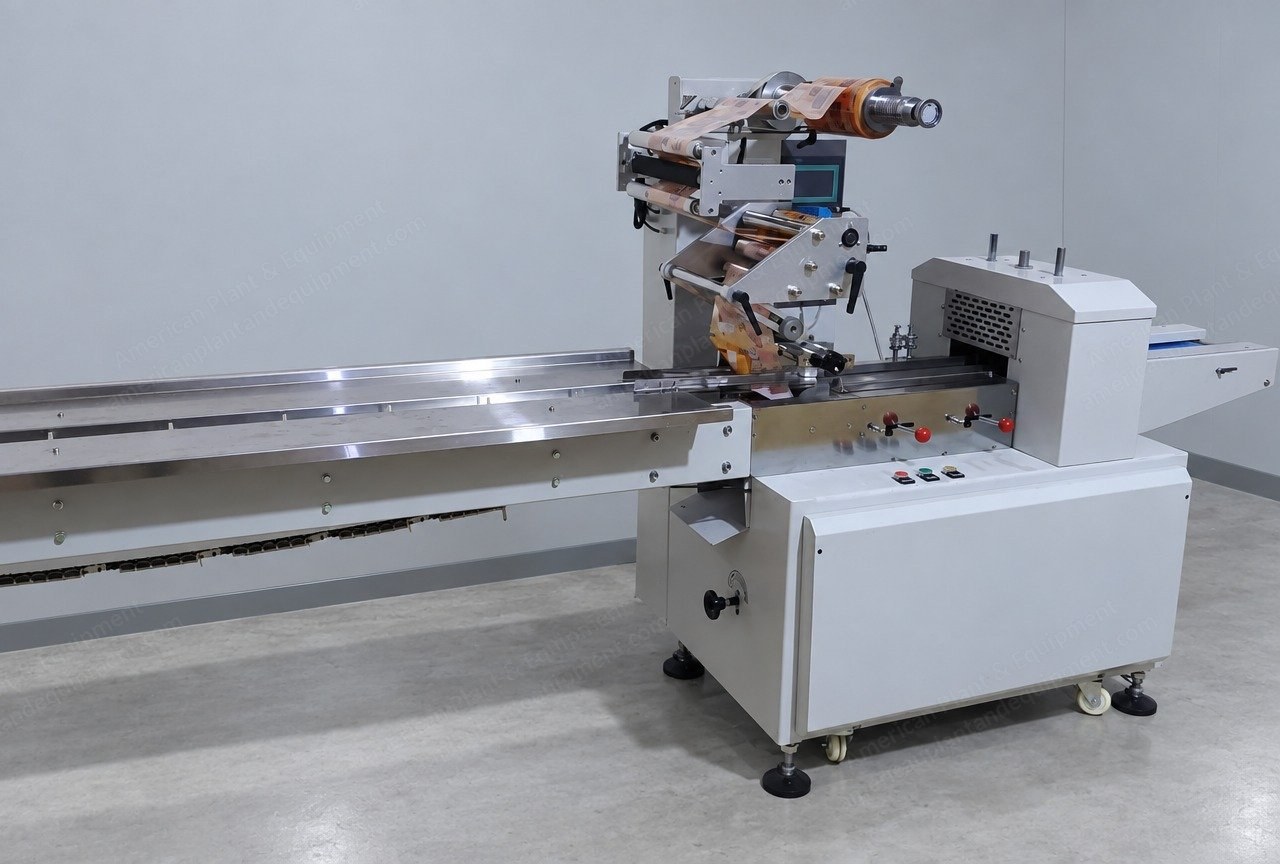

  5. Flow Pack Wrapping Machine
    1. Automatic-feeding flow pack (pillow pack) machine, used to wrap chocolate bars, wafers and other bar products
    2. Computer controlled, with photocell correction system
    3. Automatic 90-degree feeder
    4. Package length: 100 to 210 mm (3.9 to 8.3 in)
    5. Output: up to 200 pcs/min
    6. Packing film width: 120 to 300 mm (4.7 to 11.8 in)
    7. Product width: 30 to 140 mm (1.2 to 5.5 in); product thickness: 5 to 40 mm (0.2 to 1.6 in)
    8. Film materials: OPP, PE, PVC, PT/PE, OPP/CP, KOP/CPP and similar
  6. Supply and Condition
    1. Offered as one complete line, refurbished
    2. Refurbished and set to the buyer's bar size
    3. New electrical panel with Delta automation
    4. Sollich cooling tunnel fitted with a new PU belt and a new 5 hp (3.7 kW) cooling unit
    5. The line is shown running, mechanical and electrical side, on video before shipment
