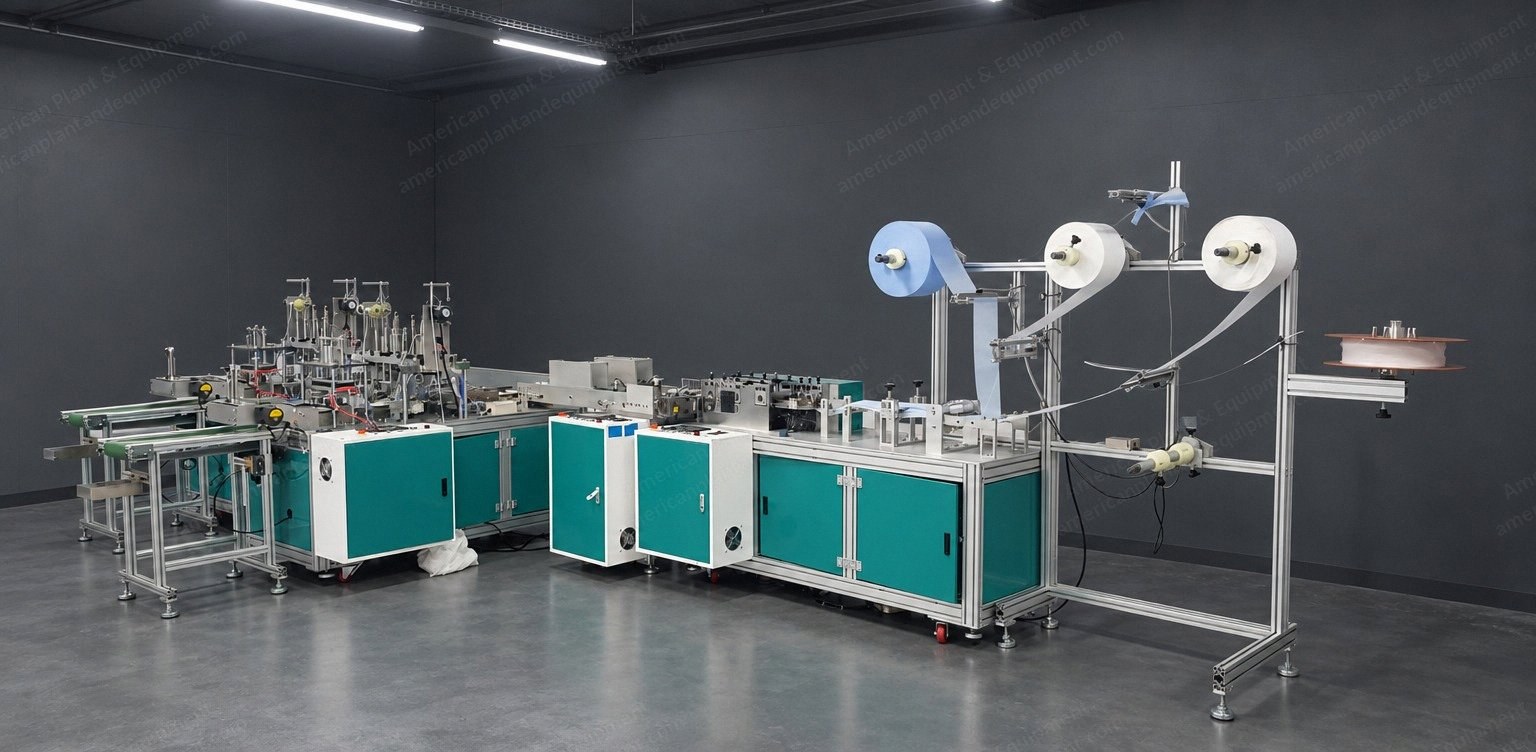

NovaStar, FM339, Automatic Flat Face Mask Production Line, 1+2, with Flow Pack Packaging Machine, 80-100 Masks per Minute

NovaStar, FM339, Automatic Flat Face Mask Production Line, 1+2, with Flow Pack Packaging Machine, 80-100 Masks per Minute

Description

  1. Package Overview
    1. Complete package: automatic face mask production line and Flow Pack packaging machine.
    2. Year acquired: 2020.
    3. Fewer than 1,000 reported operating hours.
    4. Stored indoors; good condition; last operated approximately six months ago.
    5. Commercial invoice, packing list, import and ownership documents and technical specifications available.
    6. Total listed power: 15.5 kW for the two machines, excluding the compressor and other auxiliary loads.

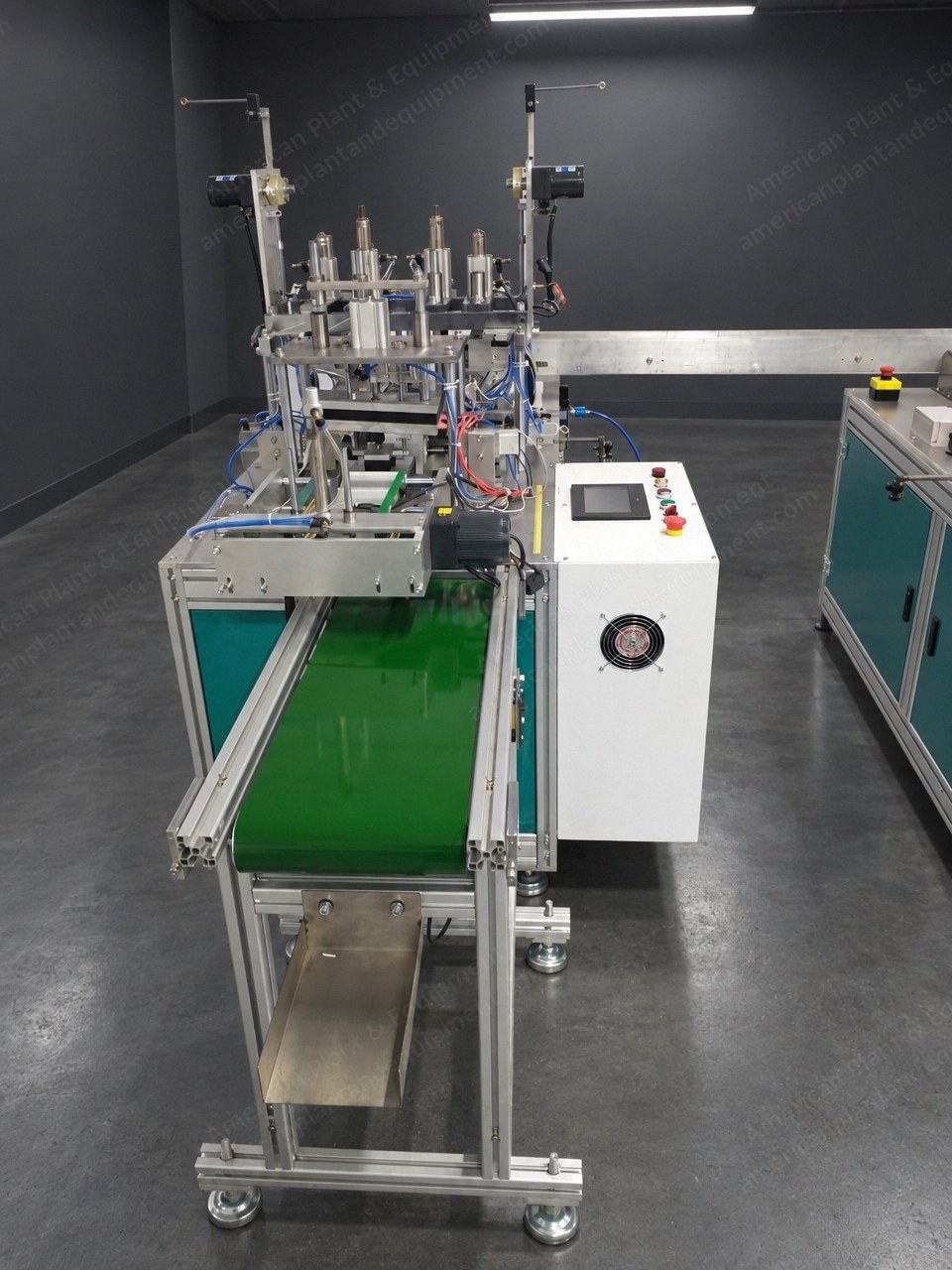

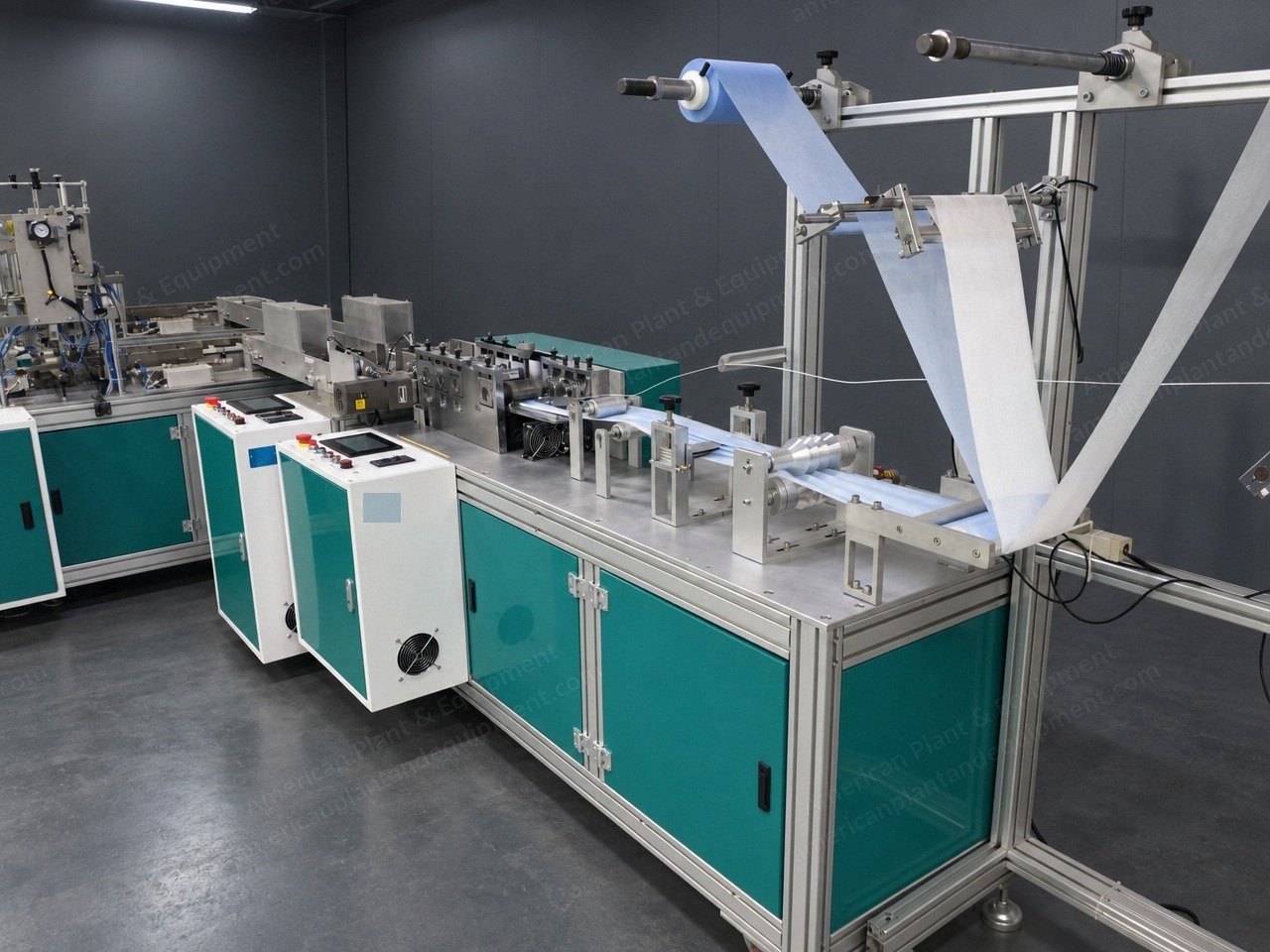

  2. Face Mask Production Line
    1. Configuration: fully automatic 1+2 flat face mask line.
    2. Rated capacity: 80-100 masks per minute.
    3. Power: 13 kW.
    4. Dimensions: 6,850 x 3,684 x 1,985 mm (269.7 x 145.0 x 78.1 in).
    5. Recommended installation area: 9 x 4.5 m (29.5 x 14.8 ft).
    6. Compressed air: 0.5-0.6 MPa (73-87 psi); compressor not included.
    7. Technology: photoelectric control and ultrasonic welding.
    8. Software and alarms: Spanish.
    9. Production sequence: material feeding, mask body forming and nose wire insertion, ultrasonic sealing and cutting, ear-loop welding, automatic stacking, Flow Pack packaging.
    10. Theoretical output: 115,200 masks in 24 continuous hours at 80 masks per minute; 38,400-48,000 masks per 8-hour shift. These figures exclude stoppages, changeovers and rejected units.

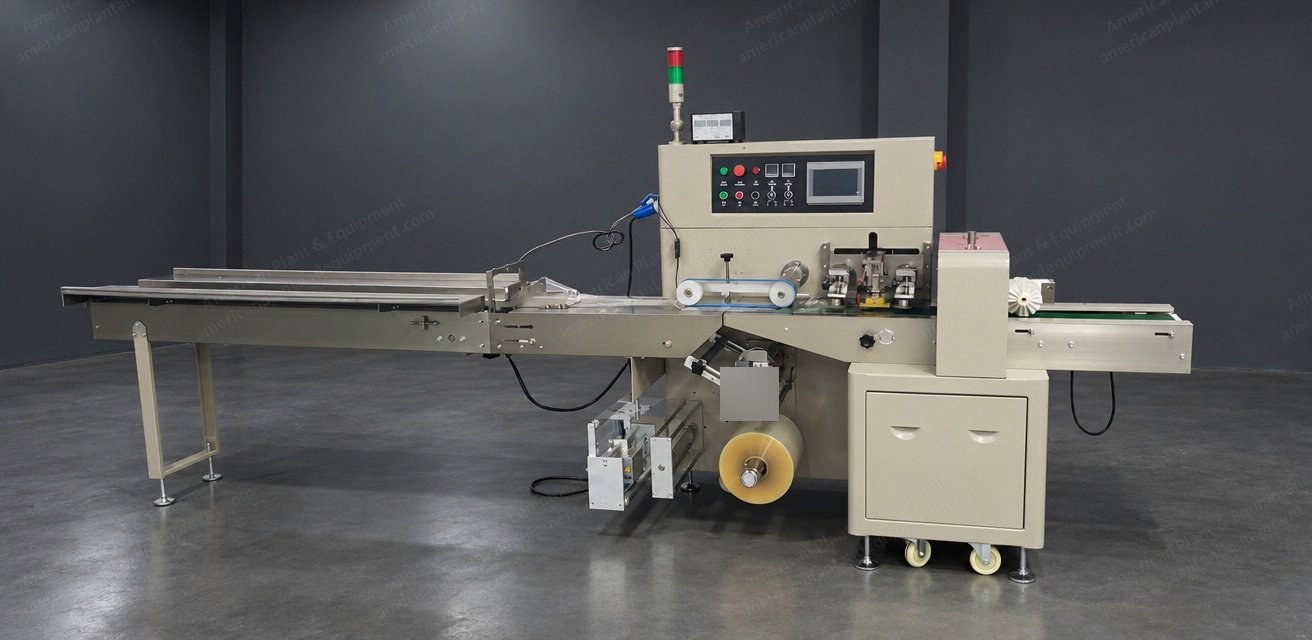

  3. Flow Pack Packaging Machine
    1. Film width: 320 mm (12.6 in).
    2. Rated speed: 60-150 bags per minute, depending on bag size.
    3. Electrical: 230 V, 60 Hz, 2.5 kW.
    4. Dimensions: 3,800 x 1,040 x 1,500 mm (149.6 x 40.9 x 59.1 in).
    5. Weight: 400 kg (882 lb).
  4. Equipment Included
    1. 1 automatic face mask production line.
    2. 1 adult blank mask machine.
    3. 1 child blank mask machine.
    4. 1 two-body conveyor belt.
    5. 1 thermal press, 40 x 60.
    6. 1 elastic cutting machine.
    7. 1 Flow Pack packaging machine with conveyor.
  5. Not Included
    1. Manual welding machines.
    2. Air compressor.
