MTU, 12V4000 L33, 2023, Natural Gas Trigeneration Plant, 1,262 kWe, Carrier Absorption Chiller

MTU, 12V4000 L33, 2023, Natural Gas Trigeneration Plant, 1,262 kWe, Carrier Absorption Chiller

Description

  1. Overview
    1. Trigeneration plant (combined cooling, heat and power) with a rated electrical output of 1,262 kW
    2. Year of construction: 2023
    3. Plant assembled and never put into operation: CHP unit and absorption unit both new, 0 hours
    4. CHP unit: MTU 12V4000 L33 natural gas generator set in an enclosed container, type E1265 250 NOx L33 natural gas CHP unit
    5. Absorption unit: Carrier 16LJ-F41 in an enclosed container
    6. 2 evaporative cooling towers, new, 0 hours
  2. CHP Unit Performance
    1. Rated electrical power: 1,262 kW
    2. Thermal power: 1,355 kW
    3. Electrical efficiency (cos φ = 1.0): 42.1%
    4. Thermal efficiency: 45.2%
    5. Total efficiency (full heat recovery): 87.3%
    6. Fuel consumption at 100% load: 299 Nm³/h
    7. Fuel consumption at 75% load: 232 Nm³/h
    8. Fuel consumption at 50% load: 167 Nm³/h
  3. Engine and Generator
    1. Engine: Rolls-Royce MTU 12V4000 L33 gas engine, V12
    2. Maximum engine power: 1,320 kW
    3. Alternator: Stamford PE734E-312, three-phase, synchronous, four-pole, brushless
    4. Rated apparent power: 1,935 kVA
    5. Rated voltage: 400 V
    6. Frequency: 50 Hz
    7. Configuration: containerized
    8. CHP container dimensions (L x W x H): 12,800 x 2,700 x 2,900 mm
    9. Cooling: water-cooled

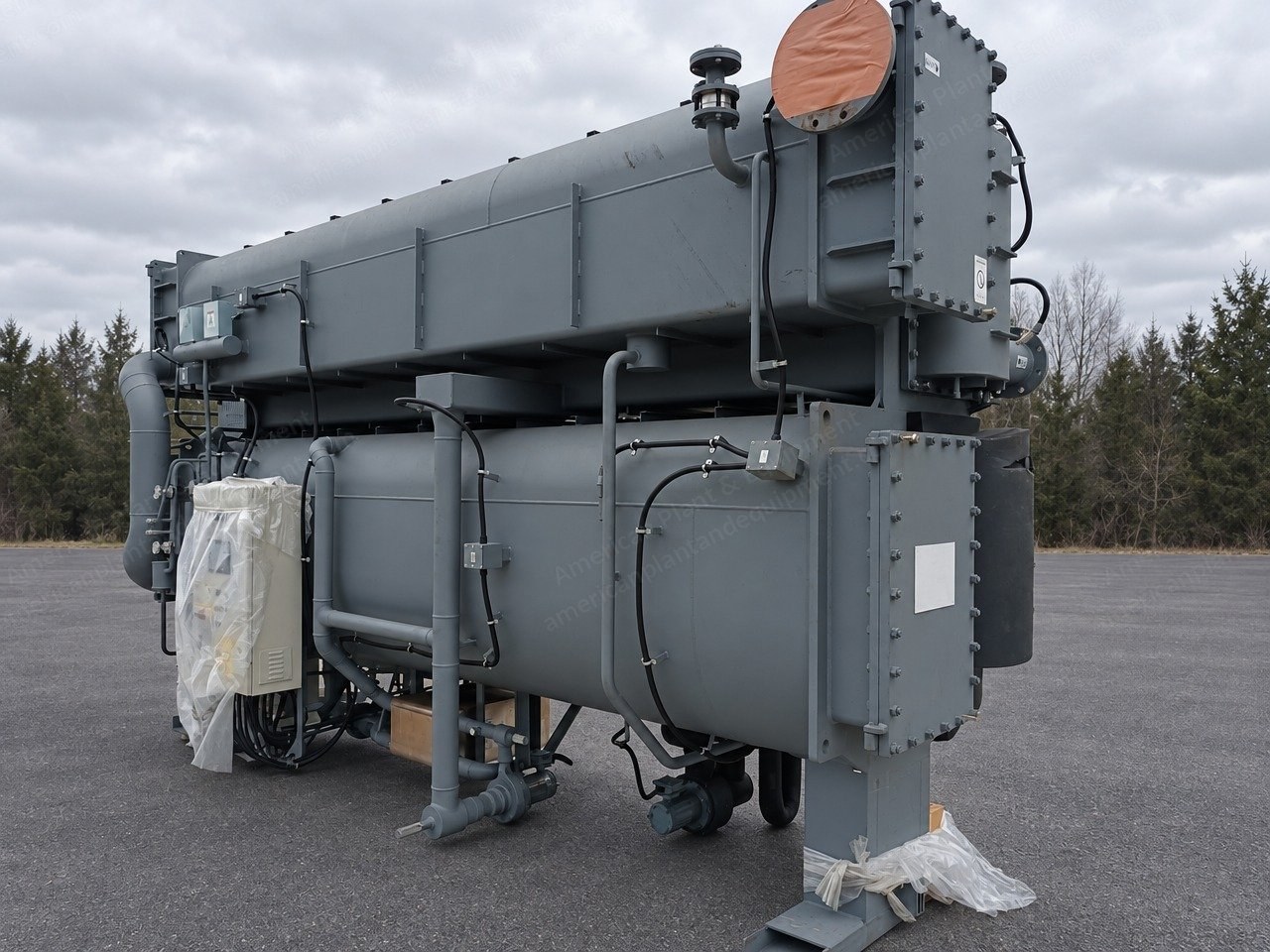

  4. Absorption Unit (Carrier 16LJ-F41)
    1. Cooling capacity: 1,178 kW
    2. Chilled water circuit: flow rate 56.4 L/s, pressure 45 kPa, DIN connection 8 in, volume 0.48 m³
    3. Heat rejection circuit: flow rate 93.1 L/s, pressure 117 kPa, DIN connection 10 in, volume 1.39 m³
    4. Dimensions (L x H x W): 5,330 x 3,080 x 1,690 mm
    5. Weight: 13,700 kg (30,203 lb)
  5. Documentation
    1. Documentation and manuals included

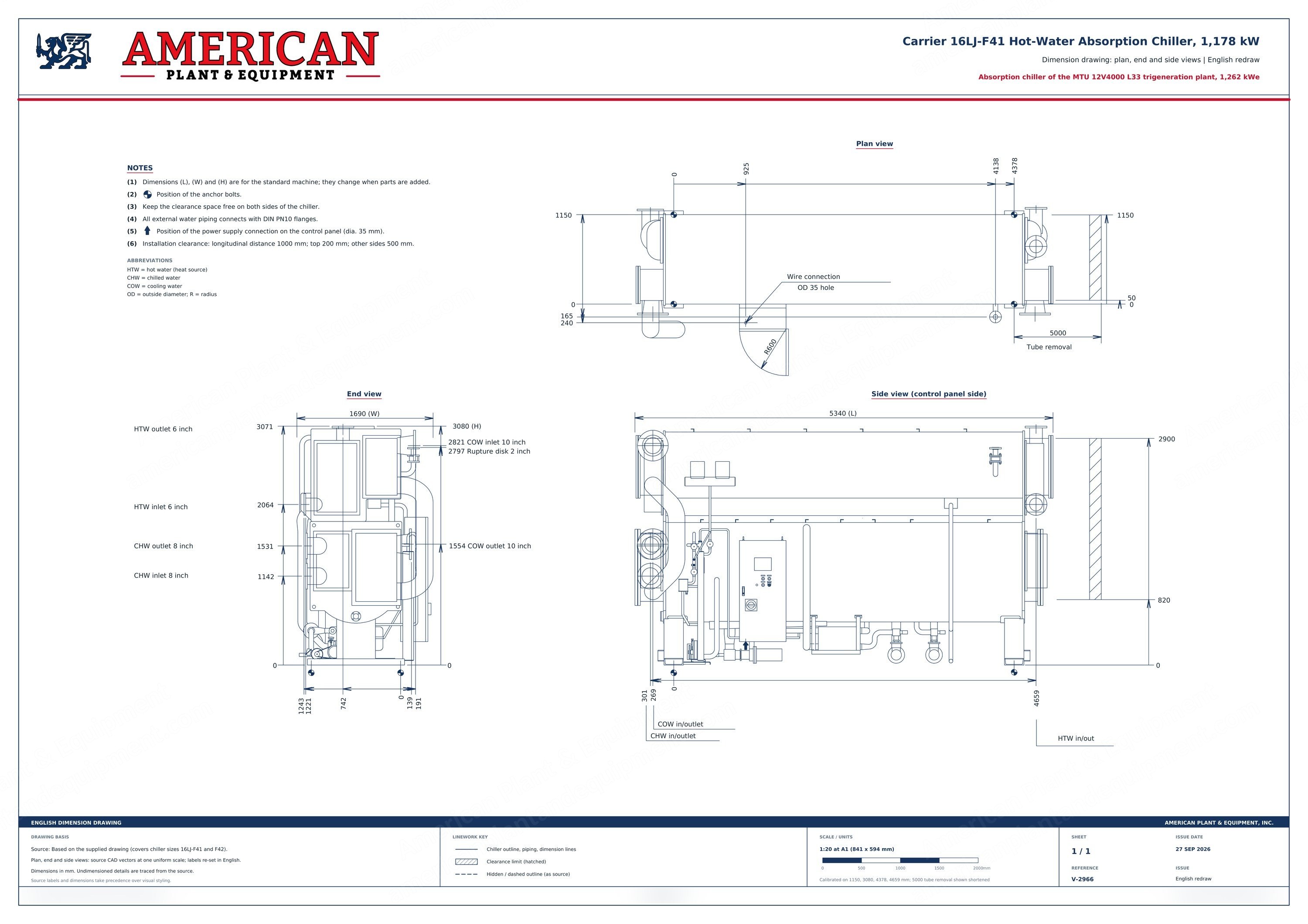

    2. Genset technical data sheet, CHP energy balance and load data, absorption chiller selection data and dimension drawing available
