Thermindus, GV INSIEME, Steam Generator, 2016, 250 kg/h

Overview

1. Thermindus GV INSIEME propane-fired steam generator with an output of 250 kg (551 lb) of steam per hour.

2. Built in 2016 in Italy.

3. Commissioned in 2017.

4. Supplied process steam to a craft brewery: the brewhouse hot side, a flash pasteurizer and a semi-automatic keg washer.

5. Comes with 20 m (65.6 ft) of stainless steel steam line, a propane supply with automatic changeover and a maintenance logbook covering 2017 to 2026.

Technical Data

1. Manufacturer: Thermindus (Italy)

2. Model: GV INSIEME

3. Year of manufacture: 2016

4. Machine type: gas-fired steam generator

5. Steam output: 250 kg (551.2 lb)/h

6. Maximum operating pressure: 6 bar (87 psi)

7. Safety valve setting: 6 bar (87 psi)

8. Test pressure: 10.4 bar (150.8 psi)

9. Maximum temperature: 165 °C (329°F)

10. Water content: 44.1 l (11.6 gal)

11. Fuel: propane (P35 cylinders)

12. Electrical supply: 385 V + N

13. Pressure equipment: PED 2014/68/EU, category III, CE marked

14. Operating hours: 1,600 h

Equipment

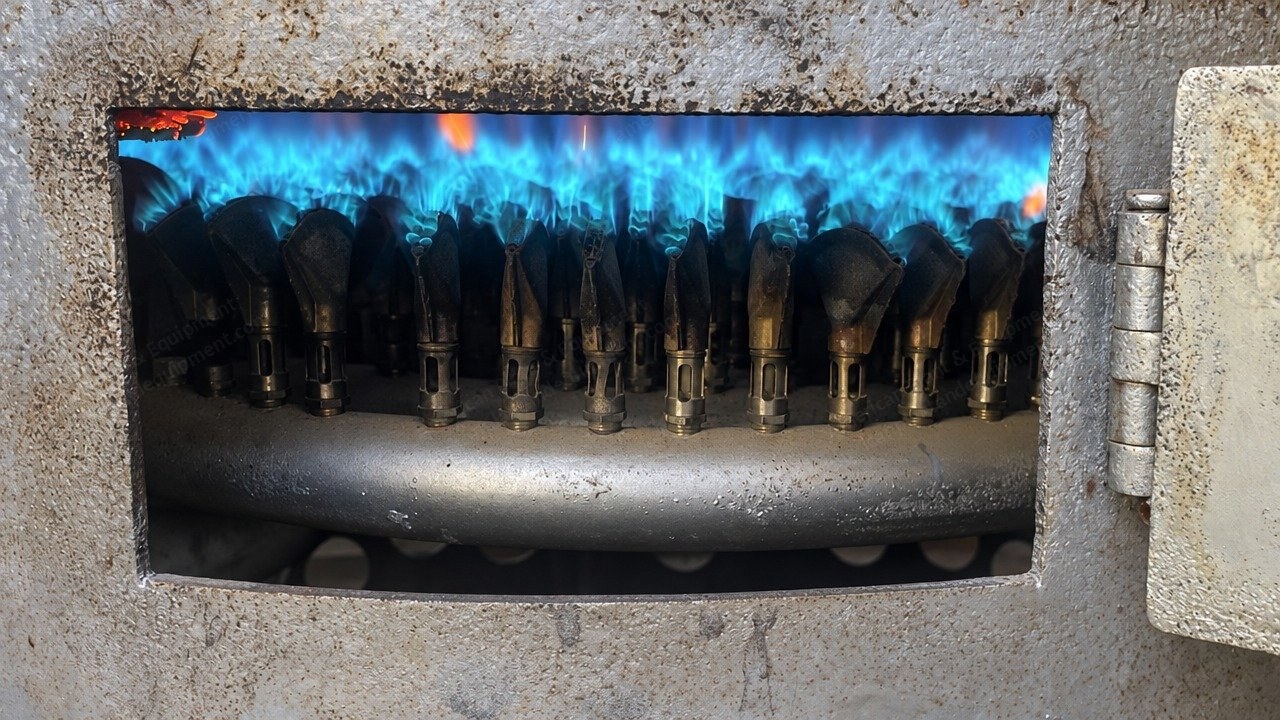

1. Steam generator with multi-jet gas burner

2. Control cabinet with indicator lamps and emergency stop

3. Stainless steel steam line, 20 m (65.6 ft) (flow and return)

4. 2 propane cylinder connection hoses with automatic changeover valve

Condition

1. Used, in very good working condition; in production until August 2026.

2. Rust traces on the parts that are not stainless steel, with no effect on operation.

3. Maintenance logbook with weekly, quarterly and annual checks; the last annual service in January 2026 covered descaling, a combustion check and anti-corrosion treatment.

4. The unit is already dismantled, stored and ready for truck loading.

5. Inspection possible on request.

Availability

1. Immediately.
