Kematec, MBK 12 AS, Capsuling Machine, 2006, 3,000 - 12,000 bottles/h

Overview

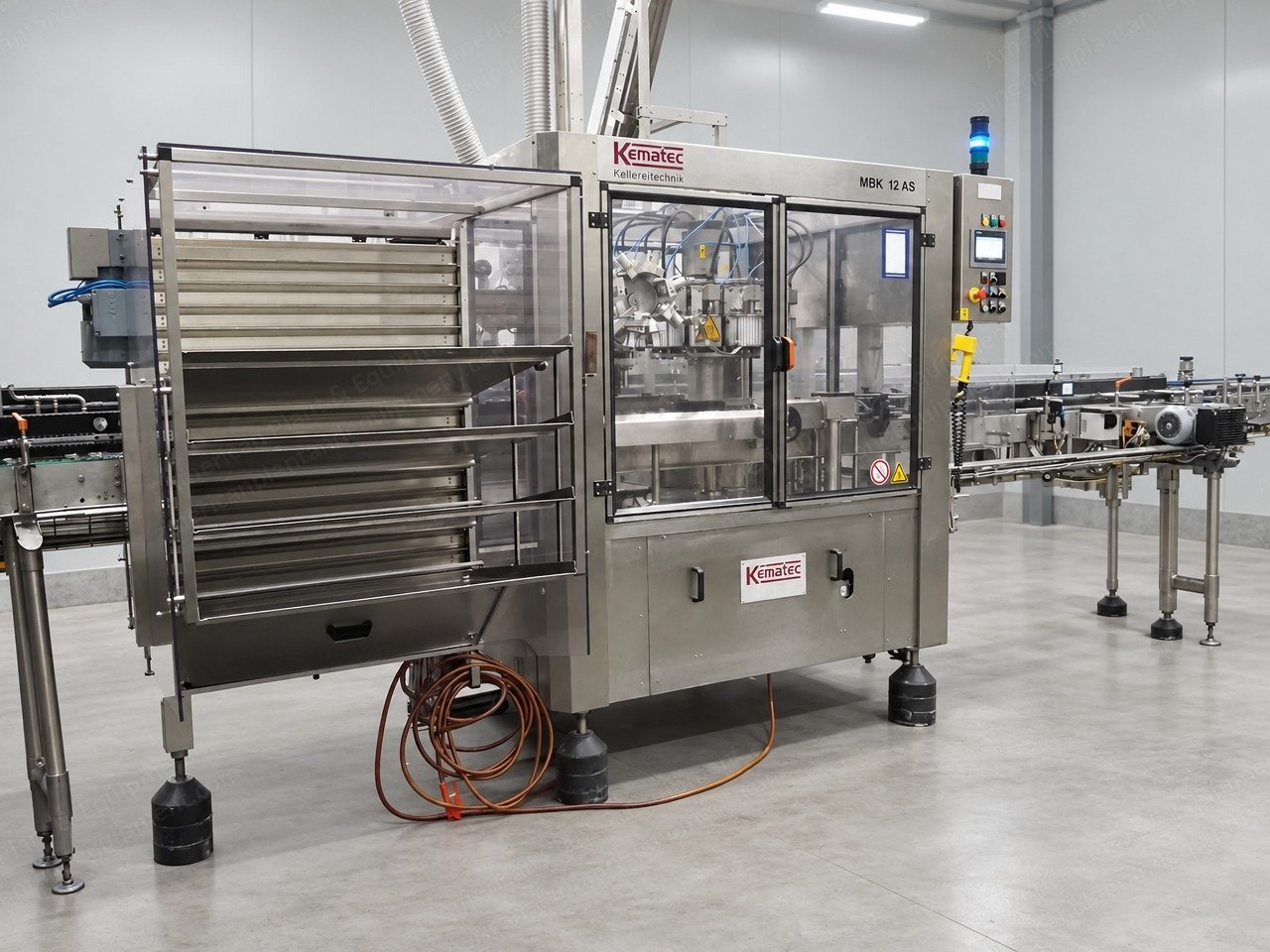

1. Kematec MBK 12 AS capsule placing and shrinking machine, built in 2006.

2. Places shrink capsules on wine bottles and shrinks them on in 12 heating stations.

3. Runs at 3,000 - 12,000 bottles per hour.

4. Covers bottle heights of 235 to 360 mm (9.3 to 14.2 in) and bottle diameters of 50 to 115 mm (2.0 to 4.5 in).

Specifications

1. Manufacturer: Kematec

2. Model: MBK 12 AS

3. Year of manufacture: 2006

4. Machine type: capsule placing and shrinking machine

5. Output: 3,000 - 12,000 bottles/h

6. Capsules: shrink capsules, max. length 80 mm (3.1 in), max. diameter 40 mm (1.6 in)

7. Head diameter: 33 mm (1.3 in)

8. Heating stations: 12

9. Capsule magazine: 1,800 capsules

10. Bottle height: 235 to 360 mm (9.3 to 14.2 in)

11. Bottle diameter: 50 to 115 mm (2.0 to 4.5 in)

12. Working height: 1,100 mm (43.3 in) (+/- 50 mm / 2 in)

13. Direction of travel: left to right

14. Power supply: 400 V, 50 Hz; main drive 0.75 kW (1.0 hp)

15. Compressed air: 6 to 7 bar (87 to 101.5 psi), approx. 350 l (92.5 gal)/min

16. Overall dimensions (L x W x H): 3,700 x 2,500 x 2,580 mm (145.7 x 98.4 x 101.6 in)

17. Weight: approx. 1,400 kg (3,086 lb)

Equipment

1. Capsule magazine with multi-level storage shelves and capsule feed

2. Rotary capsule placing turret

3. Rotary shrinking turret with 12 heating stations

4. Bottle infeed and outfeed on slat chain conveyor with guide rails

5. Siemens touch panel (French, Dutch, German) with fault list, emergency stop and signal tower

6. Control cabinet with PLC

7. Stainless steel frame, enclosure with transparent guard doors

8. CE marked; operating manual with spare parts list available

Condition

1. Still installed.

2. An inspection on site is possible.

Availability

1. Available immediately.
