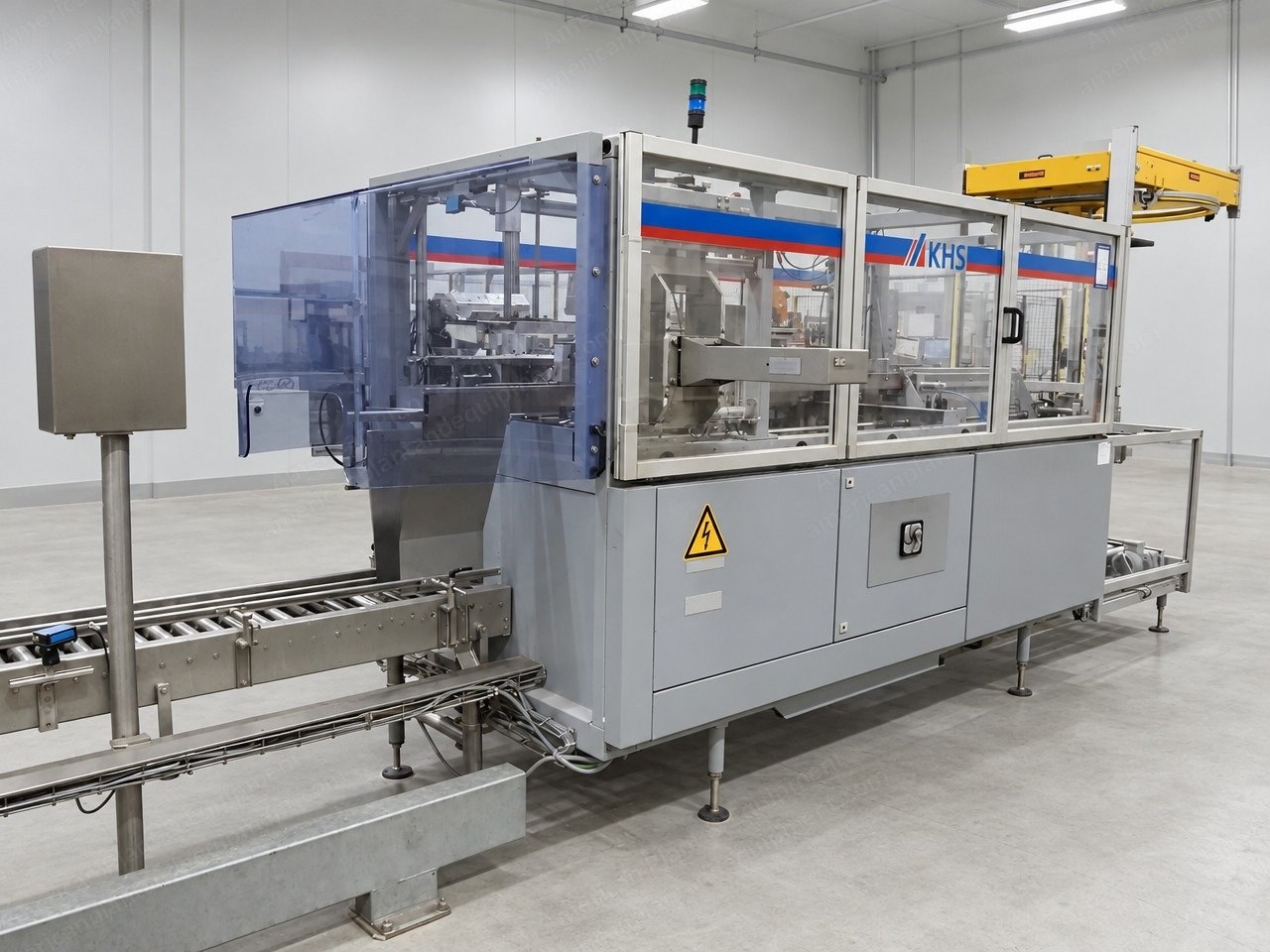

KHS, Innopack CA-1, 2006, Carton Erector, 4,550 x 3,450 x 2,720 mm

Overview

1. Blank stacks are fed on a roller conveyor into the magazine.

2. Suction grippers pick each blank, erect it, fold the inner bottom flaps, apply glue with a Robatech hot-melt unit, close and press the outer flaps and discharge the carton onto the outfeed roller conveyor.

Specifications

1. Manufacturer: KHS.

2. Model: Innopack CA-1.

3. Year of manufacture: 2006.

4. Machine type: carton erector with bottom gluing.

5. Glue system: Robatech Concept hot-melt unit with glue nozzles for the bottom flaps.

6. Power supply: 480 V, 3 Ph, 60 Hz, 15 A.

7. Compressed air: min. 5 bar (72.5 psi) operating pressure.

8. Overall dimensions (L x W x H): 4,550 x 3,450 x 2,720 mm (107.1 in).

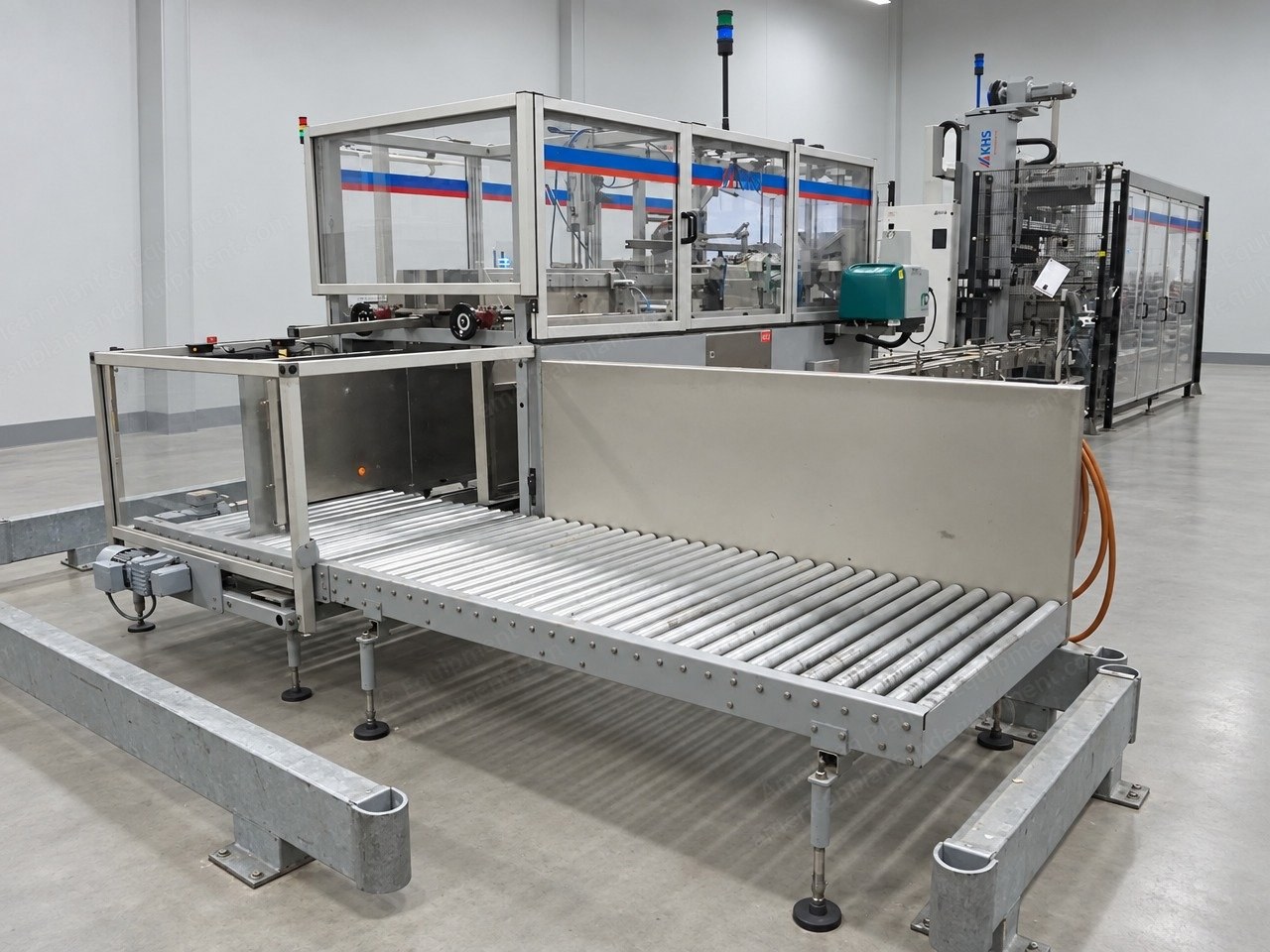

9. Blank infeed: roller conveyor with stainless steel rollers, roller width 1,000 mm (39.4 in), infeed clearance 800 x 450 mm (17.7 in).

10. Outfeed: roller conveyor with stainless steel rollers, roller width 300 mm (11.8 in), 3,050 x 650 x 880 mm (34.6 in).

Equipment

1. Stack preparation with automatic loading of the blank magazine.

2. Blank magazine with lifting device, side guides and front and rear stops.

3. Pick-up and erecting stations with vacuum suction grippers and vacuum unit.

4. Folding, gluing, closing and pressing devices for the carton bottom.

5. Side and height adjustment by handwheel for different carton sizes.

6. Enclosure with windowed safety doors.

7. Operator panel with display, keypad, start/stop, key switch and emergency stop; operator texts in French.

8. Control cabinet and pneumatic service unit.

9. CE marked; operating manual (Dutch) available.

Condition

1. Still installed.

2. An inspection on site is possible.

Availability

1. Available immediately.
