KHS, Innopack SP, 2006, Pick-and-Place Case Packer, 4-Lane Infeed

Overview

1. Empty cases run on the case conveyor into the packing zone, where they are stopped and centred.

2. The gripper head picks the bottle formation from the four-lane infeed table and sets it into the cases.

3. The lifting unit travels on a vertical lifting column with counterweight.

4. Motion is controlled by a KUKA KR C2 controller with KCP teach pendant.

5. Four change-part trolleys with gripper heads for different bottle sizes are included.

Technical Data

1. Manufacturer: KHS

2. Model: Innopack SP

3. Year of manufacture: 2006

4. Machine type: pick-and-place case packer

5. Bottle infeed: 4 lanes, lane width 85 mm (3.3 in)

6. Gripper head: 2 x 18 bottle tulips, formation 3 x 6 bottles

7. Case clearance: 175 x 400 mm (6.9 x 15.7 in)

8. Power supply packer: 400 V, 3 Ph, 50 Hz, 27 A

9. Robot controller: KUKA KR C2, 400 V, 3 Ph, 50/60 Hz, 8 A

10. Overall dimensions (L x W x H): 6,000 x 3,250 x 3,650 mm (236.2 x 128 x 143.7 in)

11. Change-part trolleys: 4 units, each 2,050 x 1,300 x 2,100 mm (80.7 x 51.2 x 82.7 in)

Equipment

1. Base frame with lifting column, counterweight and lifting unit

2. Cross conveyor and shifting carriage for the gripper head

3. Gripper head with pneumatic bottle tulips

4. Centring device for the cases in the packing zone

5. Four-lane bottle infeed table with lane guides

6. Case infeed and outfeed conveyors

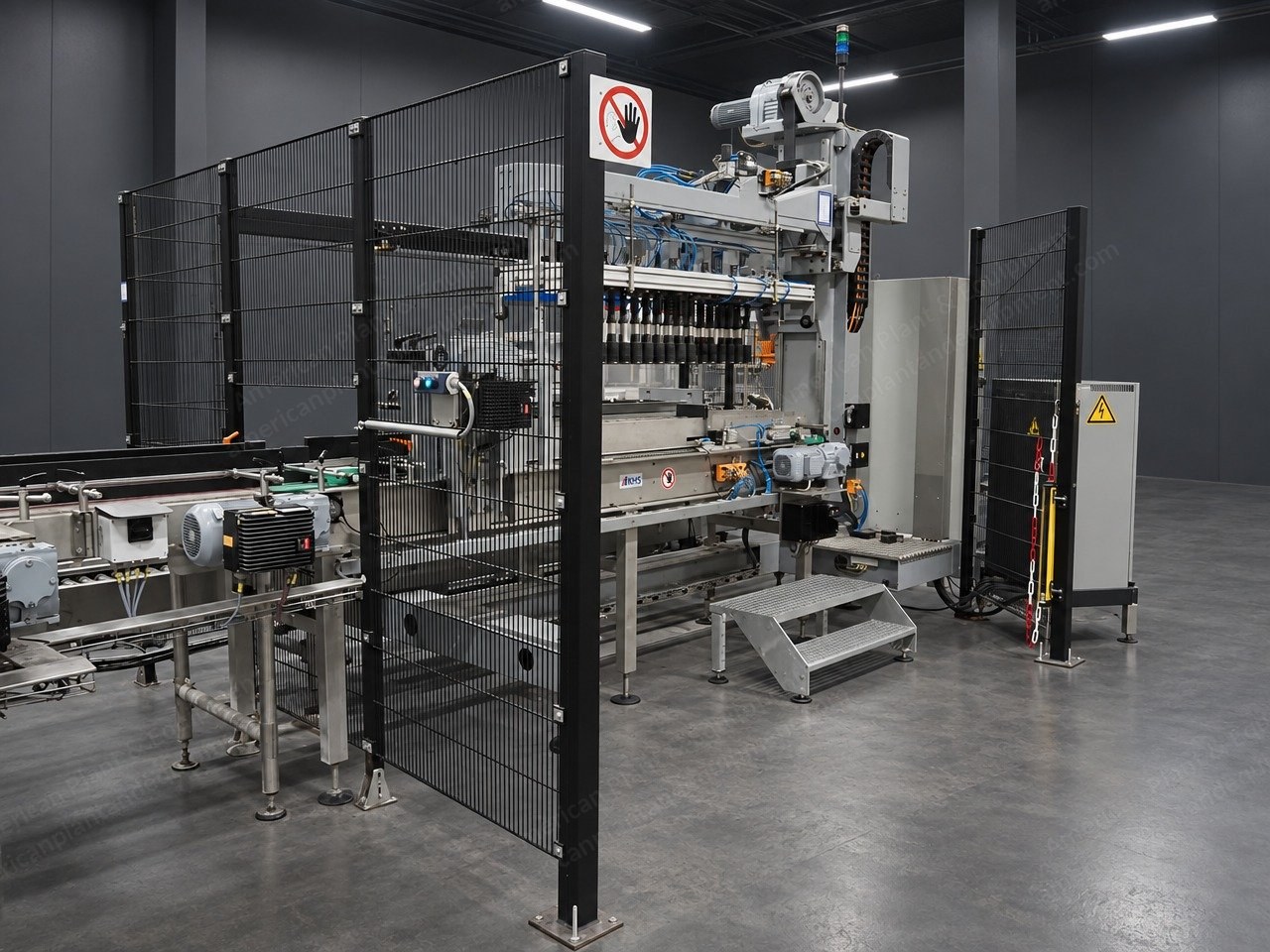

7. Enclosure with windowed doors and safety fencing

8. KUKA KR C2 controller cabinet and KCP teach pendant on stand

9. KHS control cabinet

Included

1. 4 change-part trolleys with gripper heads for different bottle sizes

2. Operating manual (Dutch) available

Condition

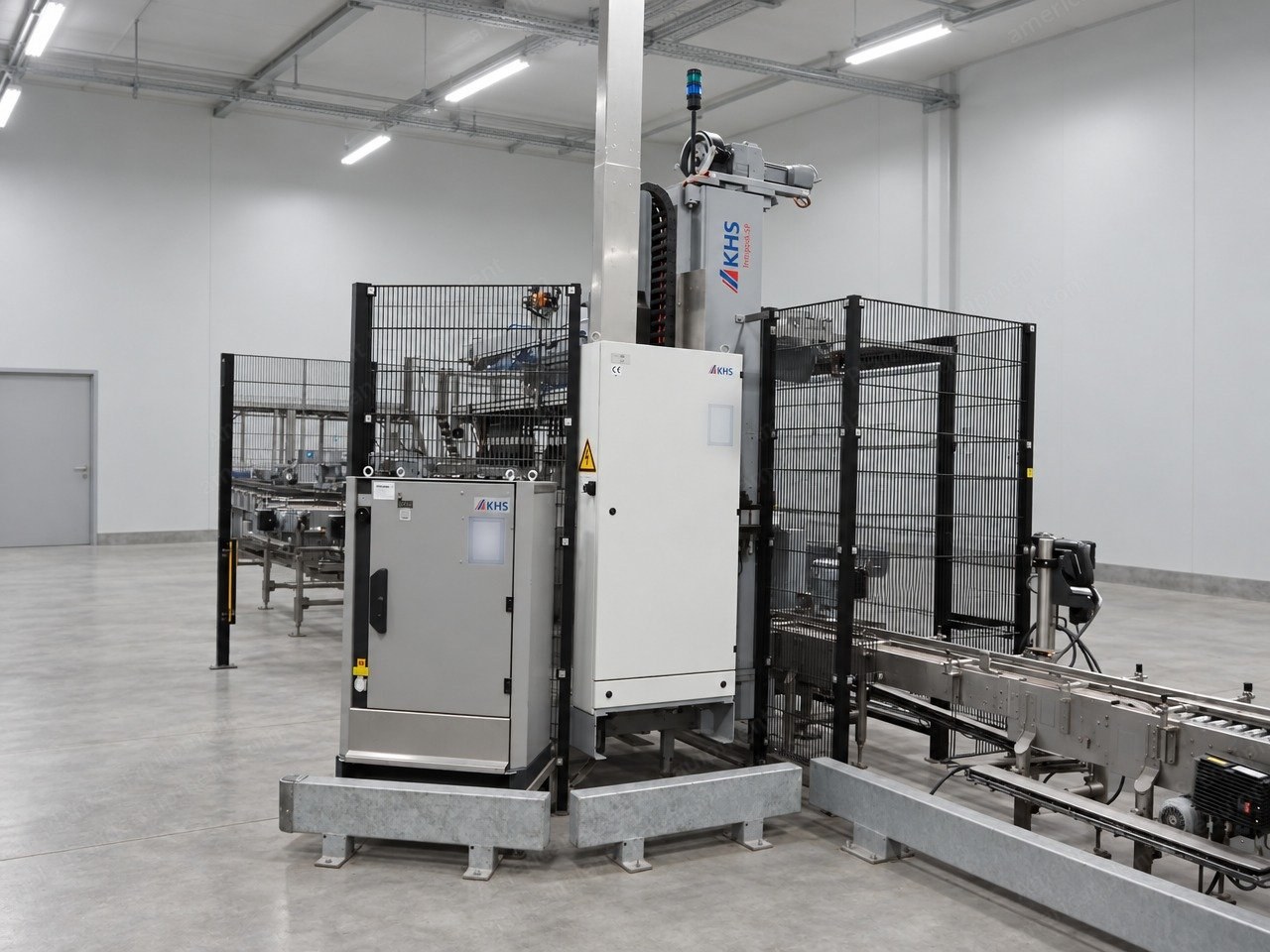

1. Still installed.

2. An inspection on site is possible.

Availability

1. Available immediately.
