KHS, Innopro Warmer-Cooler, 2006, Wine Thermoregulator, 9,900 l/h (2,615 gal/h)

KHS, Innopro Warmer-Cooler, 2006, Wine Thermoregulator, 9,900 l/h (2,615 gal/h)

Description

  1. Overview
    1. Built in 2006 by KHS AG in Dortmund, Germany.
    2. Brings wine to a set temperature, heating or cooling as required.
    3. Throughput up to 9,900 l/h (2,615 gal/h) (99 hl/h).
    4. Designed for an outlet temperature of 18°C (64°F).
    5. Core is a three-section Thermowave plate heat exchanger.

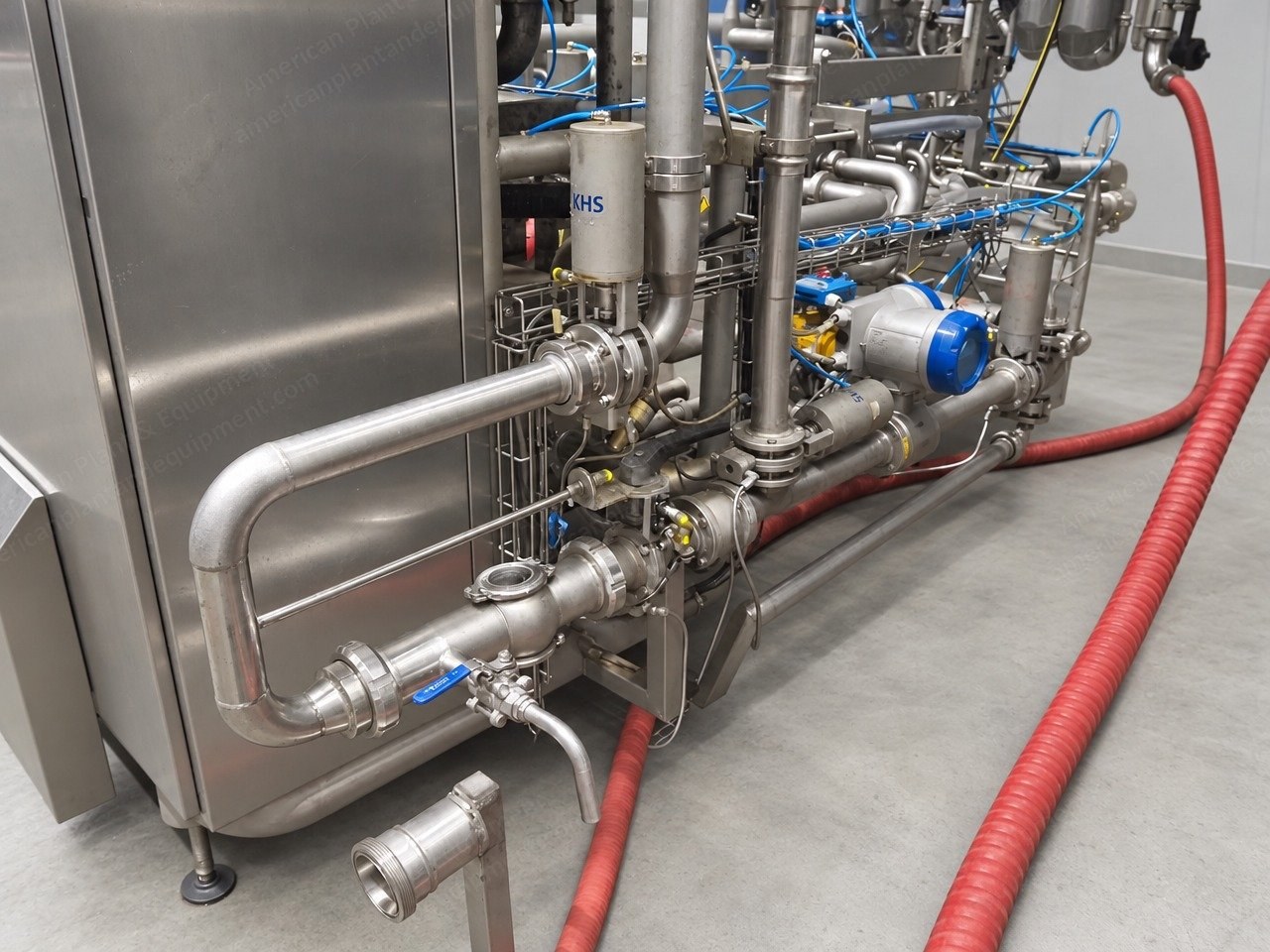

    6. Stainless steel piping, pumps, pneumatically operated valves and instrumentation are mounted on one frame.
    7. Runs from a freestanding KHS stainless steel control cabinet with touch panel.
    8. Last used in a wine bottling line.
  2. Technical Data
    1. Manufacturer: KHS AG (Dortmund, Germany).
    2. Model: Innopro warmer-cooler.
    3. Year of manufacture: 2006 (control cabinet 2007).
    4. Machine type: thermoregulator for heating or cooling wine, skid-mounted.
    5. Product: wine.
    6. Throughput: 9,900 l/h (2,615 gal/h) (99 hl/h).
    7. Cooling section: wine from 26°C to 18°C (79 to 64°F), cold water 10°C to 14°C (50 to 57°F) at 18,328 l/h (4,841 gal/h).
    8. Heating section: wine from 9°C to 18°C (48 to 64°F) via a warm-water circuit (25°C to 21°C / 77 to 70°F, 20,516 l/h / 5,420 gal/h), which is heated by hot water from 100°C to 55°C (212 to 131°F).

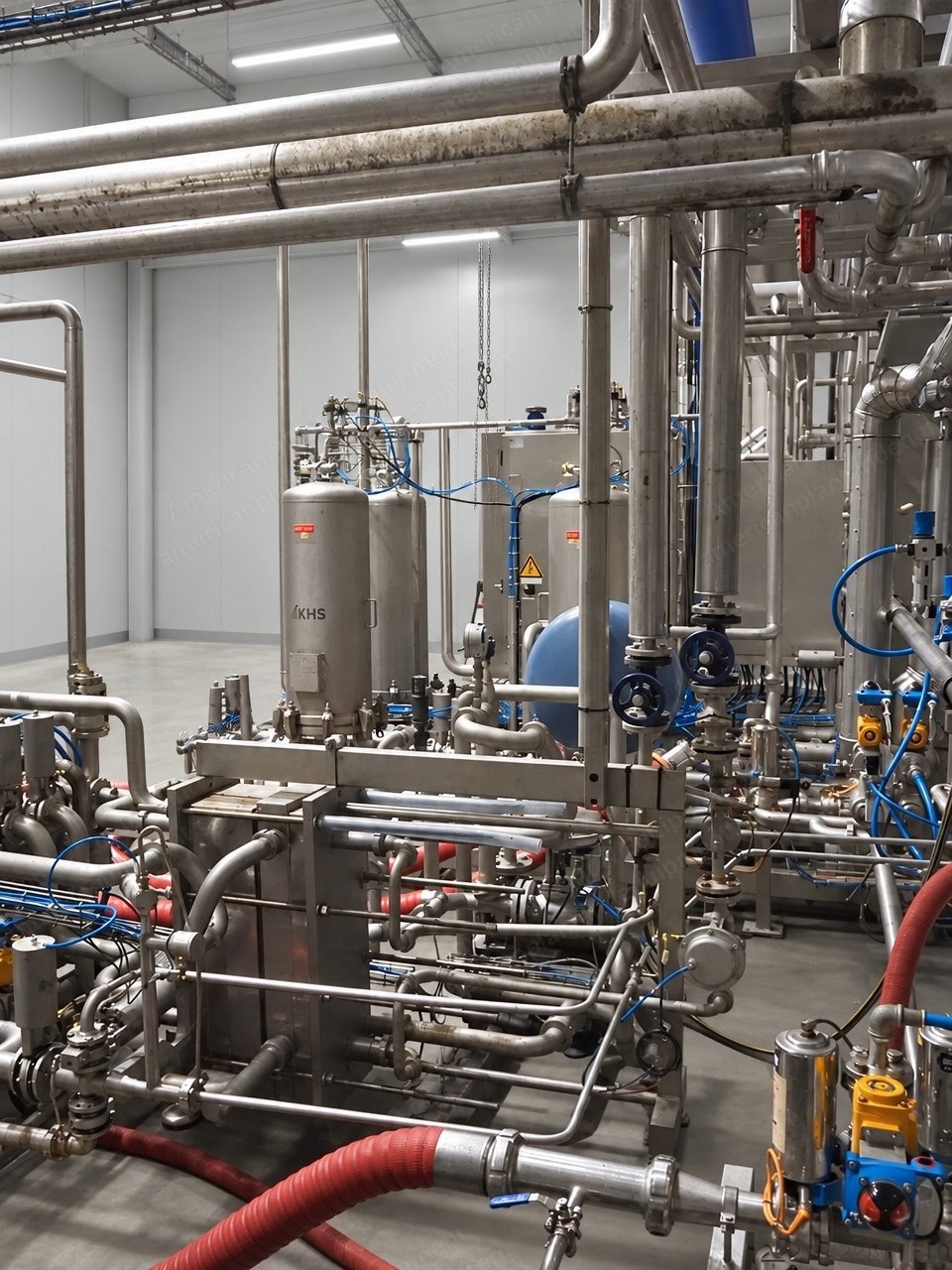

    9. Plate heat exchanger: Thermowave, 3 sections, 71 plates, total heat transfer area 6.1 sq m (65.7 sq ft).
    10. Plate heat exchanger ratings: operating pressure 10 bar (145 psi), test pressure 12.5 bar (181.3 psi), max. operating temperature 100°C (212°F).
    11. Power supply: 400 V, 50 Hz, 3/N/PE, rated current 25 A; control voltage 24 V DC.
    12. Overall dimensions: approx. 3,100 x 1,850 x H 2,330 mm (122.0 x 72.8 x H 91.7 in).
  3. Equipment
    1. Thermowave plate heat exchanger with cooling, wine heating and warm-water heating sections.
    2. Warm-water circuit and membrane expansion vessel.
    3. Centrifugal pumps, including a Hilge stainless steel pump.
    4. Pneumatically operated valves and a pneumatic control valve with positioner.
    5. Pressure gauges and process instrumentation.
    6. Freestanding KHS stainless steel control cabinet with touch panel.
    7. Stainless steel skid frame with interconnecting piping.
  4. Condition
    1. Used.
    2. Still installed and can be inspected by appointment.
  5. Availability
    1. Immediately.
