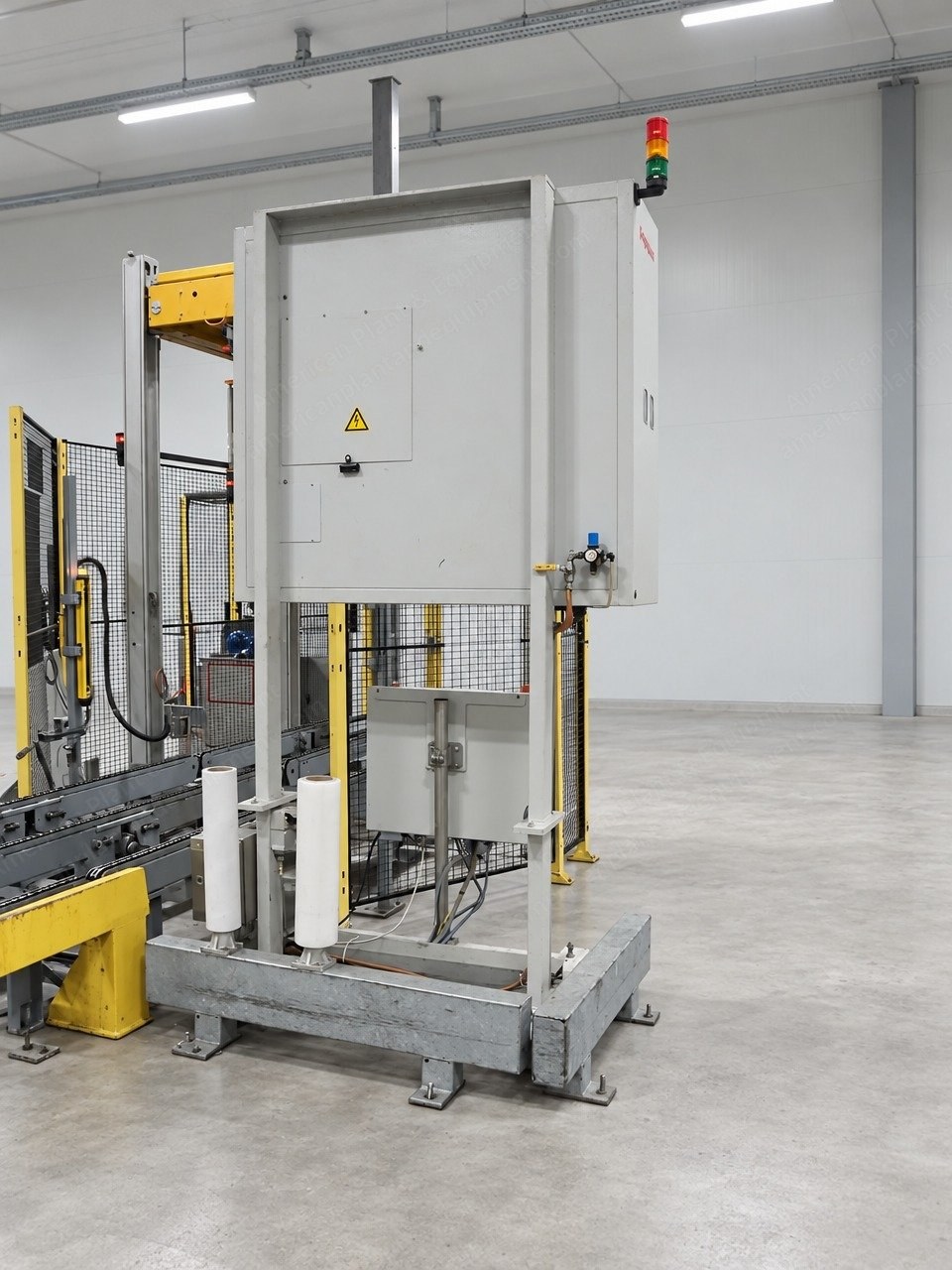

Logopak, LOGOMATIC 920 II PF, 2007, Print-and-Apply Pallet Labeller, 4 labels/min

Description

Overview
1. Built in 2007.
2. Prints labels by direct thermal or thermal transfer.
3. Applies labels with a telescopic tamp applicator onto pallets standing still beside the conveyor.
4. Machine type: print-and-apply pallet labeller.
Specifications
1. Manufacturer: Logopak.
2. Model: LOGOMATIC 920 II PF.
3. Year of manufacture: 2007.
4. Output: 4 labels/min.
5. Print methods: direct thermal and thermal transfer.
6. Label size: 148 x 210 mm (5.8 x 8.3 in), 3 mm (0.1 in) gap.
7. Label roll: max. diameter 400 mm (15.7 in), core diameter 76 mm (3.0 in) (150 mm / 5.9 in).
8. Mounting: vertical, print head at the bottom.
9. Control: Logopak POWER LEAP II.
10. Interfaces: W&T COM server, RS 232.
11. Power supply: 88 - 240 V AC, 50/60 Hz; 7 A at 115 V, 3.5 A at 230 V.
12. Compressed air: required (valve block and vacuum generator).
13. Overall dimensions (L x W x H): 1,530 x 1,000 x 2,910 mm (60.2 x 39.4 x H 114.6 in).
Equipment
1. Labelling unit in a closed cabinet with two windowed doors.
2. Label unwinder, printer and telescopic tamp applicator.
3. Control box on the machine frame with display terminal, start/stop, emergency stop, auto/bypass key switch and main switch.
4. Bypass function and three-colour signal tower.
5. Floor frame with foot plates for anchoring beside the pallet conveyor.
6. CE marked; operating manual (Dutch) available.
Condition
1. Still installed.
2. An inspection on site is possible.
Availability
1. Available immediately.

HS code	8422.30

Voltage	88 - 240 V AC, 50/60 Hz
