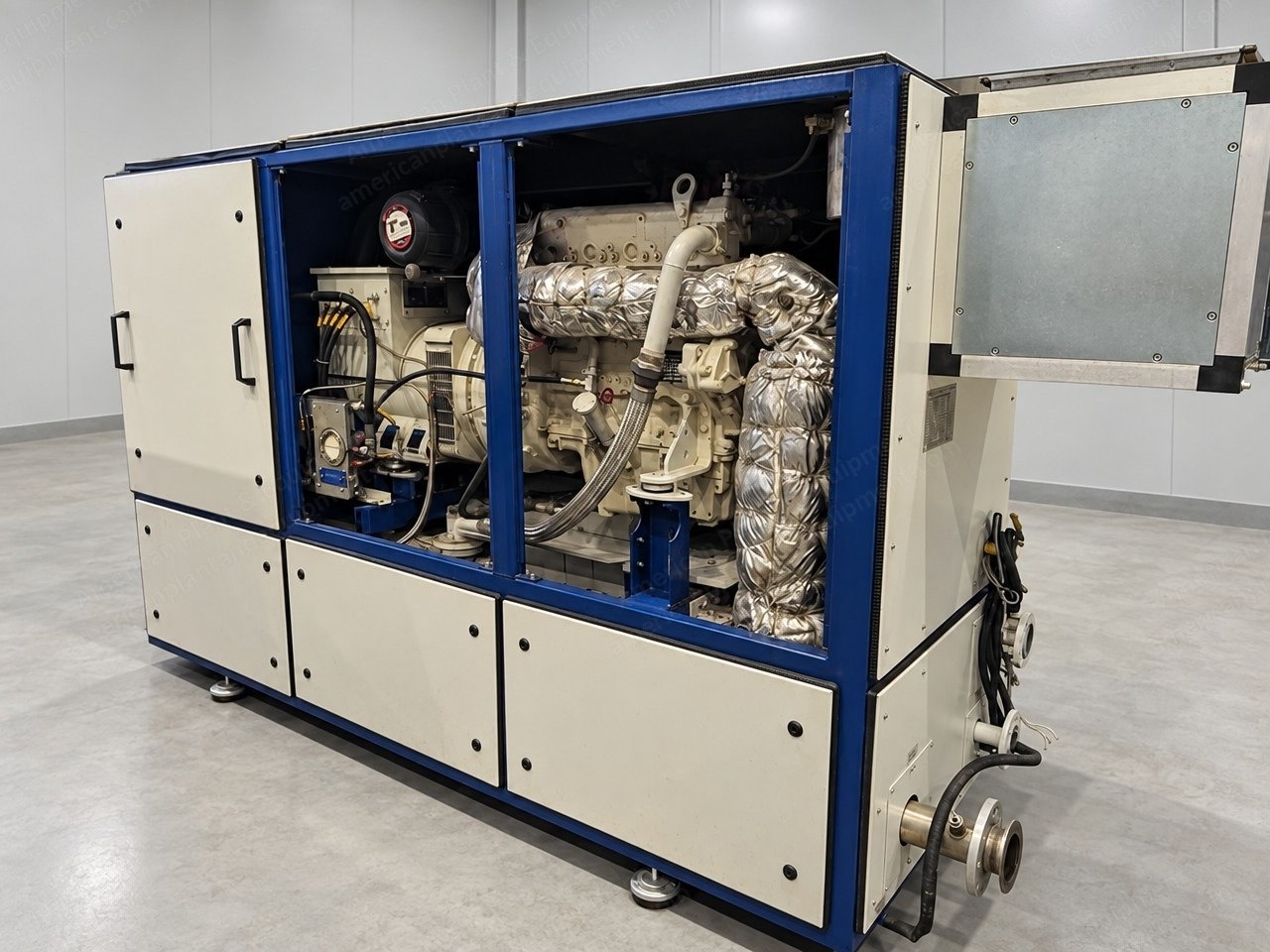

MAN, HPC 50 N, 2011, CHP Cogeneration Module, 63 kVA, 79 kW Heat Output

MAN, HPC 50 N, 2011, CHP Cogeneration Module, 63 kVA, 79 kW Heat Output

Description

  1. Overview

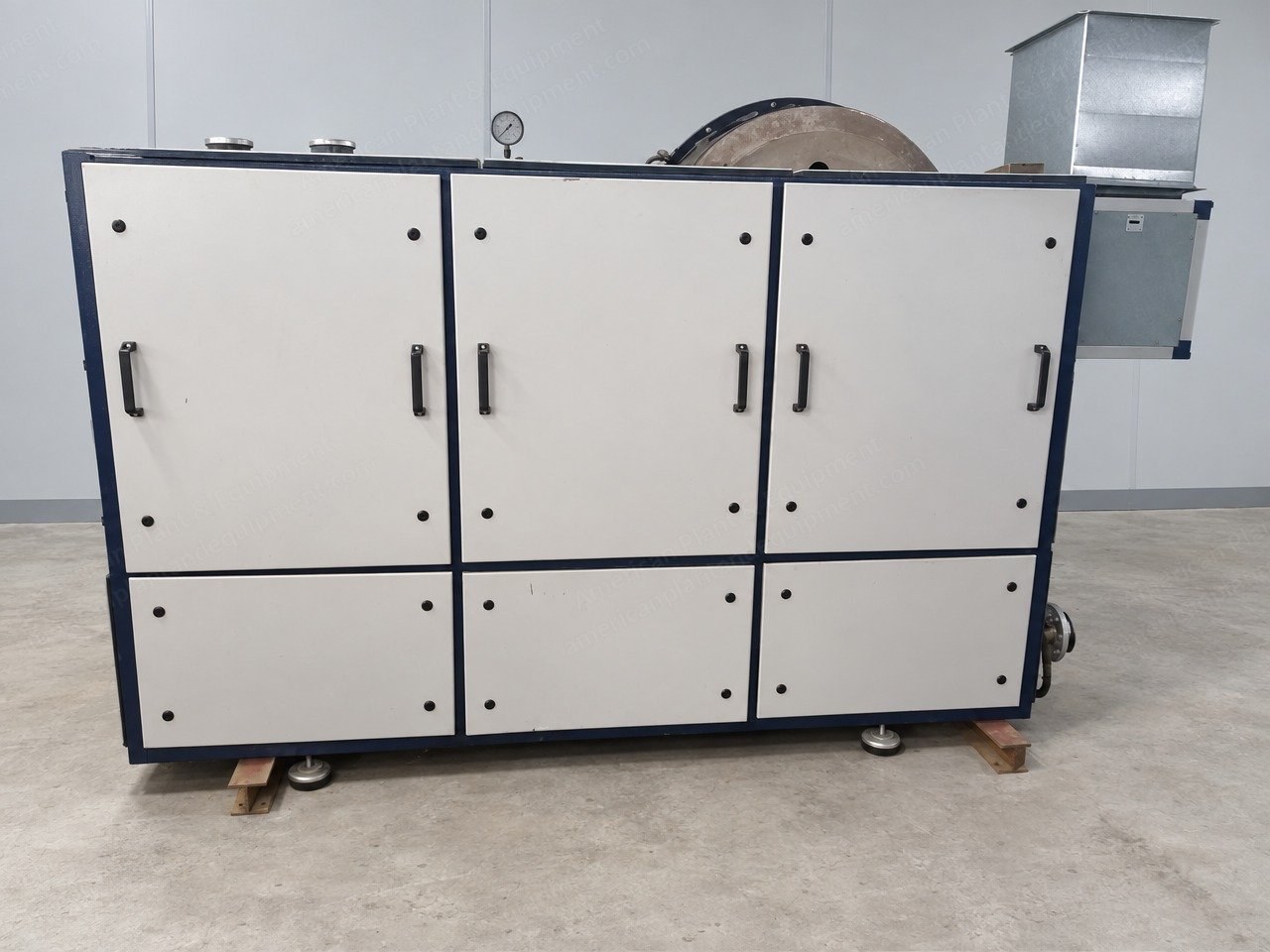

    1. Soundproofed with electric cabinet

  2. Specifications

    1. Rated capacity: 63 kVA

    2. Revolution per minute: 1500 U/min

    3. Capacity: 50 (heat exchanger) kW

    4. Type of fuel: (natural) gas

    5. Number of working hours: 87021 h

    6. Weight: ca. 2300 kg (5,071 lb)

    7. Dimensions L x W x H: ca. 3.0 x 1.0 x 1.8 m (5.9 ft)

  3. Engine

    1. MAN; type E0834 E302

    2. Gas-Otto 4-stroke engine, 1500 rpm

    3. Power mech. 54 kW (72.4 hp)

    4. Ignition control unit Motortech MIC 500 (MIC 520)

  4. Generator

    1. Leroy Somer; type LSA 43.2 8

    2. Type output 87 kVA

    3. 1500 rpm

    4. Voltage 400V

  5. Heat Exchanger Module

    1. Heat transfer, engine cooling water output 46 kW (61.7 hp)

    2. Exhaust gas heat output 33 kW (44.3 hp)

    3. Total heat output via plate heat exchanger = 79 kW (105.9 hp)

    4. Connections for gas inlet, flue gas outlet, condensate drain and heating water on the side, with exhaust gas top
