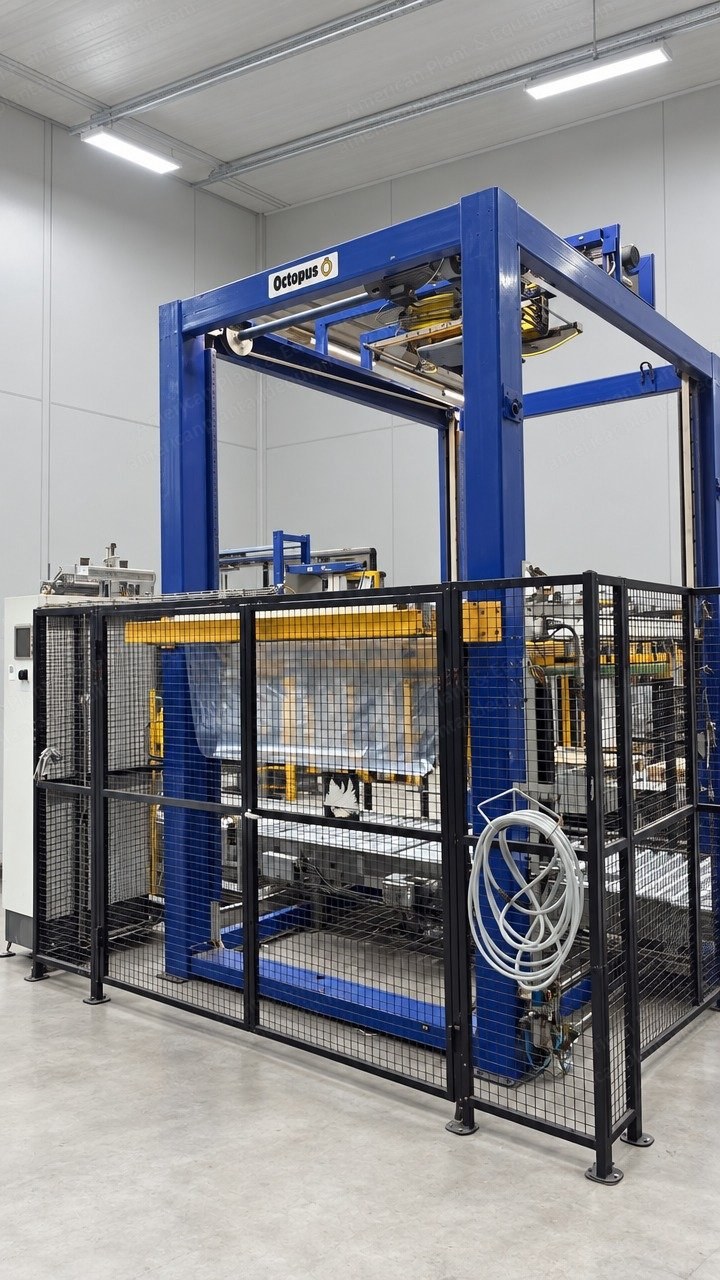

Haloila, Octopus 1800 SFTS TWIN, 2008, Automatic Rotary-Ring Pallet Stretch Wrapper, up to 100 pallets/hr

Haloila, Octopus 1800 SFTS TWIN, 2008, Automatic Rotary-Ring Pallet Stretch Wrapper, up to 100 pallets/hr

Description

  1. Overview

    1. Haloila Octopus 1800 SFTS TWIN automatic rotary-ring stretch wrapper for palletised loads

    2. Built in 2008 by Oy M. Haloila Ab and delivered under the ITW Mima Packaging Systems brand; the Octopus line is sold today under the Signode name

    3. Rotating ring carries the film carriages around the stationary pallet, so the load itself is never turned

    4. TWIN configuration with two film carriages running on the ring

    5. Output of up to 100 pallets per hour with standard overlap and 21 wraps

    6. Processes Euro pallets and half pallets

    7. Top sheet unit installed, functional and in daily use

    8. No automatic reel change (RCS)

  2. Technical Data

    1. Manufacturer: Haloila

    2. Model: Octopus 1800 SFTS TWIN

    3. Year of manufacture: 2008

    4. Machine type: automatic rotary-ring pallet stretch wrapper (pallet winder)

    5. Operating hours: 50,408 h

    6. Output: up to 100 pallets/h at standard overlap and 21 wraps

    7. Pallet formats: Euro pallets and half pallets

    8. Configuration: TWIN, two film carriages on the rotating ring

    9. Automatic reel change (RCS): no

    10. Top sheet unit: yes, functional and in use

    11. Control: Siemens SIMATIC S7-300 PLC

    12. Operator panel: Siemens SIMATIC touch panel

    13. Communication: SIMATIC NET / PROFIBUS

    14. Drives: Emerson / Control Techniques frequency inverters (Commander SK, Unidrive M300)

    15. Power supply: 3 x 480 V

    16. Max. current: 20 A

    17. Connected load: 5.0 kW (6.7 hp)

    18. Machine weight: approx. 2,650 kg (5,842 lb)

    19. CE mark on the machine plate

  3. Equipment

    1. Rotating ring with two film carriages (TWIN), film clamping and cutting on the ring

    2. Top sheet unit for covering the pallet load before wrapping

    3. Siemens SIMATIC S7-300 control with touch panel operation in a separate switch cabinet

    4. Emerson / Control Techniques inverter drives

    5. Operating manual, wiring diagrams and further technical documentation

  4. Not Included

    1. The pallet conveyor

  5. Condition

    1. Used and fully functional

    2. In production at the time of listing

    3. 50,408 operating hours

    4. Maintenance was carried out regularly by the machine manufacturer

    5. Sold without warranty

  6. Availability

    1. From 16 October 2026
